Waterproof Junction Box Series IP55/IP65 PS ABS (free choice) PV box
Product overview
Shell material: PS,ABS (free choice)
Hole plug material: PVC
Waterproof rating: IP55/IP65
Inlet and outlet hole: The waterproof box can be selected on the existing hole plug according tothe size of the wire, or the hole can be opened according to the demand.
Key words:Waterproof Junction Box Series

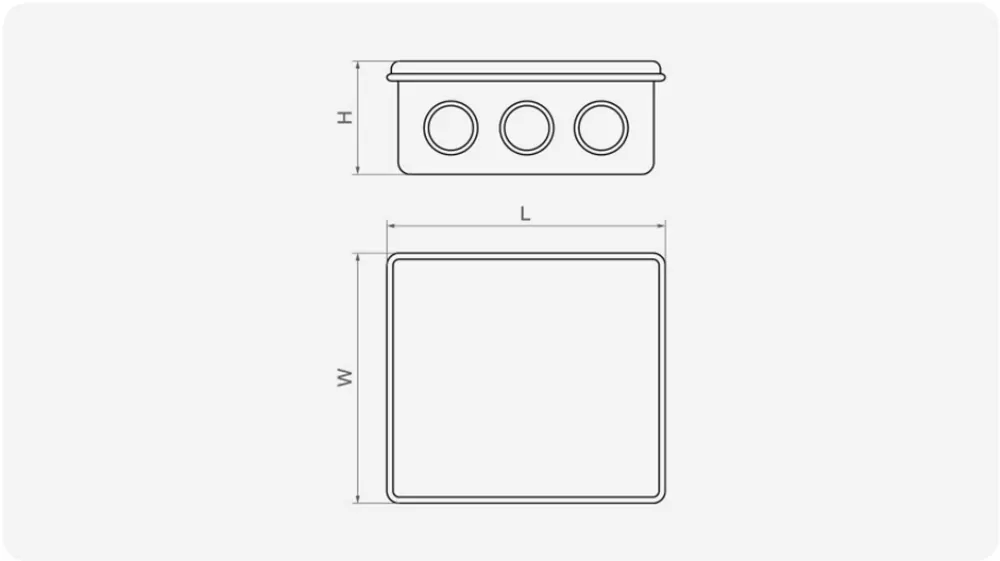

Overall dimension
| Product specification (mm) | waterproofing grade | Hole diameter (mm) | Number of connecting holes | Packing quantity (PCS) |

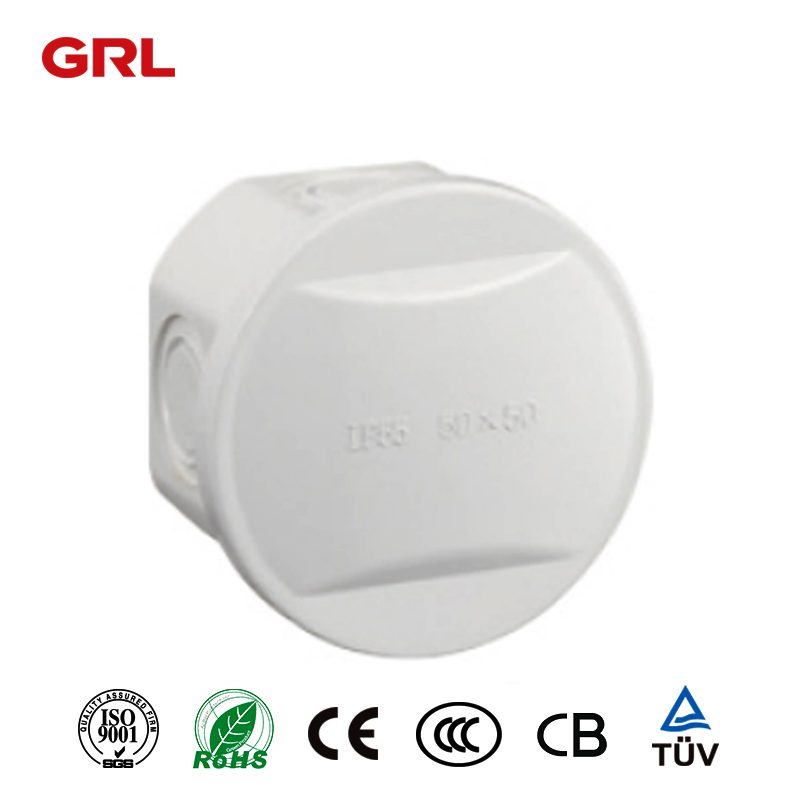

| 50×50 | IP55 | 25 | 4 | 500 |

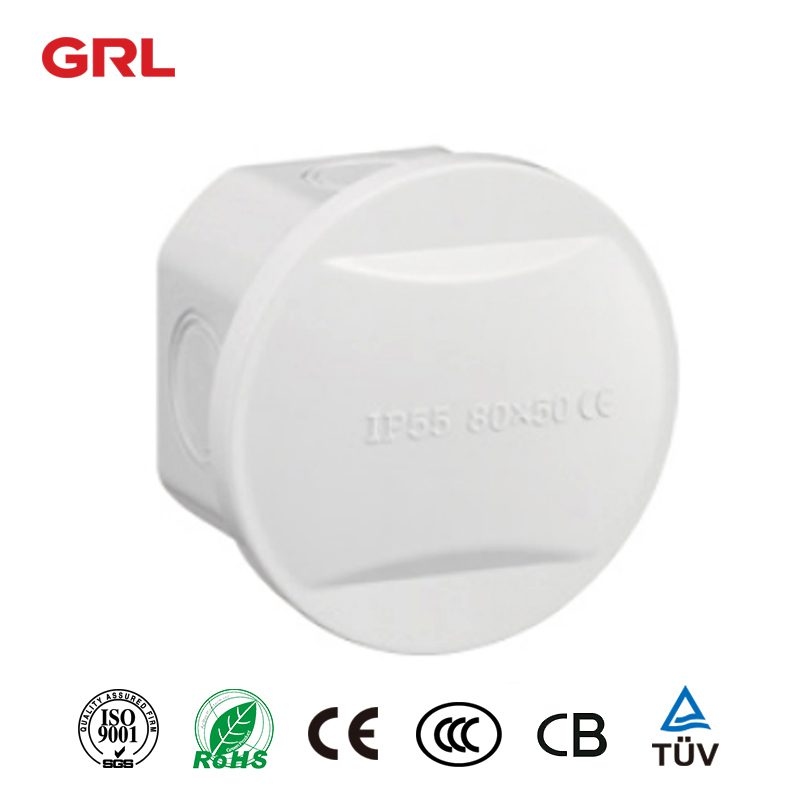

| 80×50 | IP55 | 25 | 4 | 200 |

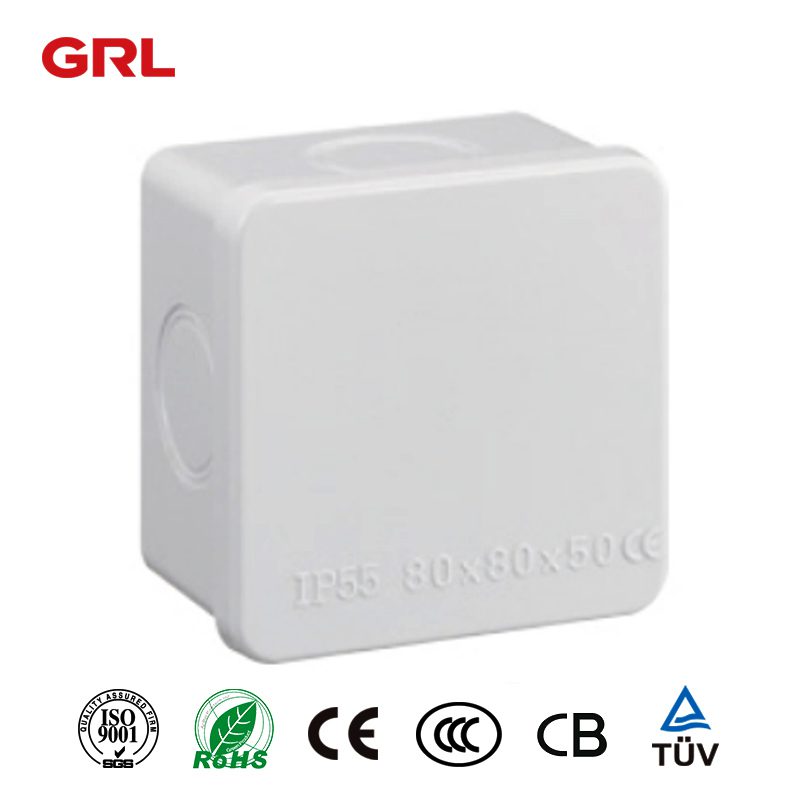

| 80x80x50 | IP55 | 27 | 4 | 200 |

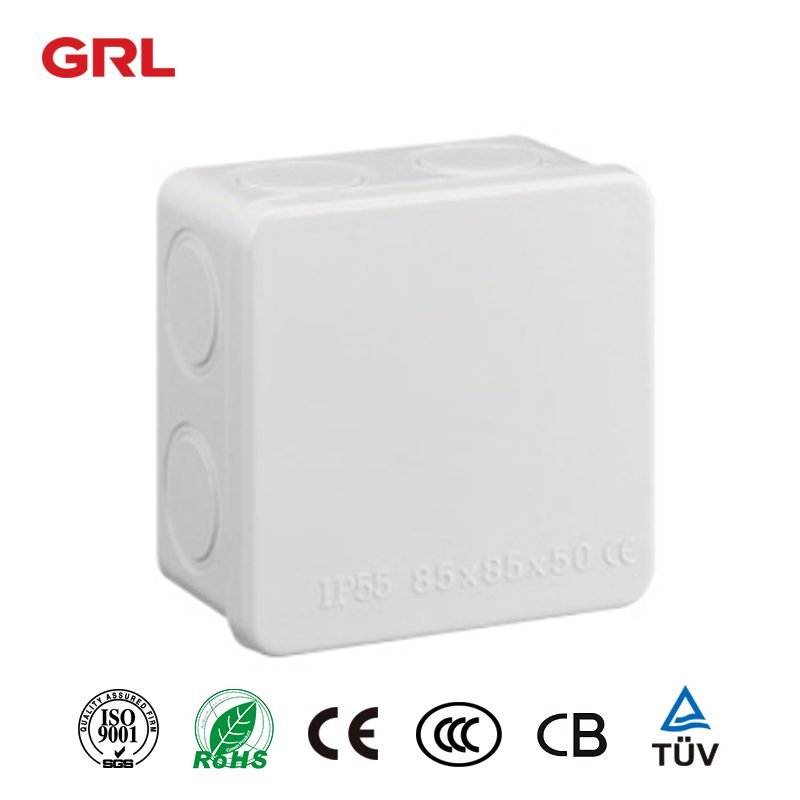

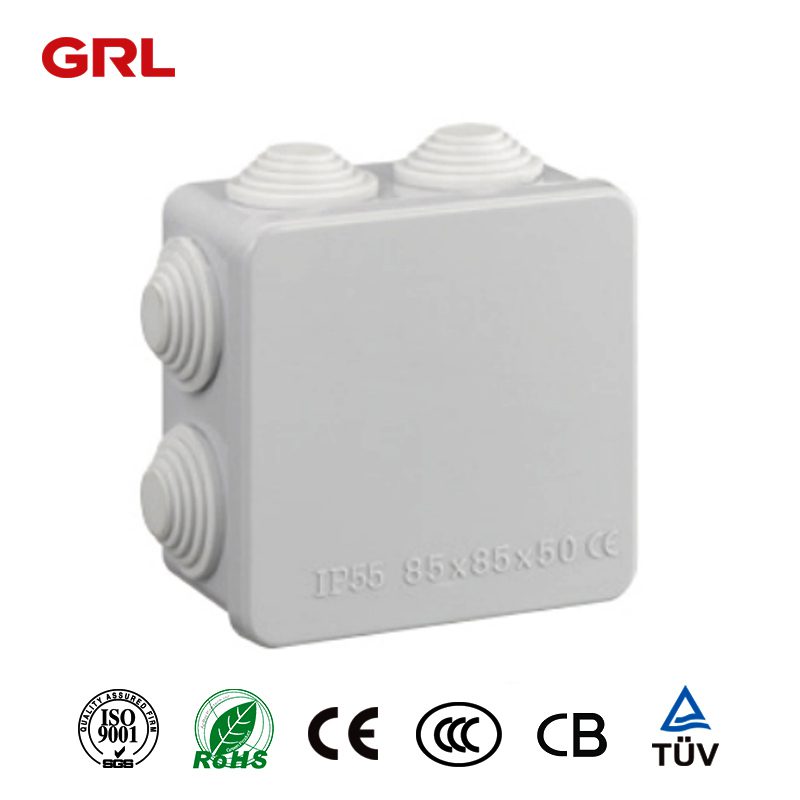

| 85x85x50 | IP55 | 27 | 7 | 200 |
| 100x100x70 | IP65 | 27 | 7 | 100 |
| 150x110x70 | IP65 | 27 | 10 | 60 |
| 150x150x70 | IP65 | 27 | 7 | 60 |
| 200x100x70 | IP65 | 27 | 8 | 50 |
| 200x155x80 | IP65 | 36 | 10 | 30 |
| 200x200x80 | IP65 | 36 | 12 | 30 |
| 255x200x80 | IP65 | 36 | 12 | 30 |
| 255x200x120 | IP65 | 36 | 12 | 30 |
| 300x250x120 | IP65 | 36 | 12 | 20 |
| 400x350x120 | IP65 | 36 | 16 | 5 |
