Waterproof Junction Box Series (With Rubber Plug) IP55/IP65 waterproof box


Product overview

Shell material: PS,ABS (free choice)

Hole plug material: PVC

Waterproof rating: IP55/IP65

Inlet and outlet hole: The waterproof box can be selected on the existing hole plug according tothe size of the wire, or the hole can be opened according to the demand.

Key words:Waterproof Junction Box



Waterproof Junction Box Series (With Rubber Plug)

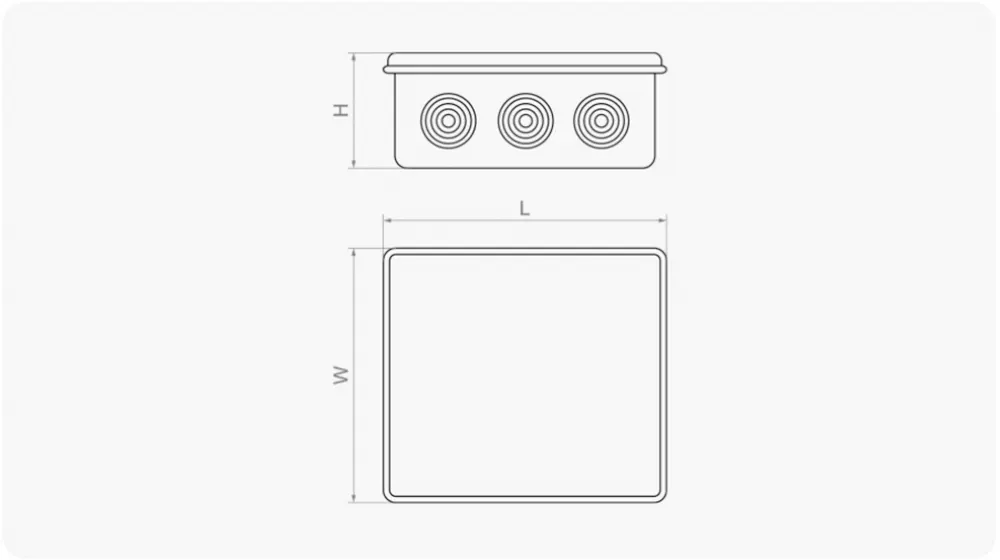

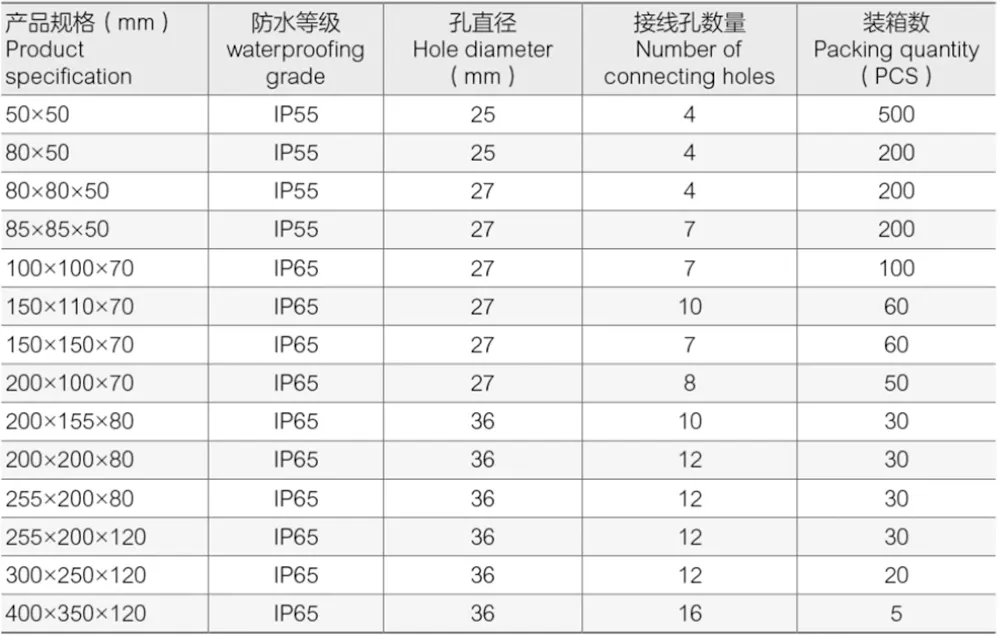

Overall dimension

Product
specification (mm)
waterproofing
grade
Hole diameter
(mm)
Number of
connecting holes
Packing quantity
(PCS)

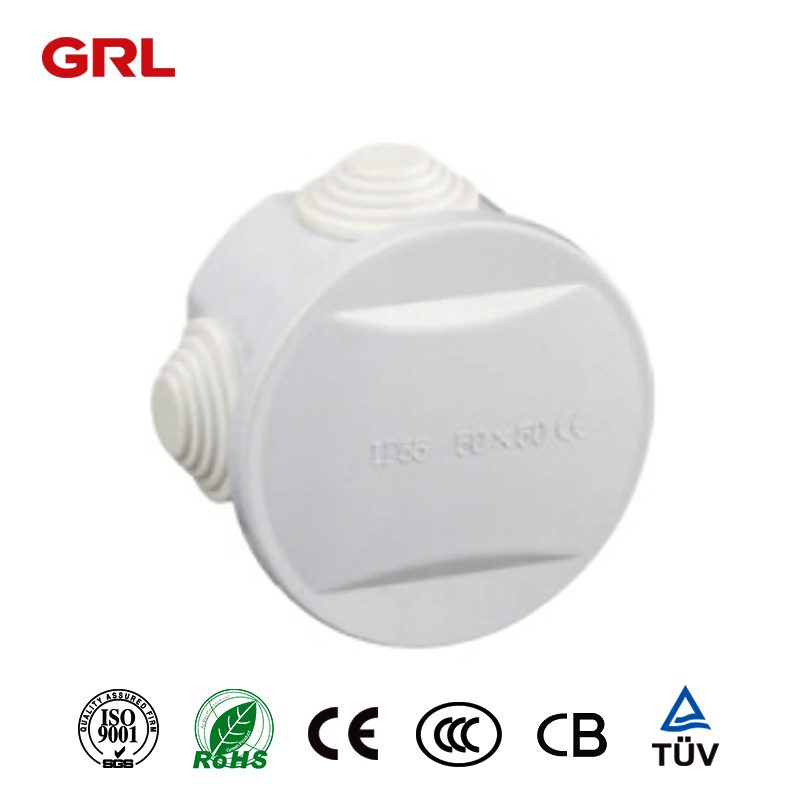

50×50 IP55 25 4 500

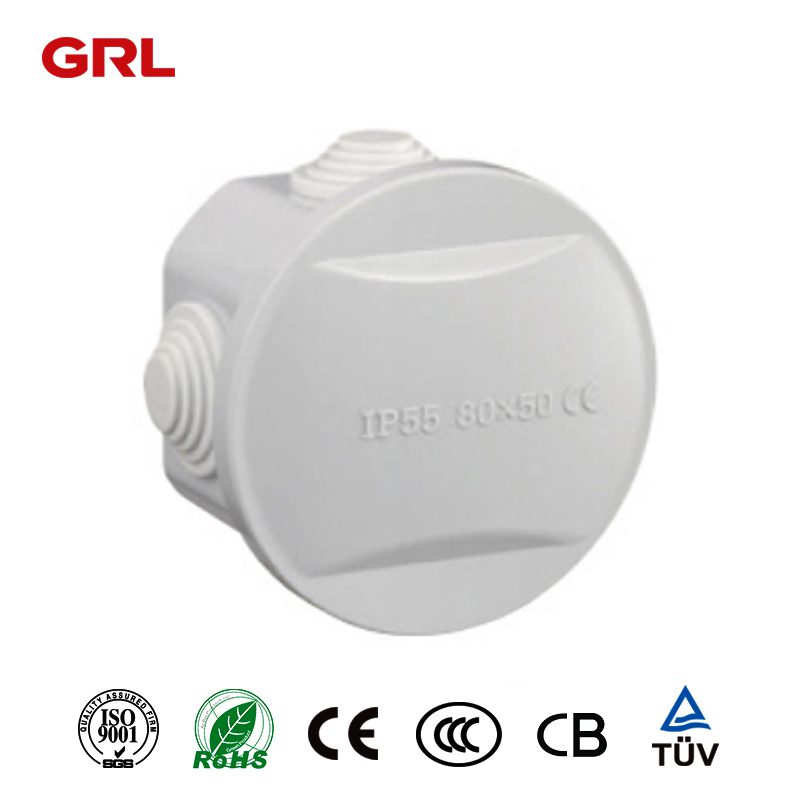

80×50 IP55 25 4 200

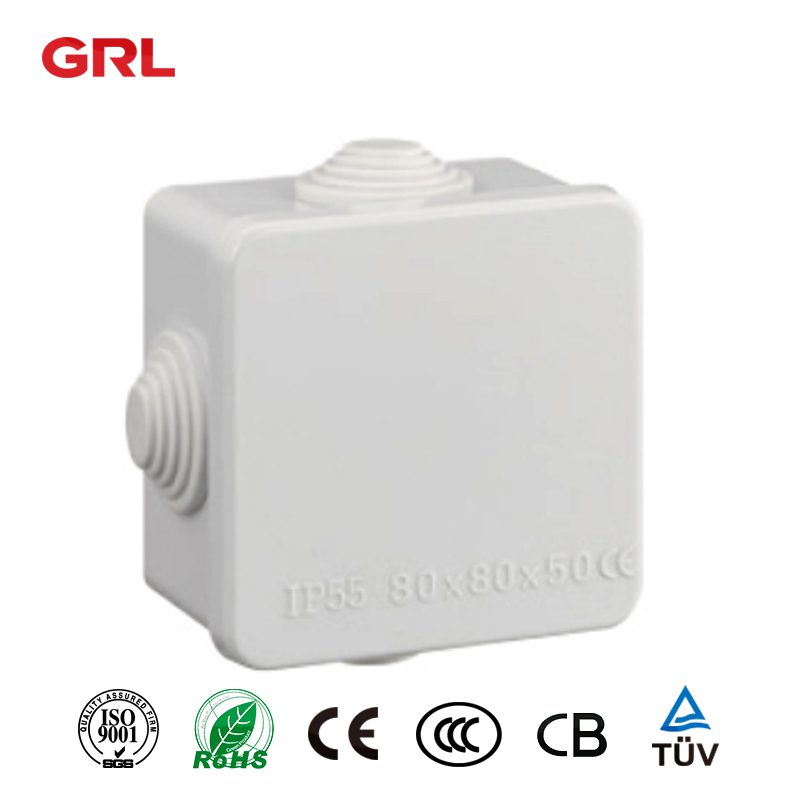

80x80x50 IP55 27 4 200

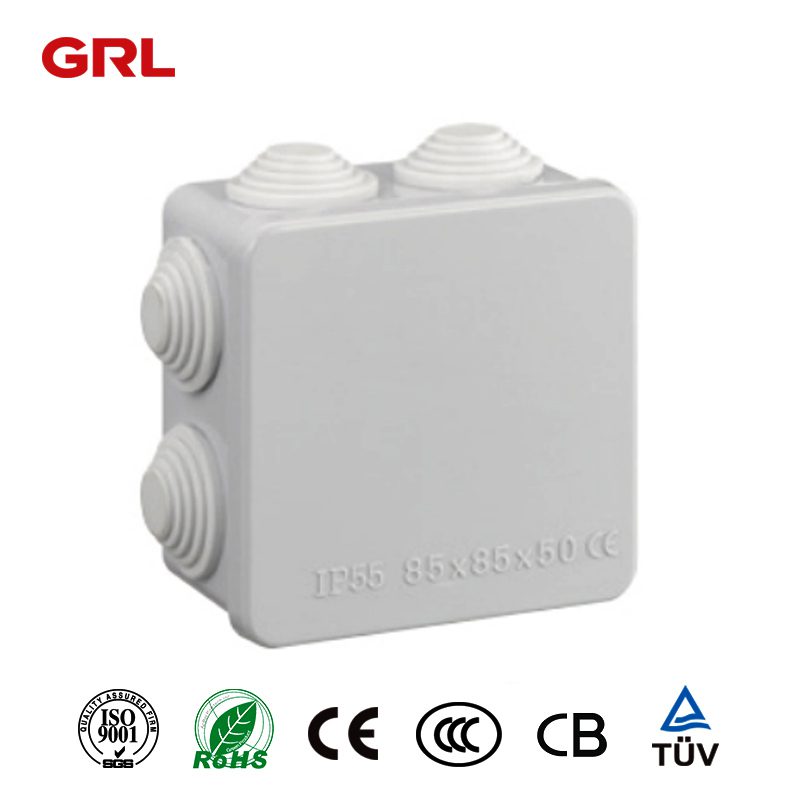

85x85x50 IP55 27 7 200
100x100x70 IP65 27 7 100
150x110x70 IP65 27 10 60
150x150x70 IP65 27 7 60
200x100x70 IP65 27 8 50
200x155x80 IP65 36 10 30
200x200x80 IP65 36 12 30
255x200x80 IP65 36 12 30
255x200x120 IP65 36 12 30
300x250x120 IP65 36 12 20
400x350x120 IP65 36 16 5

Waterproof Junction Box
