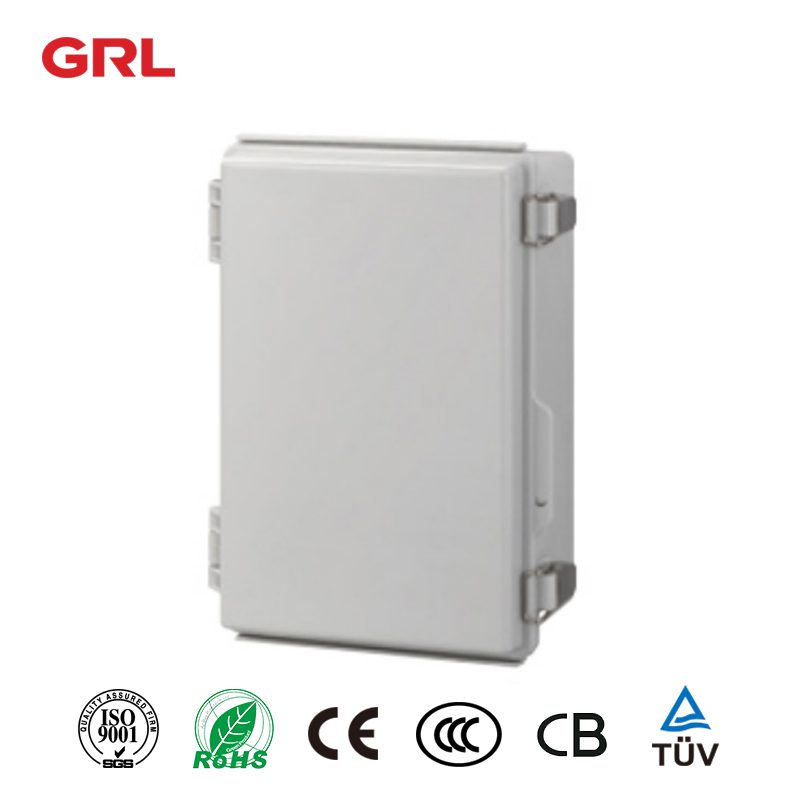

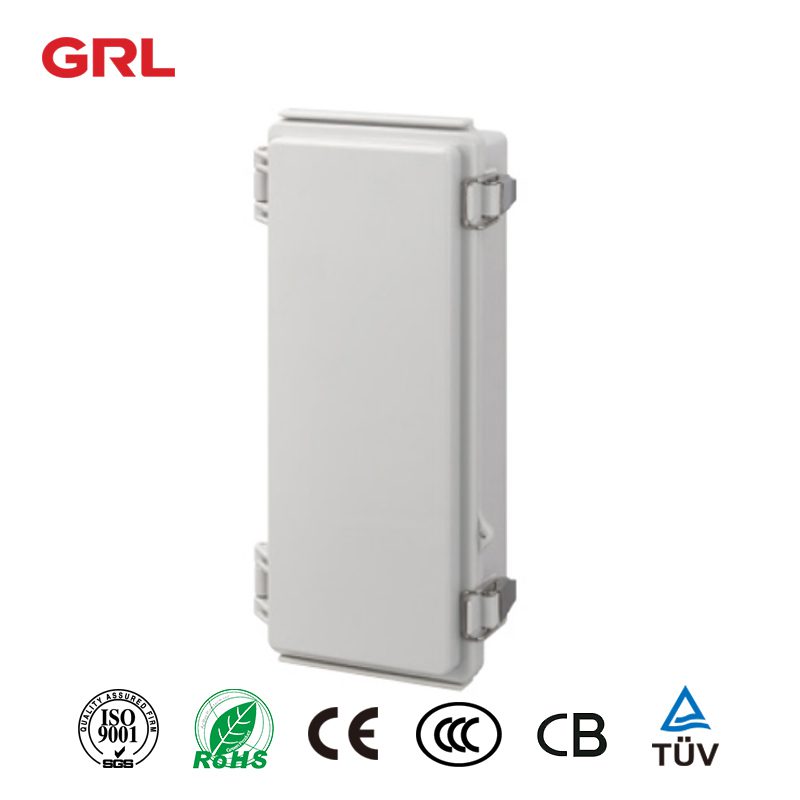

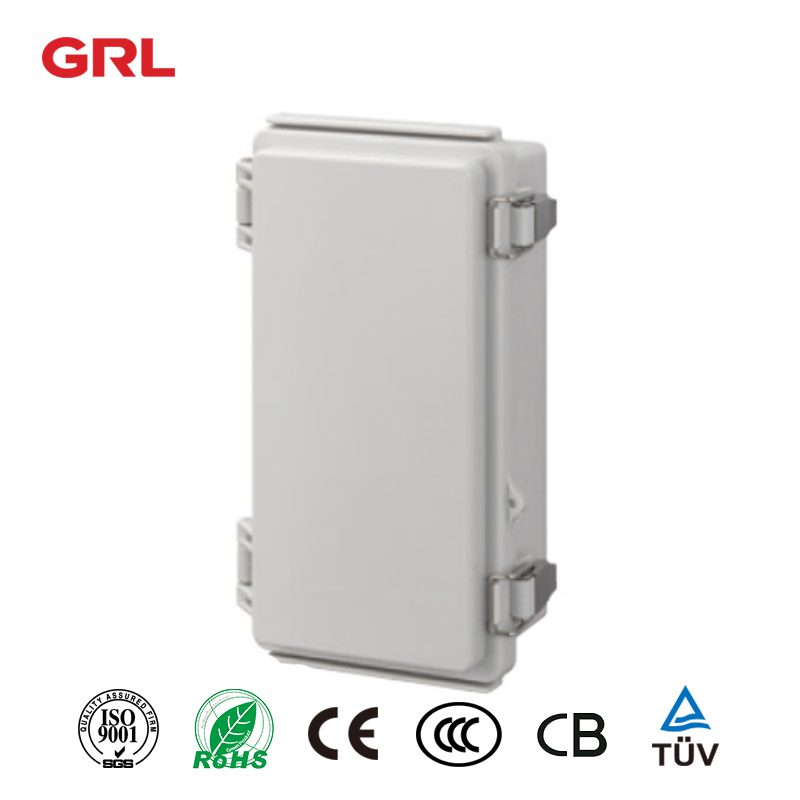

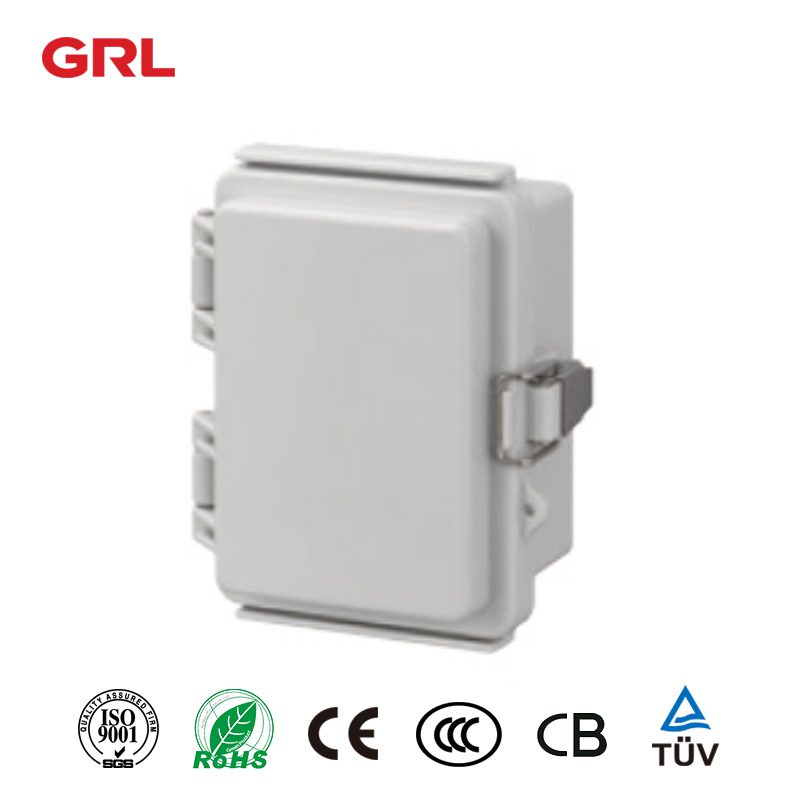

Stainless Steel Buckle Waterproof Base Box IP66 PV box
Product overview
Waterproof, dustproof, corrosion resistance, high strength insulation.
Can be opened according to user needs, complete specifications, easy to install.
Protection level:IP66
Key words:Waterproof Base Box

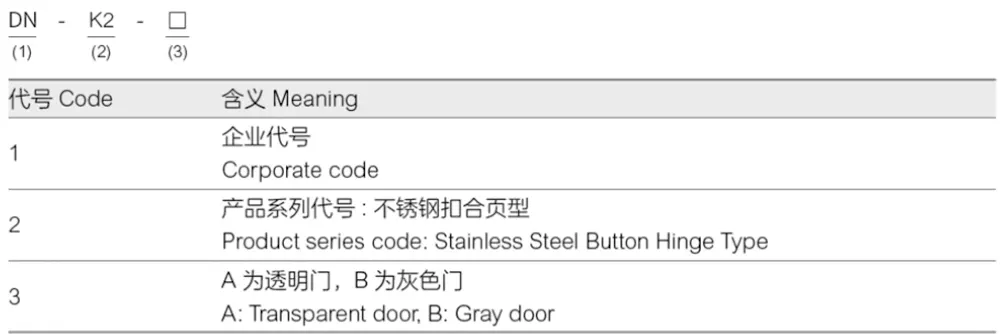

Model meaning

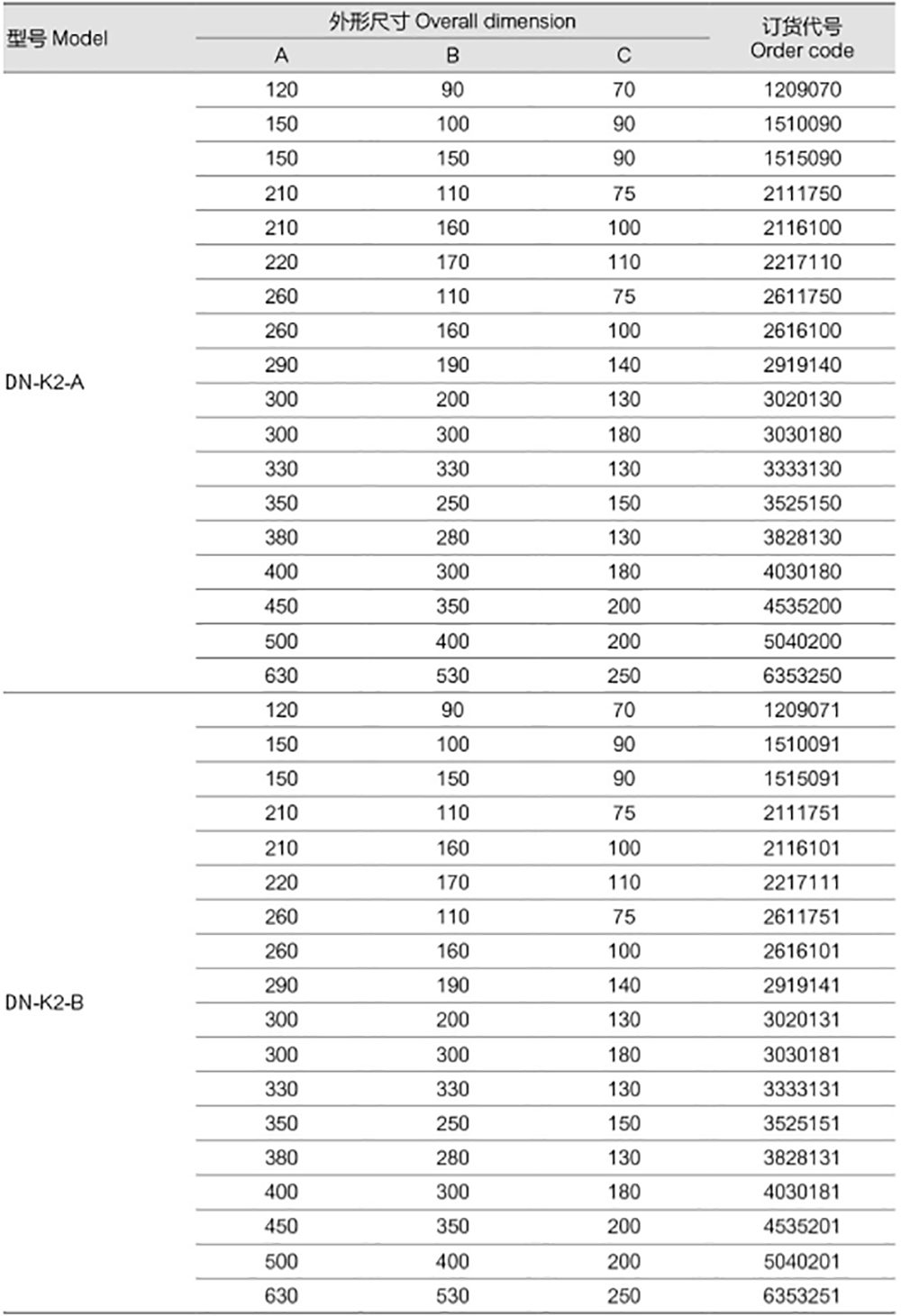

Main technical parameters

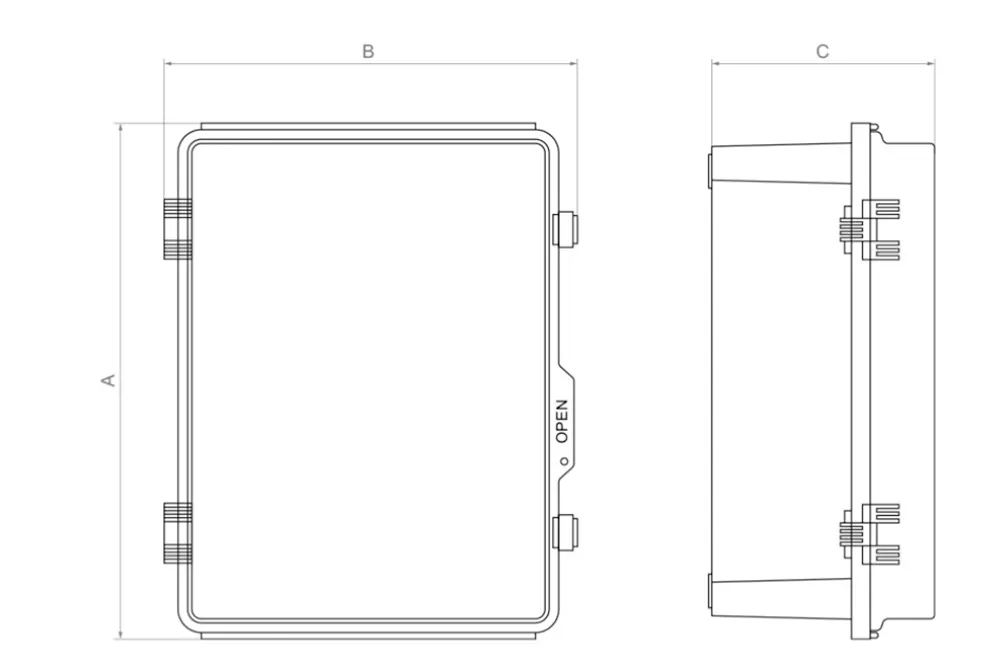

| Model | Overall dimension | Order code | ||
| A | B | C | ||
| DN-K2-A | 120 | 90 | 70 | 1209070 |
| 150 | 100 | 90 | 1510090 | |
| 150 | 150 | 90 | 1515090 | |
| 210 | 110 | 75 | 2111750 | |
| 210 | 160 | 100 | 2116100 | |
| 220 | 170 | 110 | 2217110 | |
| 260 | 110 | 75 | 2611750 | |
| 260 | 160 | 100 | 2616100 | |
| 290 | 190 | 140 | 2919140 | |
| 300 | 200 | 130 | 3020130 | |
| 300 | 300 | 180 | 3030180 | |
| 330 | 330 | 130 | 3333130 | |
| 350 | 250 | 150 | 3525150 | |
| 380 | 280 | 130 | 3828130 | |
| 400 | 300 | 180 | 4030180 | |
| 450 | 350 | 200 | 4535200 | |
| 500 | 400 | 200 | 5040200 | |
| 630 | 530 | 250 | 6353250 | |
| DN-K2-B | 120 | 90 | 70 | 1209071 |
| 150 | 100 | 90 | 1510091 | |
| 150 | 150 | 90 | 1515091 | |
| 210 | 110 | 75 | 2111751 | |
| 210 | 160 | 100 | 2116101 | |
| 220 | 170 | 110 | 2217111 | |
| 260 | 110 | 75 | 2611751 | |
| 260 | 160 | 100 | 2616101 | |
| 290 | 190 | 140 | 2919141 | |
| 300 | 200 | 130 | 3020131 | |
| 300 | 300 | 180 | 3030181 | |
| 330 | 330 | 130 | 3333131 | |
| 350 | 250 | 150 | 3525151 | |
| 380 | 280 | 130 | 3828131 | |
| 400 | 300 | 180 | 4030181 | |
| 450 | 350 | 200 | 4535201 | |
| 500 | 400 | 200 | 5040201 | |
| 630 | 530 | 250 | 6353251 | |
