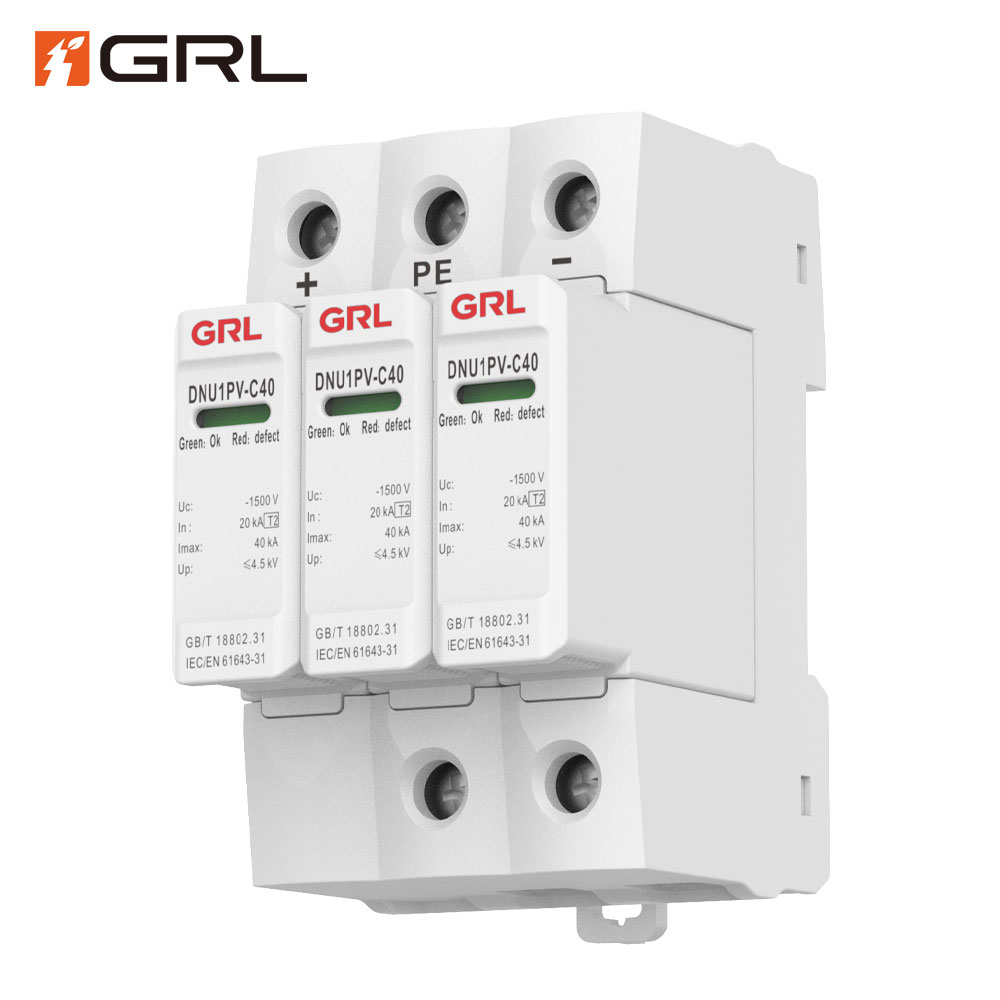

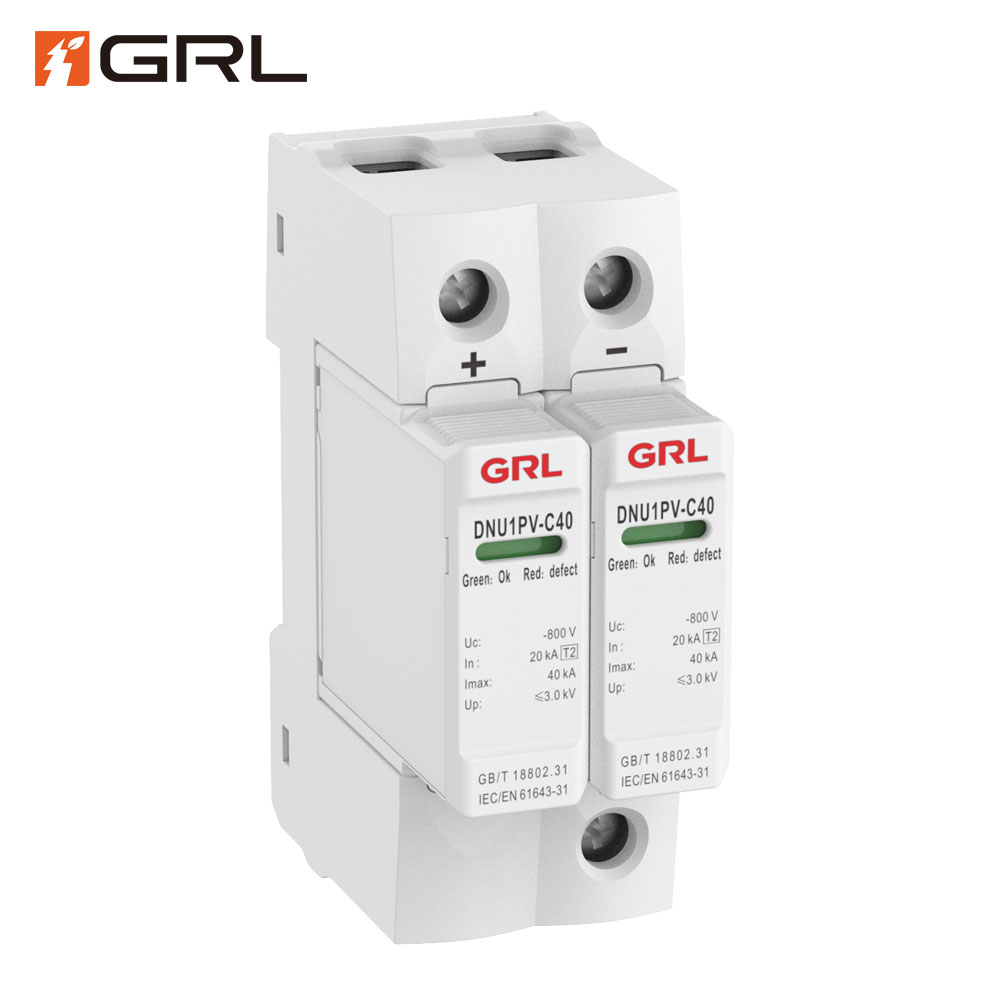

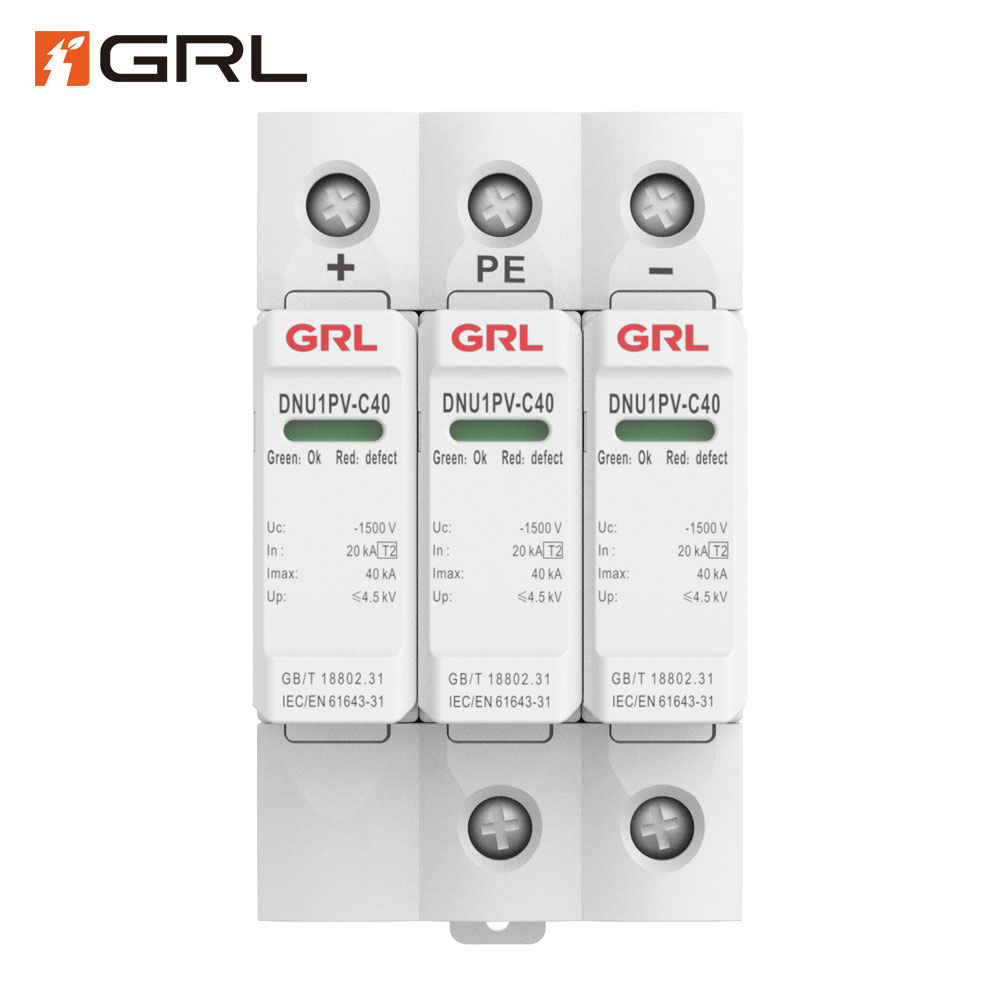

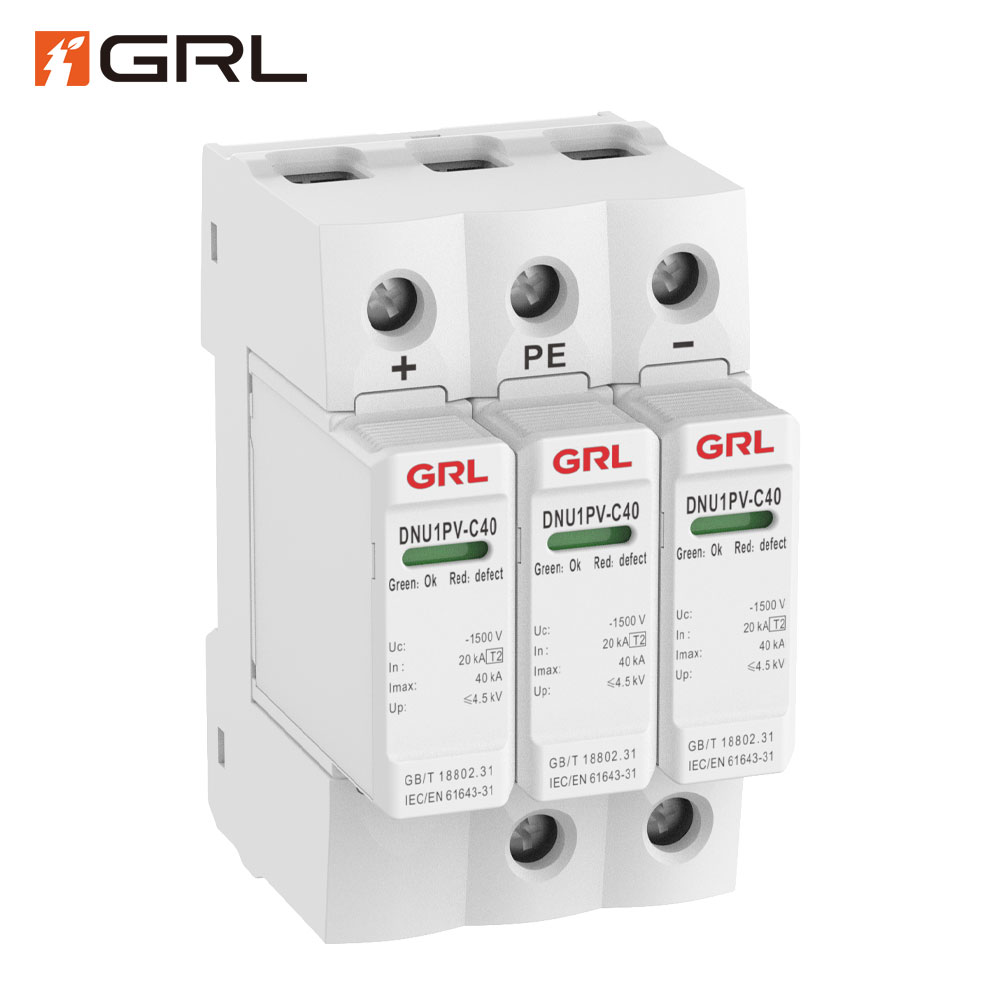

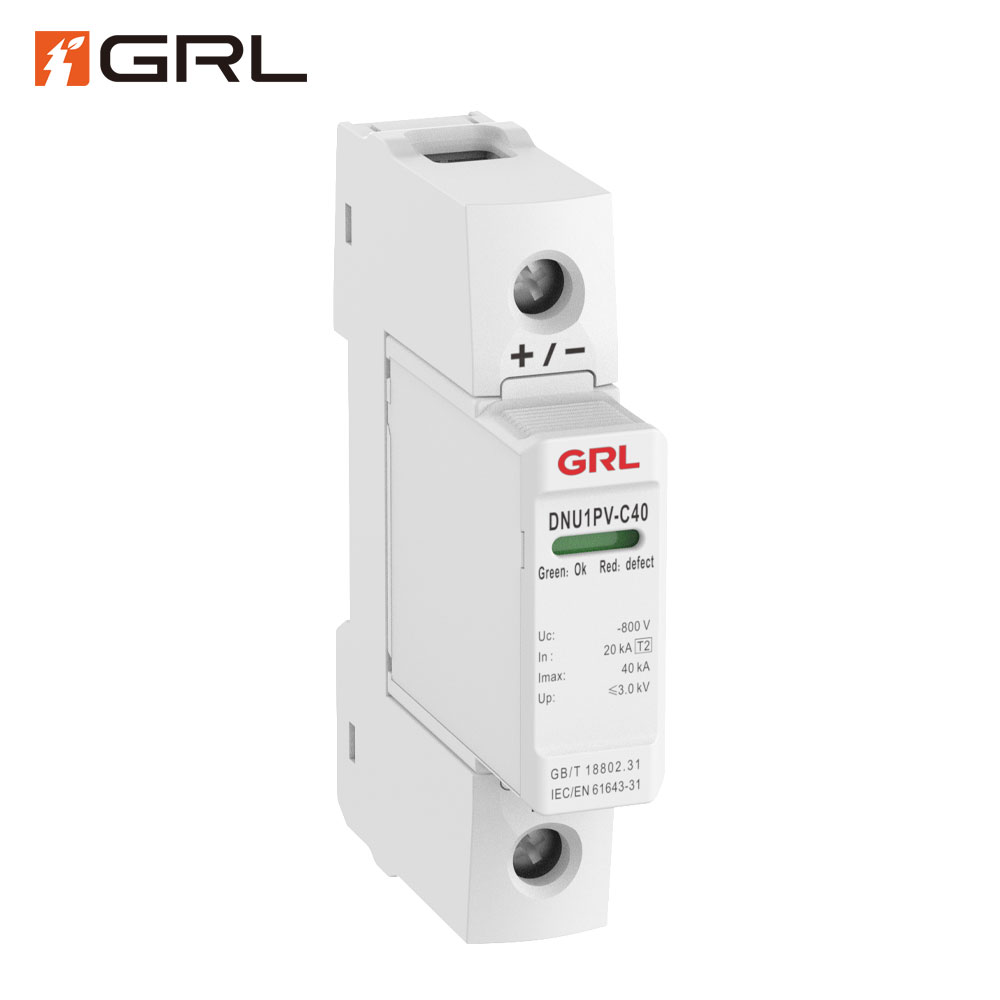

Surge Protection Device DC 500V~1500V Manufacturers GRL

Surge Protection Device Overview

A Surge Protection Device (SPD) is an electrical device used to protect sensitive equipment and electrical systems from voltage spikes or surges. These surges can be caused by lightning strikes, power grid switching, or sudden interruptions in power flow. Without proper protection, these sudden voltage increases can damage or destroy electrical equipment.

How surge protection device Function？

The SPD operates by continuously monitoring the voltage in the electrical system. If it detects a voltage surge exceeding a certain threshold, the SPD’s internal components activate to divert the excess energy to the ground. This prevents the excessive voltage from reaching and damaging connected devices, ensuring the system remains operational and protected.

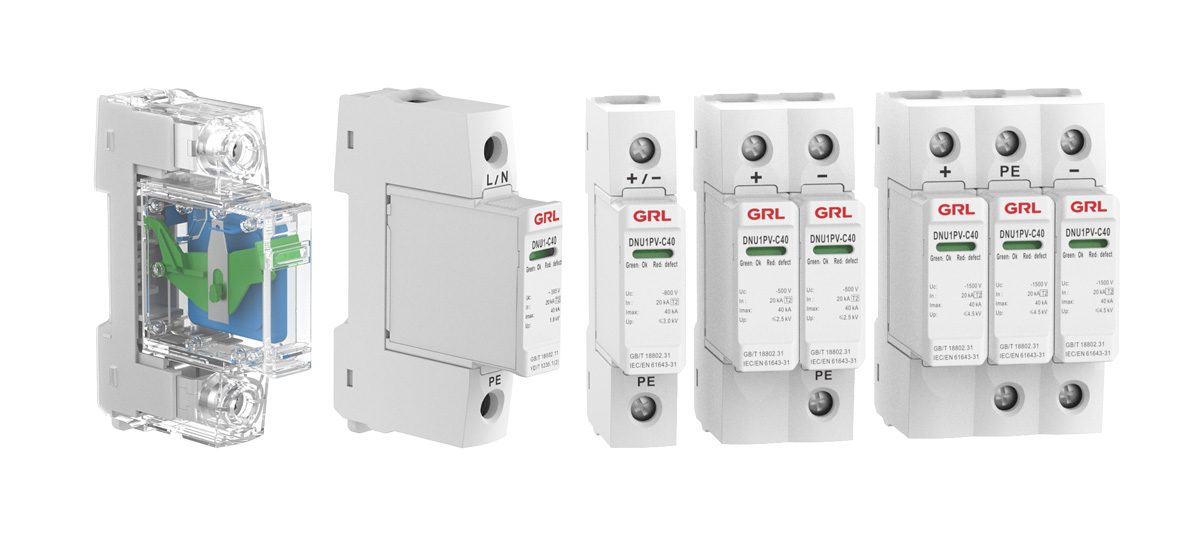

Surge Protection Device Structure

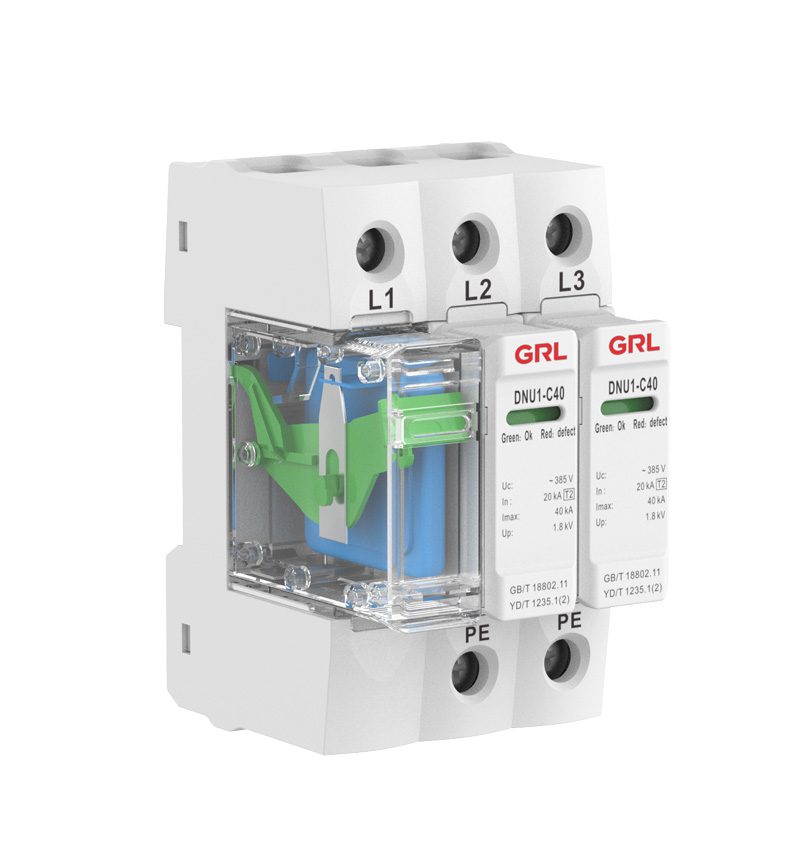

It is made of top-grade MOV chips, conductive materials, and V0-rated flame-retardant nylon, this surge protector is designed for isolated modular installations.

Surge Protection Device Featrues

1. High-grade materials ensure superior performance and durability.

2.Multiple testing standards and voltage levels provide comprehensive surge protection for a wide range of applications.

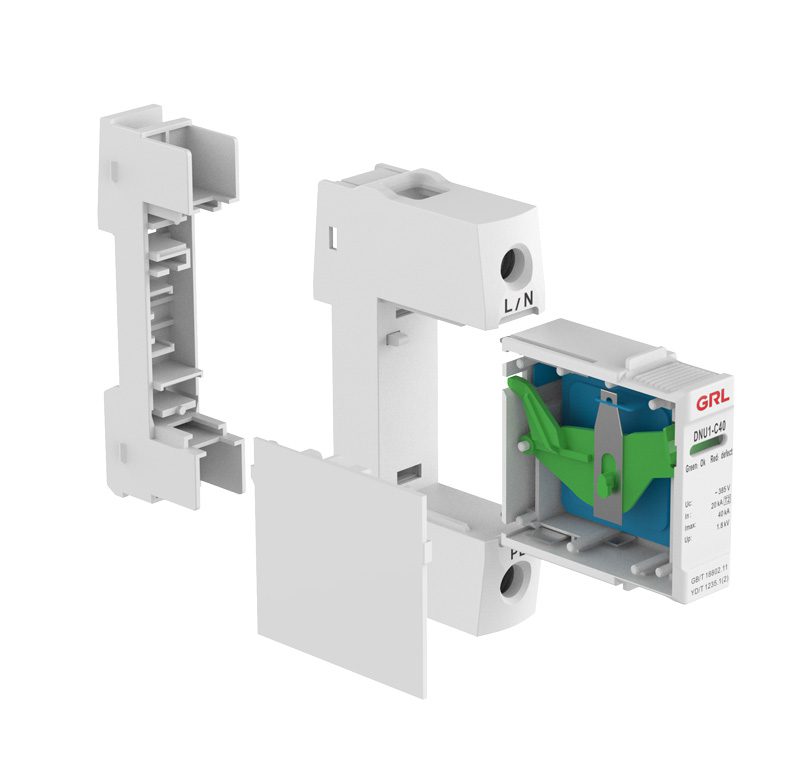

3.Plug-in module design allows base reuse, lowering maintenance costs.

4.Compact design fits perfectly with circuit breakers, maximizing space usage.

5.Simple and convenient tool-free installation, featuring a bi-stable guide rail design.

Click to view install surge protective device>>

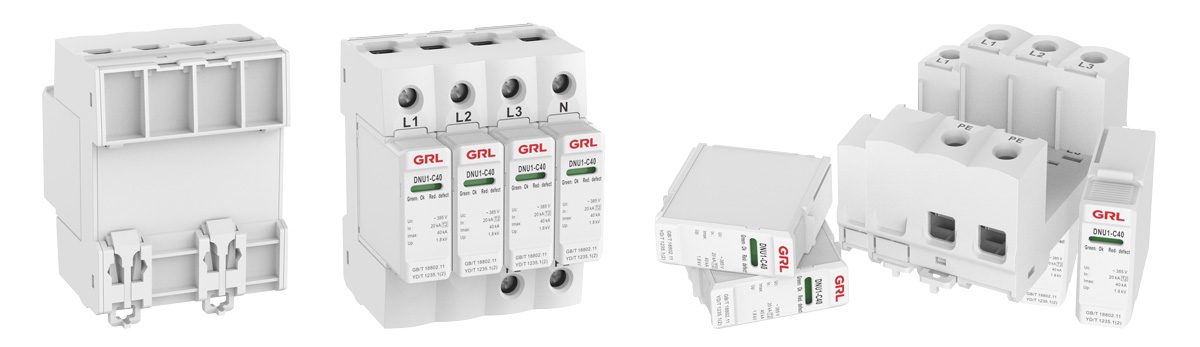

Surge Protection Device Installation Tips

1.The compact, modular design fits seamlessly with circuit breakers, optimizing space and simplifying installation.

2.The anti-slip, rounded design of the shell and buckles ensures a comfortable and secure installation experience.

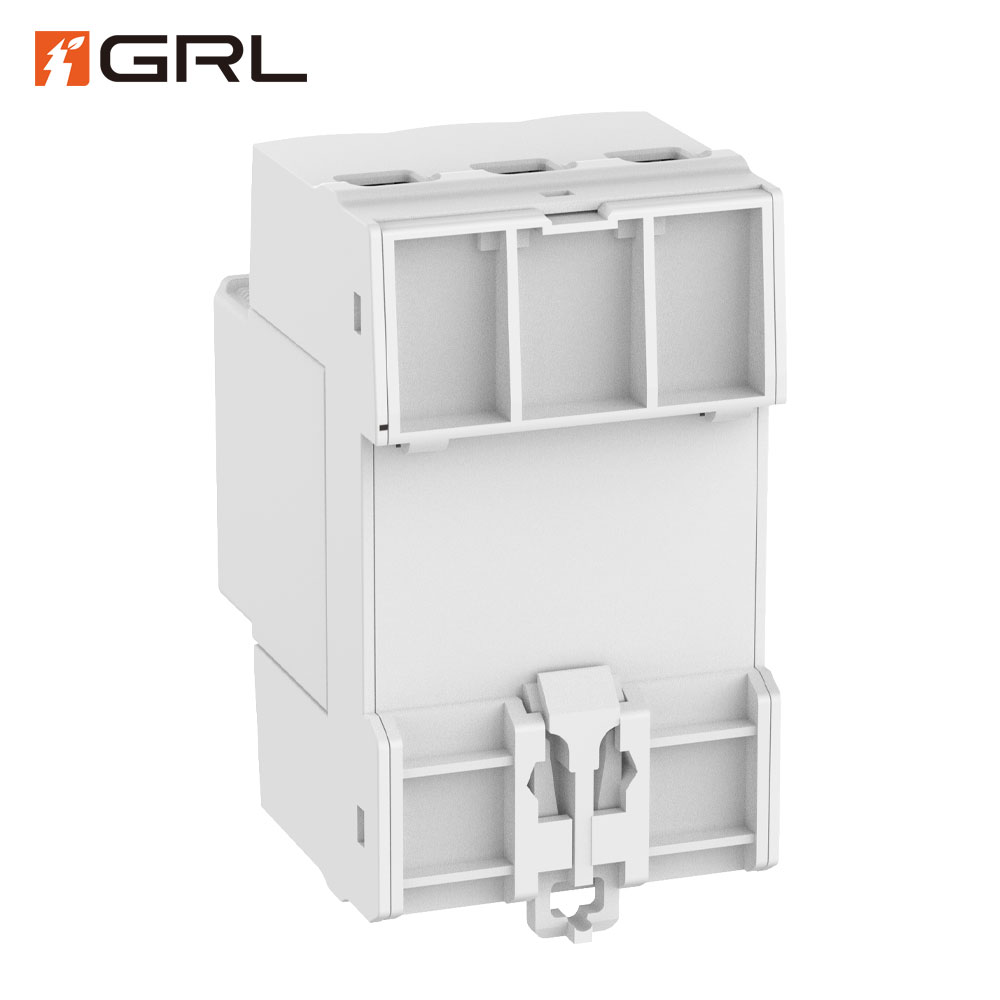

3.Tool-free guide rail installation allows for easy mounting and removal.

4.Two-way rail-type plug-in modules offer anti-slip features for easy disassembly and quick, tool-free replacements.

5.The plug-in base and module are designed with error prevention, ensuring correct installation of modules with different voltage and current ratings.

Click to view install surge protective device>>

Surge Protection Device Technical Parameter

• Maximum operating voltage (Uc): DC 500-1500V / AC 275-1250V
• Nominal discharge current (In): T2 (8/20 μs), withstanding up to 10-30 kA
• Maximum discharge current (Imax): T2 (8/20 μs), withstanding up to 20-60 kA
• Impulse current (Iimp): T1 (10/350 μs), handling 3-12.5 kA
• Voltage protection level (Up): Limits voltage within 1.5-4.8 kV after a surge, enhancing equipment safety
• Remote alarm: Optional remote monitoring and signaling for real-time status updates
• Failure indication: A visual window turns red when the device is in a fault state

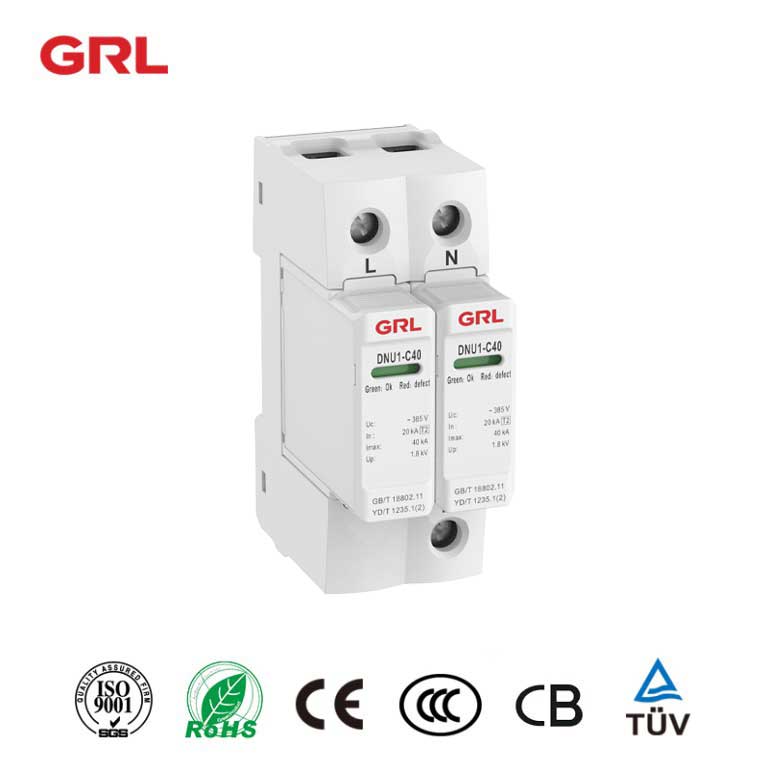

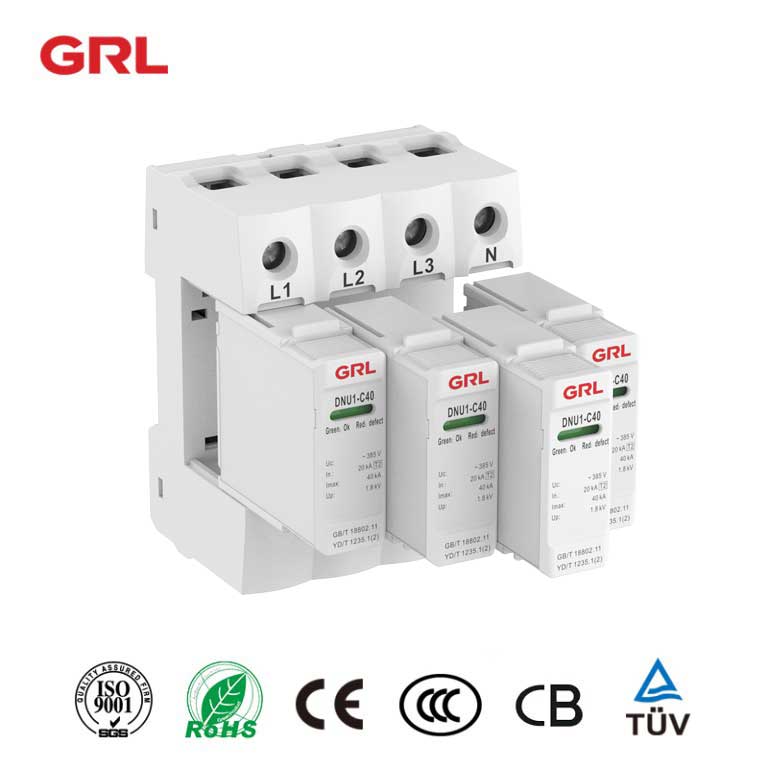

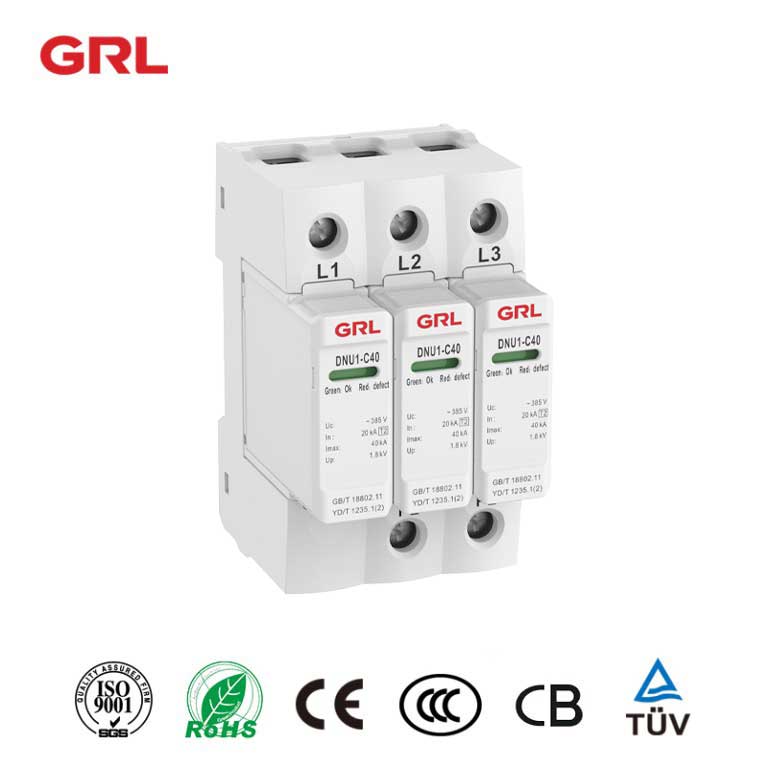

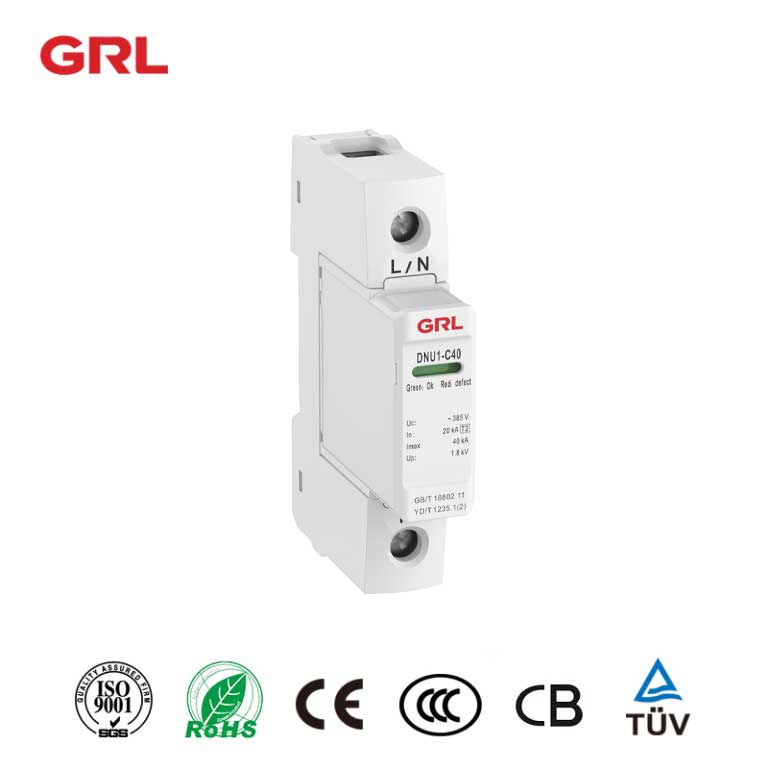

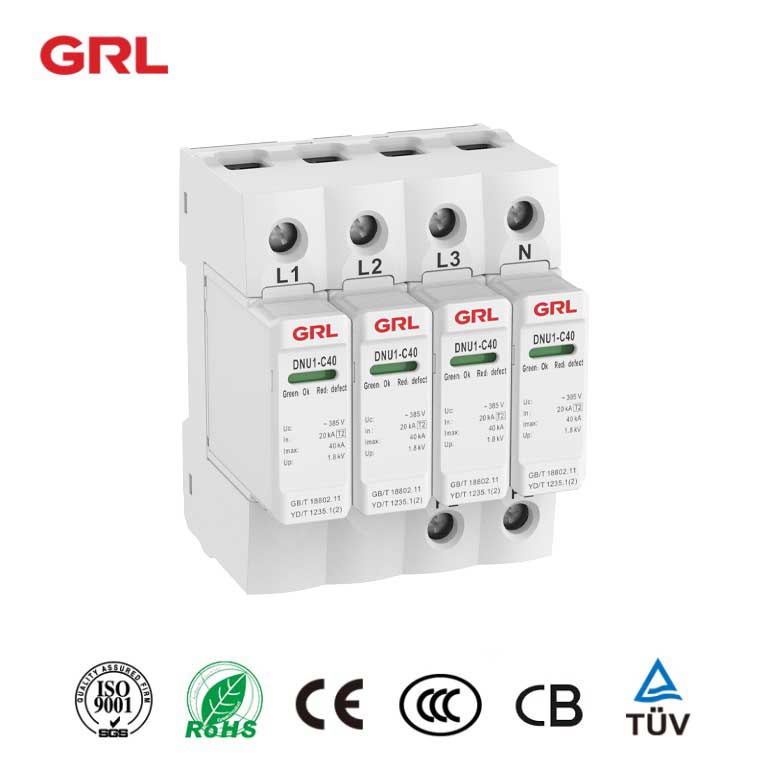

• Number of poles: Available in 1P/2P/3P
• Operating conditions: Operates in environments ranging from -40°C to +85°C, humidity ≤ 95%, altitude up to 3000m

Surge Protection Device Operating Conditions

1、Ambient temperature: -40℃ ~+40℃ ;

2、Relative humidity: the daily average value is not biggerthan 95%, and the monthly average value is not bigger than 90%;

3、Installation location: the altitude does not exceed 1000m;

4、Wind speed: no more than 35m/s;

5、Ice coating thickness: no more than 10mm;

6、Installation location: There should be no risk of fire,explosion, chemical corrosion and severe vibration;

7、Earthquake intensity: no more than magnitude 8;

8、Not suitable for places with burning or explosion hazards,places with severe vibration or impact, conductive and chemical gas and areas with severe pollution and salt spray.

Surge Protection Device Ordering Instruction

1、Item No；

2、Rated Voltage;

3、Rated Current;

4、Whether with arc extinguishing chamber;

5、Whether with mounting bracket ;

6、Special requirements
