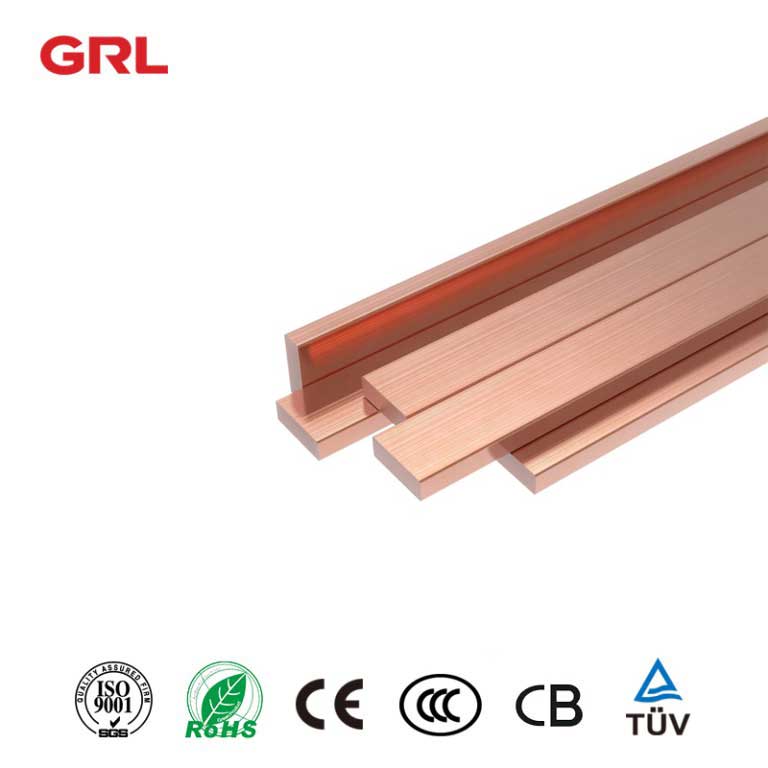

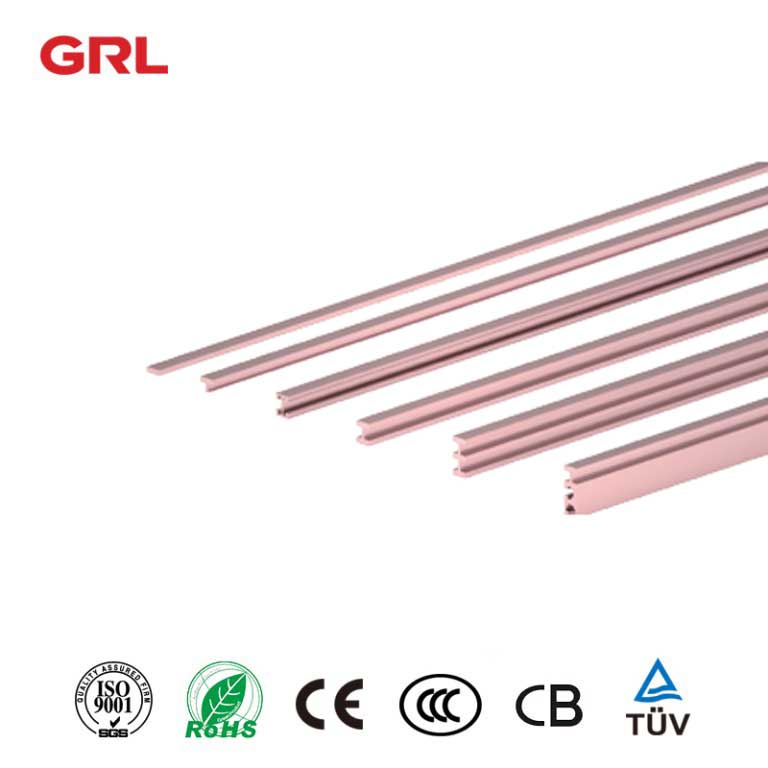

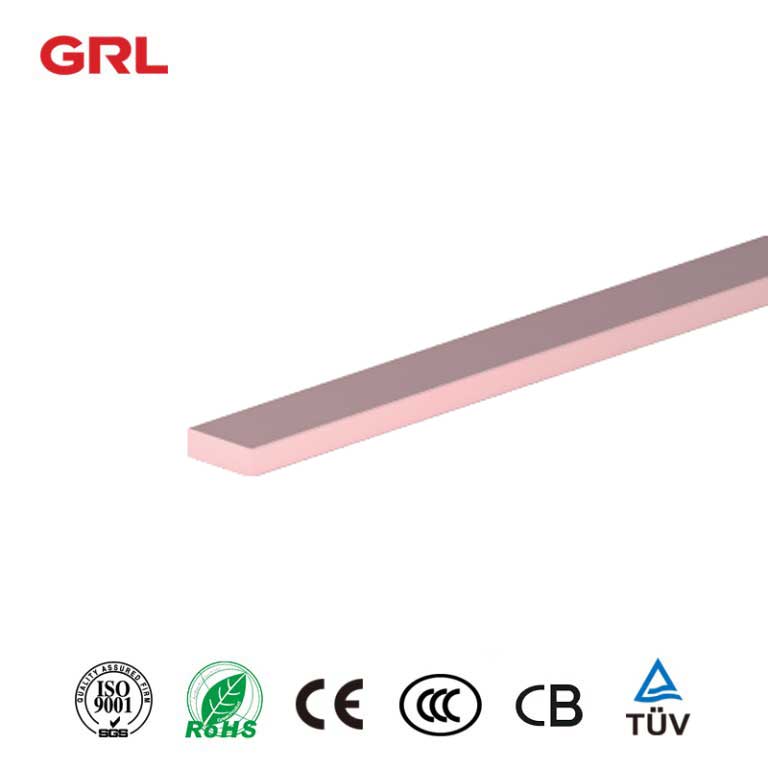

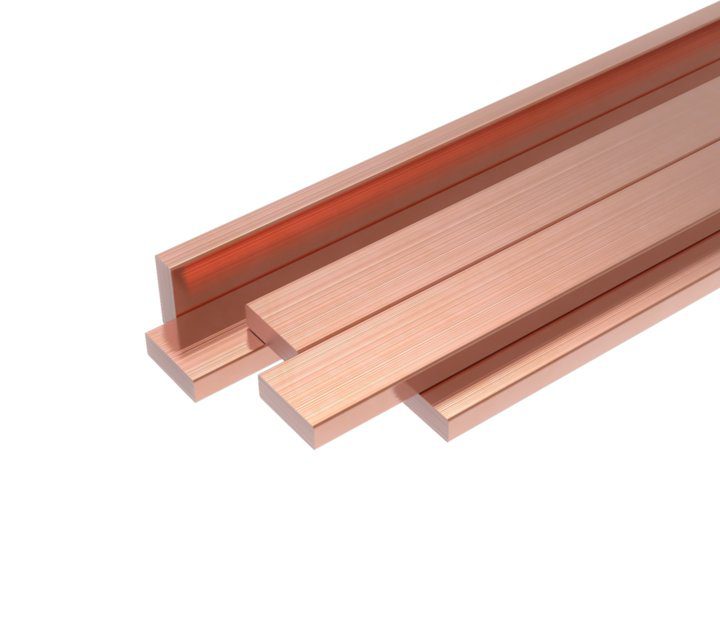

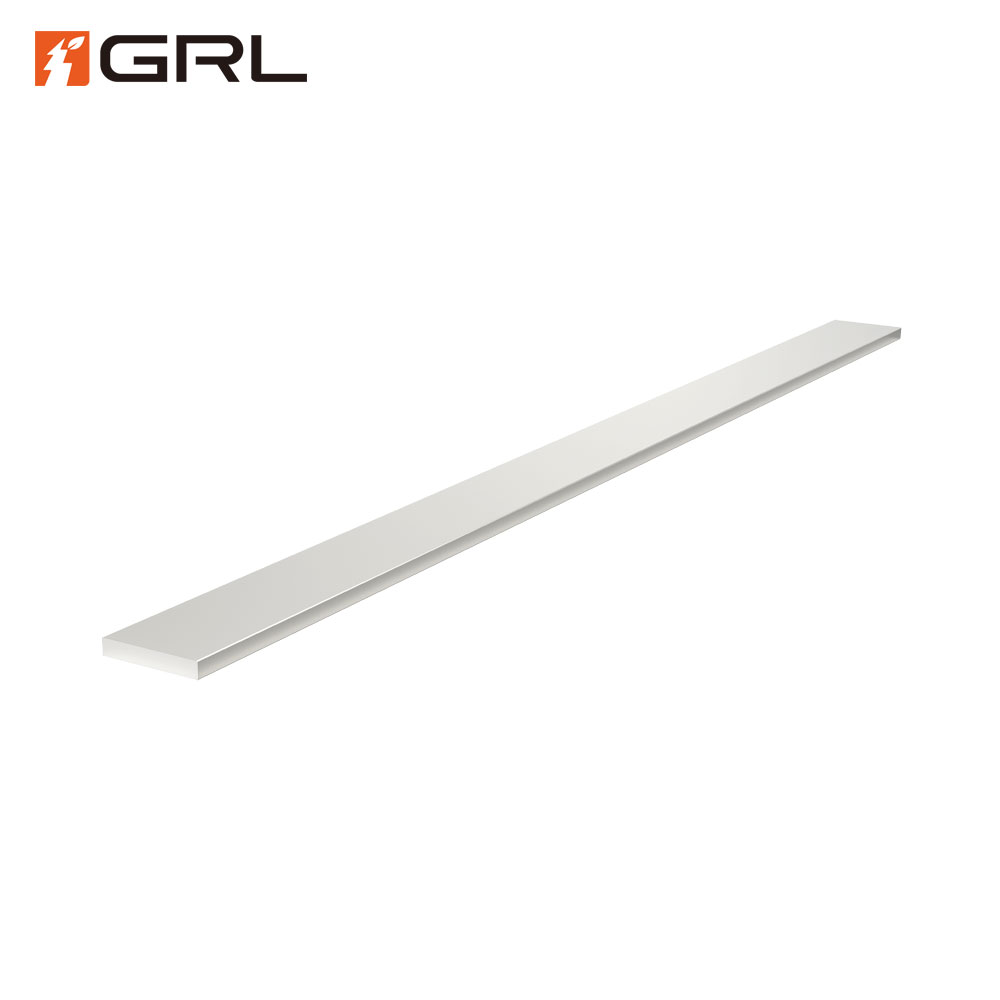

Standard Copper Busbar Customization Solid Busbar

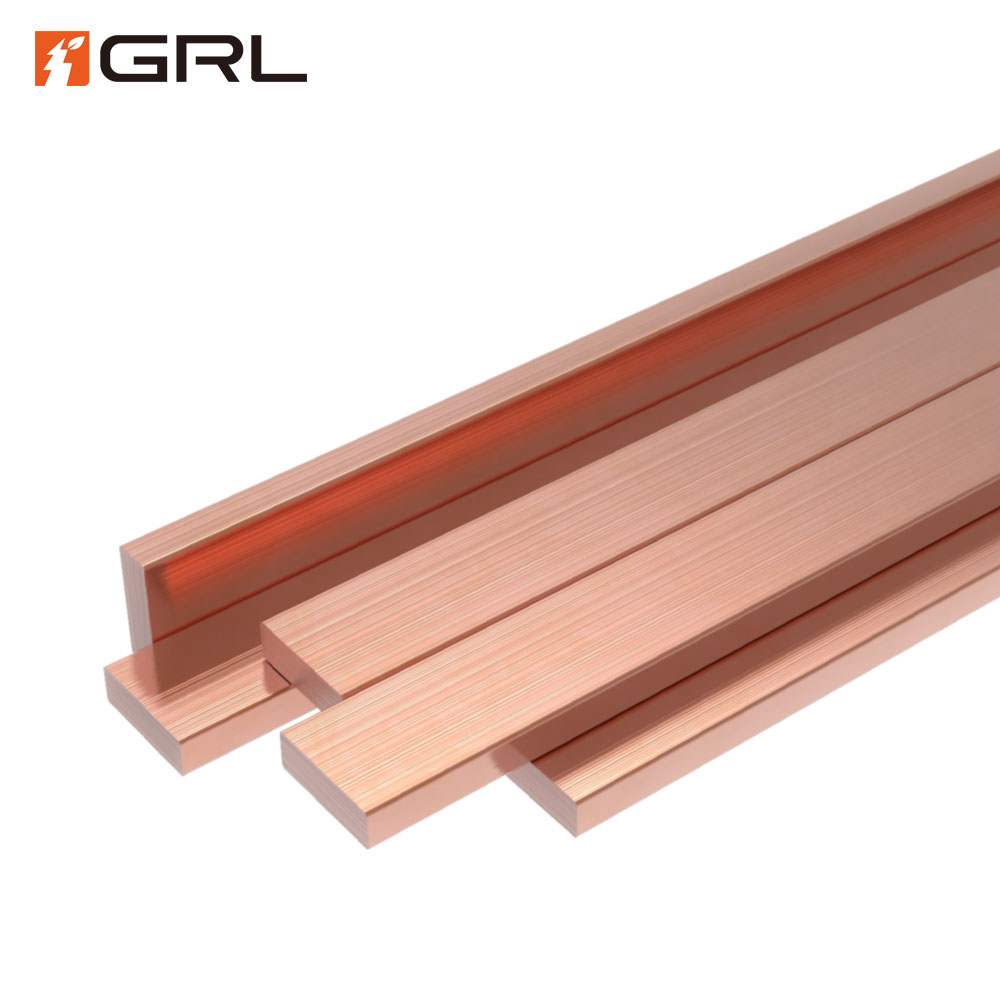

GRL standard copper busbars are made of high-quality T2 copper and are suitable for various power and energy applications, meeting new energy systems and power transmission requirements. This busbar series not only has a variety of sizes but can also be customized to specific cross-sectional areas and shapes to meet different engineering and equipment needs.

View more customized copper busbars>>

Bare Copper Busbar

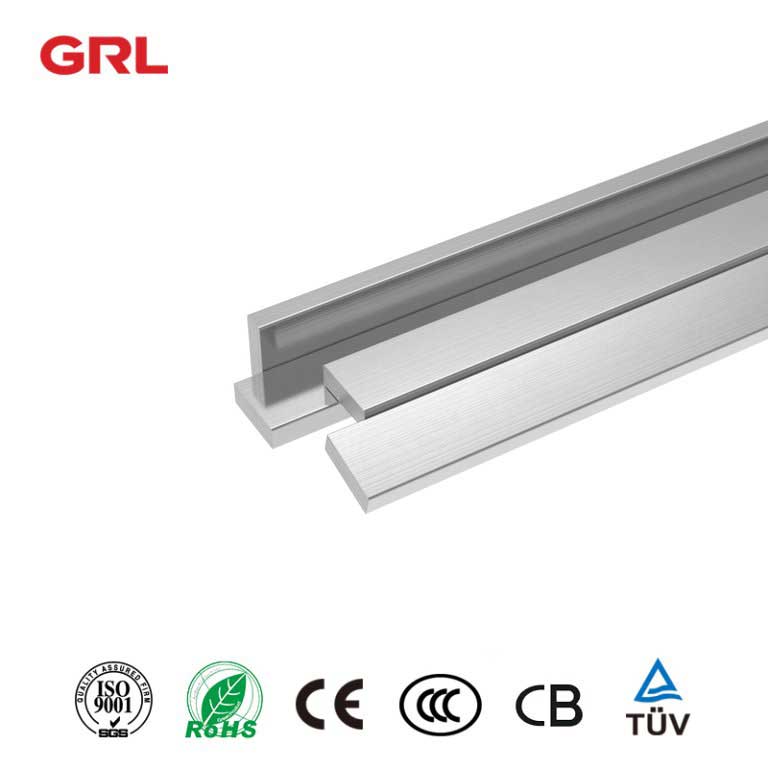

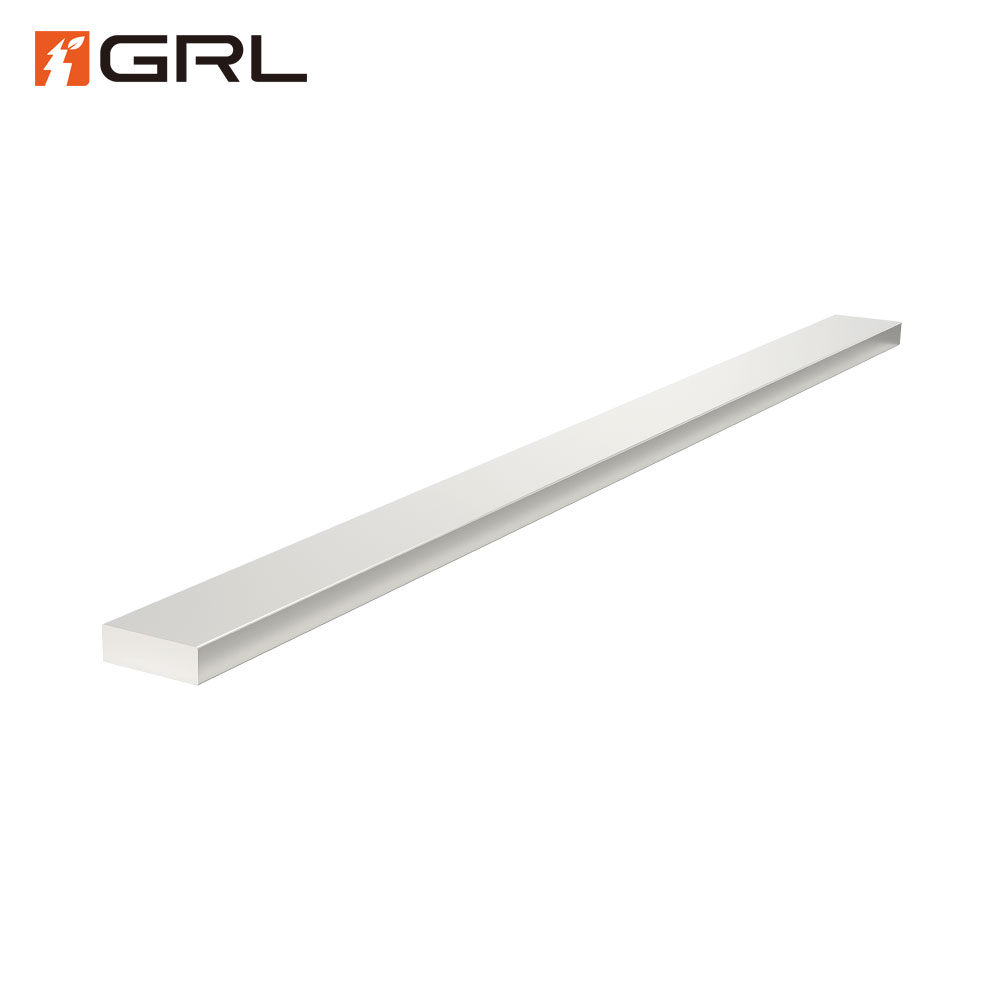

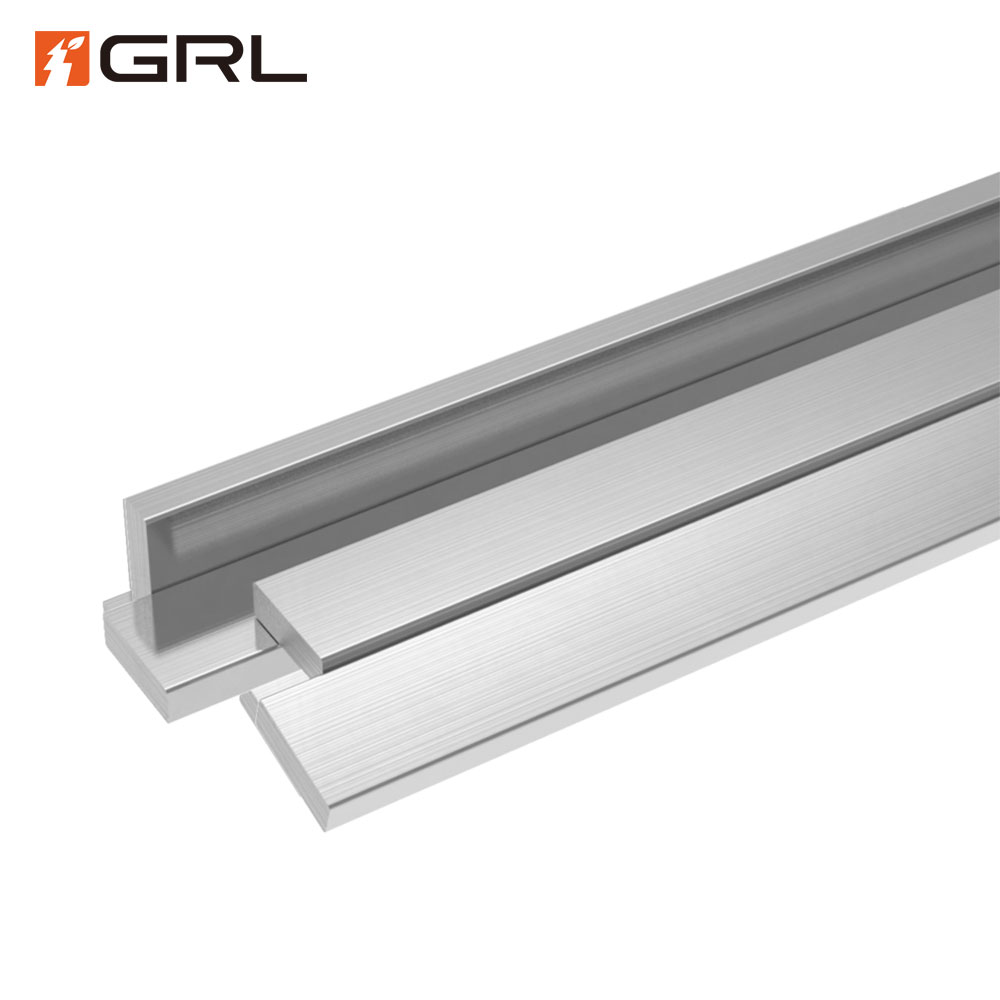

Copper Tinned Busbar

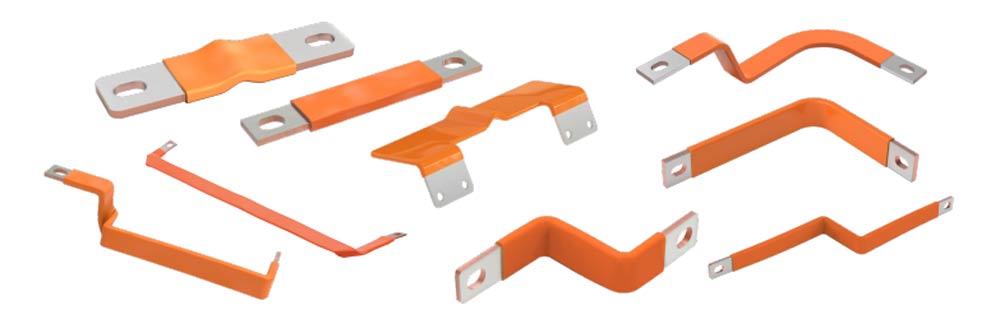

Flexible Copper Busbar

Copper Foil Soft Connection

Insulated Copper Busbar

Description

Overview
Technical Specifications

Overview

View more customized copper busbars>>

Bare Copper Busbar、Copper Tinned Busbar、Flexible Copper Busbar、Copper Foil Soft Connection、Insulated Copper Busbar

C opper Braided Busbar、Laminated Busbar

Technical Specifications

Dimensions a×b×Length (mm)	Cross-Sectional Area (mm²)	Current Carrying Capacity at Busbar Temperature of 65°C	Order Number
12×5×2400	60	200	DN51618
12×5×790	60	200	DN51381
12×5×590	60	200	DN51382
15×5×2400	75	250	DN51619
20×5×2400	100	320	DN51620
20×5×790	100	320	DN51383
20×5×590	100	320	DN51384
25×5×2400	125	400	DN51621
30×5×2400	150	450	DN51622
30×5×790	150	450	DN51387
30×5×590	150	450	DN51388
12×10×2400	120	360	DN51623
12×10×790	120	360	DN51389
12×10×590	120	360	DN51390
20×10×3600	200	520	DN51140
20×10×2400	200	520	DN51624
20×10×790	200	520	DN51391
20×10×590	200	520	DN51392
30×10×3600	300	630	DN51204
30×10×2400	300	630	DN51625
30×10×790	300	630	DN51393
30×10×590	300	630	DN51394

Get Quote

contact us for more sizes and specifications

Standard Copper Busbar Features

High Conductivity: Made from premium T2 copper, ensuring excellent conductivity and enhanced equipment efficiency.
Multiple Insulation Options: To adapt to various work environments, it is available with tubing, PVC dipping, PA12 extrusion, and epoxy resin coating.
Flexible Customization: Adjustable cross-sections and shapes are available to meet diverse project requirements.
High-Temperature Resistance: Remains stable in environments up to 65°C, ensuring long-term safety and reliability.

Standard Copper Busbar Advantages

Customizable Design: Supports various specifications and shapes to fit various power systems.
Enhanced Safety: Standard hard copper busbars offer excellent temperature resistance and stability, ideal for complex electrical environments, reducing power loss.
Strong Compatibility: Compatible with various electrical installations, providing flexible power distribution solutions.
Cost Efficiency: Modular design reduces installation and maintenance costs for projects.

Standard Copper Busbar Applications

The Standard Copper Busbar is widely used in:

Power Equipment: Low and medium voltage switchgear, transformers, distribution boards, etc.
New Energy Facilities: Power transmission and connections in wind and solar energy systems.
Industrial Electrical Systems: Such as heavy-duty power distribution in manufacturing.
Data Centers: Supporting high current loads for high-density power distribution in data centers.
