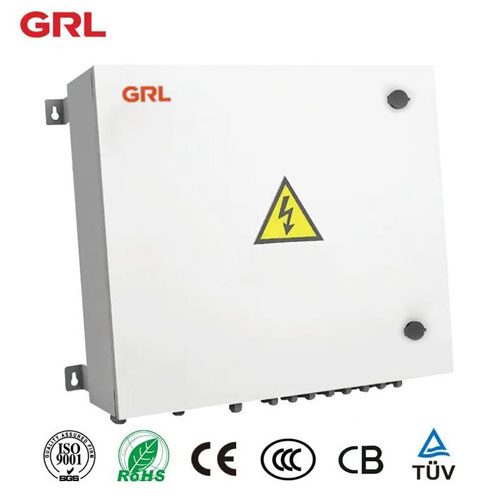

DNHLX-PV8 / 2 DC PV Combiner box

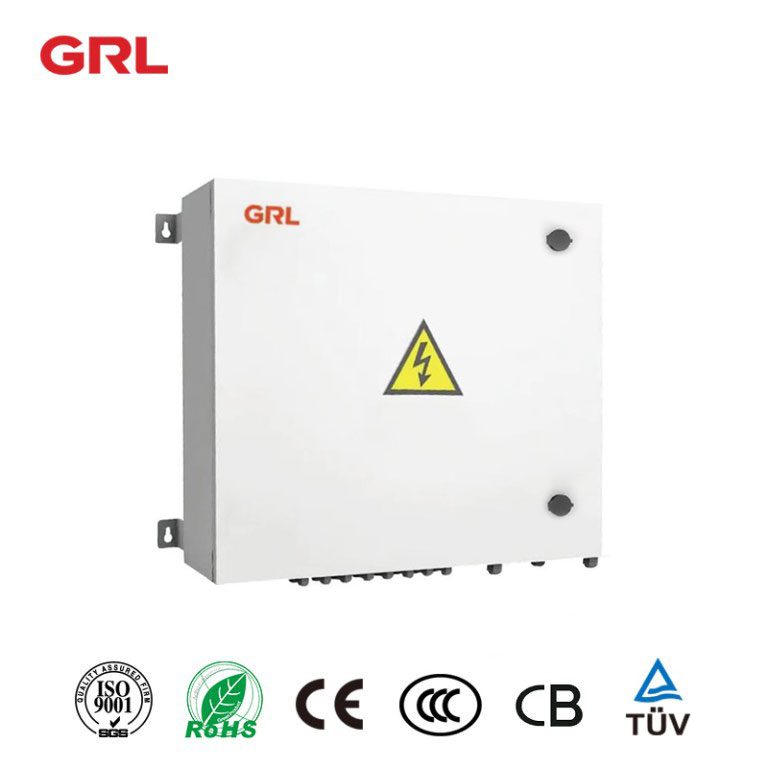

DNHLX-PV8 / 2 DC PV Combiner box

Advantages

• High Reliability

  Can be equipped with DC fuses, DC surge protection devices and DC circuit breakers or DC load disconnect switches to ensure strong protection and reliability.

• Strong Adaptability

  IP65 design , waterproof , anti dust and anti ultraviolet. Strict test for high and low temperature , used widely .

  The simple installation , the simplified system wiring ,the convenient wiring.

  The box body is made of cold rolled steel and other metal materials

• Flexible configuration

  Used for single crystal silicon solar modules ,polycrystalline silicon solar modules , thin film solar modules .

  Current rating of the photovoltaic fuse ,circuit breaker , load isolation switch is modified.

What is a PV combiner box?

A PV combiner box is a crucial piece of equipment in a photovoltaic (PV) system. It consolidates the input of multiple solar strings into a single output. This process simplifies the wiring and improves the efficiency of the entire solar power system. The combiner box typically contains several key components:

• Fuses or circuit breakers:To protect the system from overcurrent.
• Surge protection devices:To guard against voltage spikes.
• Terminal blocks:To connect the individual solar strings.

Function of a combiner box

The primary function of a combiner box is to collect the output from multiple solar panels (strings) and combine them into a single or fewer output circuits. This not only reduces the complexity of wiring but also enhances the safety and manageability of the solar power system.

Does a PV combiner box increase the voltage?

No, a solar combiner box does not increase the voltage of the solar power system. Instead, it combines the currents from multiple solar panel strings while maintaining the same voltage level as the individual strings. For example, if each string operates at 30 volts and produces 10 amps of current, combining four strings will result in a system that operates at 30 volts and produces 40 amps of current.

To increase the voltage in a solar power system, other components such as inverters or step-up transformers are used. The inverter, for example, converts the DC (Direct Current) output from the solar panels into AC (Alternating Current) and can step up the voltage to match the grid requirements or the specifications of the appliances being powered.

In summary, a PV combiner box does not increase the voltage of the solar power system. Its main role is to combine the currents from multiple solar panel strings, simplifying the system’s wiring and improving its efficiency. For those looking to increase voltage, additional equipment like inverters or transformers is required. By understanding the function and benefits of a combiner box, users can better design and maintain their solar energy systems.

Why use a combiner box in your solar system?

1、Enhanced Efficiency

By combining multiple strings, a PV solar combiner box minimizes power losses and maximizes the overall efficiency of the solar energy system.

2、Reduced Maintenance

With a centralized location for monitoring and protection, maintenance tasks are more straightforward, reducing downtime and operational costs.

3、Scalability

PV combiner boxes make it easier to expand your solar array, as additional panels can be seamlessly integrated into the existing system.
