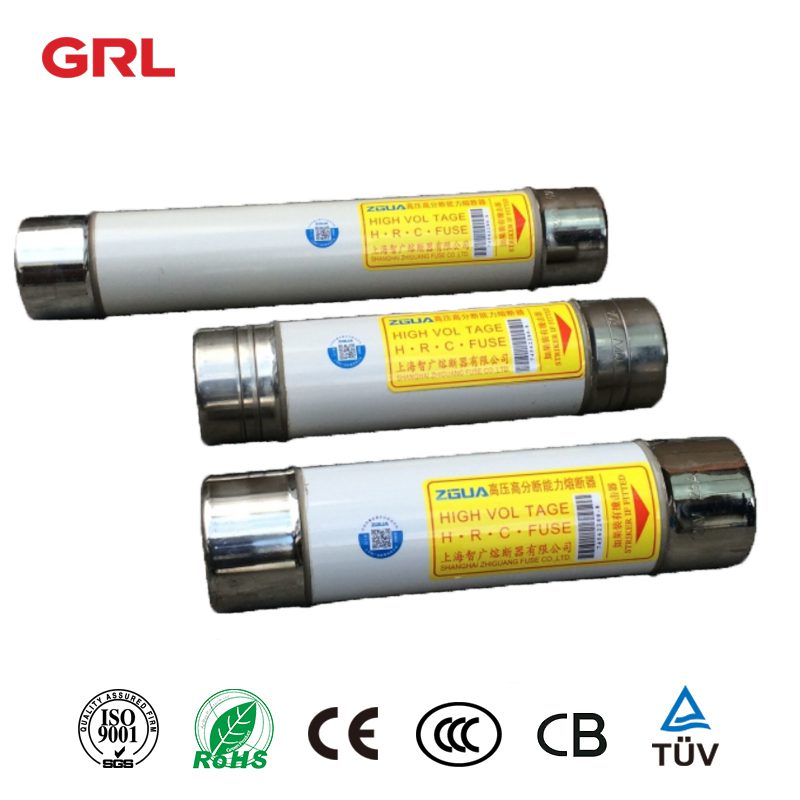

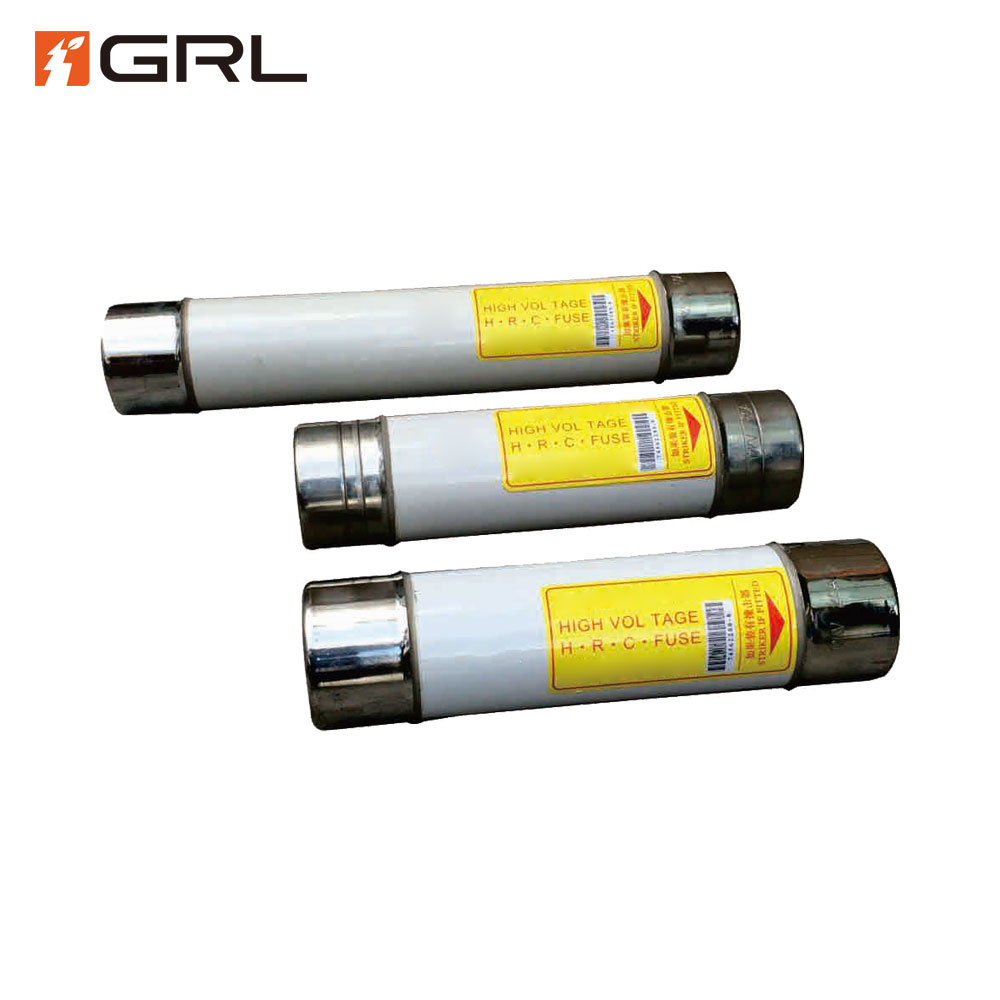

□The product can be used in system with AC 50HZ and rated of 10KV used together with other protection electric facilities ( such as loading switches).It can protect electric transformers and other electric facilitles against overloading or circuit break . It is mainly used in American style box transformers as backup protection.

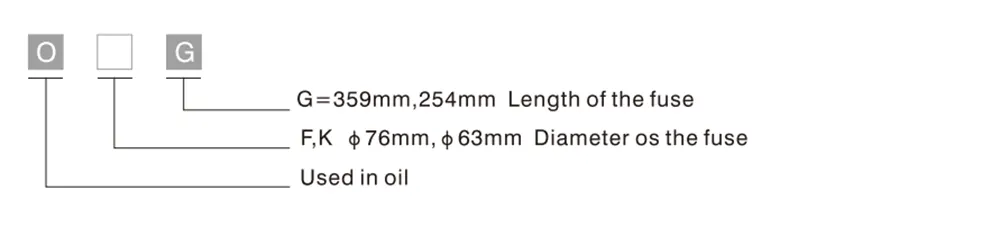

Type instruction

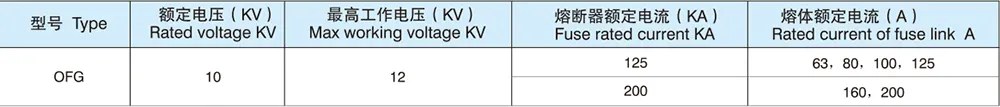

Basic parameters
| Type | Rated voltage KV | Max working voltage KV | Fuse rated current KA | Rated current of fuse link A |
| OFG | 10 | 12 | 125 | 63，80，100，125 |
| 200 | 160,200 |
Maior technical characteristics
1.The fuse link can break any problem current between the minimum break current ( 2.5-5 ) In to rated break current 50KA

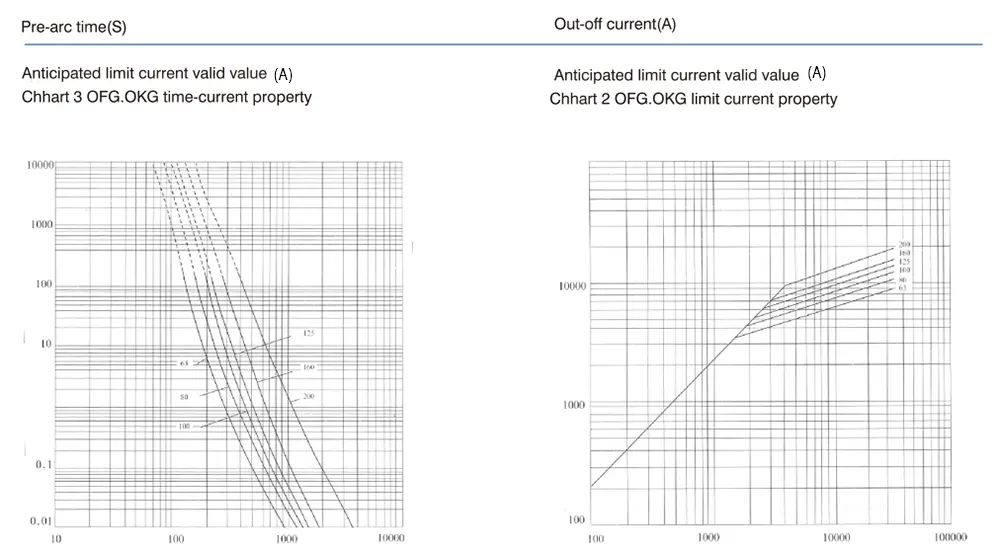

2.See chart 3 for the fuse time-current property . The upper section above the minimum break current is broken line
3.See chart 2 for limit current property.
Installation Dimensios

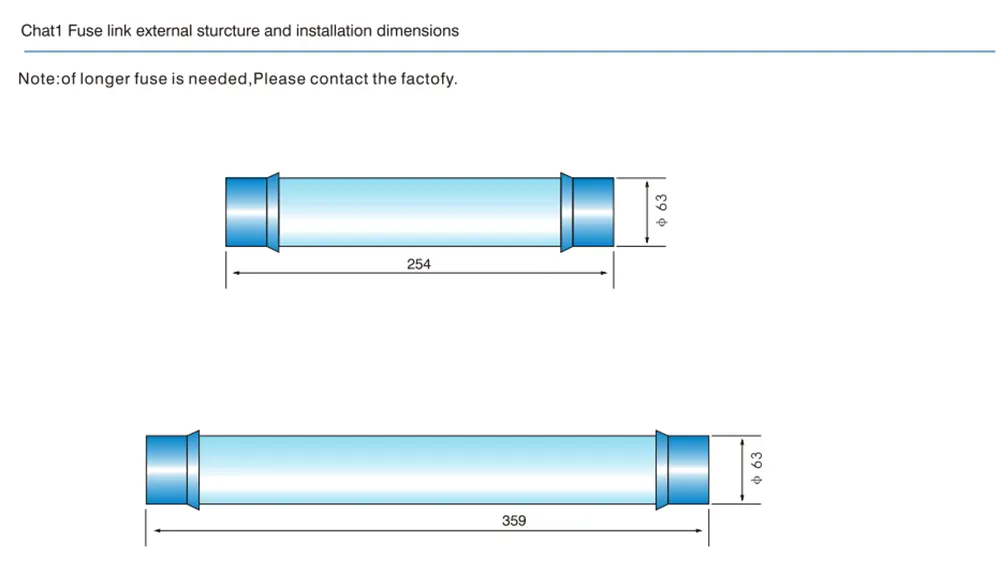

See Chart 1 for the fuse external structure and installation dimensions
Conditions for normal use
When the fuse link is in normal use in transformer oil , the max environmet temperature is less than 100℃
