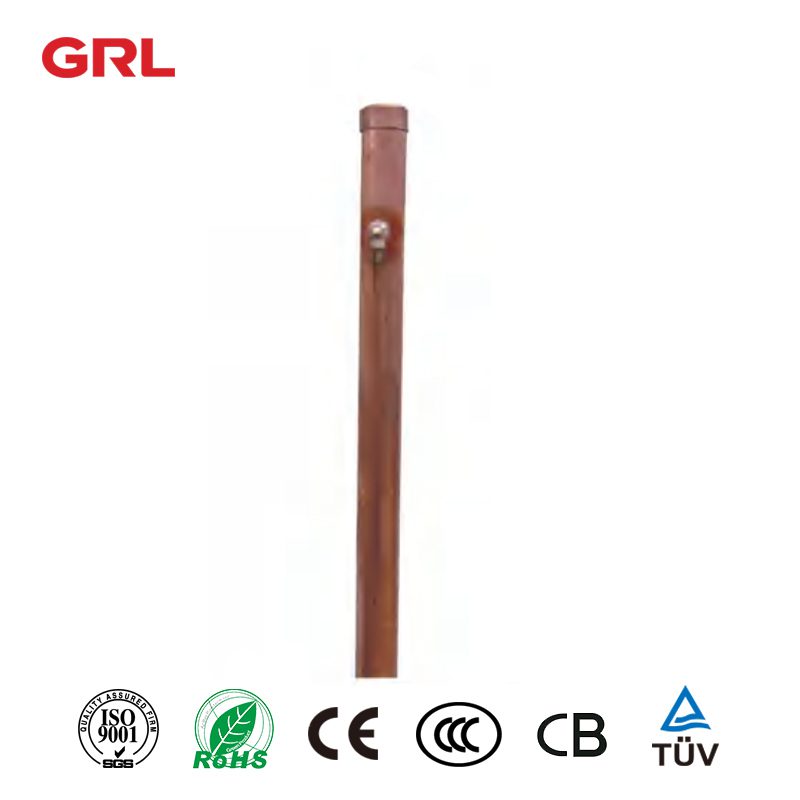

Product Introduction
Chemical earth rods provide a low impedance earth to effectively dissipate lightning andelectrical fault currents, The chemical earth rod is ideal for installation in locations wherespace restrictions exist.
Characteristics
1.The chemical earth rod contains an jon rich crystalline mixture that when triggered by inherent air moisture will start the release of free ions into soil.
This continuously feeding of moisture and free ions to the surrounding soil will ensure the oil remains at a highly conductive state thus achieving a reliable low resistance of ground.
2.The main body of the chemical earth rod is manufactured from high corrosion resistance copper alloy tubes to ensure maximum conductivity and prolonged service life.Lightning protection
3.The special design of soil to rod interface expands and contracts soil according to weather conditions and surrounding environmental fluctuations.
This enables the rod to maintain contact with the surrounding soil and ensure a proper moisture level regardless of fluctuations in weather or environmental condition.
4.The chemical earth rod is ideal for locations of high soil resistivity and dense buildings for its good earthing effect, few occupied space, material-efficient and environmental pollution-free.Lightning protection
Main Technical Parameters
| PartNo | size (mm) | material | impulse current △R | pH value |
| SMD-5015 | Φ50×1500 | Copper | ≤1 | 7±0.5 |
| SMD-5030T | Φ50×3000 | Copper | ≤1 | 7±0.5 |
| SMD-5515 | Φ55×1500 | Copper | ≤1 | 7±0.5 |
| SMD-5530 | Φ55×3000 | Copper | ≤1 | 7±0.5 |
| SMD-6015 | Φ60×1500 | Copper | ≤1 | 7±0.5 |
| SMD-6030 | Φ60×3000 | Copper | ≤1 | 7±0.5 |
| SMD-5015T | Φ50×1500 | Copper Bord | ≤1 | 7±0.5 |
| SMD-5030T | Φ50×3000 | Copper Bord | ≤1 | 7±0.5 |

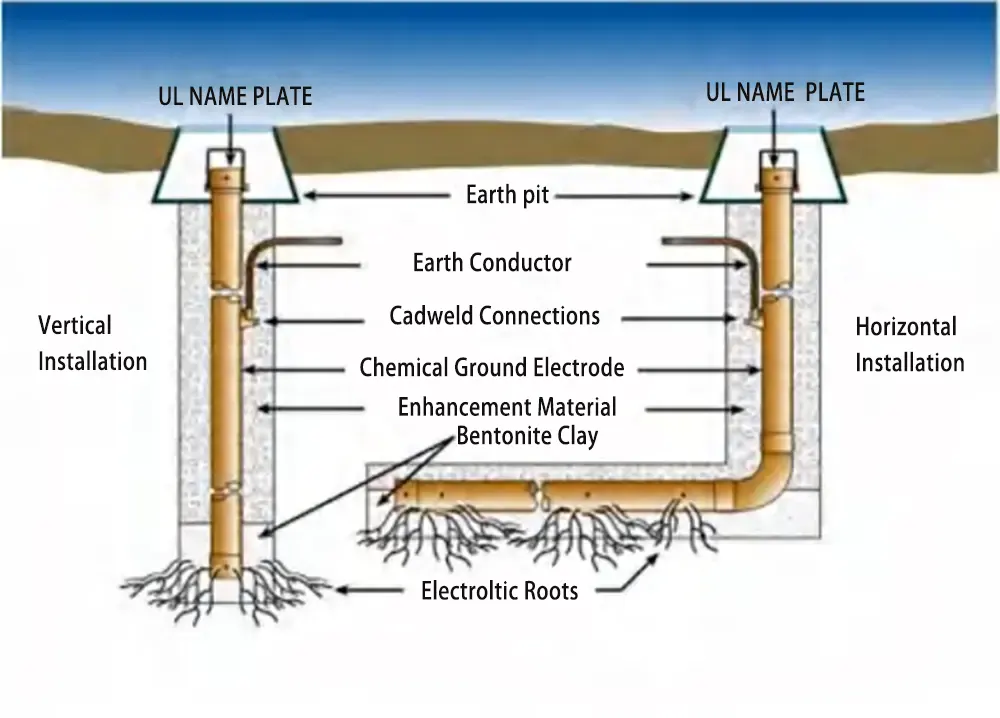

Product Installation Diagram
