Isolating Switch DNH8(HGL)/H Series Operation Behind the Cabinet – Load Disconnector
Mode: DNH8(HGL)/H series
Rated Current: 63A, 100A, 160A , 250A, 630A, 1600A
Pole: 3P, 4P
Rated Insulation Voltage Ui (V): 690V, 1000V
Dielectric Strength (V): 1890V, 2200V
Rated Impulse Withstand Voltage Uimp kV: 8kV, 12kV
Mechanical life 400V: 1700, 1400, 800, 500
Electrical life 400V: 300, 200, 100
Email: [email protected]
Specifications: 125A/3, 125A/4, 160A/3, 160A/4, 200A/3, 200A/4, 250A/3, 250A/4, 315A/3, 315A/4, 400A/3, 400A/4, 500A/3, 500A/4, 630A/3, 630A/4, 1000A/3, 1000A/4, 1250A/3, 1250A/4, 1600A/3, 1600A/4
Keyword: isolating switch
Isolating Switches with a current capacity of 160 to 1600 Amperes are suitable for use in circuits for making and breaking connections, as well as for electrical isolation. Switches with a rated current of 1000 Amperes or more are only to be used for electrical isolation. Three-pole and four-pole (3+1) switches are available.

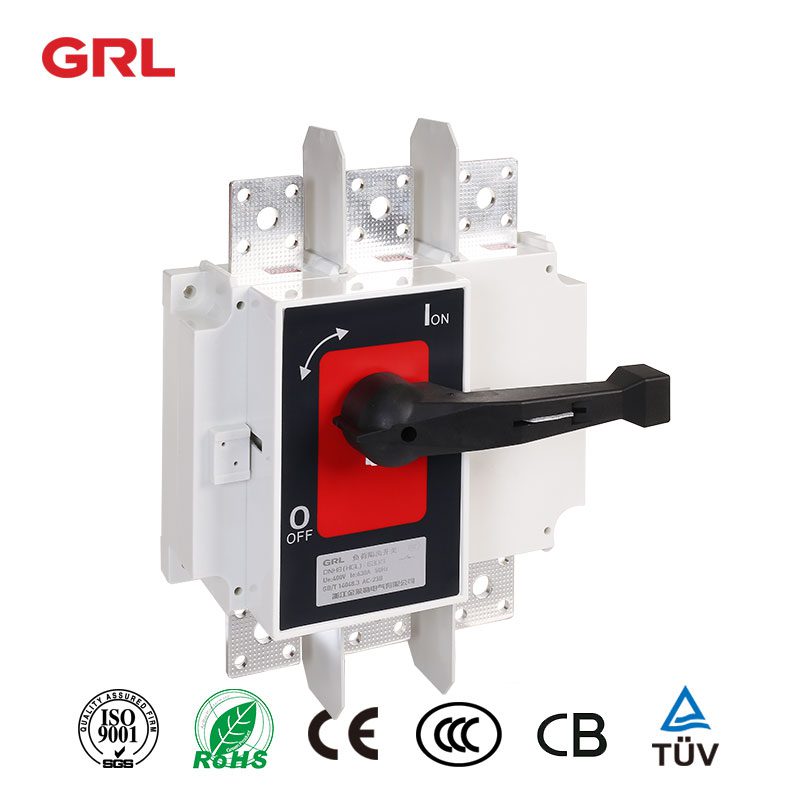

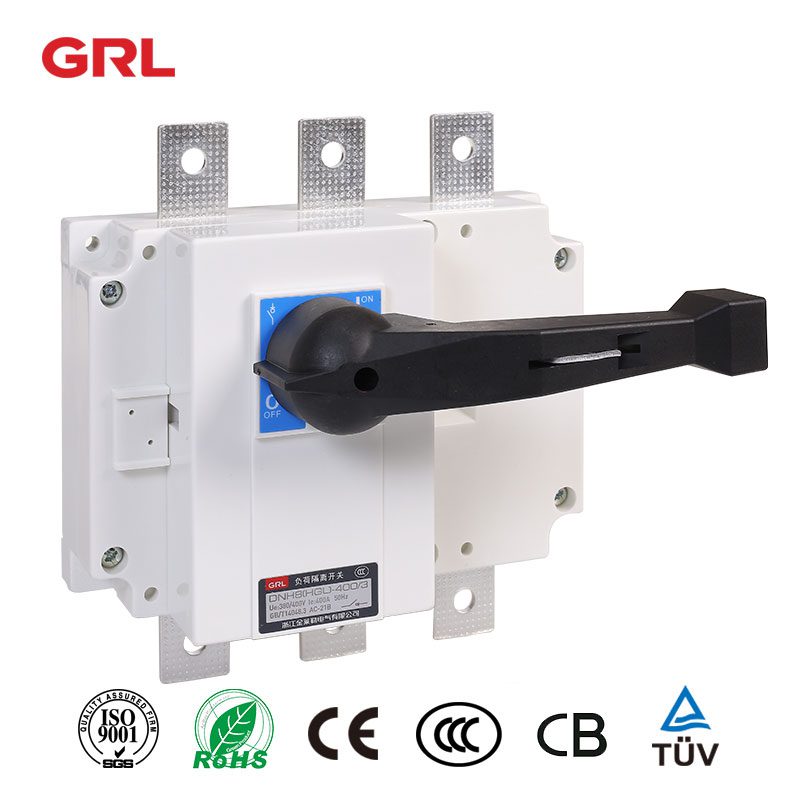

Switches rated 1600 Amperes or less are available with an observation window, through which the state of the contacts (open or closed) can be directly observed.
Auxiliary contacts can be fitted if required.

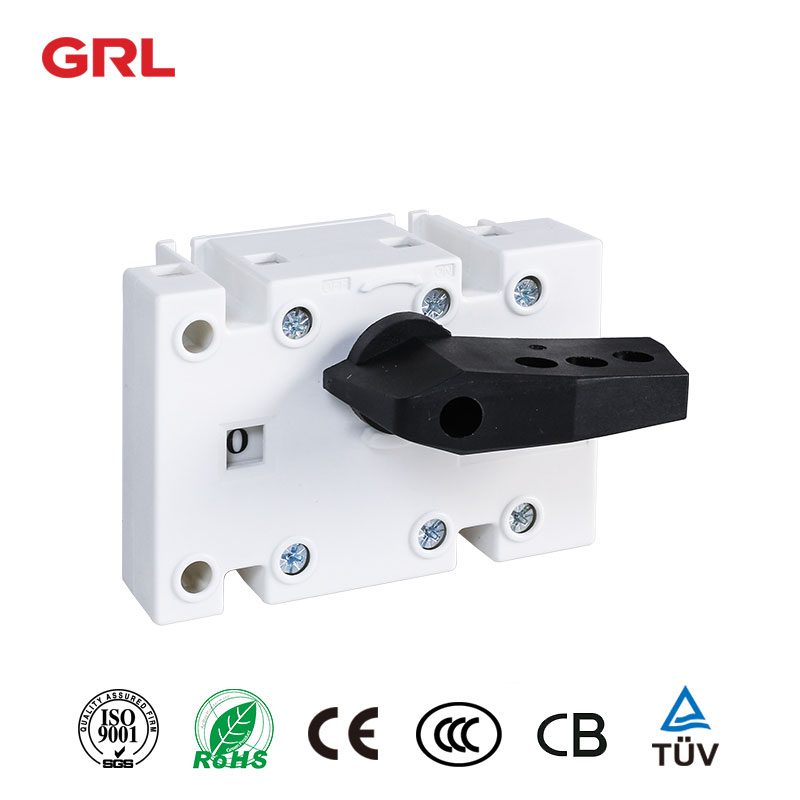

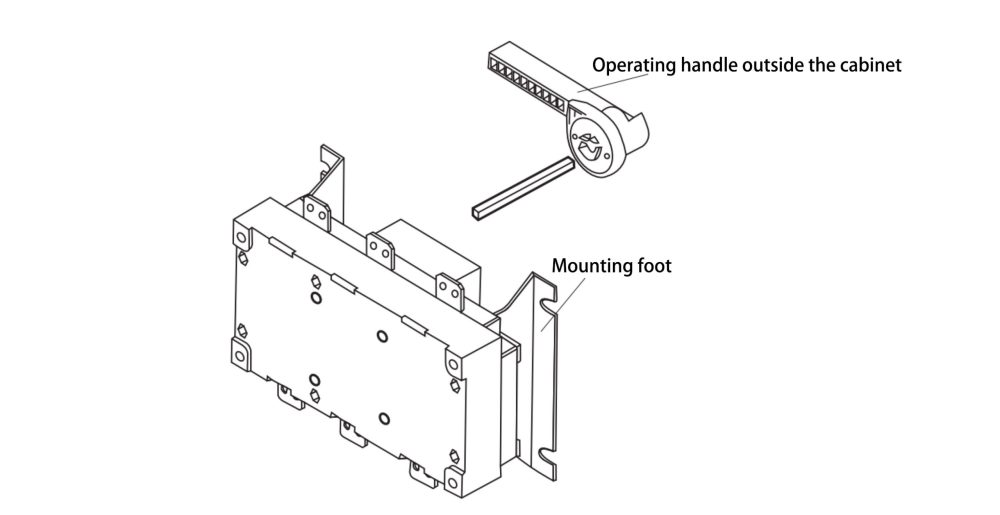

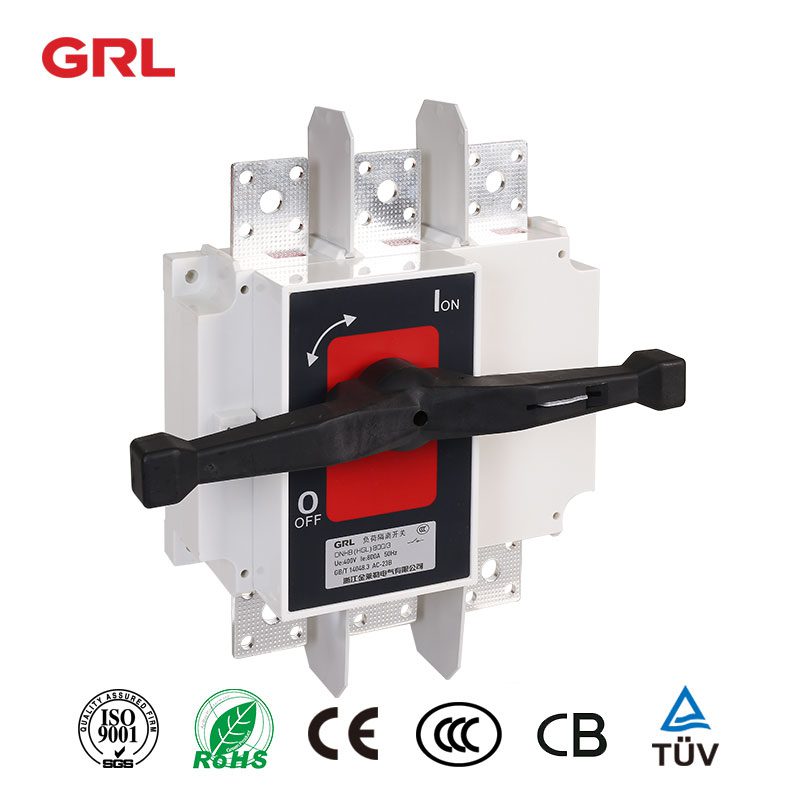

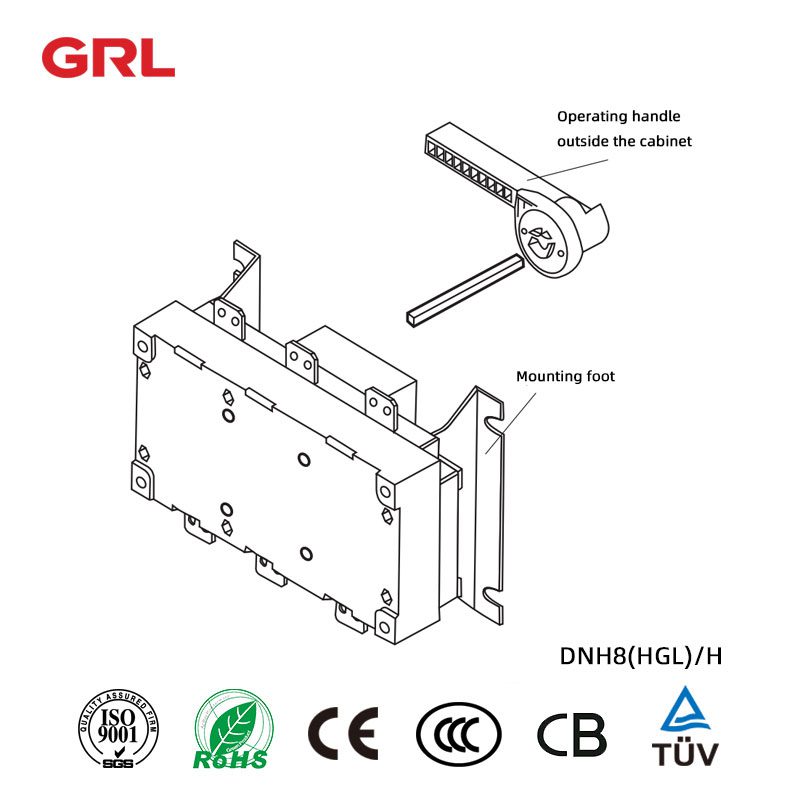

Note: This Isolating Switch product only provides operation outside the cabinet
Order model: DNH8 (HGL) -630/3JH
If a visual observation window is required, the Isolating Switch order model is DNH8 (HGL) -630/3JKH
Read on what is isolator switch?

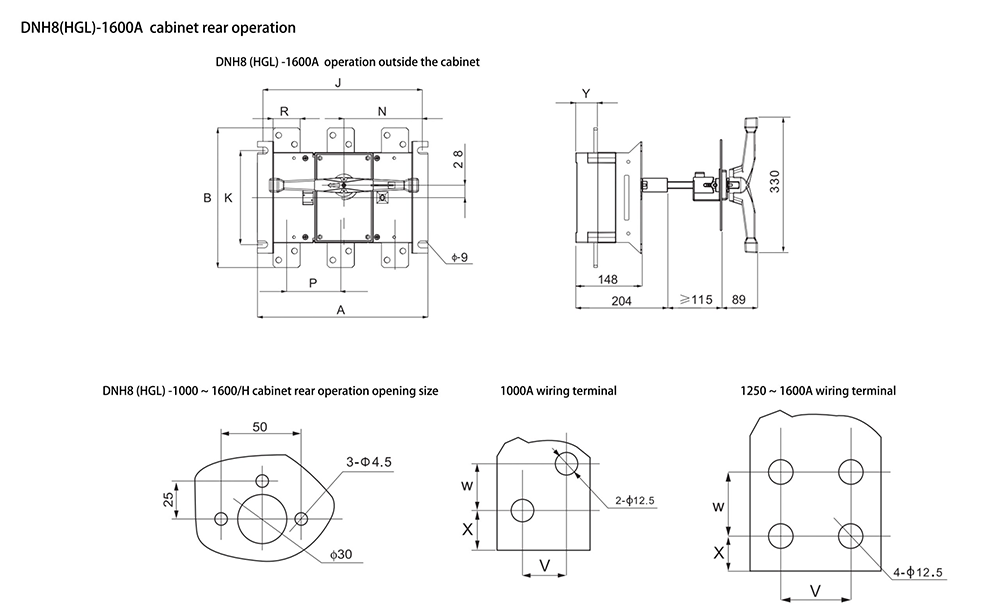

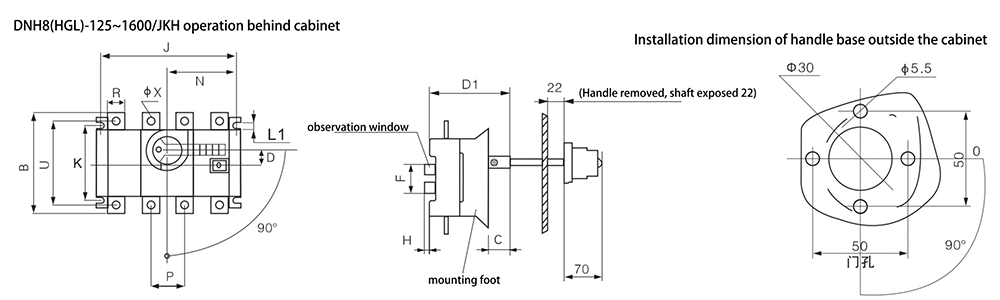

| Specifications | Overall dimension | Installation dimension | |||||||||||||
| In | A | B | C | D | D1 | N | P | R | U | φX | F | H | J | K | L1 |
| 125A/3 | 140 | 135 | 17 | 15 | 93 | 75 | 36 | 20 | 115 | 9 | 50 | 10 | 120 | 95 | 7 |
| 125A/4 | 170 | 135 | 17 | 15 | 93 | 75 | 36 | 20 | 115 | 9 | 50 | 10 | 150 | 95 | 7 |
| 160A/3 | 140 | 135 | 17 | 15 | 93 | 75 | 36 | 20 | 115 | 9 | 50 | 10 | 120 | 95 | 7 |
| 160A/4 | 170 | 135 | 17 | 15 | 93 | 75 | 36 | 20 | 115 | 9 | 50 | 10 | 150 | 95 | 7 |
| 200A/3 | 180 | 170 | 18 | 20 | 104 | 105 | 50 | 25 | 140 | 11 | 79 | 15 | 160 | 115 | 9 |
| 200A/4 | 230 | 170 | 18 | 20 | 104 | 105 | 50 | 25 | 140 | 11 | 79 | 15 | 210 | 115 | 9 |
| 250A/3 | 180 | 170 | 18 | 20 | 104 | 105 | 50 | 25 | 140 | 11 | 79 | 15 | 160 | 115 | 9 |
| 250A/4 | 230 | 170 | 18 | 20 | 104 | 105 | 50 | 25 | 140 | 11 | 79 | 15 | 210 | 115 | 9 |
| 315A/3 | 230 | 240 | 20 | 30 | 137 | 135 | 65 | 32 | 206 | 11 | 95 | 20 | 210 | 135 | 11 |
| 315A/4 | 290 | 240 | 20 | 30 | 137 | 135 | 65 | 32 | 206 | 11 | 95 | 20 | 270 | 135 | 11 |
| 400A/3 | 230 | 240 | 20 | 30 | 137 | 135 | 65 | 32 | 206 | 11 | 95 | 20 | 210 | 135 | 11 |
| 400A/4 | 290 | 240 | 20 | 30 | 137 | 135 | 65 | 32 | 206 | 11 | 95 | 20 | 270 | 135 | 11 |
| 500A/3 | 230 | 260 | 20 | 30 | 137 | 135 | 65 | 40 | 220 | 13 | 95 | 20 | 210 | 135 | 11 |
| 500A/4 | 290 | 260 | 20 | 30 | 137 | 135 | 65 | 40 | 220 | 13 | 95 | 20 | 270 | 135 | 11 |
| 630A/3 | 230 | 260 | 20 | 30 | 137 | 135 | 65 | 40 | 220 | 13 | 95 | 20 | 210 | 135 | 11 |
| 630A/4 | 290 | 260 | 20 | 30 | 137 | 135 | 65 | 40 | 220 | 13 | 95 | 20 | 270 | 135 | 11 |
| Specifications | Overall dimension | Installation dimension | |||||||||
| In | A | B | N | P | R | V | W | X | Y | J | K |
| 1000A/3 | 378 | 308 | 174 | 120 | 60 | 35 | 20 | 16.5 | 49 | 350 | 220 |
| 1000A/4 | 493 | 310 | 235 | 120 | 60 | 35 | 20 | 16.5 | 48 | 471 | 220 |
| 1250A/3 | 378 | 336 | 174 | 120 | 80 | 40 | 35 | 16 | 49 | 350 | 220 |
| 1250A/4 | 493 | 338 | 235 | 120 | 80 | 40 | 35 | 16 | 48 | 471 | 220 |
| 1600A/3 | 378 | 336 | 174 | 120 | 80 | 40 | 35 | 16 | 50 | 350 | 220 |
| 1600A/4 | 493 | 338 | 235 | 120 | 80 | 40 | 35 | 16 | 49 | 471 | 220 |
If you need more information or require a tailored response, please do not hesitate to reach out to us and we will respond at our earliest convenience.
