Mode:RN1 / RN3
Voltage:40Kv
Current:300A
Email: [email protected]
Keyword:high voltage limit-current fuse

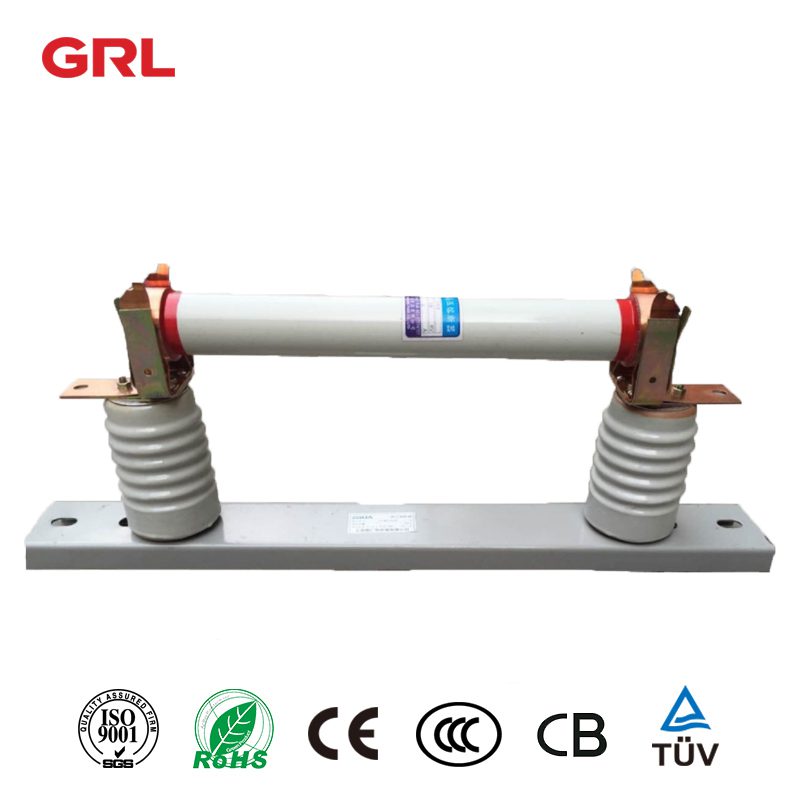

□ The product is used in overload or short-circuit protection for elctric transformer . The current limiting means that the fuse will cut off the circuit before the short-circuit current reaches the peak value.

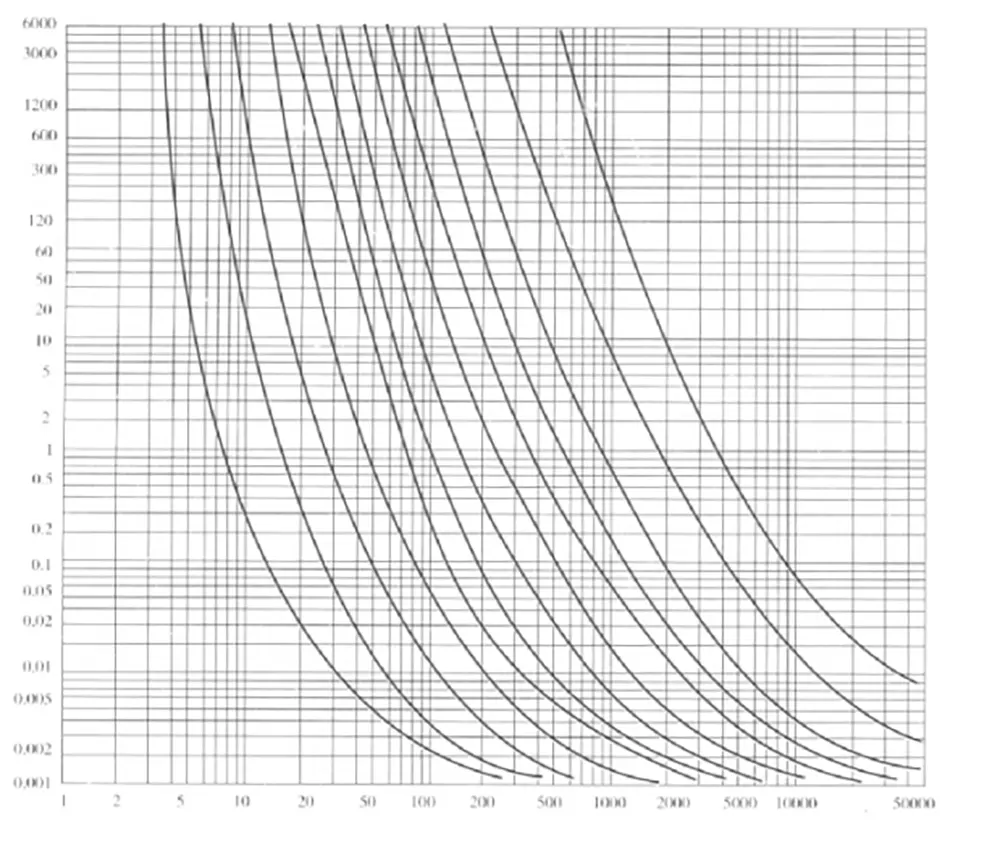

Current which passes the fuse when being 1.3 times of its specified electric current , Do not fusing for an hour ; When the current through the fuse is 2 times of its specined electric current , fusing in an hour ; Refer to its fusing feature curve in chart 1 when select the fuse.

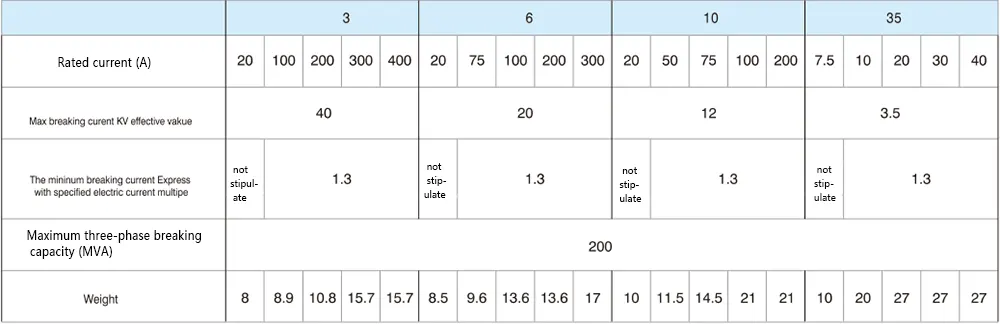

| 3 | 6 | 10 | 35 | |||||||||||||||||
| Rated current (A) | 20 | 100 | 200 | 300 | 400 | 20 | 75 | 100 | 200 | 300 | 20 | 50 | 75 | 100 | 200 | 7.5 | 10 | 20 | 30 | 40 |
| Max breaking curent KV effective vakue | 40 | 20 | 12 | 3.5 | ||||||||||||||||
| The mininum breaking current Expresswith specified electric current multipe | not stip- ulate | 1.3 | not stip- ulate | 1.3 | not stip- ulate | 1.3 | not stip- ulate | 1.3 | ||||||||||||
| Maximum three-phase breaking capacity (MVA) | 200 | |||||||||||||||||||
| Weight | 8 | 8.9 | 10.8 | 15.7 | 15.7 | 8.5 | 9.6 | 13.6 | 13.6 | 17 | 10 | 11.5 | 14.5 | 21 | 21 | 10 | 20 | 27 | 27 | 27 |

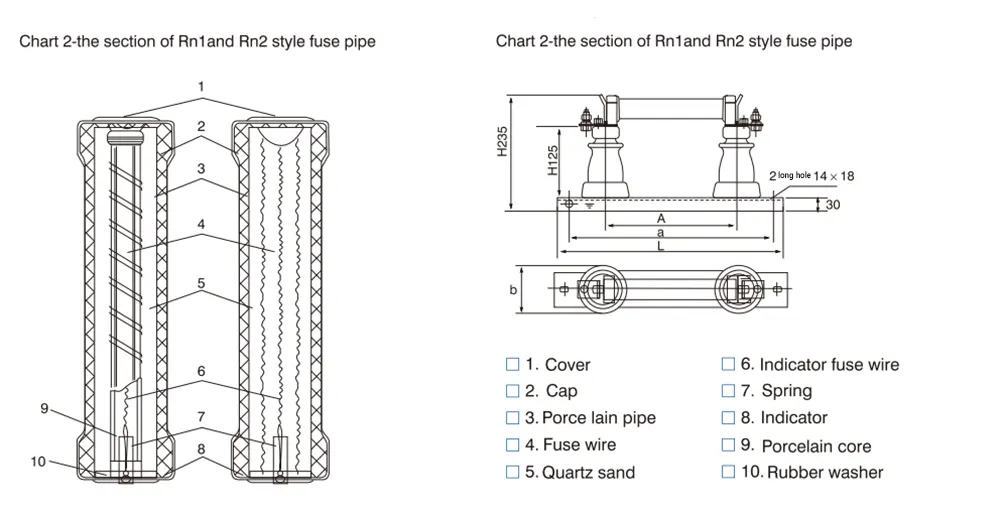

□The fuse pipe is the main part of fuse , it is made by installing the fuse wire in the porcelain pipe , filling the quartz sand in the porcelain pipe and sealing to-ends of pipe.
For the fuse pipe with rated current below 7.5A and 35V rated voltage , its fuse wire is rolled on the special porcelain core , referening to chart 2.a for the fuse pipe with rated current above 7.5A , its fuse wire is hang in the porcelain pipe , referening to the chart .

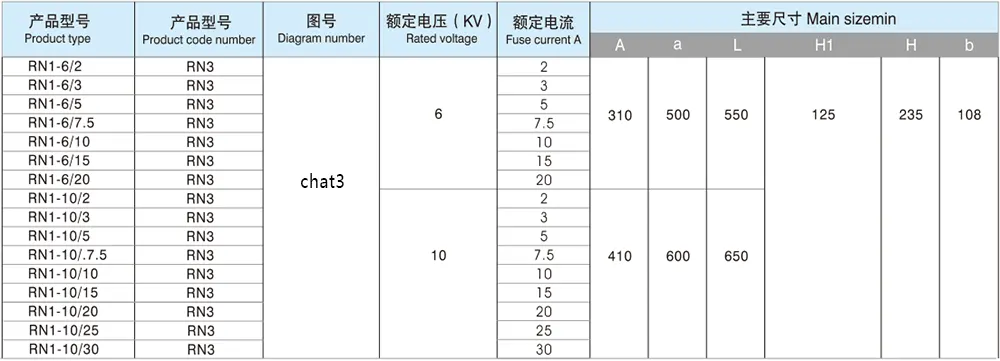

Product type | Product code number | Diagram number | Rated voltage(KV） | Fuse current A | Major dimensions | |||||
| A | a | L | H1 | H | b | |||||
| RN1-6/2 | RN3 | chat3 | 6 | 2 | 310 | 500 | 550 | 125 | 235 | 108 |
| RN1-6/3 | RN3 | 3 | ||||||||
| RN1-6/5 | RN3 | 5 | ||||||||
| RN1-6/7.5 | RN3 | 7.5 | ||||||||
| RN1-6/10 | RN3 | 10 | ||||||||
| RN1-6/15 | RN3 | 15 | ||||||||
| RN1-6/20 | RN3 | 20 | ||||||||
| RN1-10/2 | RN3 | 10 | 2 | 410 | 600 | 650 | ||||
| RN1-10/3 | RN3 | 3 | ||||||||
| RN1-10/5 | RN3 | 5 | ||||||||
| RN1-10/.7.5 | RN3 | 7.5 | ||||||||
| RN1-10/10 | RN3 | 10 | ||||||||
| RN1-10/15 | RN3 | 15 | ||||||||
| RN1-10/20 | RN3 | 20 | ||||||||
| RN1-10/25 | RN3 | 25 | ||||||||
| RN1-10/30 | RN3 | 30 | ||||||||

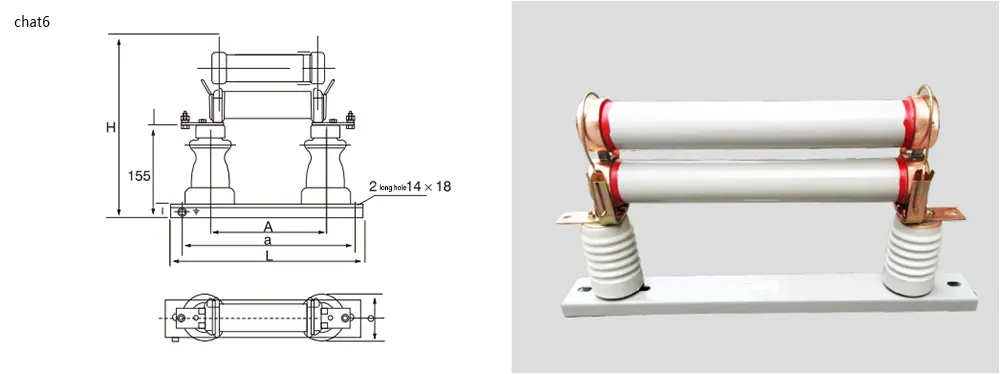

Product type | Product code number | Diagram number | Rated voltage(KV） | Fuse current A | Major dimensions | ||||
| A | a | L | H | b | |||||
| RN1-3/150 | RN3 | chat6 | 3 | 150 | 270 | 400 | 450 | 350 | 108 |
| RN1-3/200 | RN3 | 200 | |||||||
| RN1-6/100 | RN3 | 6 | 100 | 360 | 500 | 550 | |||
| RN1-6/150 | RN3 | 150 | |||||||
| RN1-6/200 | RN3 | 200 | |||||||
| RN1-10/75 | RN3 | 10 | 75 | 460 | 600 | 650 | |||
| RN1-10/100 | RN3 | 100 | |||||||

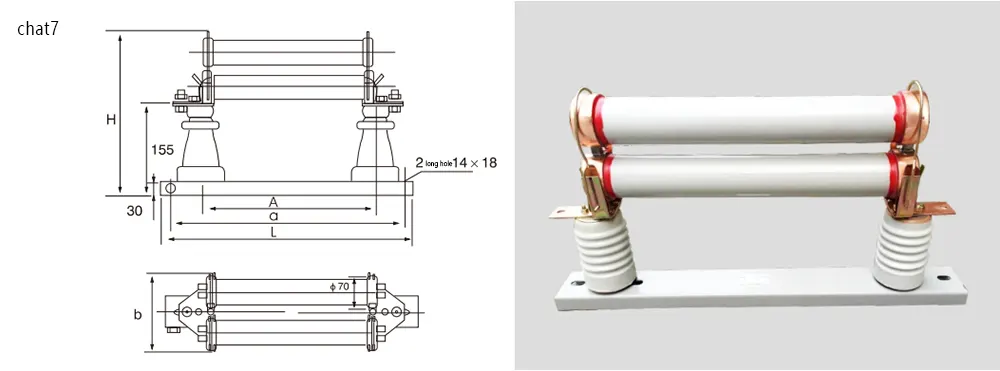

Product type | Product code number | Diagram number | Rated voltage(KV） | Fuse current A | Major dimensions | |||
| A | a | L | b | |||||
| RN1-10/80 | RN3 | chat7 | 10 | 80 | 460 | 600 | 650 | 108 |
| RN1-10/100 | RN3 | 10 | 100 | |||||
| RN1-10/150 | RN3 | 10 | 150 | |||||
| RN1-10/200 | RN3 | 10 | 200 | |||||
