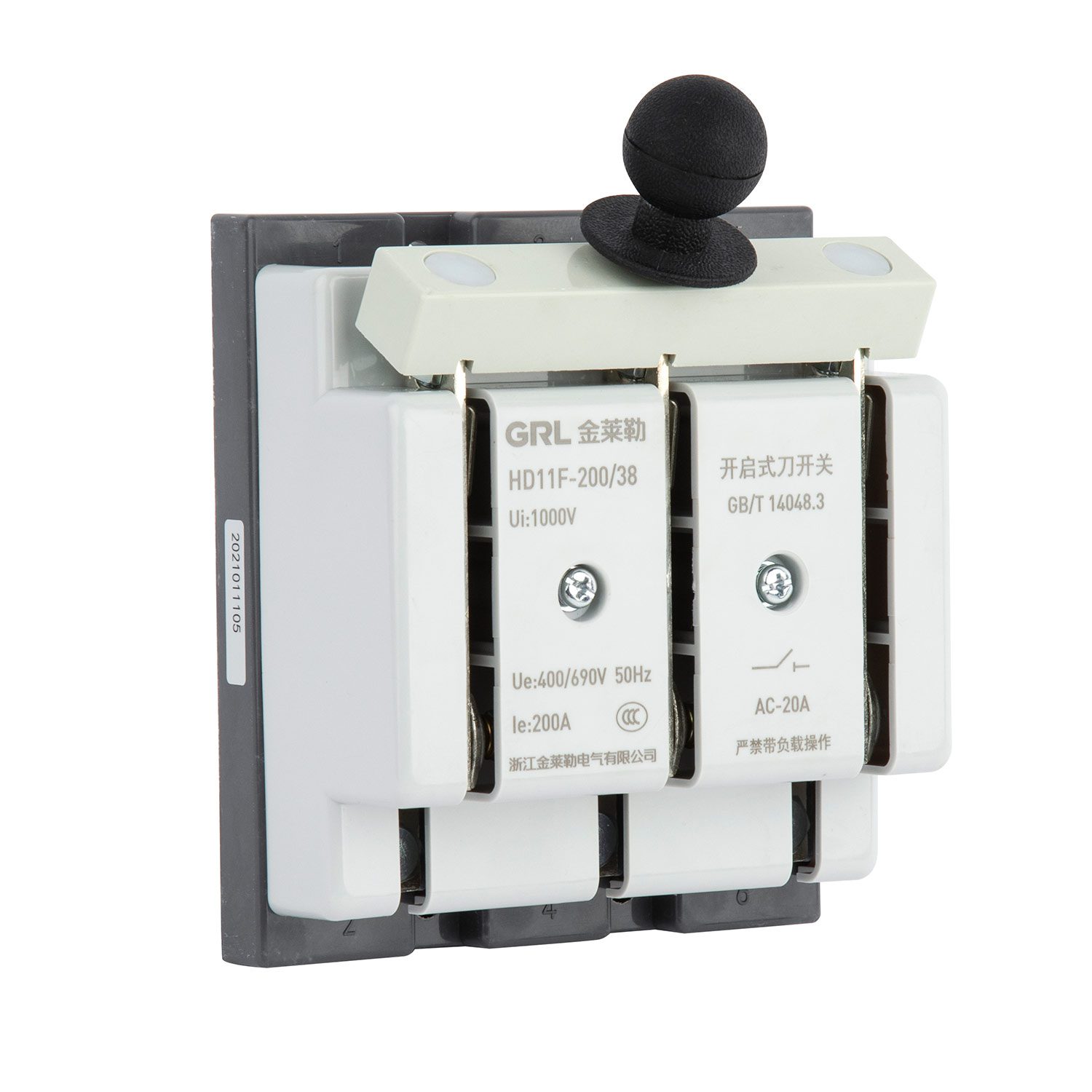

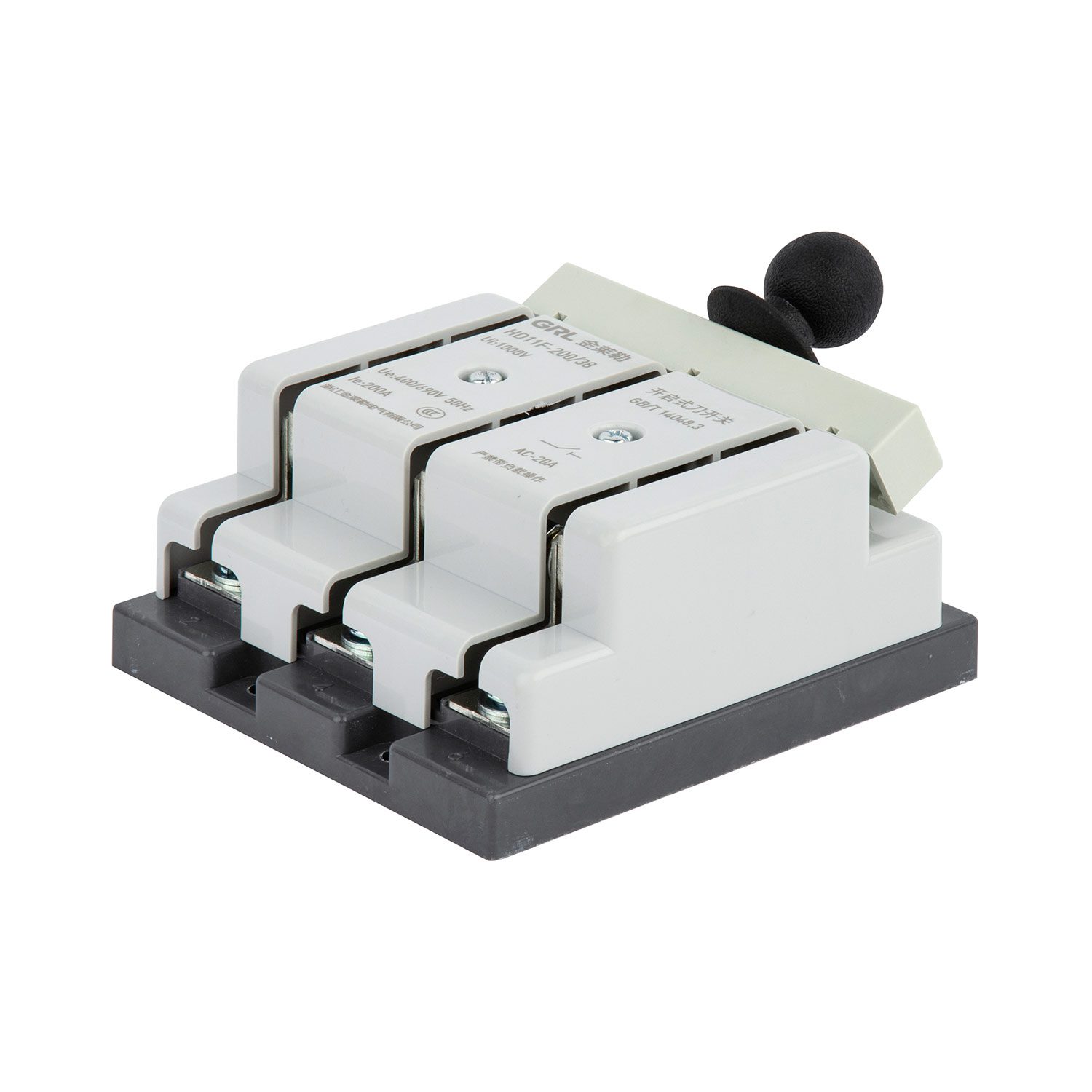

Mode：HD11FG
Current：100A，200A，400A，630A，1000A
Voltage：AC400V/690V
Material：DMC base ,Copper contact,ABS frame
Certificate：
Email: [email protected]
1.Model no.
2.Dimension
3.parameters
4.The components
5.Packing
6.Packaging&shipping
Model no.
|
Item |
Order No. | Current |
Working Condition |
|
1 |
HD11F-100/38 | 100A | The ambient temperature : +5 ° C~ +40 ° C installation location must be at an altitude of less than 2000 m
Humidity: When the highest temperature is +40℃, the relative humidity of the air does not exceed 50%. Higher relative humidity can be allowed at lower temperature, such as 90% at 20℃. Measures should be taken for occasional condensation due to ambient temperature changes.
environment pollution rating
The switch should be installed in a place where there is no significant shaking, shock vibration, and wind and rain. The switch should be installed in a place where there is no explosive medium and no gas and dust that can corrode metal and destroy insulation
The insulation material can reach flame retardant V0 graden |
|
2 |

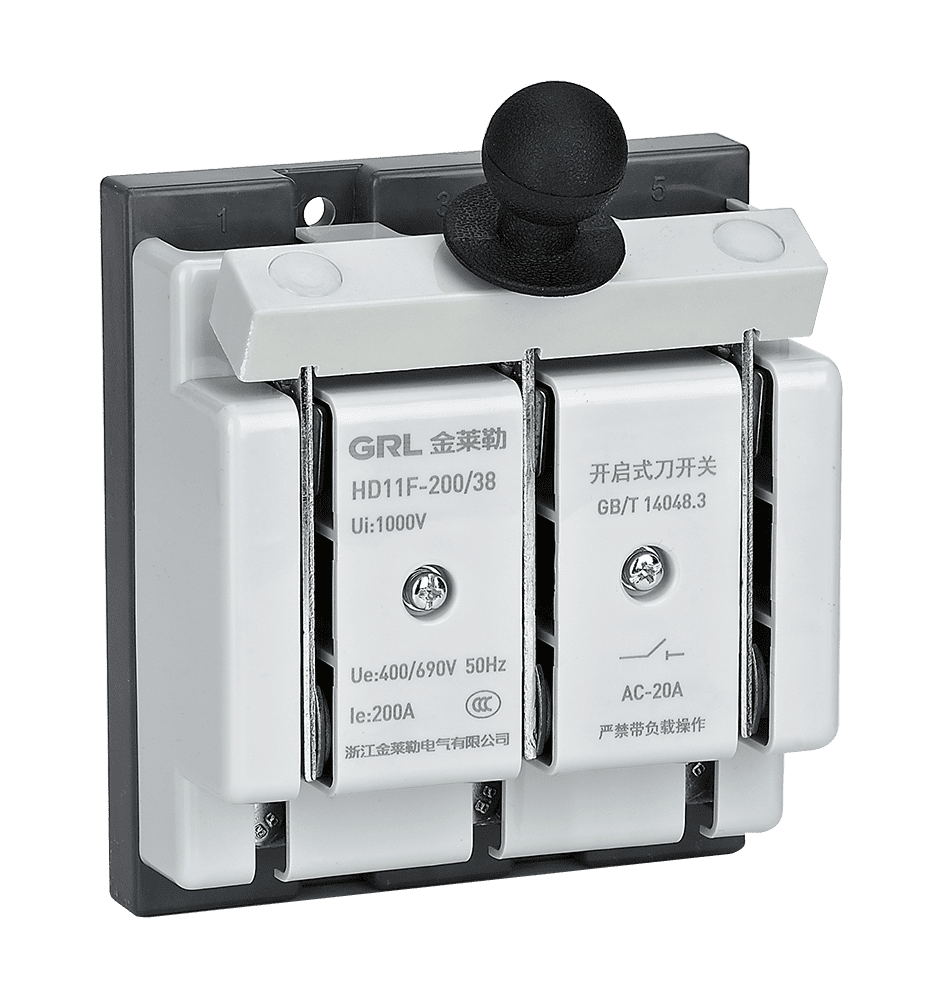

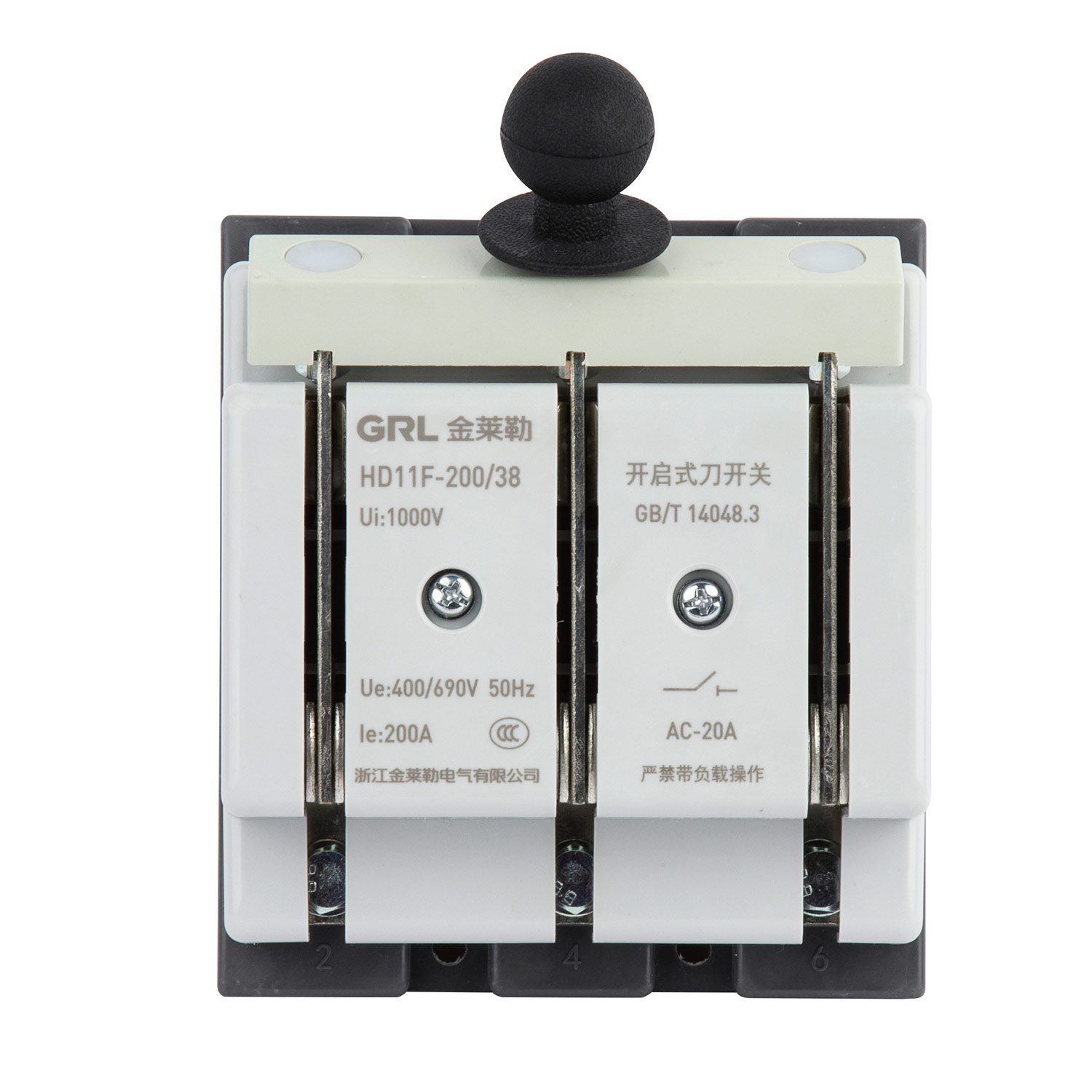

HD11F-200/38 |
200A |
|
|
3 |
HD11F-400/38 |
400A |
|
|
4 |
HD11F-630/38 |
630A |
|
|
5 |
HD11F-1000/38 |
1000A |
|
|
6 |
HD11F-200/48 |
200A |
|
|
7 |
HD11F-400/48 |
400A |
|
|
8 |
HD11F-630/48 |
630A |
Dimension
Parameters
| Thermal currentIth/A（A） | 250 | 400 | 630 | 1000 | |
| Rated current Ie（A） | 100/160 | 200/250 | 400 | 630 | 1000 |
|
Rated insulation voltage (V) |
1000 | 1000 | 1000 | 1000 | 1000 |
| Rated voltage（V） | 400/690 | 400/690 | 400/690 | 400/690 | 400/690 |
|
Electric endurance times(次) |
8000 | 8000 | 5000 | 5000 | 3000 |
|
1sRated short-time withstand current(kA) |
6 | 10 | 15 | 12 | 25 |
| Operation force（N） | ≤100 | ≤150 | ≤150 | ≤250 | ≤250 |
The components of the HD11FG Knife Switch
Introduction
The HD11 Knife switch is suitable for distribution panels at AC 50HZ ,rated voltage up to AC690V and rated ampere t to 1600A. Used for infrequently manually closing and breaking current circuits, or disconnector switches in lower voltage distribution panels.
The updated latest knife switch improve the performance of personal safety protection, to prevent accidental electric shock .HD11FG Knife Switch
Characteristics
—— Copper(99.99%) contacts ;tin-plating surface
—— With protective cover
—— Manual operate
—— Ambient temperature -5℃~40℃
—— working altitude lower than 2000m
Selection Help
—— Max to 1600A
一一 3 pole & 4 pole
—— Front wiring or Back wiring
—— OEM & ODM
Read on what is a knife switch?
