NT00-M, NT1-M, NT3-M AC800V Fuses Link
Mode: NT00-M, NT1-M, NT3-M
Voltage:AC800V
Email: [email protected]
Reference:GB/T 13539 IEC 60269
Keyword:Fuses Link

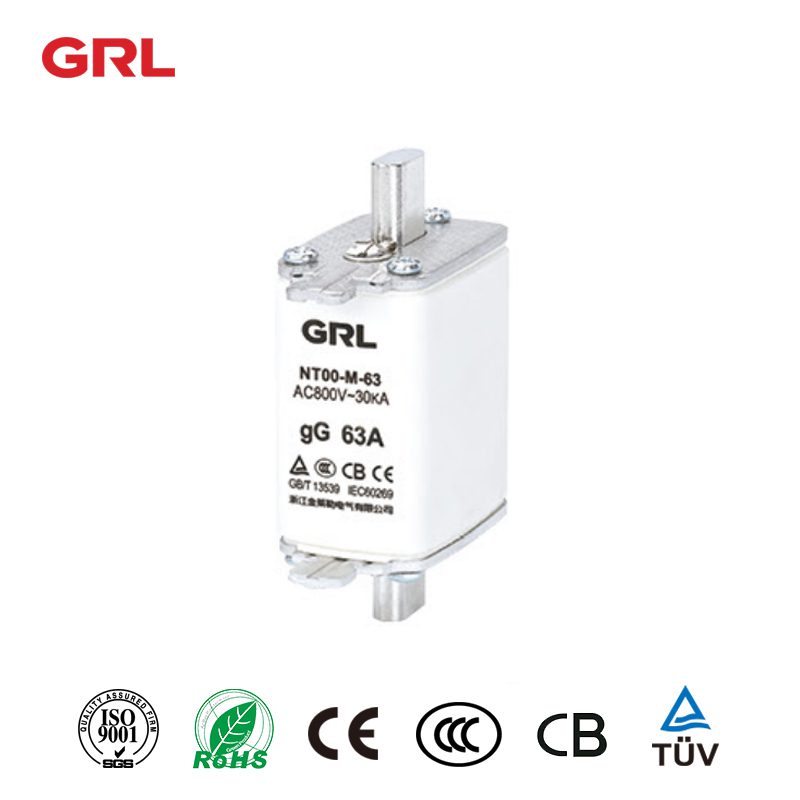

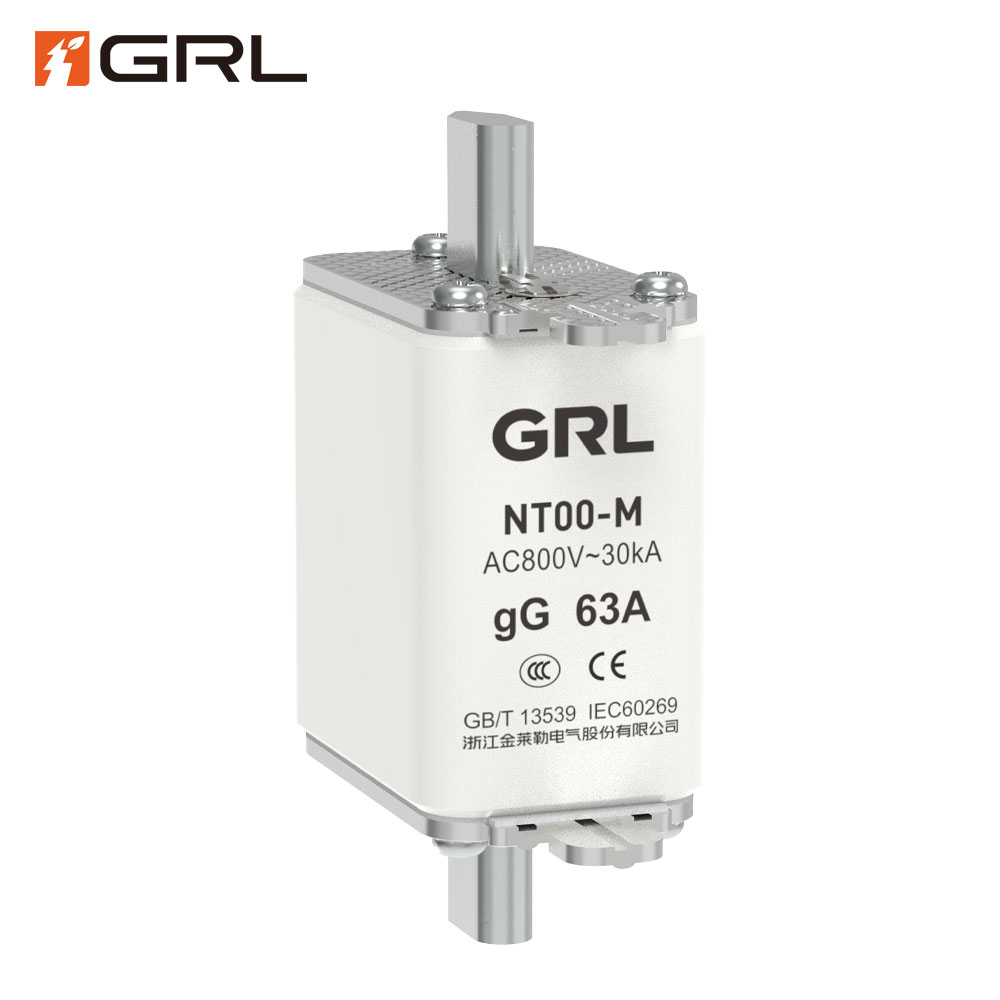

NT00-M AC800V Fuse Link
| Type No | Size | Rated voltage ( V ) | Rated current ( A ) | Rated breaking capacity ( KA ) |
| NTOO-M-2 |
00 |
AC 800 | 2 |
30 |
| NTOO-M-4 | 4 | |||
| NTOO-M-6 | 6 | |||
| NTOO-M-8 | 8 | |||
| NTOO-M-10 | 10 | |||
| NTOO-M-16 | 16 | |||
| NTOO-M-20 | 20 | |||
| NTOO-M-25 | 25 | |||
| NTOO-M-32 | 32 | |||
| NTOO-M-40 | 40 | |||
| NTOO-M-50 | 50 | |||
| NTOO-M-63 | 63 |

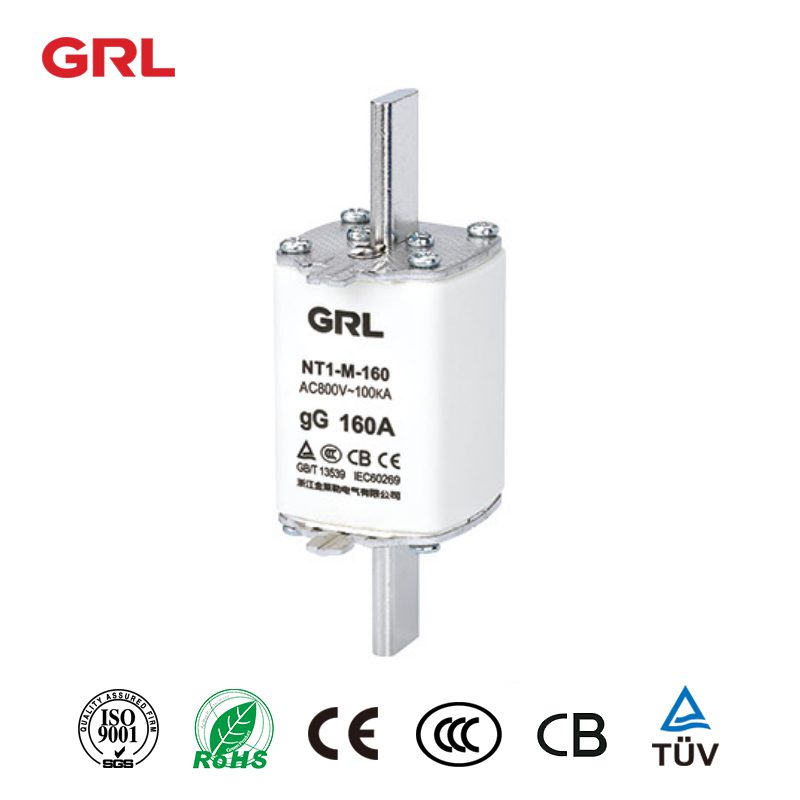

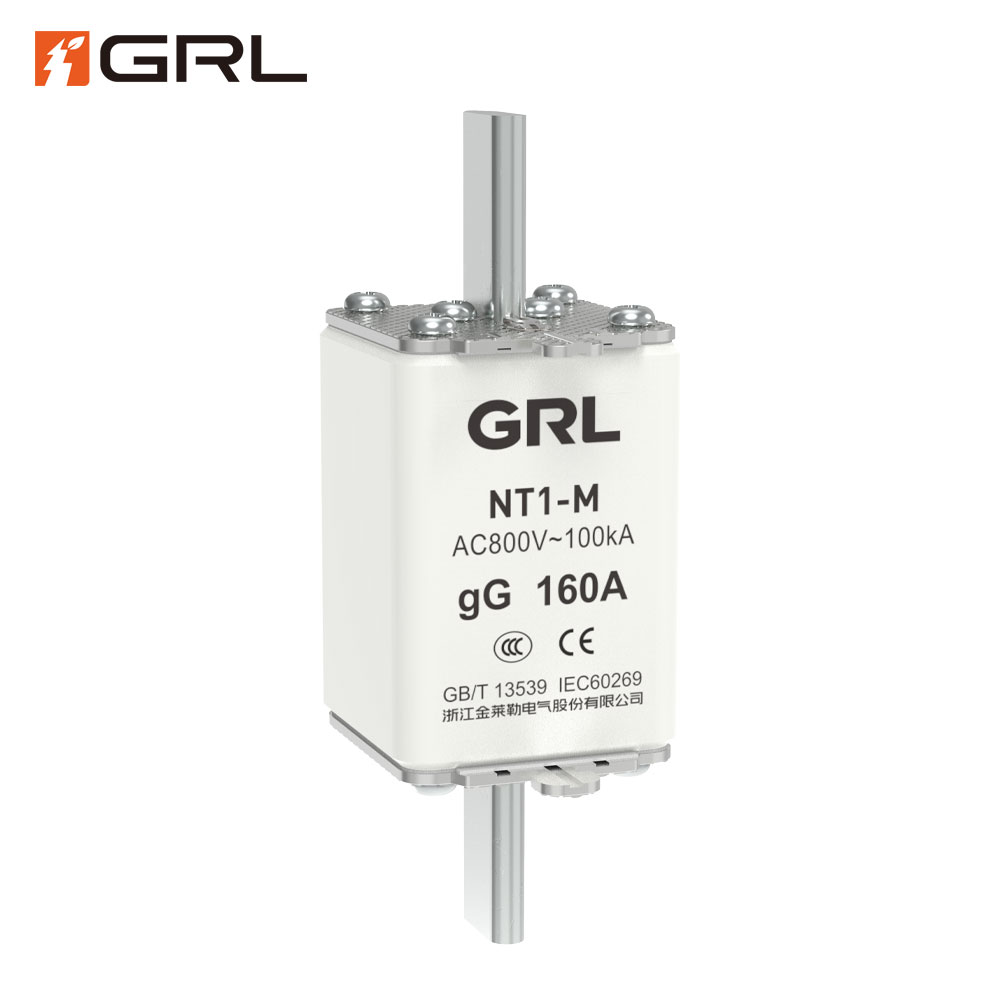

NT1-M AC800V Fuse Link
| Type No | Size | Rated voltage ( V ) | Rated current ( A ) | Rated breaking capacity ( KA ) |
| NT1-M-4 |
3 |
AC 800 | 4 |
100 |
| NT1-M-6 | 6 | |||
| NT1-M-8 | 8 | |||
| NT1-M-10 | 10 | |||
| NT1-M-16 | 16 | |||
| NT1-M-20 | 20 | |||
| NT1-M-25 | 25 | |||
| NT1-M-32 | 32 | |||
| NT1-M-40 | 40 | |||
| NT1-M-50 | 50 | |||
| NT1-M-63 | 63 | |||
| NT1-M-80 | 80 | |||
| NT1-M-100 | 100 | |||
| NT1-M-125 | 125 | |||
| NT1-M-160 | 160 |

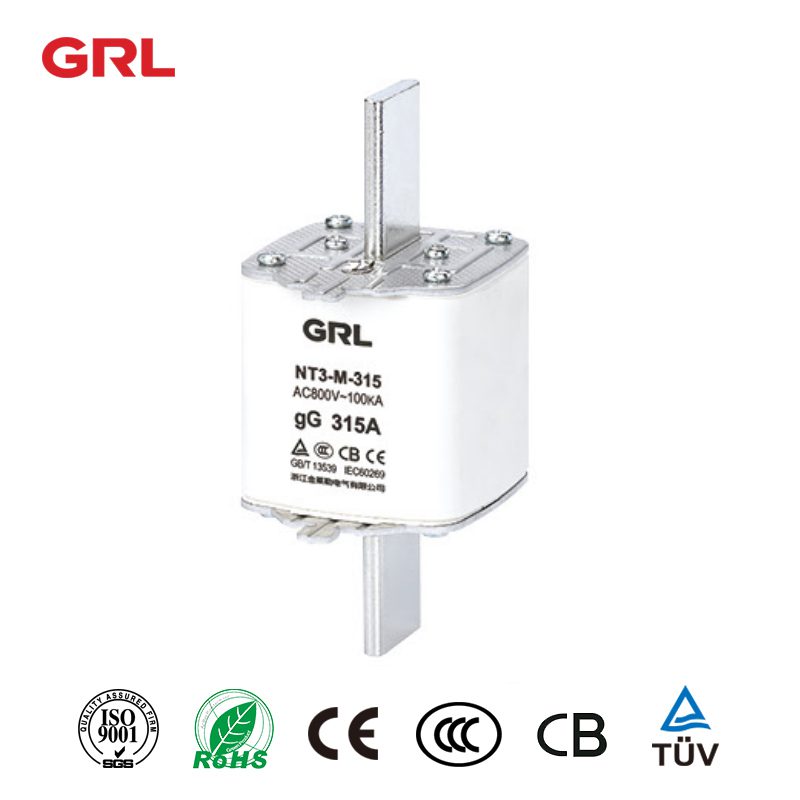

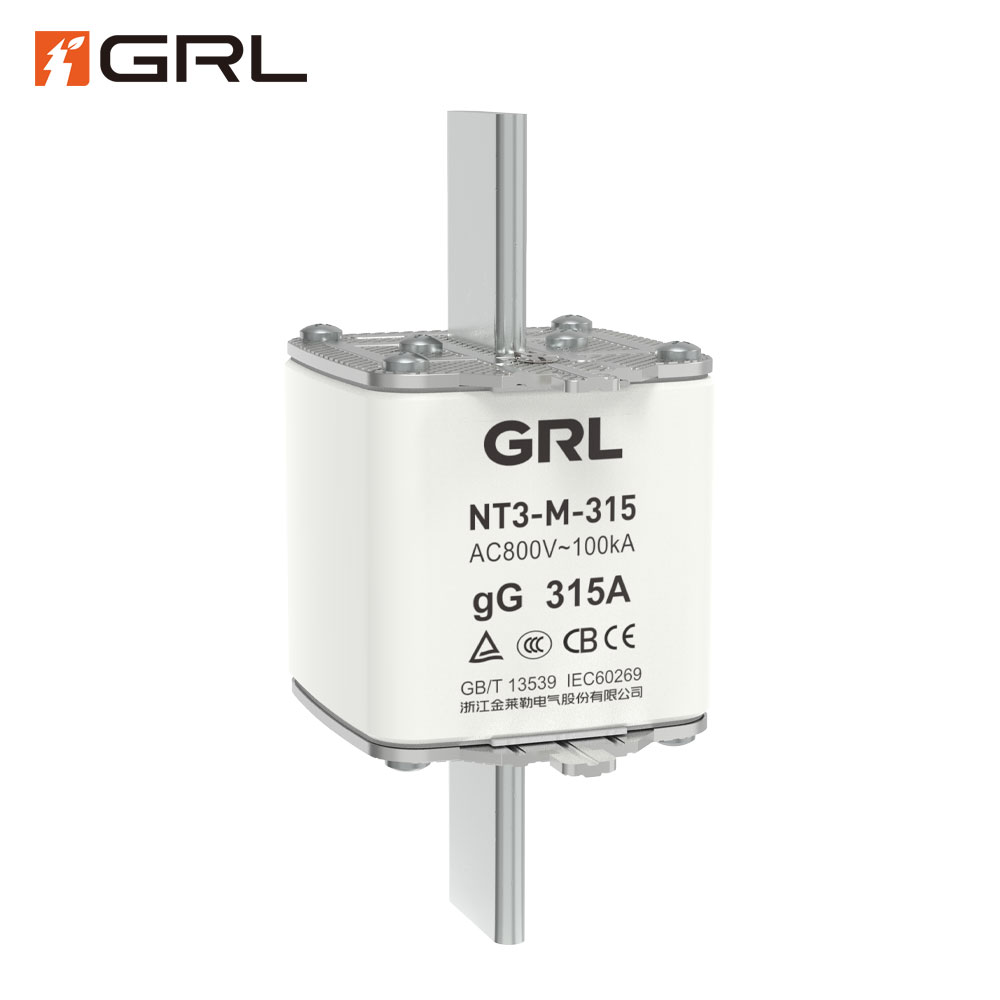

NT3-M AC800V Fuse Link
| Type No | Size | Rated voltage ( V ) | Rated current ( A ) | Rated breaking capacity ( KA ) |
| NT3-M-160 |
3 |
AC 800 | 160 |
100 |
| NT3-M-200 | 200 | |||
| NT3-M-250 | 250 | |||
| NT3-M-300 | 300 | |||
| NT3-M-315 | 315 |
