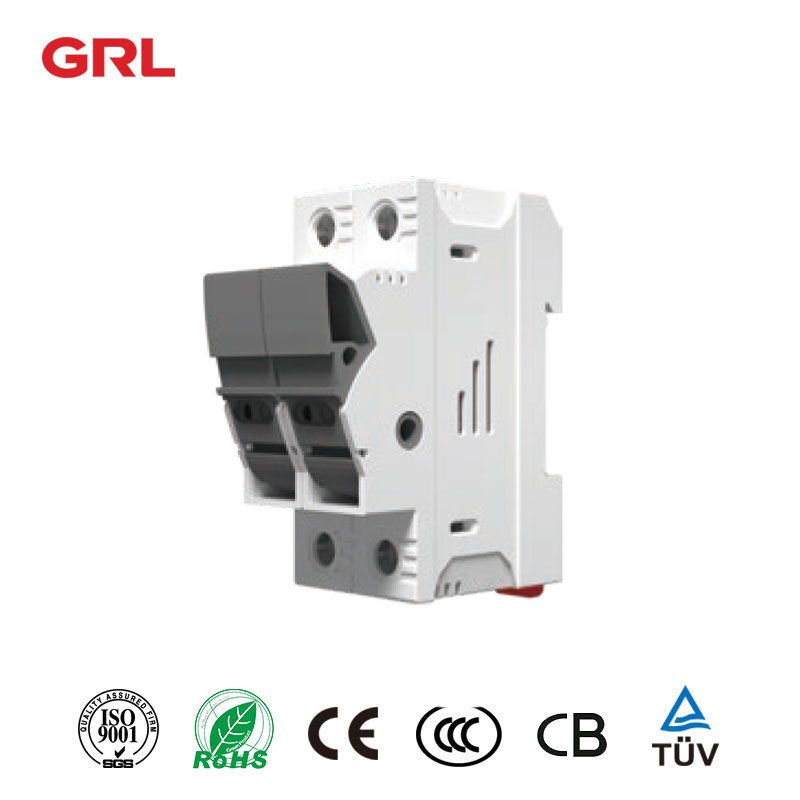

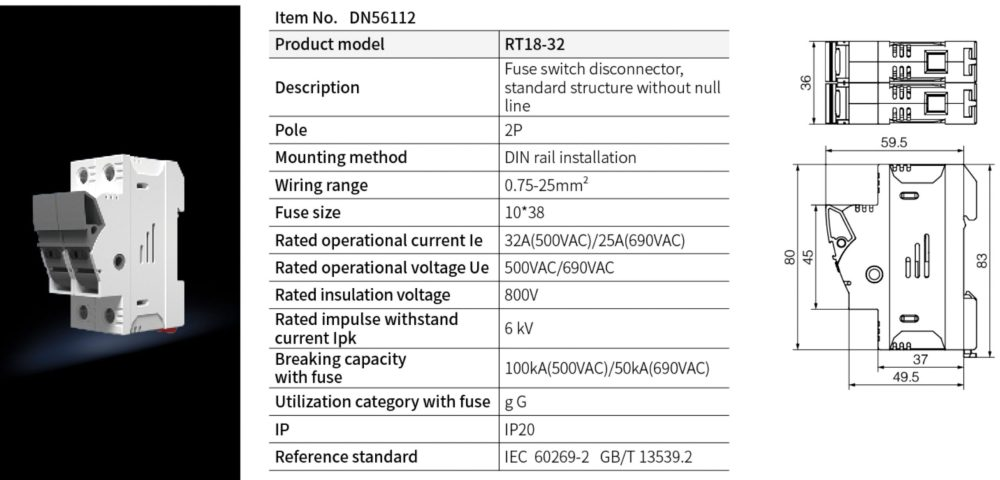

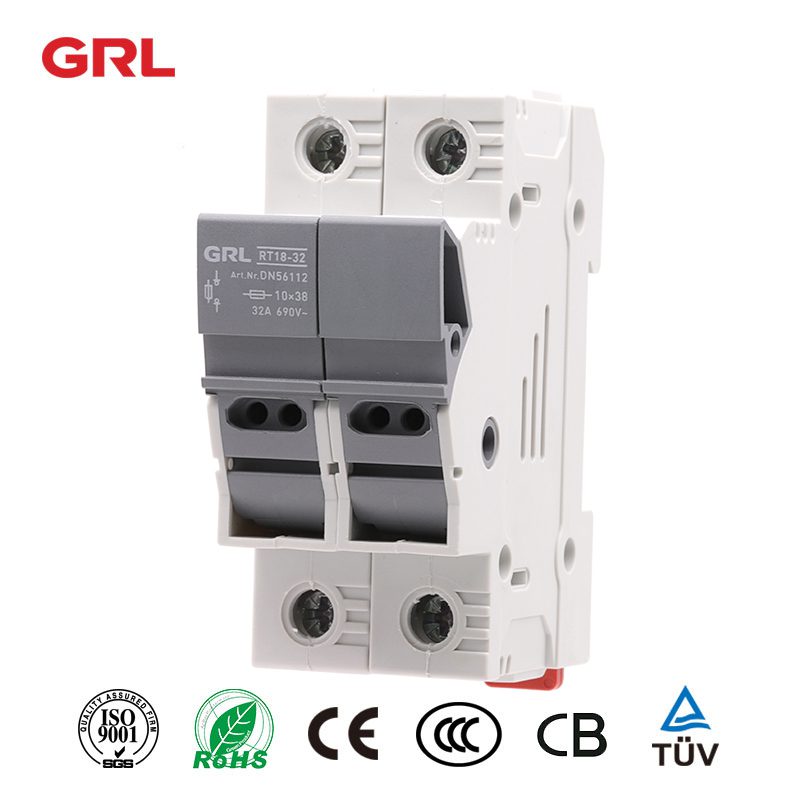

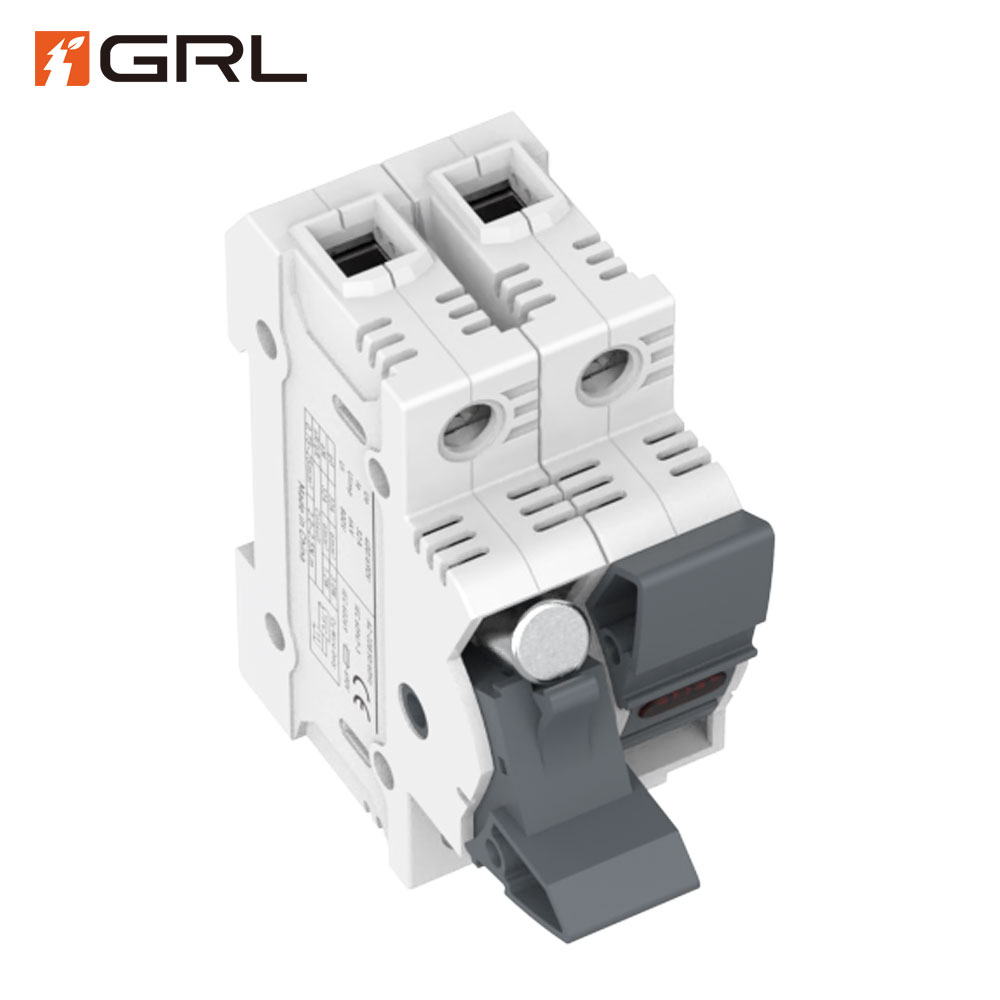

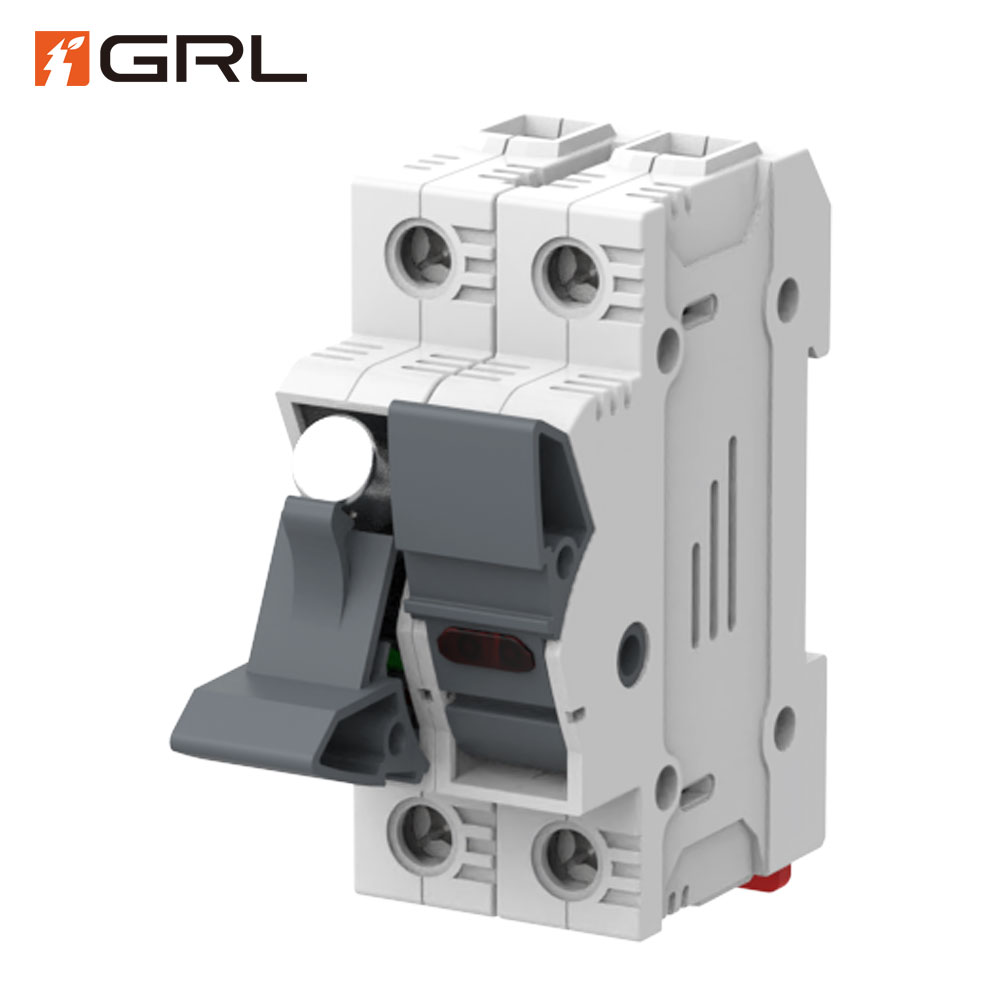

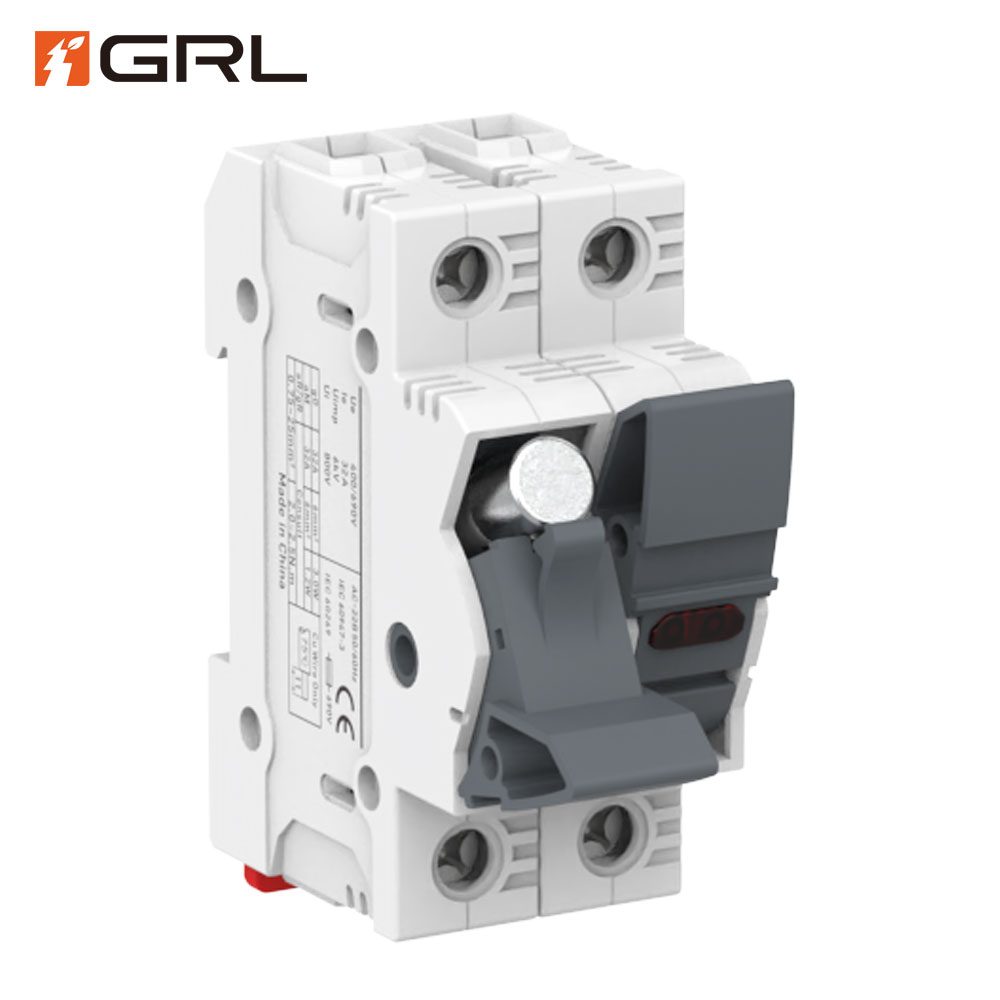

Item No.DN56112
| Product model | RT18-32 |
| Description | Fuse switch disconnector with LEDindicator |
| Pole | 2P |
| Mounting method | DIN rail installation |
| Wiring method | 0.75-25mm2 |
| Fuse size | 10*38 |
| Rated operational current le | 32A(500VAC)/25A(690VAC) |
| Rated operational voltage Ue | 500VAC/690VAC |
| Rated insulation voltage | 800V |
| Rated impulse withstangd current lpk | 6KV |
| Breaking capacity with fuse | 100KA(500VAC)/50KA(690VAC) |
| Utilization category with fuse | gG |
| LED Indicator voltage | 110-690VAC/DC |
| IP | IP20 |
| Reference standard | IEC 60269-2 GB/T 13539.2 |

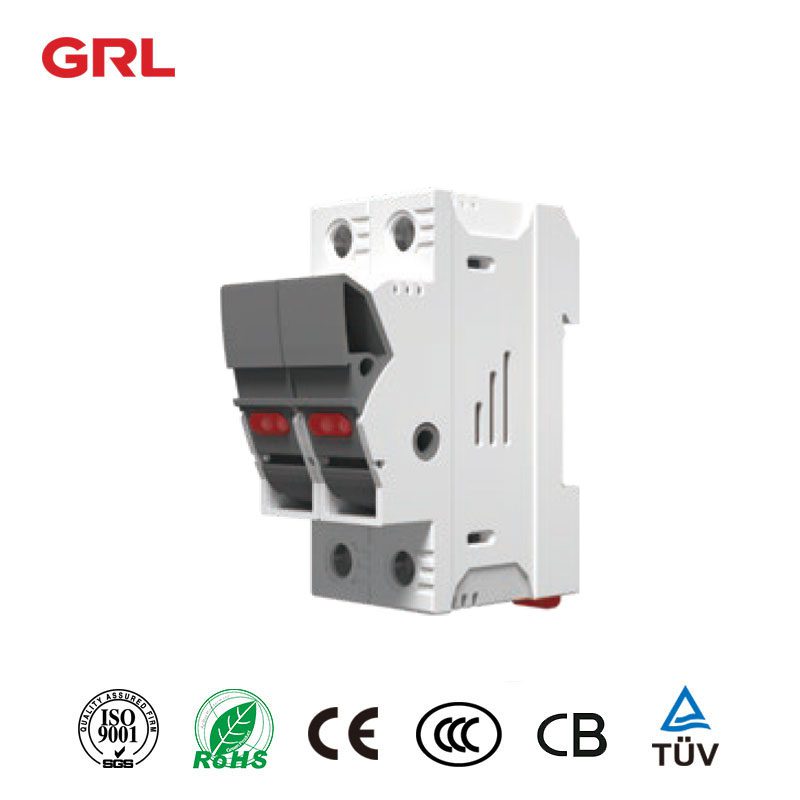

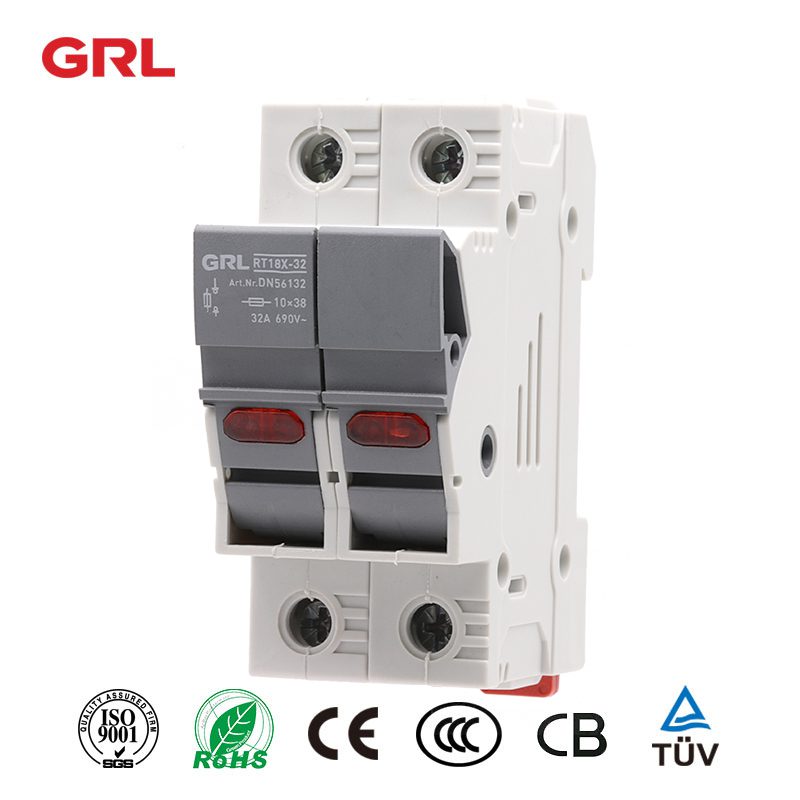

Fuse with holder RT18X-32 fuse size 10*38 2P

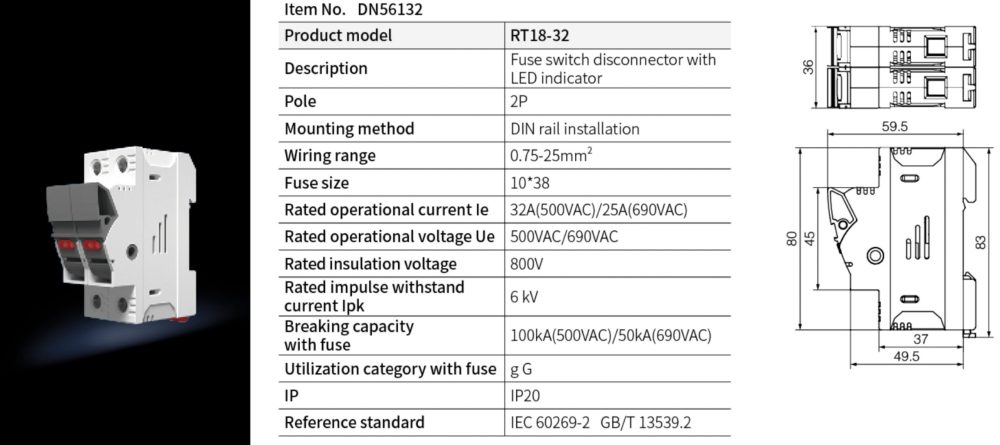

Item No.DN56132
| Product model | RT18X-32 |
| Description | Fuse switch disconnector with LEDindicator |
| Pole | 2P |
| Mounting method | DIN rail installation |
| Wiring method | 0.75-25mm2 |
| Fuse size | 10*38 |
| Rated operational current le | 32A(500VAC)/25A(690VAC) |
| Rated operational voltage Ue | 500VAC/690VAC |
| Rated insulation voltage | 800V |
| Rated impulse withstangd current lpk | 6KV |
| Breaking capacity with fuse | 100KA(500VAC)/50KA(690VAC) |
| Utilization category with fuse | gG |
| LED Indicator voltage | 110-690VAC/DC |
| IP | IP20 |
| Reference standard | IEC 60269-2 GB/T 13539.2 |
What is a blade fuse holder?
A blade fuse holder is a type of fuse holder specifically designed to hold blade fuses. Blade fuses, also known as automotive fuses, are widely used in vehicles and other applications that require low to moderate current protection. A blade fuse holder provides a secure and convenient way to connect blade fuses in electrical circuits.
Here are some key features and characteristics of a blade fuse holder:
1.Design: A blade fuse holder typically consists of a housing or body made of non-conductive material, such as plastic. The housing is designed to enclose the blade fuse and provide protection against accidental contact.
2.Terminal Contacts: Blade fuse holders have terminal contacts or sockets where the blade fuse is inserted. The terminal contacts are designed to make a firm electrical connection with the blade terminals of the fuse.
3.Mounting: Blade fuse holders may have mounting options, such as screws or clips, to securely attach the holder to a surface or a fuse panel. This ensures stability and proper positioning of the fuse holder.
4.Wire Connections: Blade fuse holders often have wire connections to allow for easy integration into electrical circuits. These connections can be in the form of screw terminals, crimp terminals, or solder tabs, depending on the design of the holder.
5.Fuse Access: Blade fuse holders typically have a cover or cap that can be opened or removed to provide access to the fuse. This allows for easy inspection, testing, and replacement of the fuse when necessary.
6.Fuse Ratings: Blade fuse holders are available in various sizes to accommodate different blade fuse ratings. Common blade fuse sizes include mini blade fuses (ATM), standard blade fuses (ATO/ATC), and maxi blade fuses. The fuse holder should match the corresponding fuse size and rating for proper functionality and protection.
Blade fuse holders are commonly used in automotive applications, such as cars, trucks, motorcycles, boats, and recreational vehicles (RVs). They provide a secure and reliable connection for blade fuses, allowing for easy installation, inspection, and replacement.
Blade fuse holders are designed to protect electrical circuits from overcurrent conditions and ensure the safety and proper functioning of the electrical system.
