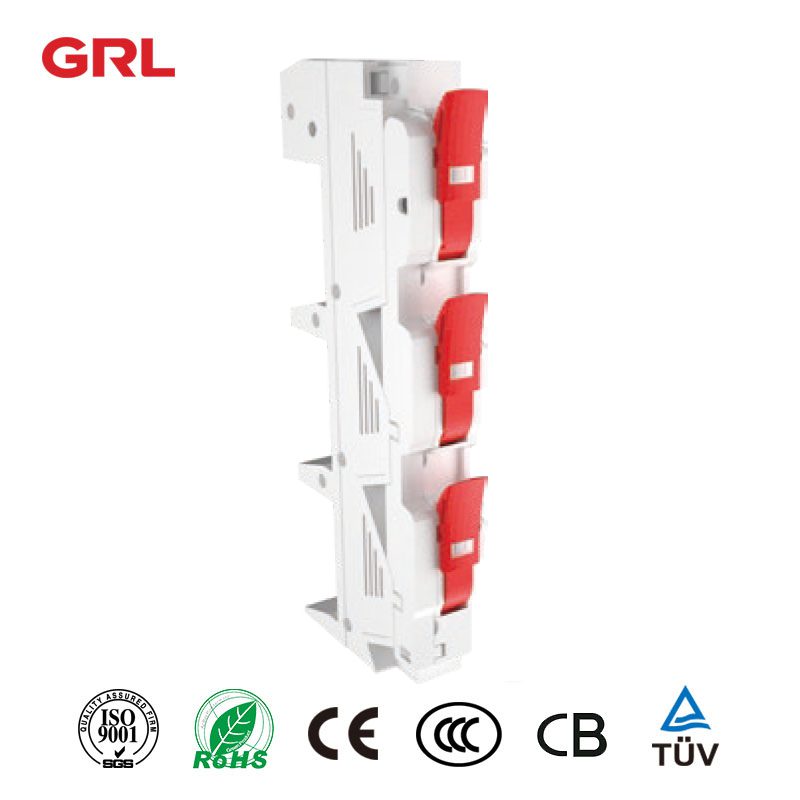

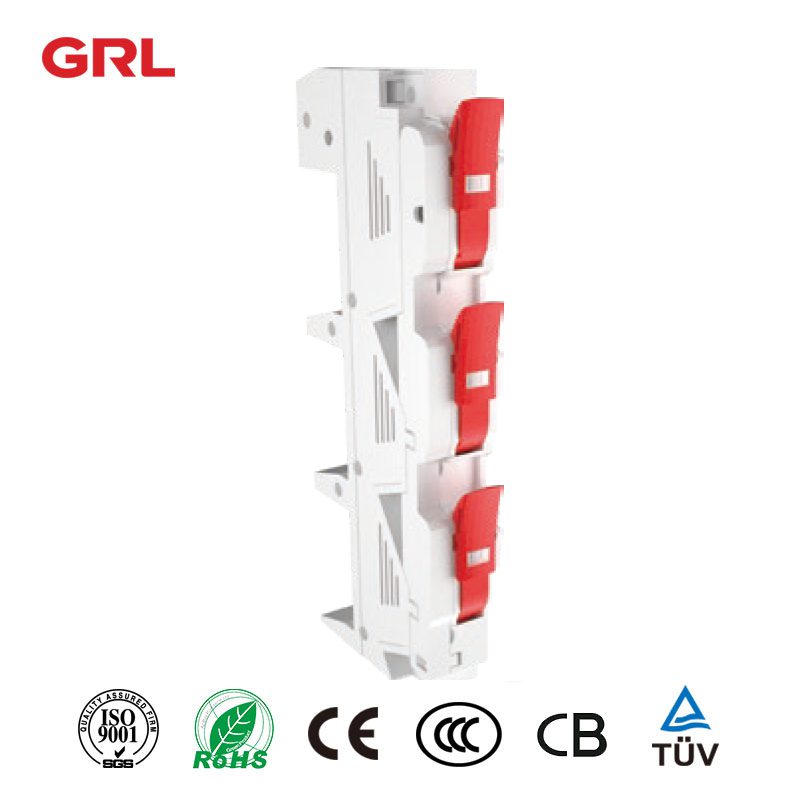

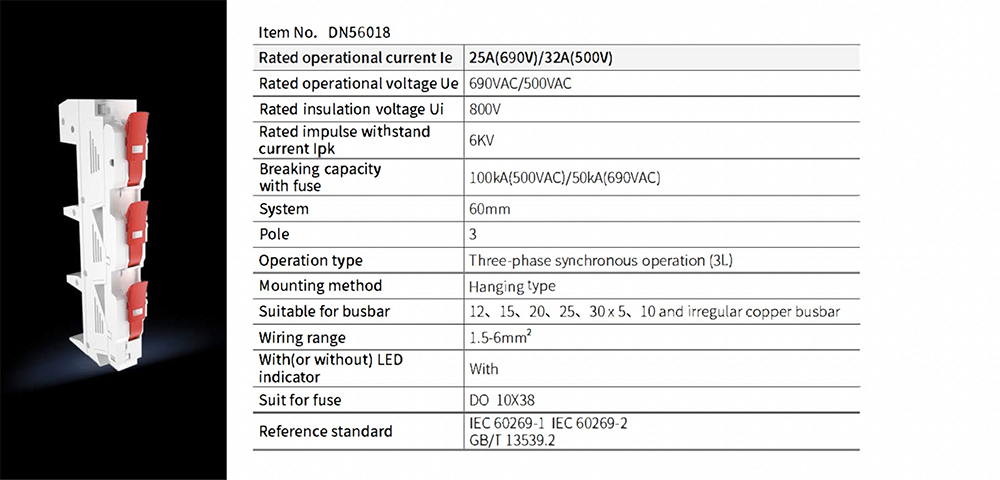

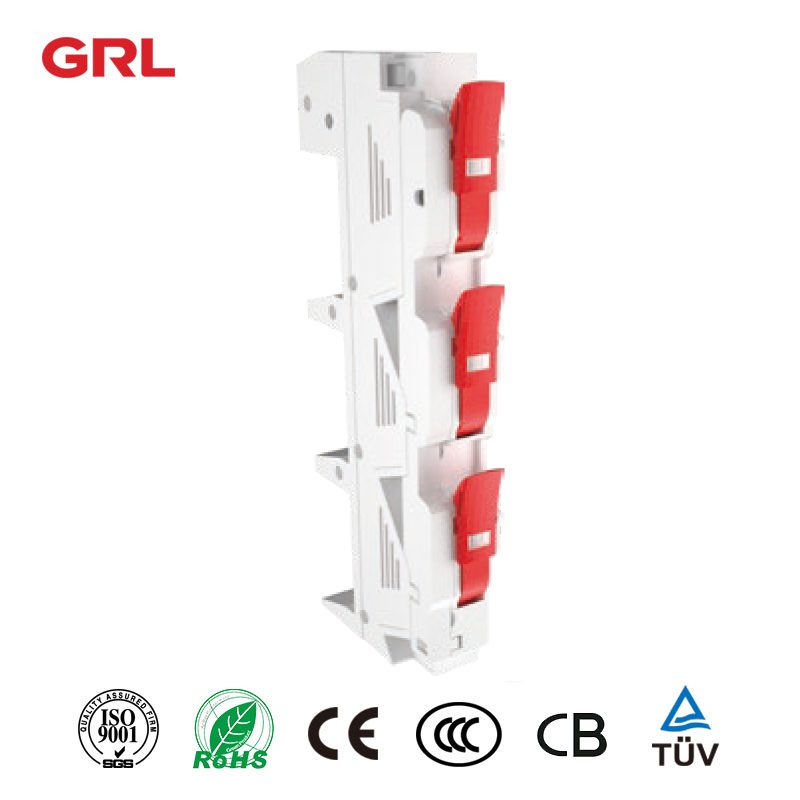

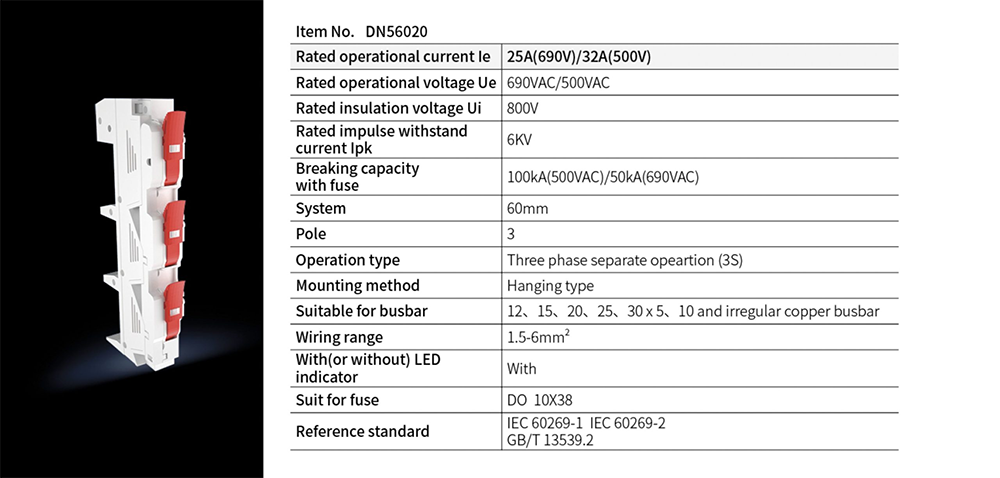

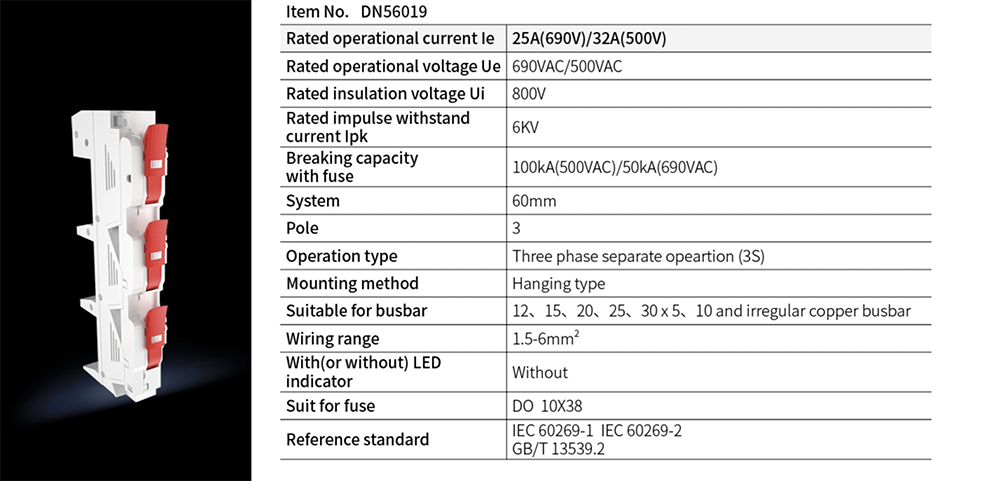

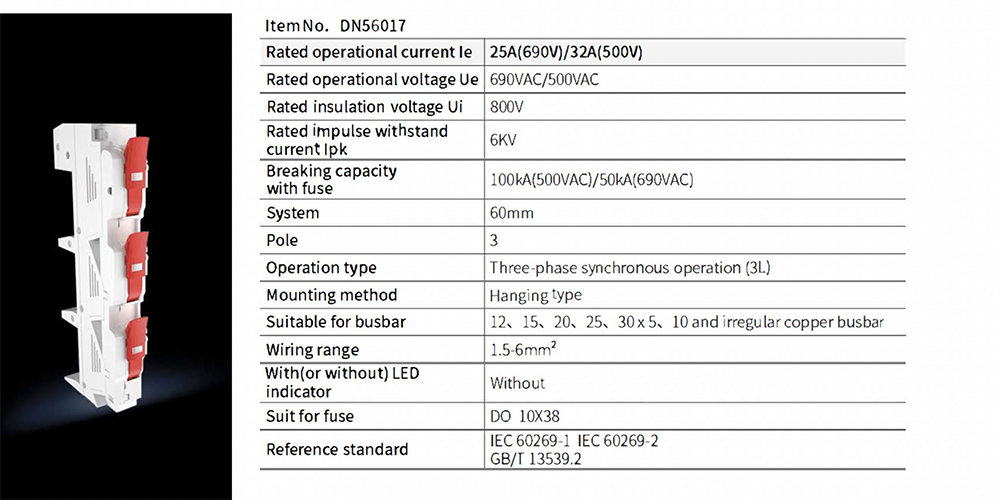

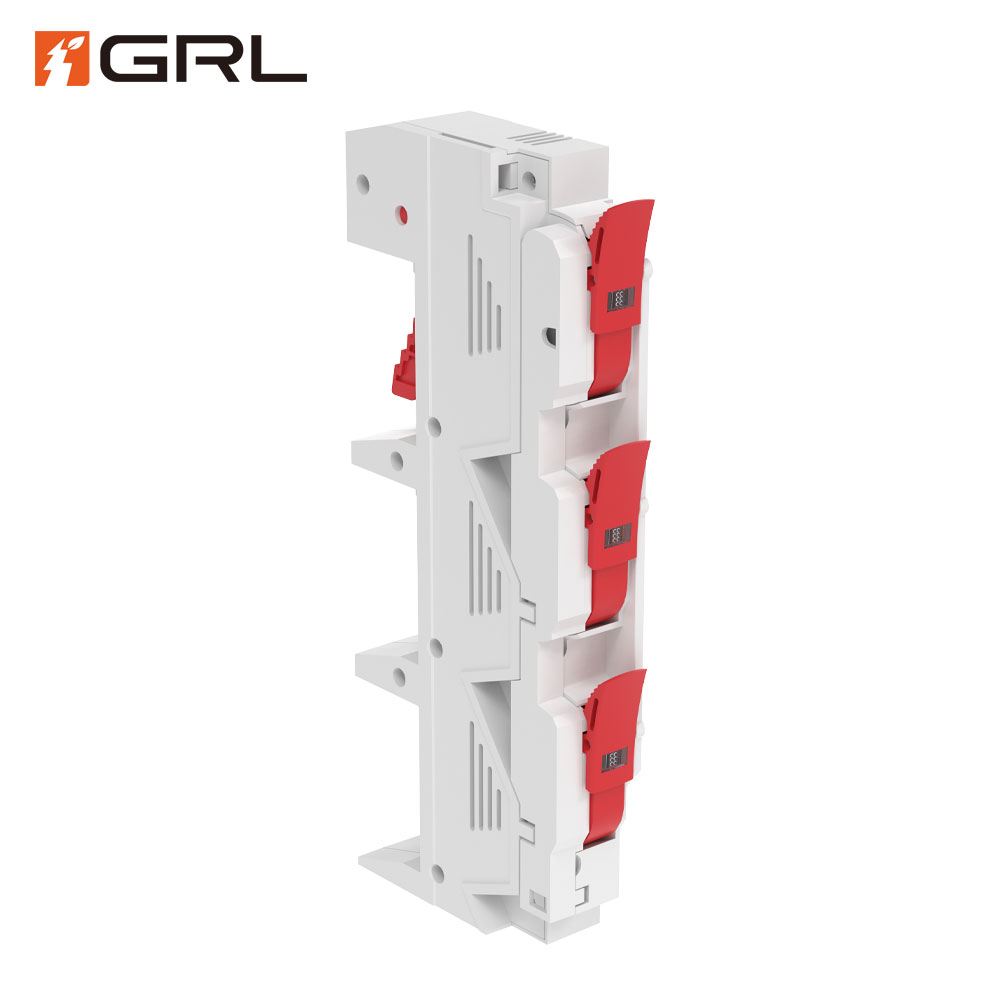

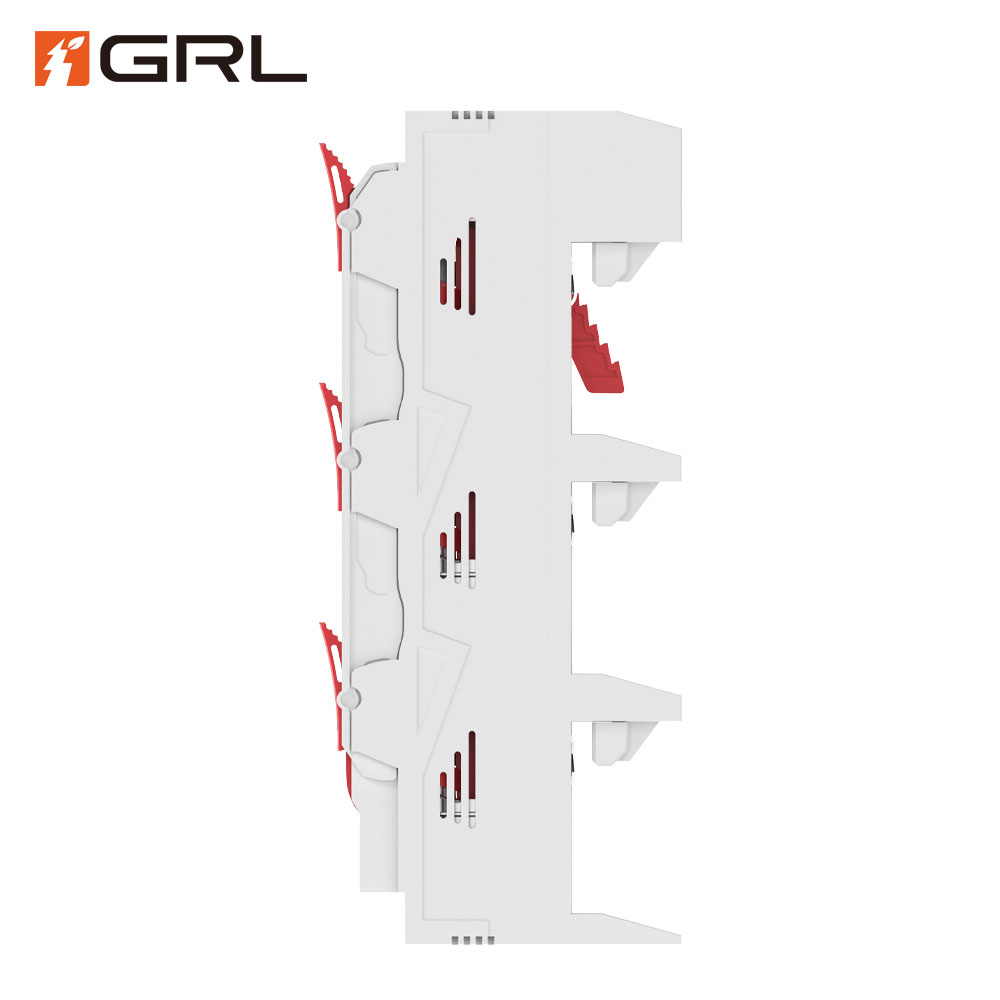

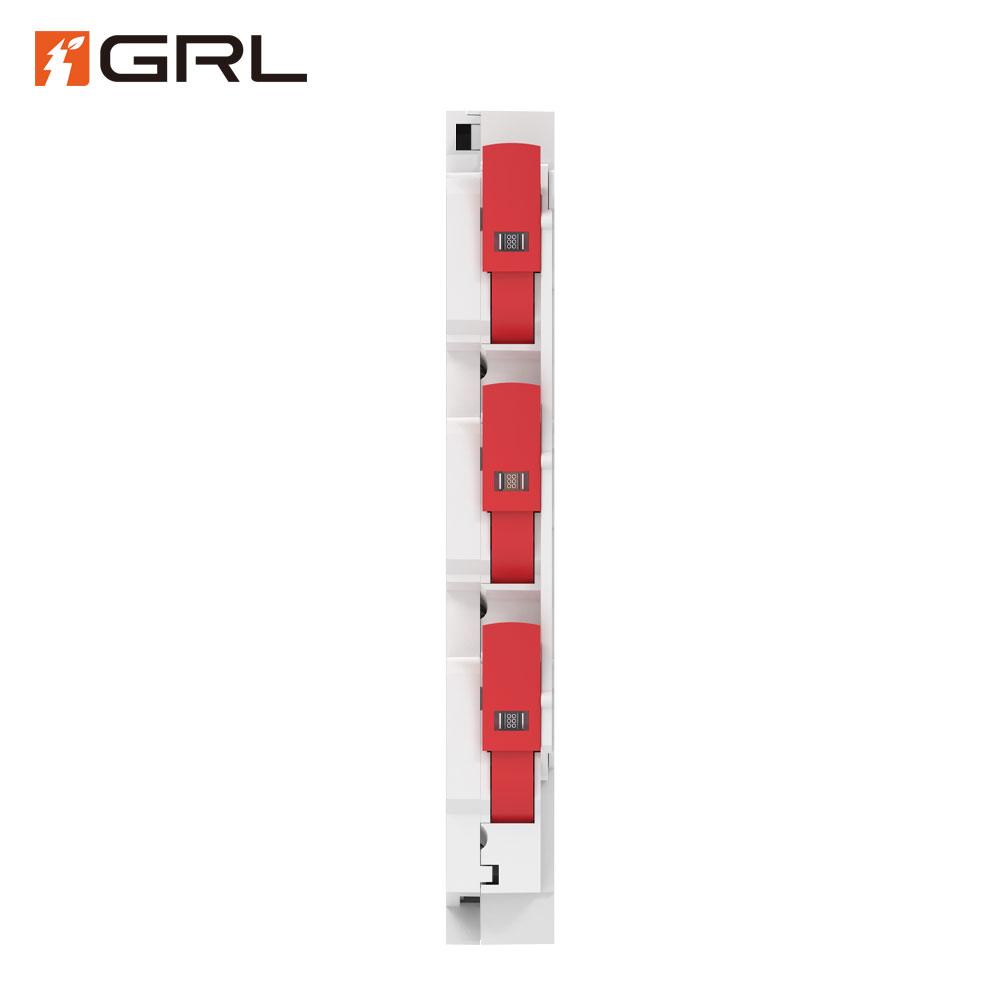

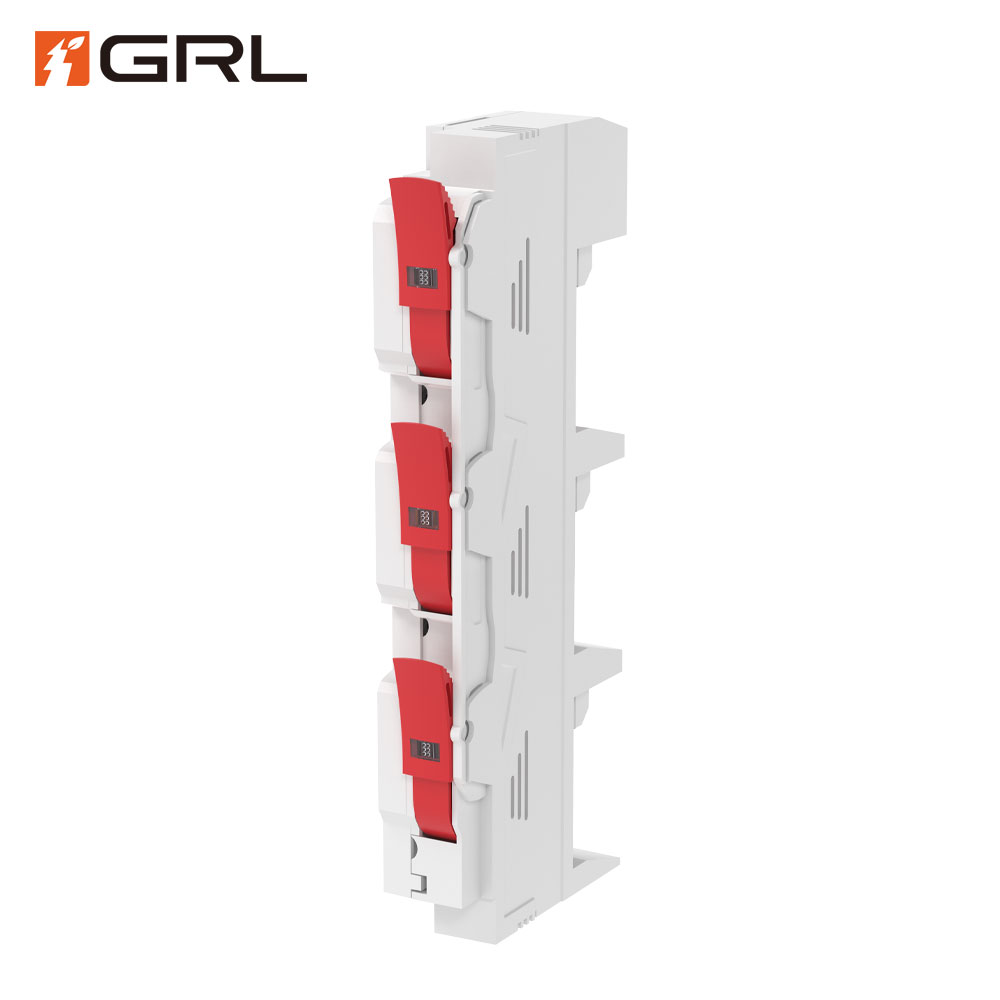

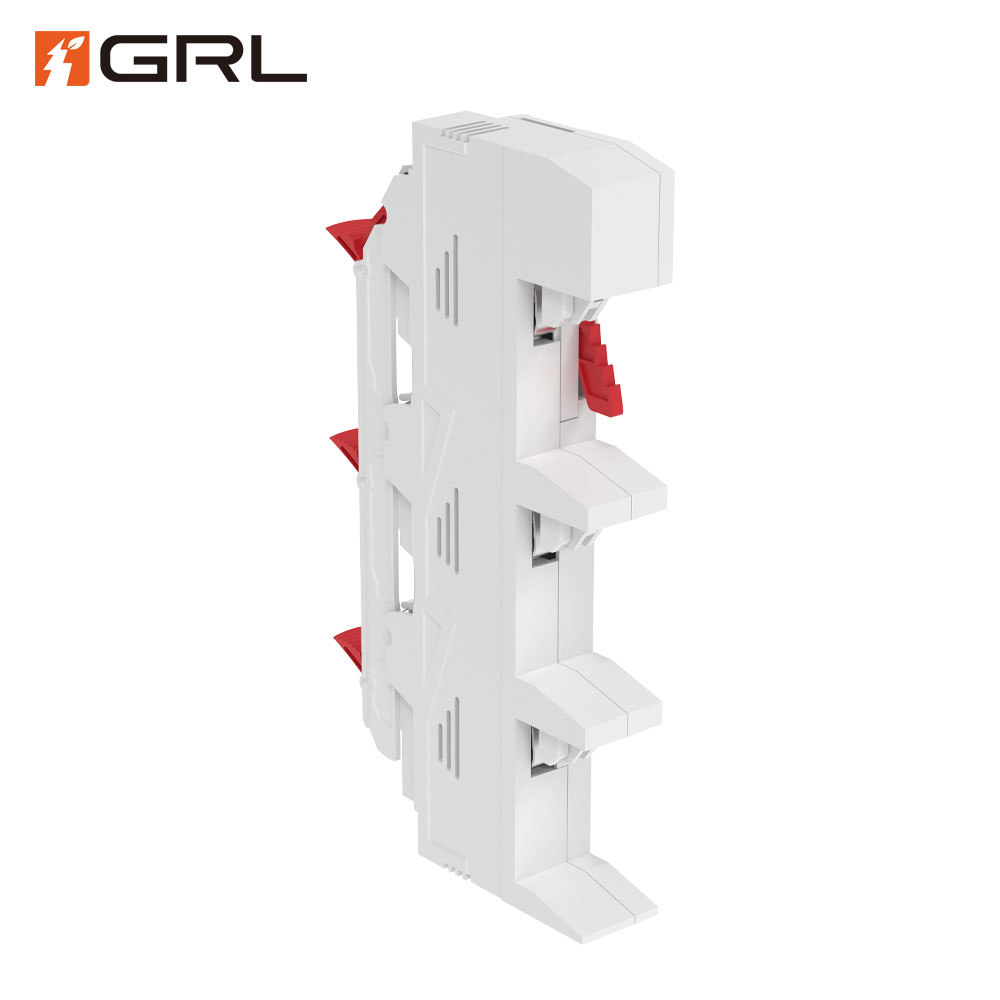

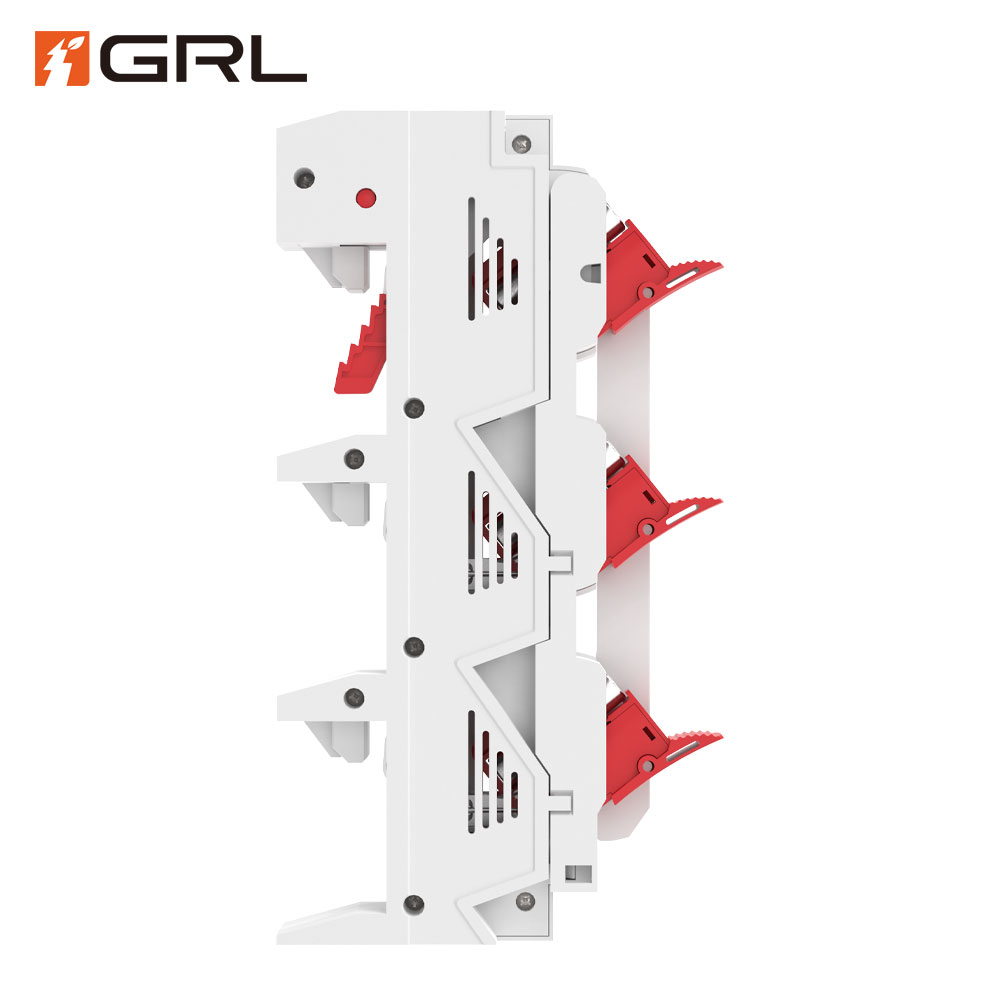

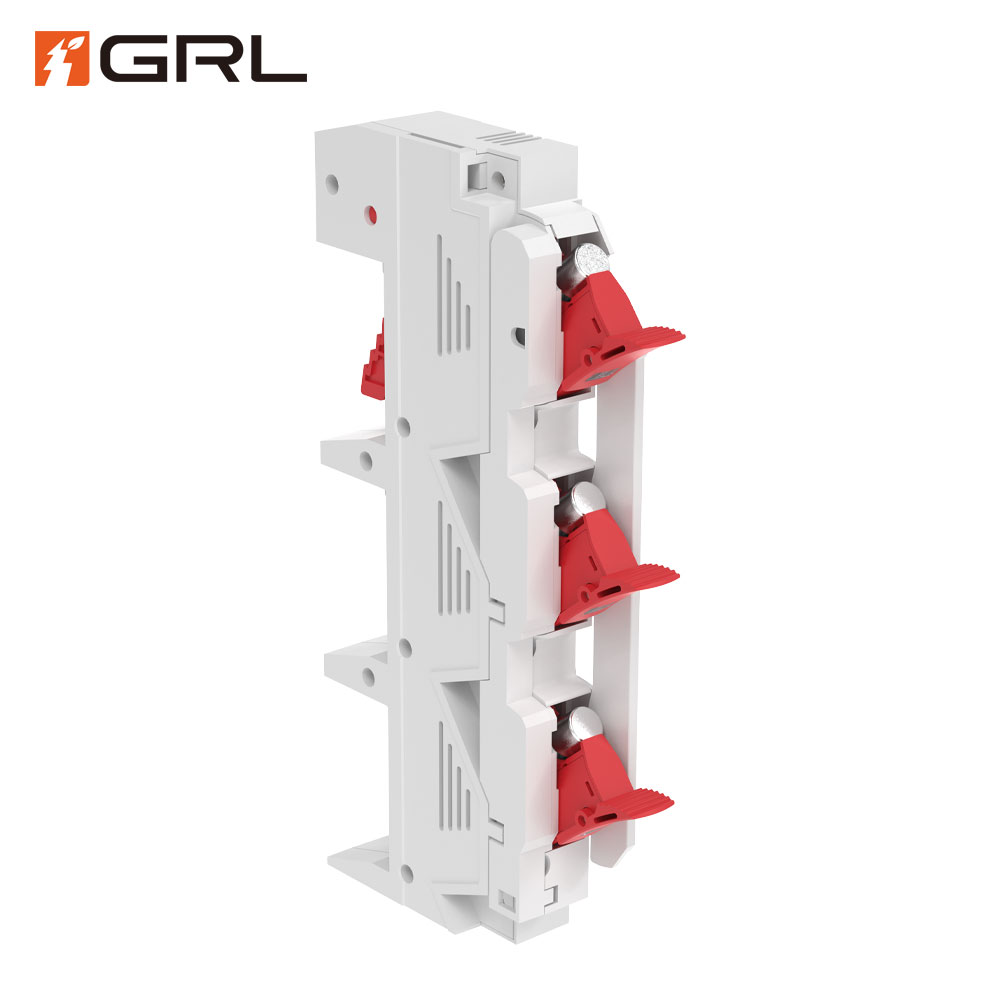

Mini Vertical Fuse Switch Disconnector 60mm Busbar System

Rated operational current Ie: 25A(690V)/32A(500V)

Rated operational voltage Ue: 690VAC/500VAC

Rated insulation voltage Ui: 800V

Rated impulse withstand current Ipk: 6kV

Breaking capacity with fuse :100kA(500VAC)/50kA(690VAC)

System: 60mm

Pole: 3P

Operation type: Three-phase synchronous operation (3L) and (3S)

Mounting method: Hanging type

Suitable for busbar:12, 15, 20, 25, 30*5, 10 and irregular copper busbar

Wiring range: 1.5-6mm^2

Suit for fuse: DO 10*38

Reference standard: IEC 60269-1  IEC 60269-2  GB/T 13539.2
