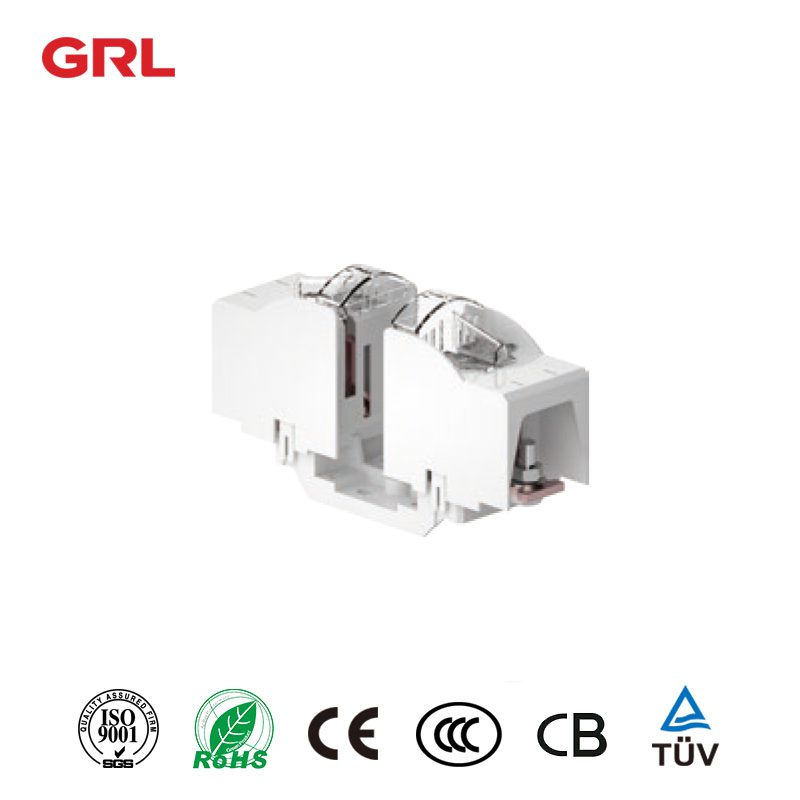

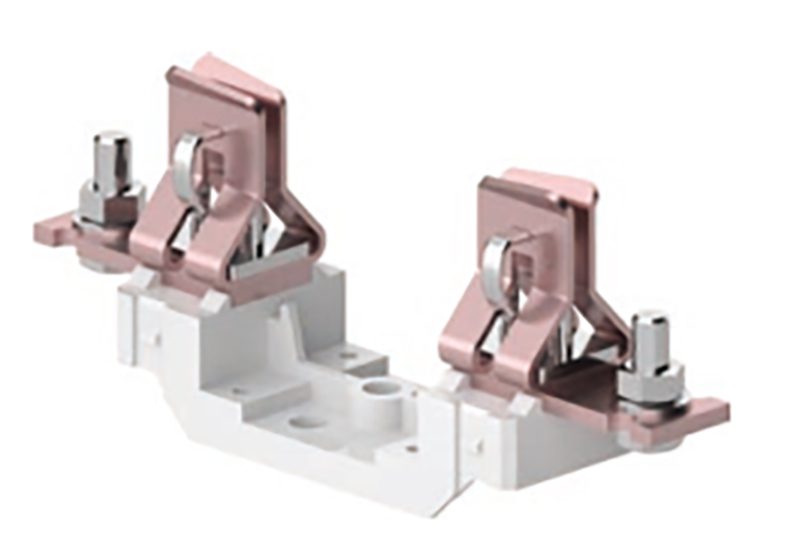

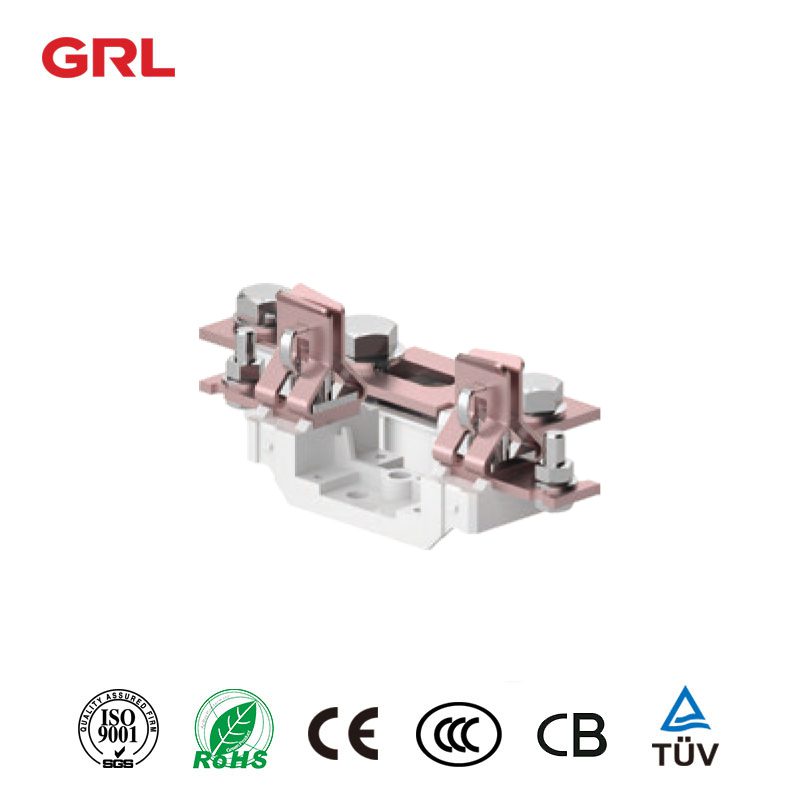

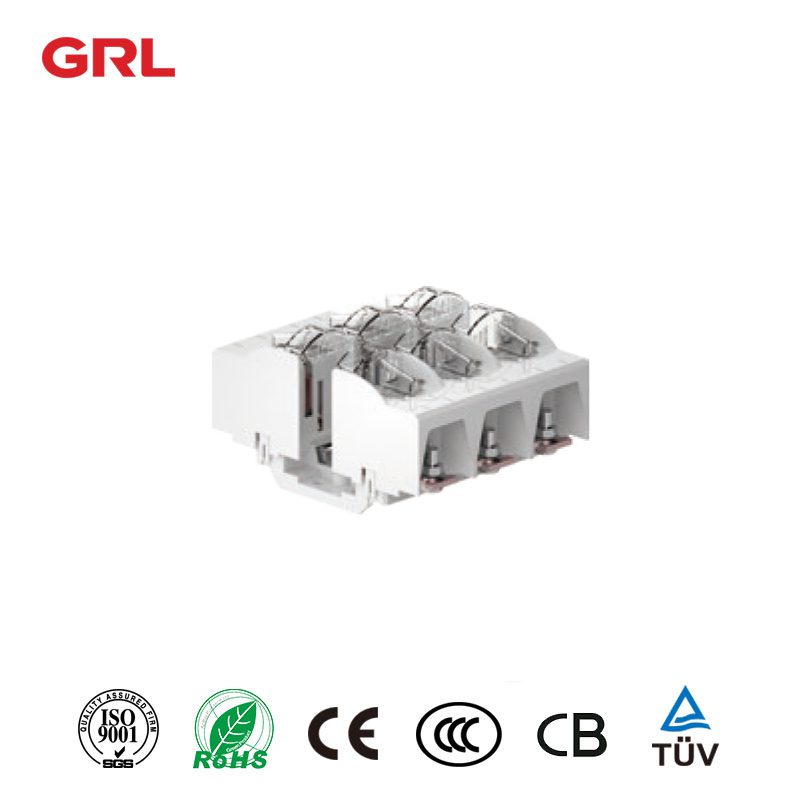

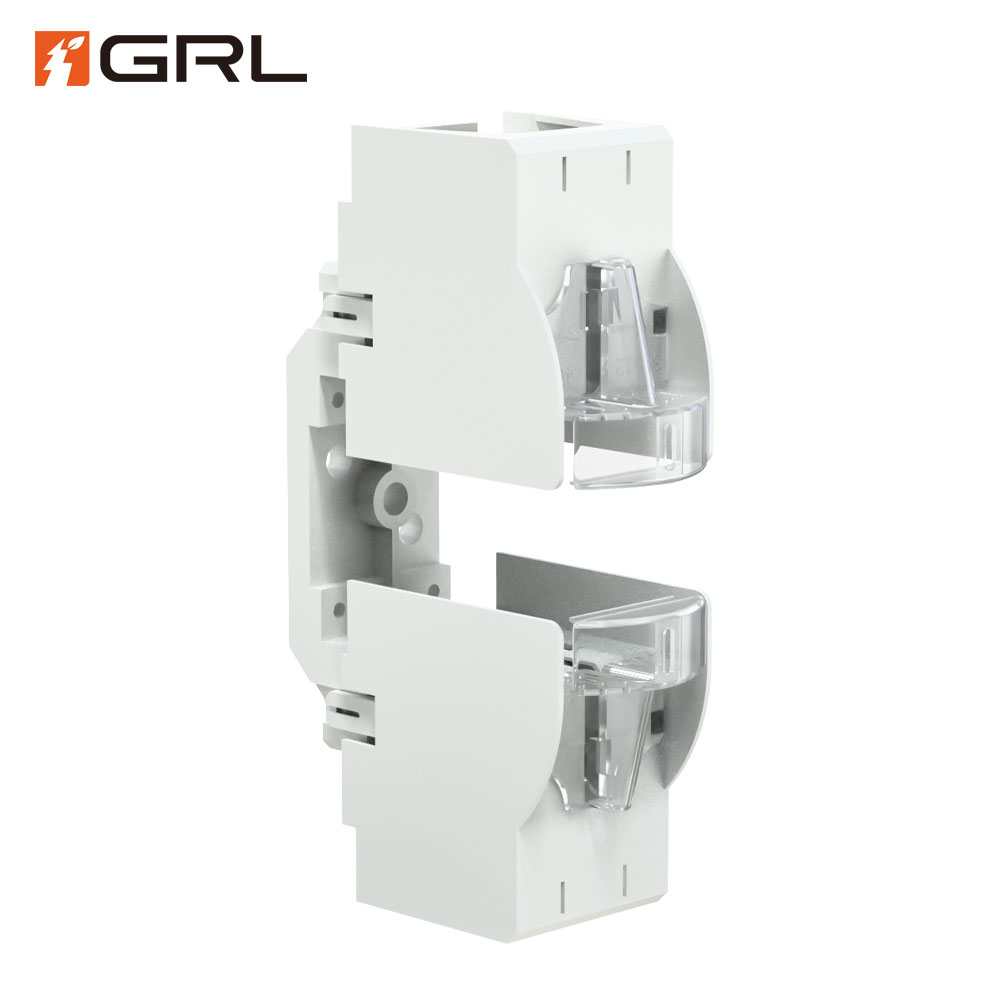

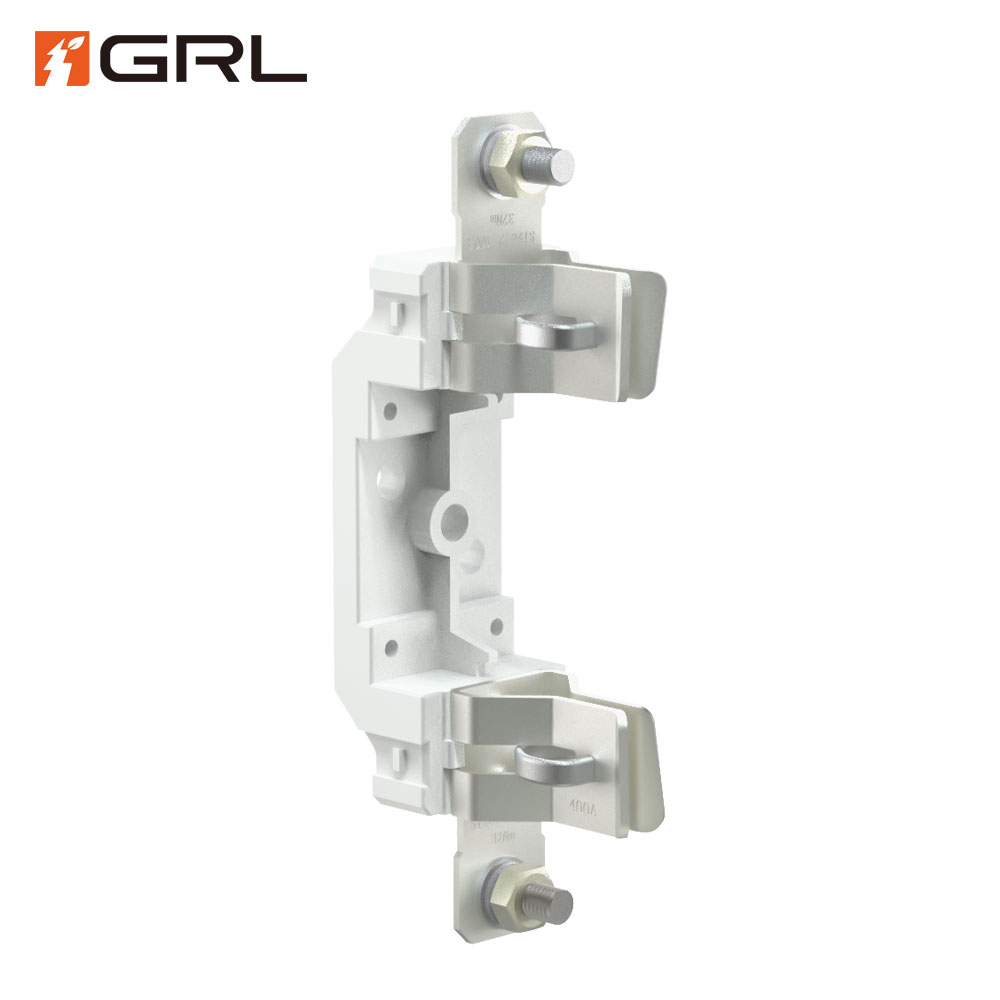

DNF1-2 series fuse block holder NH2 Fuse link
Order No.:DN56320
Model No.:DN56320

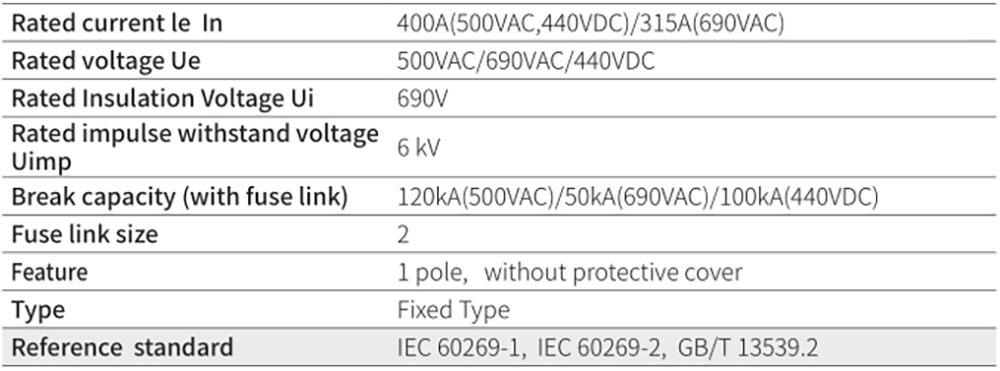

| Rated Current le In | 400A(500VAC,440VDC)/315A(690VAC) |
| Rated voltage Ue | 500VAC/690VAC/440VDC |
| Rated Insulation Voltage Ui | 690V |
| Rated Impulse Withstand Voltage Uimp | 6KV |
| Break Capacity(with Fuse link) | 120KA(500VAC)/50KA(690VAC)/100KA(440VDC) |
| Fuse link size | 2 |
| Feature | 1 Pole, without protective cover |
| Type | Fixed Type |
| Reference Standard | IEC 60269-1,IEC 60269-2,GB/T 13539.2 |
