NH series Electrical Fuse Box 400A(500VAC, 440VDC)/315A(690VAC)
Rated current Ie: 400A(500VAC, 440VDC)/315A(690VAC)
Rated voltage Ue: 500VAC/690VAC/440VAC
Rated insulation voltage : 690V
Rated impulse withstand current Ipk: 6kV
Breaking capacity with fuse :120kA(500VAC)/50kA(690VAC)/100kA(440VAC)
Feature: 1P,3P, with or without touch protection device, N pole with breaking capacity without touch protection device
Mounting method: Fixed type
Reference standard: IEC 60269-1 IEC 60269-2 GB/T 13539.2

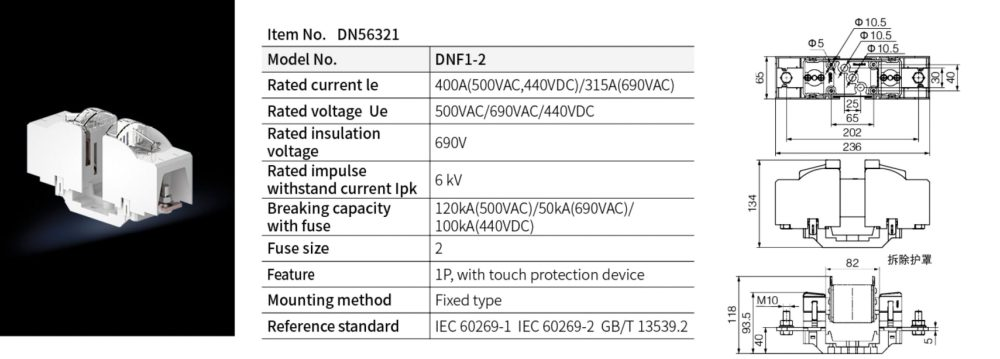

NH 1 series Fuse Base 1P with touch protection device

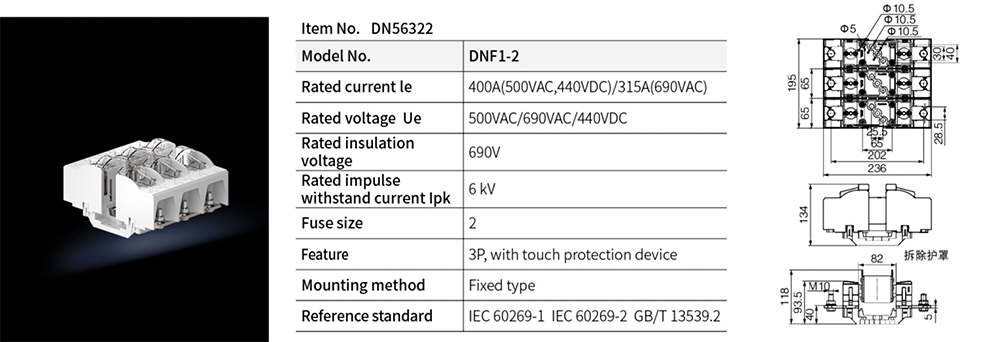

NH 1 series Fuse Base 3P with touch protection device

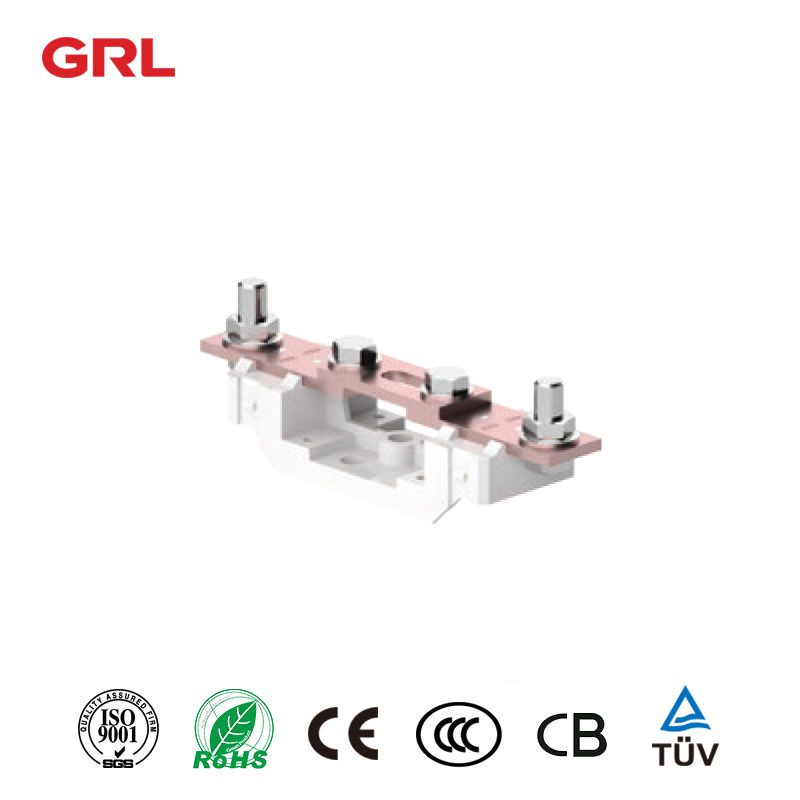

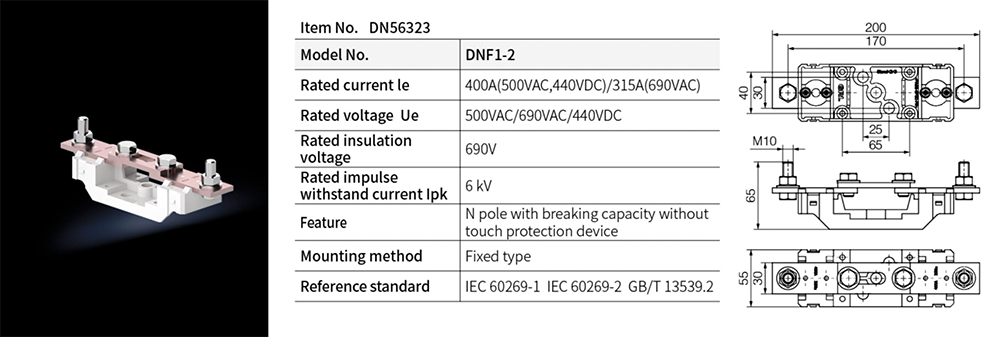

NH 1 series Fuse Base N pole with breaking capacity without touch protection device

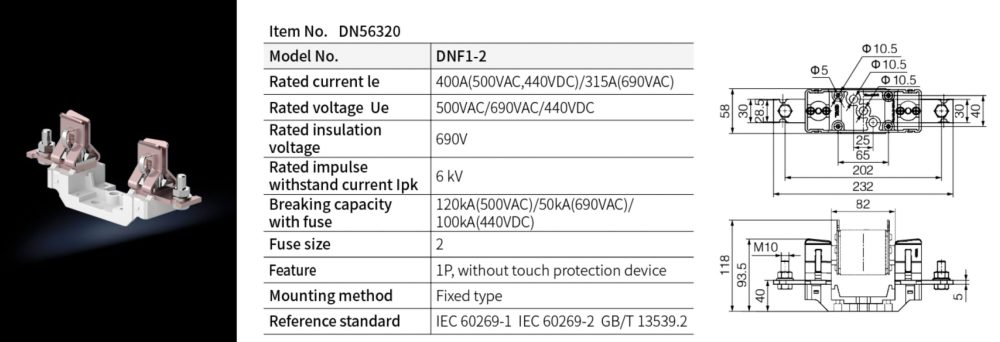

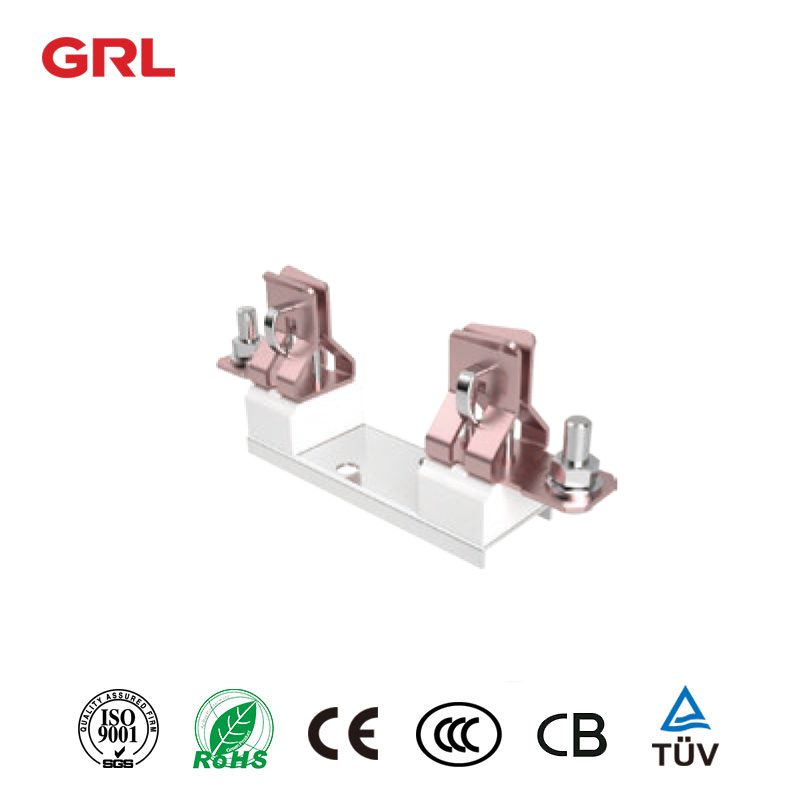

NH 2 series Base Fuse 1P
