60mm Busbar System

60mm, Busbar Distribution System, Busbar Support, 1P & 2P & 4P


Mode: MXJ-300, MXJ-400

Pole: 1P & 2P & 4P

System: 60mm

For Busbar: 12, 20, 30*5, 10, 30*10, 15, 25, flat copper busbar, 2T type, 3T type and TTC type busbar1, 2T shape, T shape

Material: PA66(polyamide) temperature resistance up to 125℃

Standard: IEC 61439-1 GB/T 7251.1

Email: [email protected]

Keyword: Busbar Distribution System Busbar Support 60mm 1P & 2P & 4P

The 60mm busbar distribution system is an essential part of any distribution system. It supports the busbars that carry current to the various loads in the system. Without proper support, busbars can become damaged or even fail, resulting in power outages.

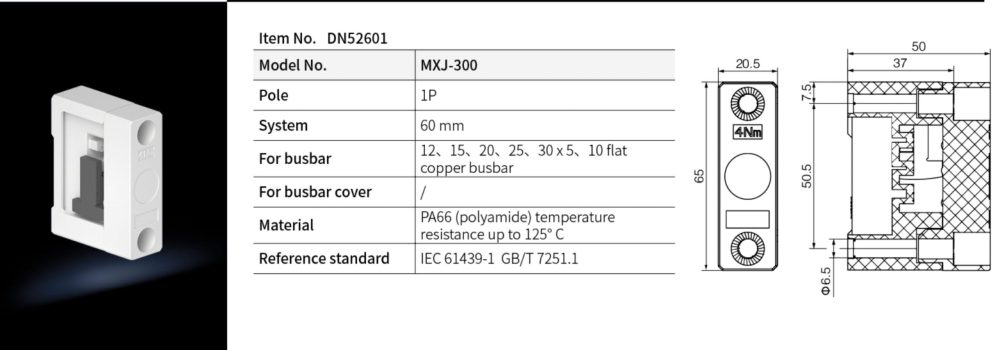

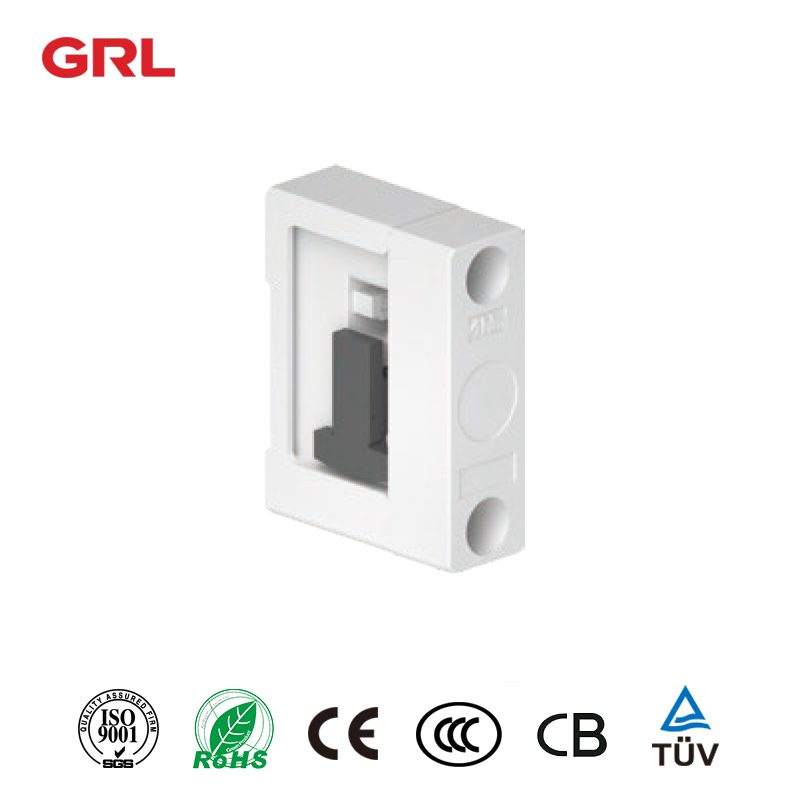

DN52601

Busbar Distribution System

Busbar Support System

60mm

12, 15, 20, 25, 30*5, 10 flat copper busbar

1P

DN52601 Busbar Distribution System

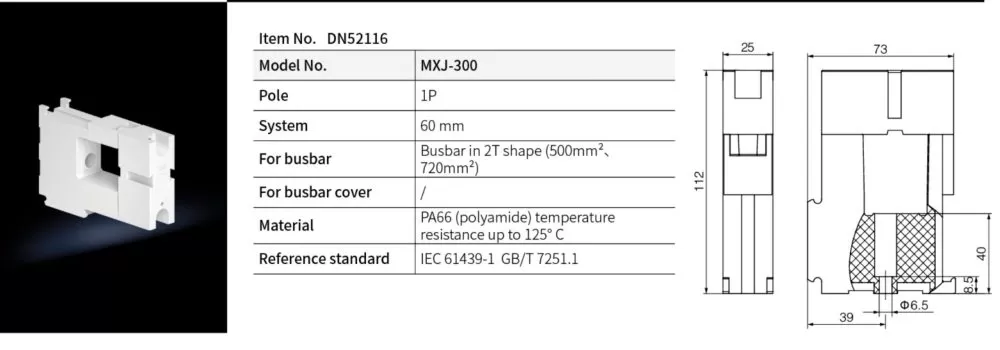

DN52116

Busbar Support System

60mm

Busbar in 2T shape (500m㎡, 720m㎡)

1P

DN52116 Busbar Distribution System

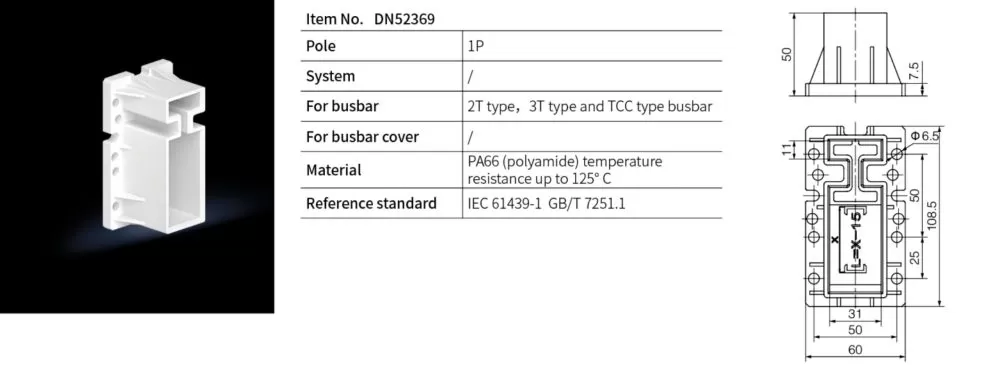

DN52369

Busbar Support System

60mm

2T type, 3T type and TTC type busbar 1P

DN52369 Busbar Distribution System Busbar Support

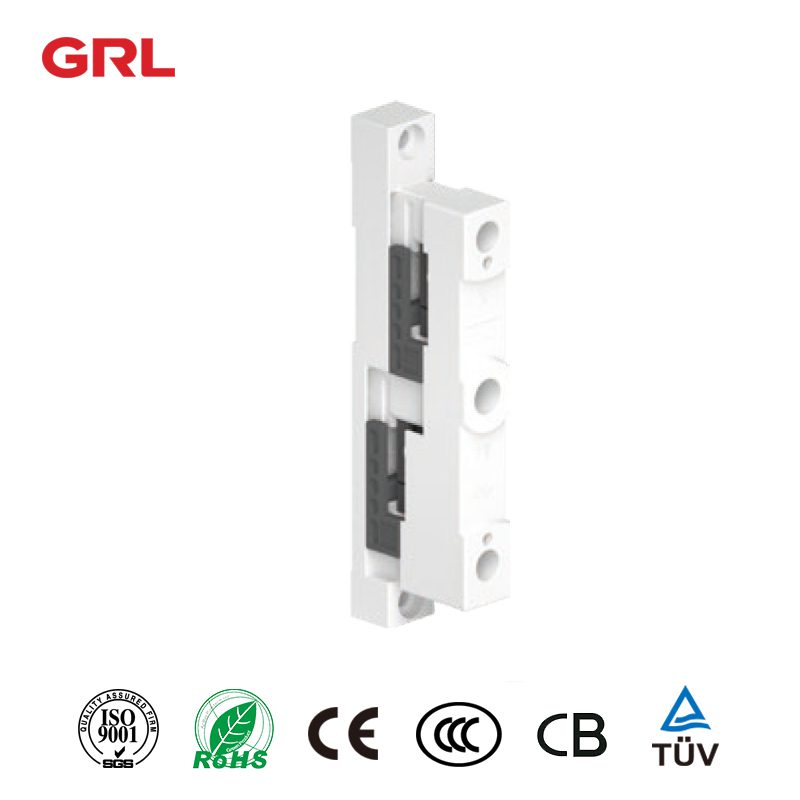

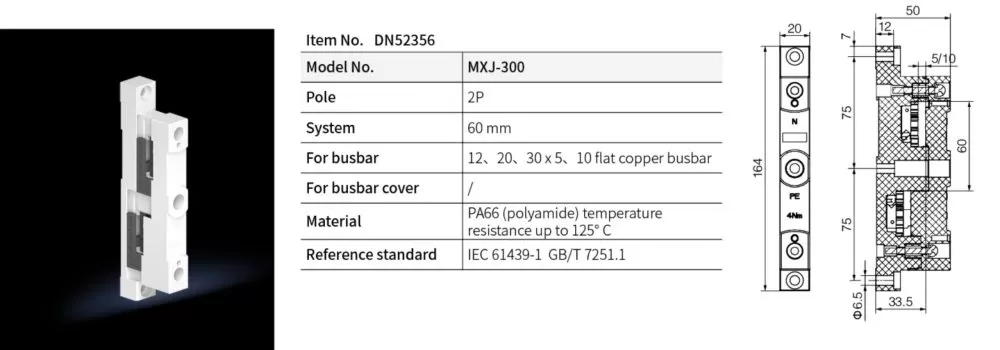

DN52356

Busbar Support System

60mm

12, 20, 30*5, 10 flat copper busbar

2P

DN52356 Busbar In Power System Busbar Support

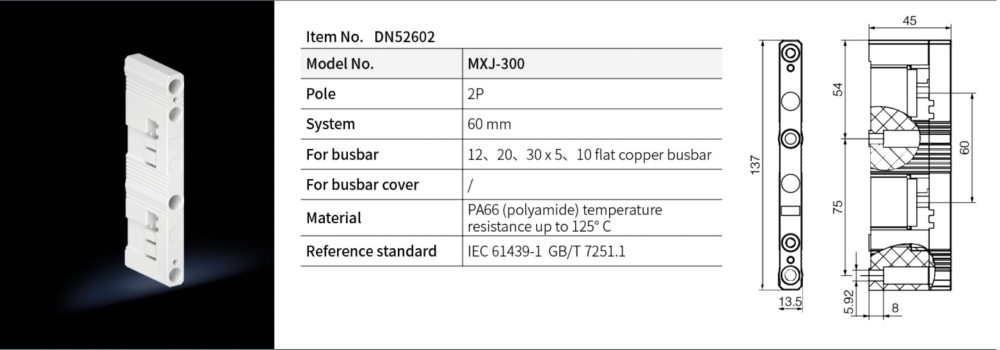

DN52602

Busbar Support System

60mm

12, 20, 30*5, 10 flat copper busbar

2P

DN52602 Busbar In Power System Busbar Support

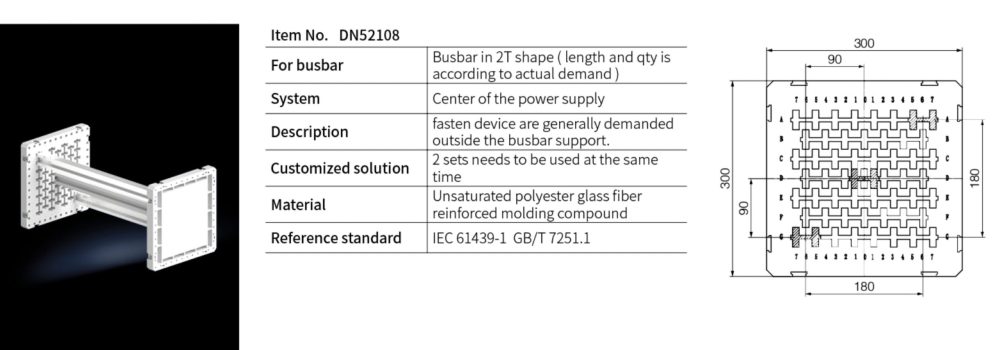

DN52108

Busbar Support System

60mm

Center of the power supply

DN52108 Busbar In Power System Busbar Support

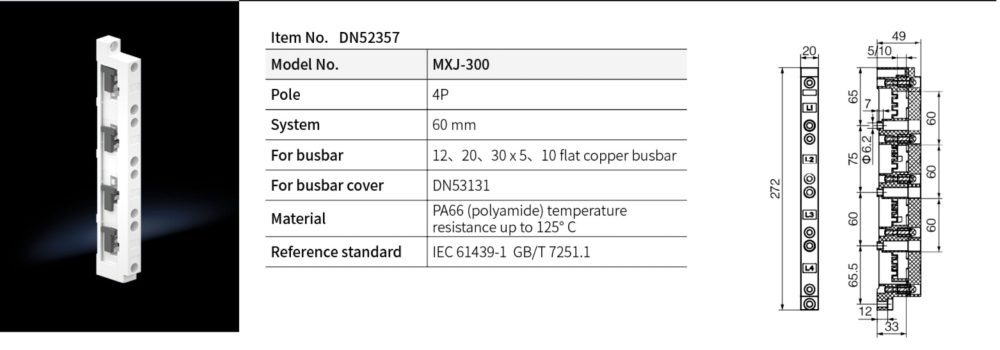

DN52357

Busbar Support

60mm

12, 20, 30*5, 10, flat copper busbar

4P

DN52357 Electrical Busbar System Busbar Support

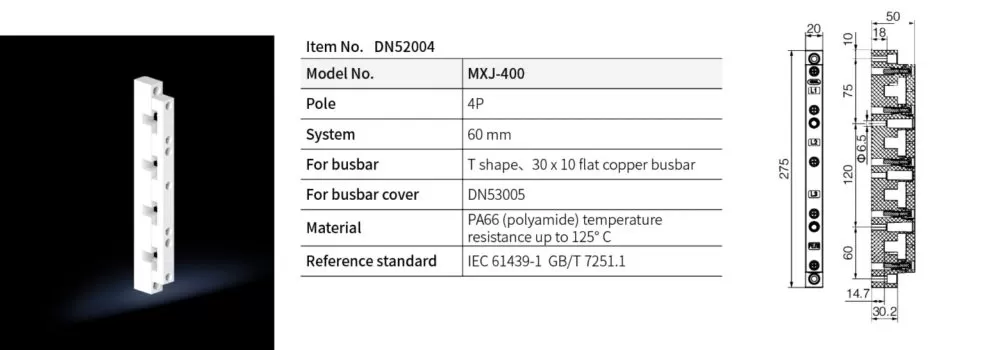

DN52004

Busbar Support

60mm

T shape, 30*10 flat copper busbar

4P

DN52004 Electrical Busbar System Busbar Support

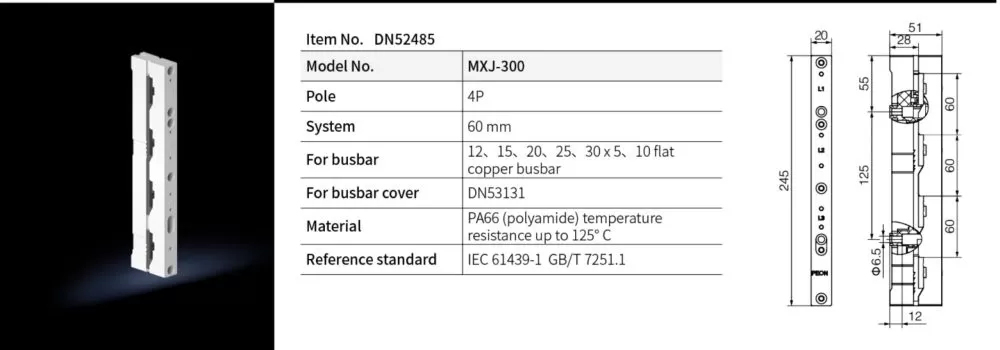

DN52485

Busbar Support

60mm

12, 15, 20, 25, 30*5, 10 flat copper busbar

4P

DN52485 Electrical Busbar System Busbar Support

The power distribution system is also responsible for evenly distributing electrical loads across the busbars. This helps prevent overloading and ensures that the system can handle the demands of the load.

GRL offers a complete range of busbar distribution systems and busbar supports for 60mm wide busbars. All our products are made of high-quality materials that can withstand temperatures up to 125°C, making them ideal for a variety of applications. For more information on the product, please contact [email protected].
