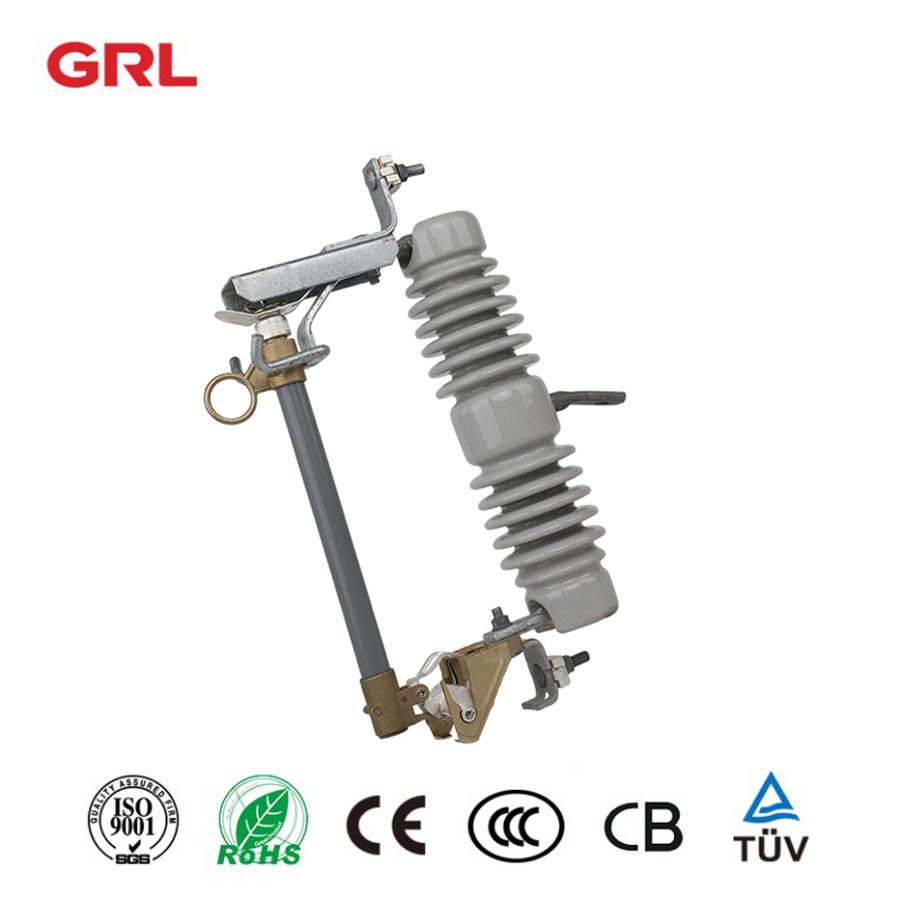

11kv drop out fuse manufacturer high quality 10kv 15Kv drop out fuse

Mode: DNHRW12

Rated voltage: 10-15KV

Rated current: 100A/200A

Breaking current: 8KA/10 KA

Power-frequency WithstandVoitag: 45kV

Impulse Voitage：110BIL

Leakage Distance：420mm

Weight：4kg/4.2kg

Email: [email protected]

Certification: CE

Description

What is a Drop Out Fuse and How Does It Work?

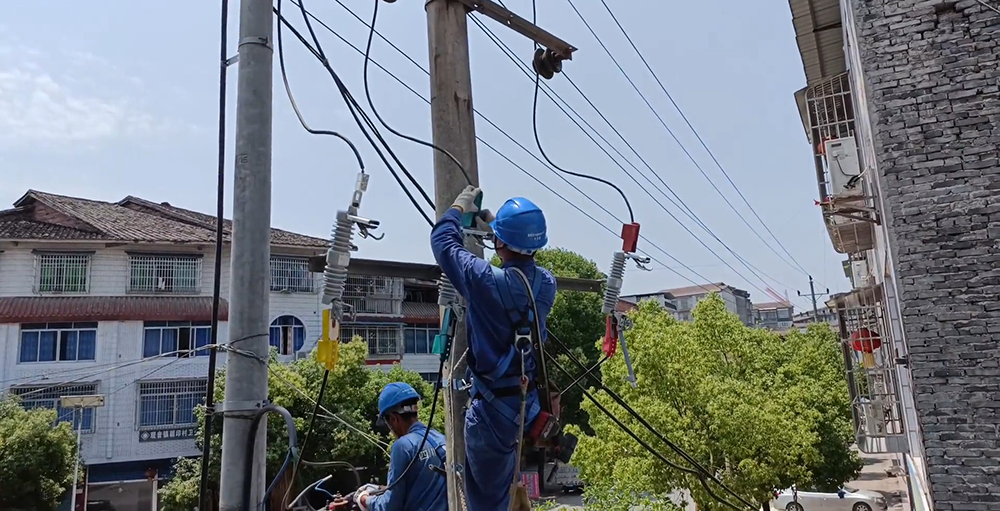

A drop out fuse is a type of overcurrent protection device used in high-voltage power distribution systems. It is typically installed on overhead lines, transformers, and other high-voltage equipment. Its main purpose is to protect the electrical system by automatically cutting off the circuit when a short circuit or overload occurs. This helps prevent damage to equipment and stops the fault from spreading further.

When the fuse blows due to excessive current, the fuse tube “drops out” or falls down. This visible action provides a clear indication to maintenance personnel that there has been a fault, which is why it is called a “drop out fuse.”

Why Choose a Drop Out Fuse for Outdoor Power Protection?

As the largest electricity consumer in the world, China has a vast power grid that covers a wide area and handles heavy loads. The country also faces a variety of climate conditions and complex geographical challenges. Drop out fuses, which are designed to operate outdoors, are well-suited to these environments. They can perform reliably in harsh climates, from cold to hot and humid conditions, and even in coastal areas where salt corrosion is a concern. Thanks to their durability and resistance to tough weather conditions, drop out fuses can adapt to different climates.

The materials used in drop out fuses are typically resistant to corrosion, heat, and aging, ensuring long-term operation in various environments.

Compared to other, more complex protection devices, drop out fuses are affordable and have low maintenance costs, making them ideal for large-scale deployment. Additionally, they are easy to maintain—when a fuse blows, replacing the fuse tube is simple and quick, reducing both maintenance expenses and power outages.

China’s rapid growth in renewable energy, especially in solar (photovoltaic) and wind power, has also driven the widespread use of dropout fuses. In these applications, drop out fuses offer a cost-effective and efficient way to protect electrical equipment in solar power plants and wind farms, ensuring the safe operation of renewable energy projects.

What Are the Unique Advantages of a Drop Out Fuse Compared to Other Types of Fuses?

Unlike automatic reclosers or circuit breakers, which require complex control circuits or external power supplies, drop out fuses operate purely based on the physical properties of the current and the fuse element. They do not need additional control systems or external power, making them simple and reliable.

Drop-out fuses are particularly suitable for protecting distributed power grids, especially in large-scale distribution networks. They provide localized protection at each point in the grid without relying on centralized control systems.

How to Properly Choose the Right Drop Out Fuse?

Voltage Rating
The voltage rating of the drop out fuse must match the operating voltage of the circuit being protected. In high-voltage distribution systems, common voltage levels are 10kV, 15kV, and 35kV. If the voltage rating is too low, the fuse may not withstand the normal operating voltage, leading to equipment damage. On the other hand, choosing a fuse with an unnecessarily high voltage rating increases costs without providing additional benefits.

Rated Current
Rated current is another important parameter when selecting a drop out fuse. The fuse’s rated current must be able to handle the normal operating current but should blow quickly in case of a short circuit or overload to protect the circuit and equipment. Typically, the fuse’s rated current should be slightly higher than the normal operating current of the circuit.

Interrupting Capacity
The interrupting capacity is the maximum short-circuit current the drop out fuse can safely interrupt. This capacity must be equal to or greater than the system’s maximum short-circuit current. If the interrupting capacity is too low, the fuse may fail to safely cut off the current during a short circuit, causing equipment damage and safety risks.

Operating Environment
Drop out fuses are typically used outdoors, so environmental factors like temperature, humidity, pollution levels, and altitude must be considered. Different climate conditions can affect the performance and lifespan of the fuse. In harsh environments, such as high humidity or salt fog areas, moisture-resistant and corrosion-resistant fuses may be required.

Insulation Level
The insulation level ensures that the drop out fuse can provide reliable insulation protection under normal working voltage and system overvoltage conditions. It’s essential to choose a fuse with the appropriate insulation level to ensure safe operation.

Brand and Quality
Choosing a reliable brand like GRL ensures quality and performance. We offer certified test reports and have a professional technical team to assist with your specific needs. Feel free to send us an email for more information.
