Mode：DNH9
Current：160A
Voltage：400VAC/500VAC/690VAC
Material：DMC,PA66,PC,ABS
Certificate：CE
Email: [email protected]
1.Product Drawings
2.Parameters
3.The Components
4.Packing Data
5.Packaging&Shipping

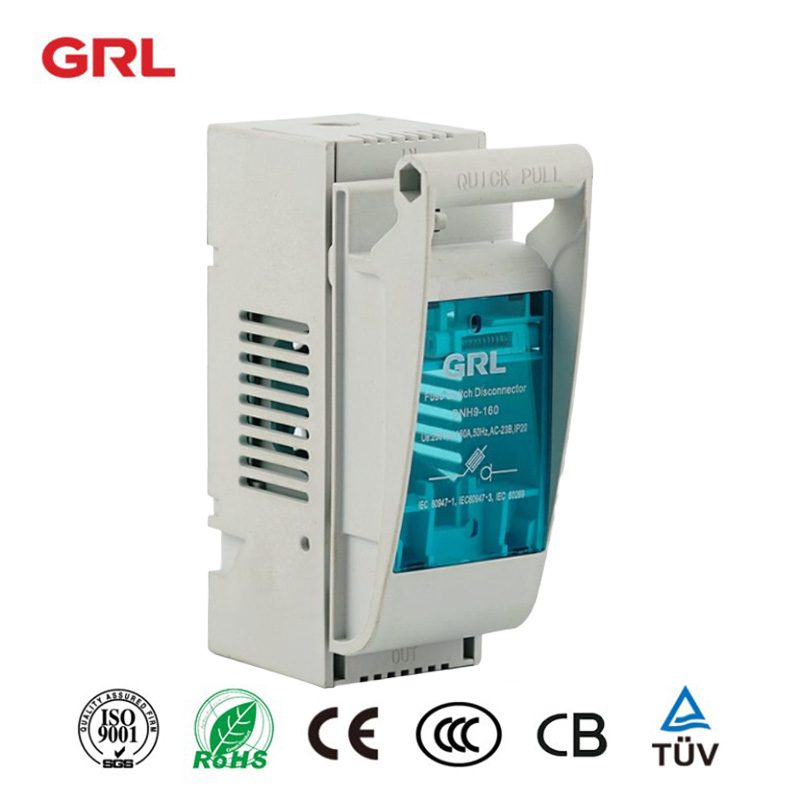

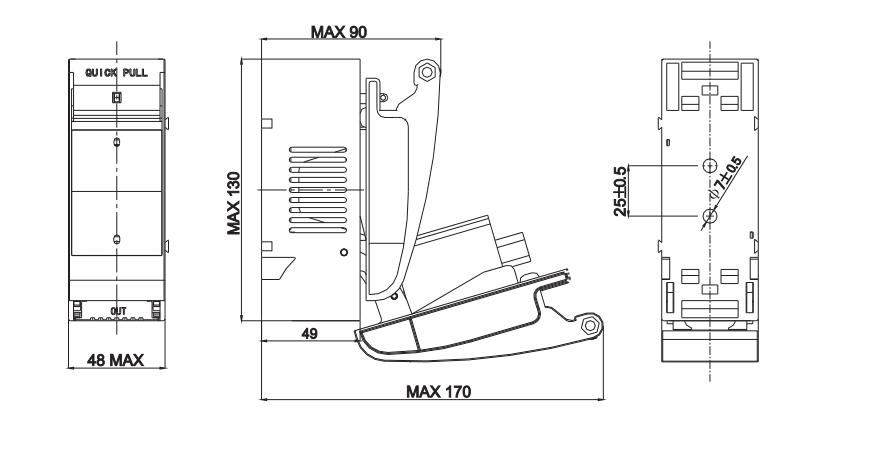

DNH9 Fuse Switch Disconnector Product Drawings
DNH9 Fuse Switch Disconnector Parameters
| Technical data | |
| Rated insulation voltage | 800V |
| Rated operational voltage | 400/500/690V |
| Conventional free air thermal Current with fuse-links | 160A |
| Weight | 290g |
| The ratings on various operational voltage and utilization category | |
| Rated operational voltage | 690V 500V 230/400V |
| Rated operational current | 100A 125A 160A |
| Utilization category | AC21B AC22B AC23B |
| NH fuse-link size | 00,000 00 00 |
| Breaking capacity of fuse link | 50kA 100kA 100kA |
The Components of the DNH9 Fuse Switch Disconnector
> GRL DNH9 fuse switch disconnector ( LV Fuse Cut Out ) is comply with the International Electrotechnical Commission standard IEC 60947-3.
> Fuse switch disconnectors are widely used in power grids, industrial power control, new energy and other fields.
In power system, it is widely applied in feeder pillar, integrated distribution panels, low-voltage power distribution cabinets, capacitor compensation cabinets,etc.. In the field of industrial control, it is widely used in photovoltaic equipment, industrial electric furnaces, industrial control cabinets of automobile manufacturing and other industries. In new energy industry, it is generally applied in combiner boxes and grid-connected cabinets,etc..
> The fuse switch disconnector not only is suitable for electrical professionals to manage and maintain the power distribution mains and power branch lines , but also for non-professional electrical personnel.Because people only can change the fuse after pulling the handle out and under off grid.
Packing Data：
| Model（不带芯） | Carton Size | Packing Quantity | Single/G.W.(kg) | Unit/G.W.(kg) |
| DNH9-160/30 | 49*30*24.5 | 40 | 0.22 | 9.8 |
Click to view grl DNH7-160 product>>
