Fuse Switch Disconnector

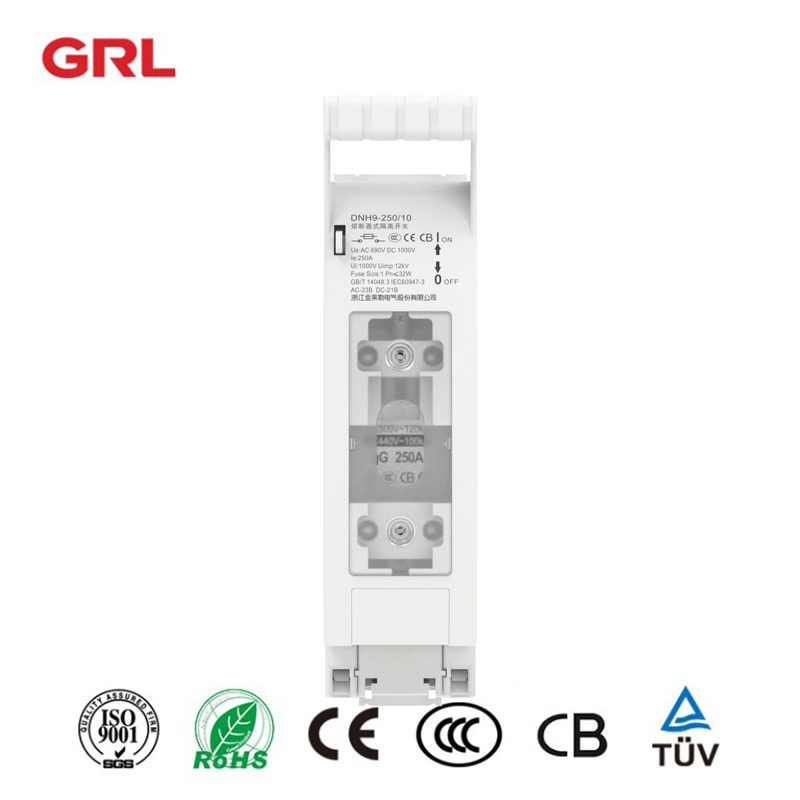

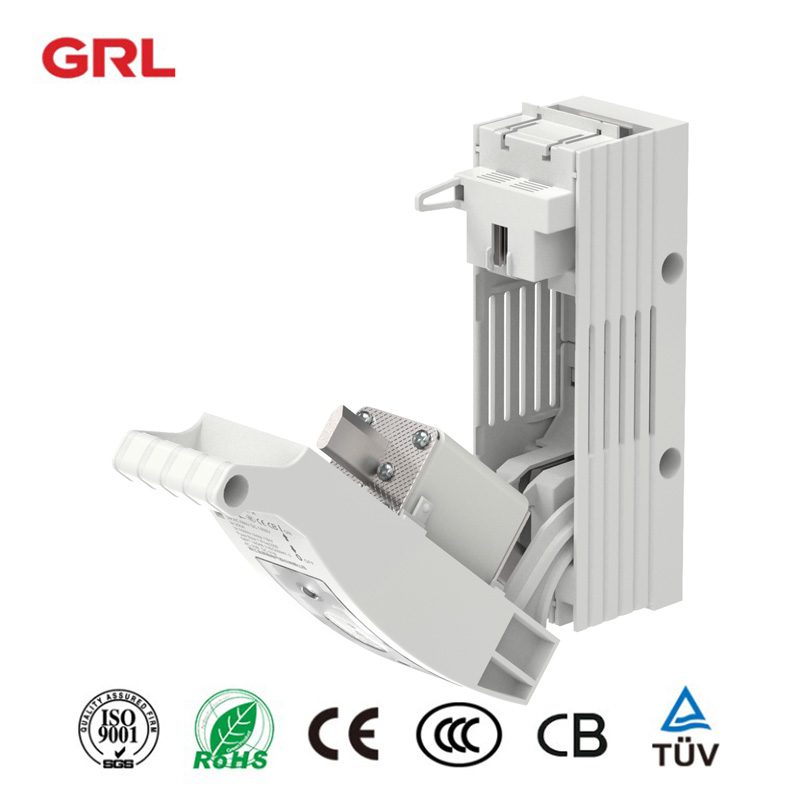

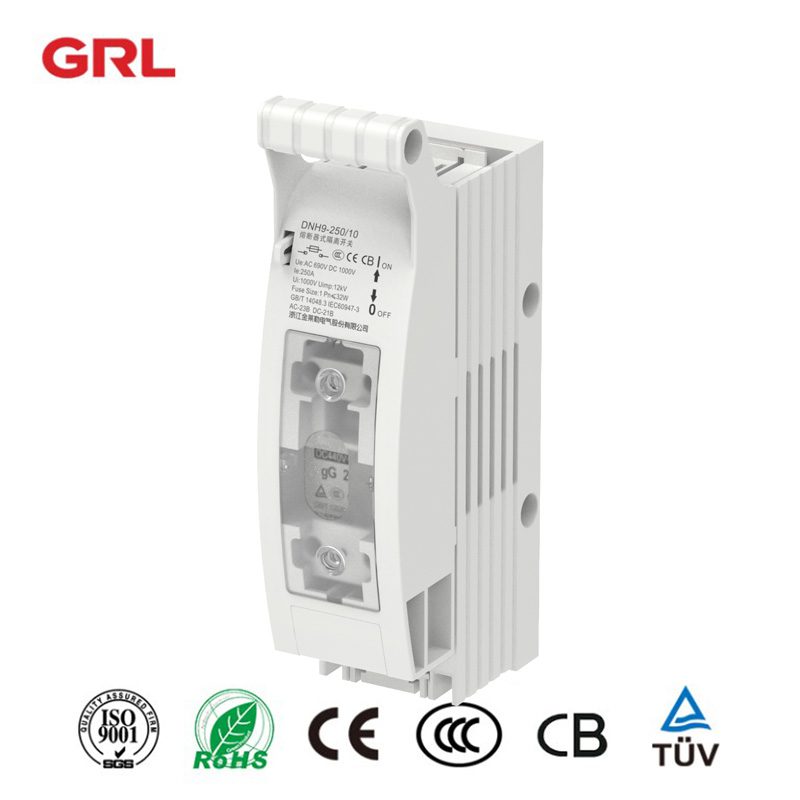

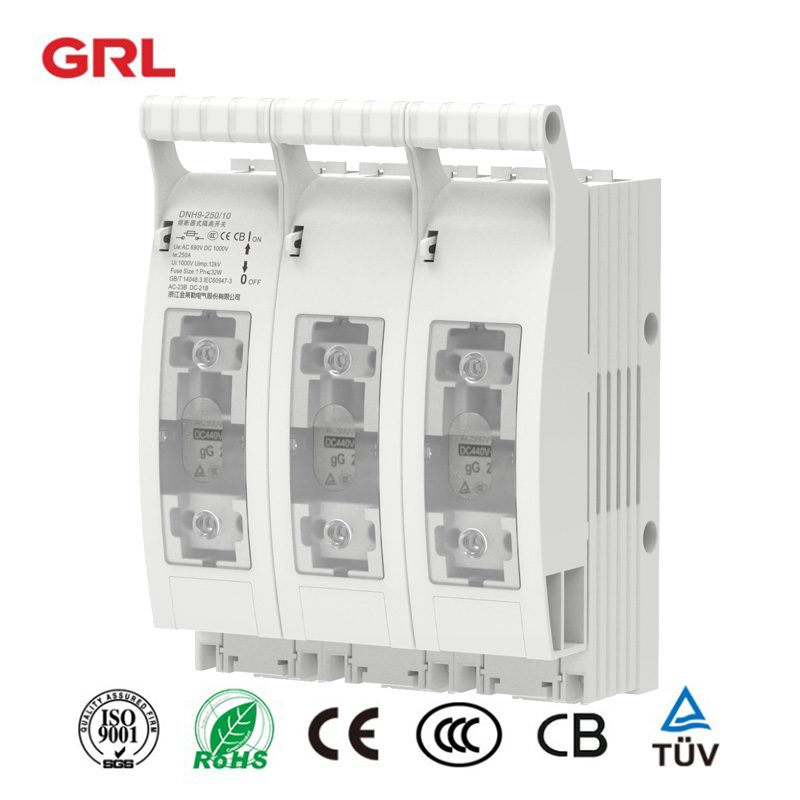

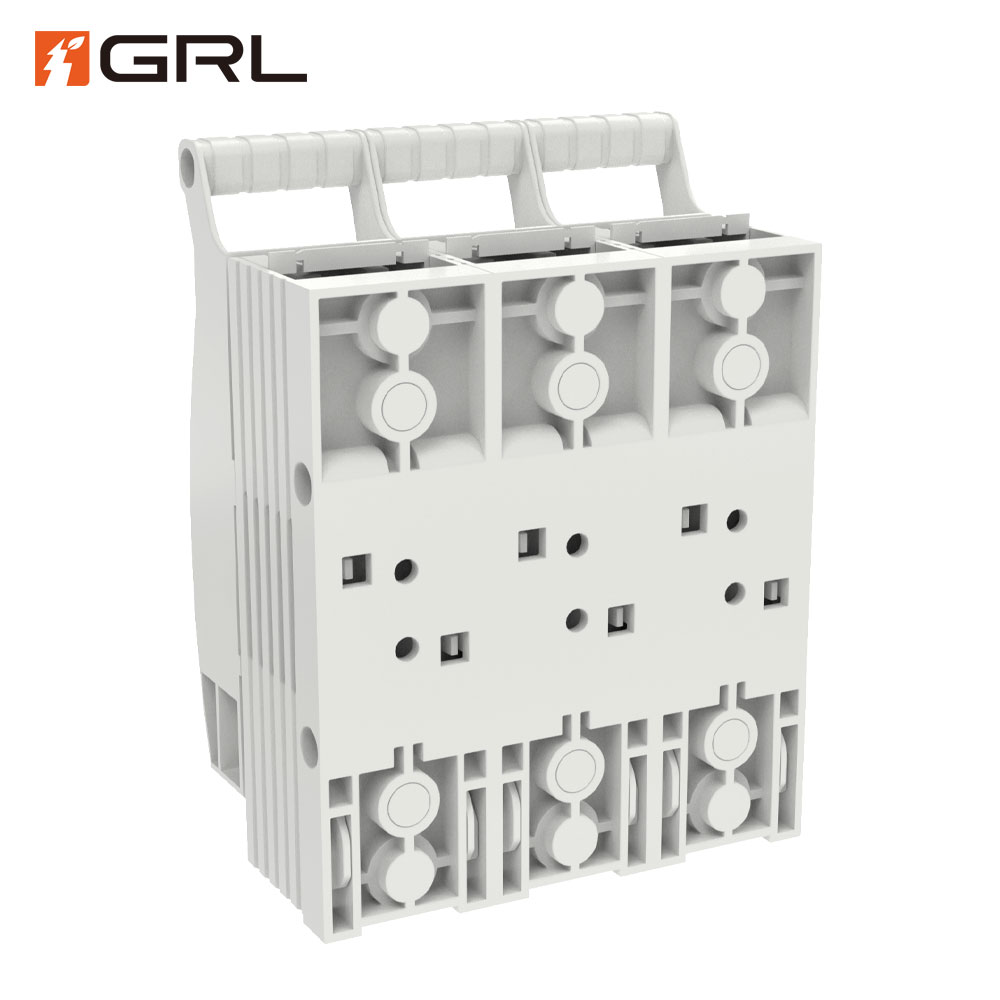

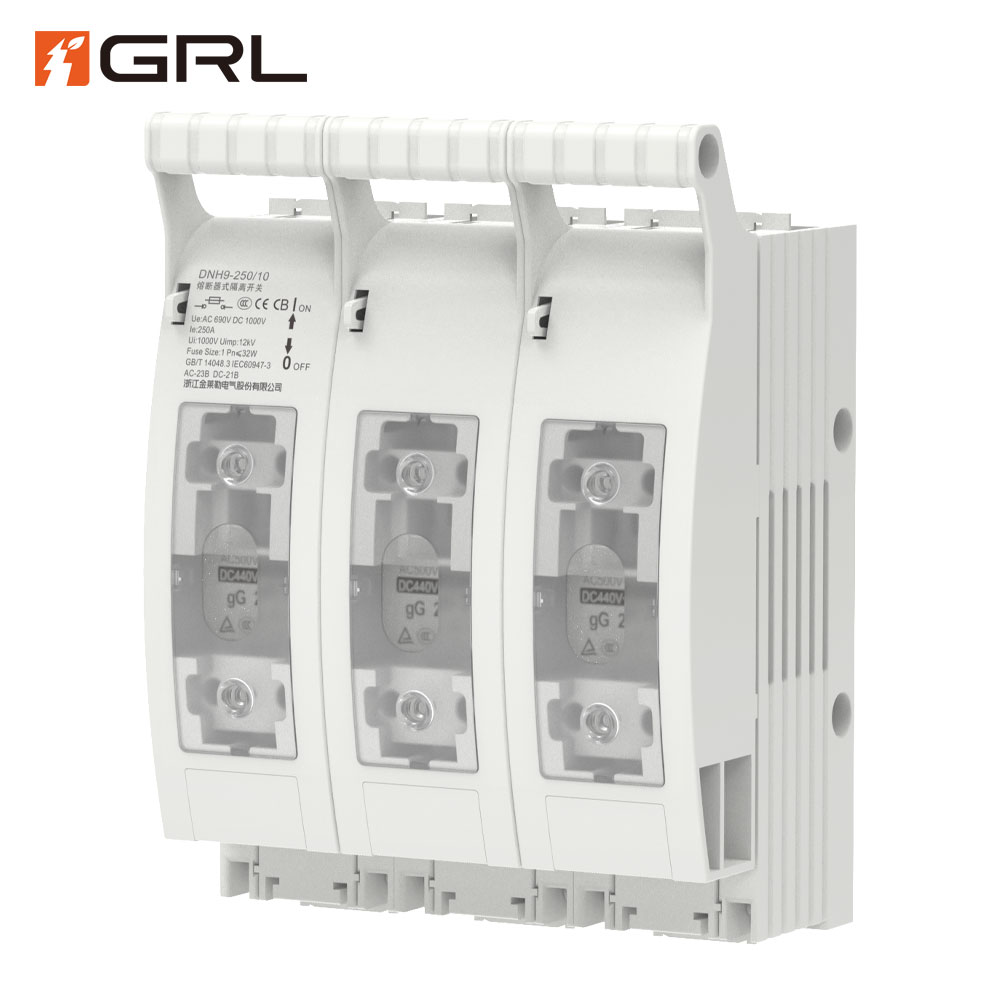

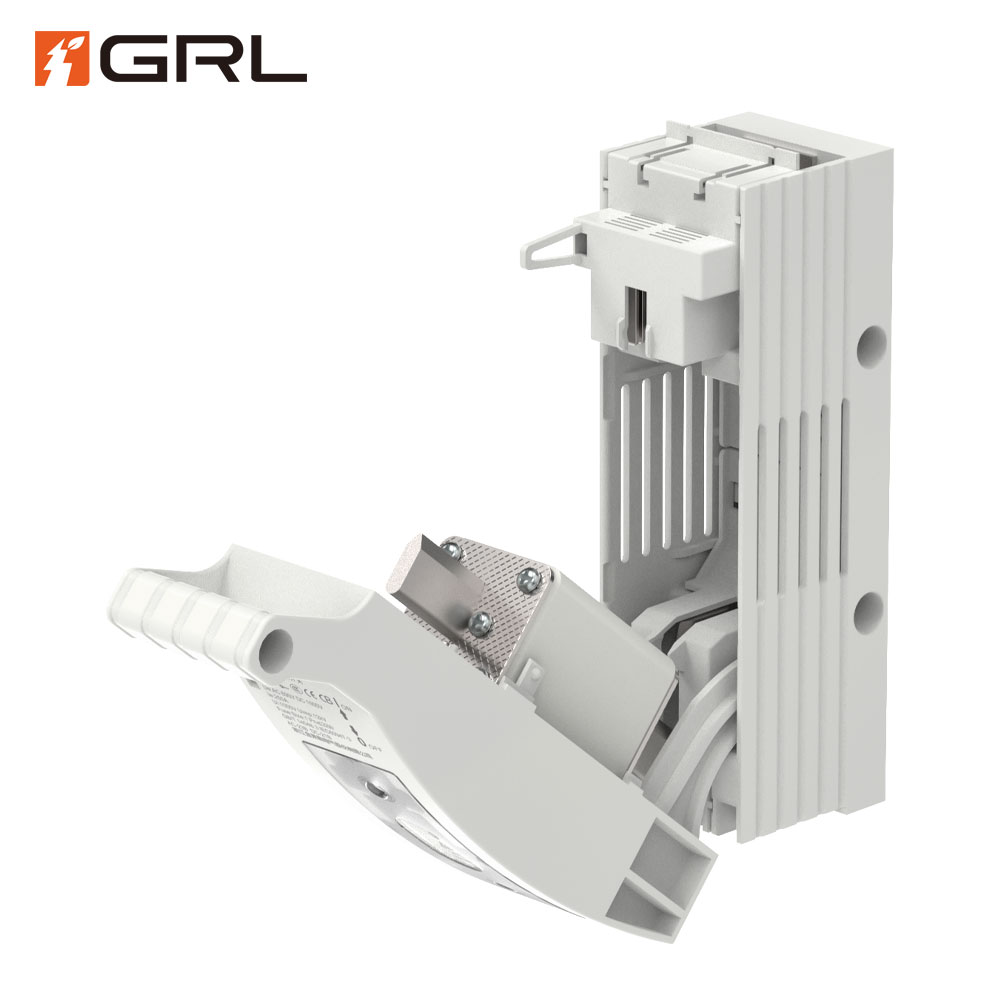

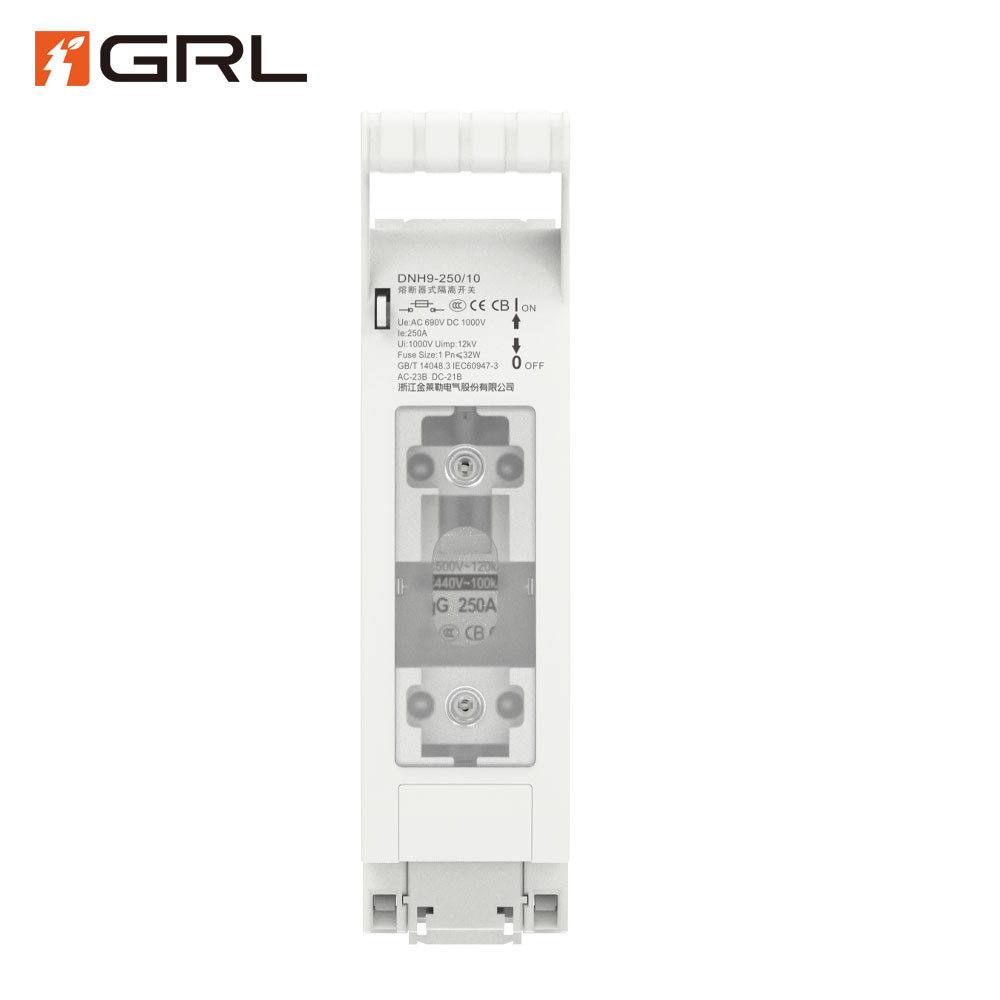

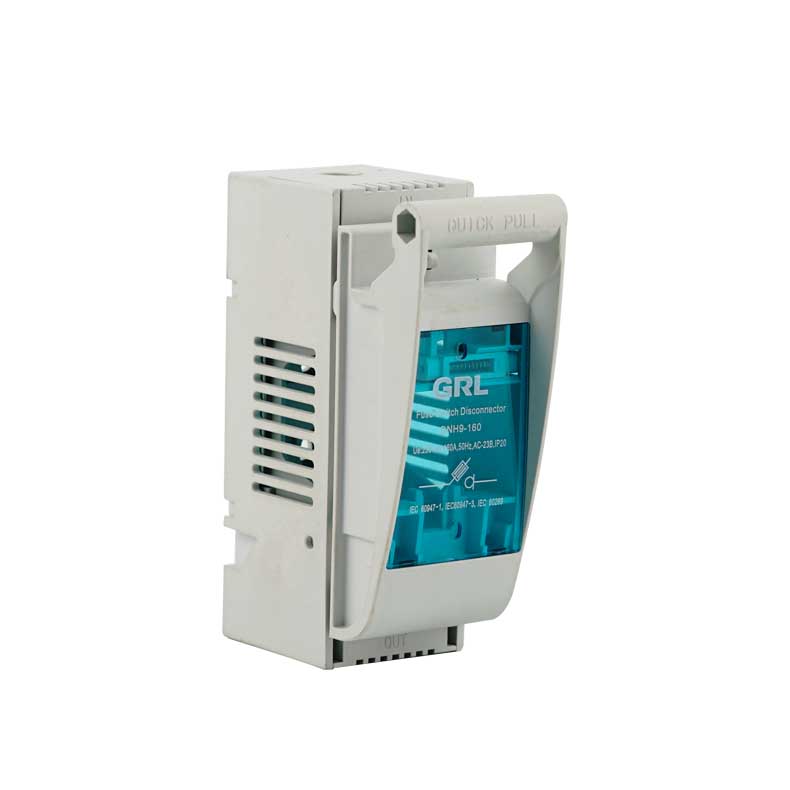

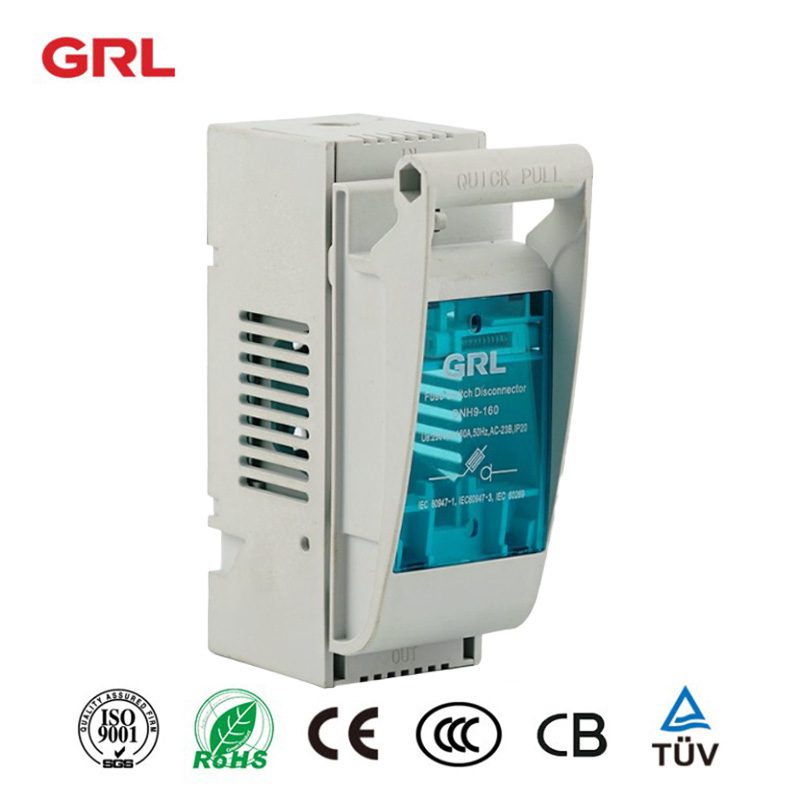

DNH9 Fuse Disconnector Switch 250A GRL Supplier


Mode: DNH9-250

Rated operational voltage: AC415V/AC690V

Rated operational current:250A

Rated Insulation Voltage (Ui):1000V

Number of poles: 1P/2P/3P/4P

Certification: CE

Email: [email protected]

fused disconnect switch

isolation switch

fuse holder

DNH9 Fuse Disconnector Switch Overview

The DNH9 fuse Disconnector Switch is designed for distribution and motor circuits with high short-circuit currents. It serves multiple roles, including power switching, isolation switching, and emergency switching. Complying with national and international standards (GB/T 14048.3 and IEC/EN60947-3), the DNH9 offers robust protection and exceptional performance in various industrial and electrical applications.

fuse switch disconnector

Parameter DNH9-160 DNH9-250
Rated Working Voltage (Ue) 230V AC / 415V AC / 1000V DC 415V AC / 690V AC
Rated Working Current (Ie) 160A 250A
Agreed Heating Current (Ith) 160A 250A
Rated Limited Short-Circuit Current (with fused core) 100kA 100kA
Usage Category (with fused core) AC-23B / DC-21B AC-23B
Rated Insulation Voltage (Ui) 1000V 1000V
Rated Impulse Withstand Voltage (Uimp) 12kV 12kV
Rated Frequency 50/60Hz 50/60Hz
Electrical Lifespan 200 cycles 200 cycles
Maximum Torque 30 Nm 30 Nm
Fuse Standard IEC60269-2 / GB/T 13539.2 IEC60269-2 / GB/T 13539.2
Power Consumption 23W ≤32W
Surrounding Air Temperature -5°C to +40°C -5°C to +40°C
Altitude ≤2000m ≤2000m
Pollution Level III, IV III, IV
Transportation and Storage -25°C to +55°C -25°C to +55°C

Click here to download the DNH9 Fuse Switch Disconnector certification

DNH9 Fuse Disconnector Switch Features

1、Versatile Functionality: Suitable for distribution circuits, motor circuits, and emergency circuit protection, ensuring reliable performance under high short-circuit currents.

2、Compliance with Standards: Fully meets GB/T 14048.3 and IEC/EN60947-3 requirements, offering confidence in quality and performance.

3、Robust Construction: Designed for high durability with an electrical lifespan of up to 200 cycles and support for up to 100kA short-circuit currents.

4、Wide Operating Range: Rated voltage up to 1000V DC and 690V AC, with support for ambient temperatures from -5°C to +40°C.

5、Compact Design: Compact and ergonomic for seamless integration into electrical systems, with flexible installation options.

Operating Conditions

  • Ambient Temperature: -25°C to +55°C; capacity reduction may be required for temperatures beyond this range.
  • Humidity: Maximum relative humidity of 50% at 40°C, up to 90% at 20°C for lower temperatures.
  • Altitude: Operates reliably at altitudes ≤2000m.
  • Environmental Requirements: Free from explosive or corrosive gases, significant vibrations, or exposure to rain or snow.
  • Pollution Level: Rated for levels III and IV, ensuring resilience in harsh conditions.
  • Installation Stress: External cables and busbars should be supported independently to avoid additional stress on the switch.

Application Scenarios

The DNH9 Fuse Switch Disconnector is ideal for:

  • Industrial motor circuits require robust circuit protection.
  • Distribution networks with high fault current potential.
  • Emergency circuit isolation in power systems.
  • High-performance AC and DC protection in demanding environments.

Precautions

  • Ensure proper alignment during installation to prevent mechanical stress.
  • For use in extreme environments, consult with the manufacturer for appropriate configurations.
  • Periodically inspect the fuse core and terminals to maintain optimal performance.
