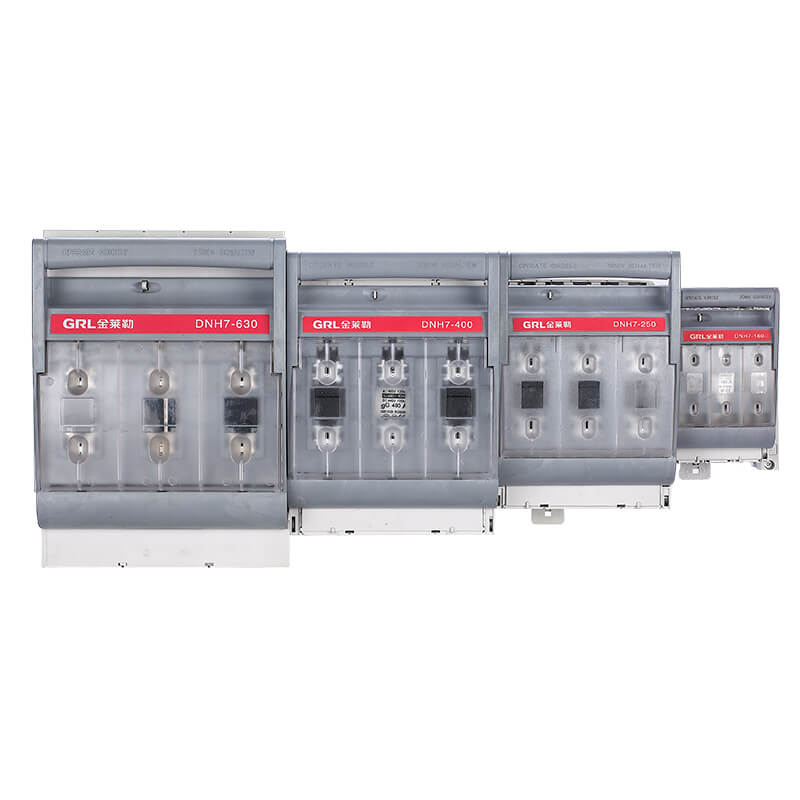

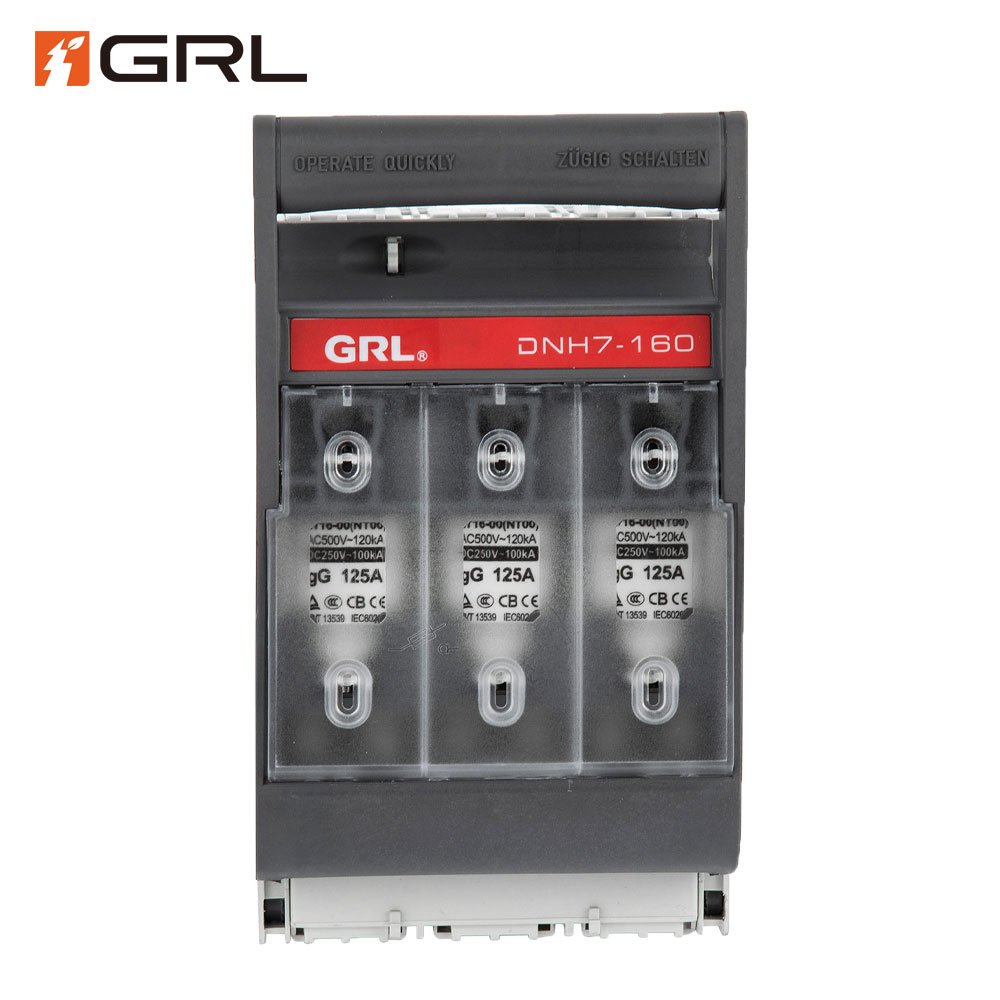

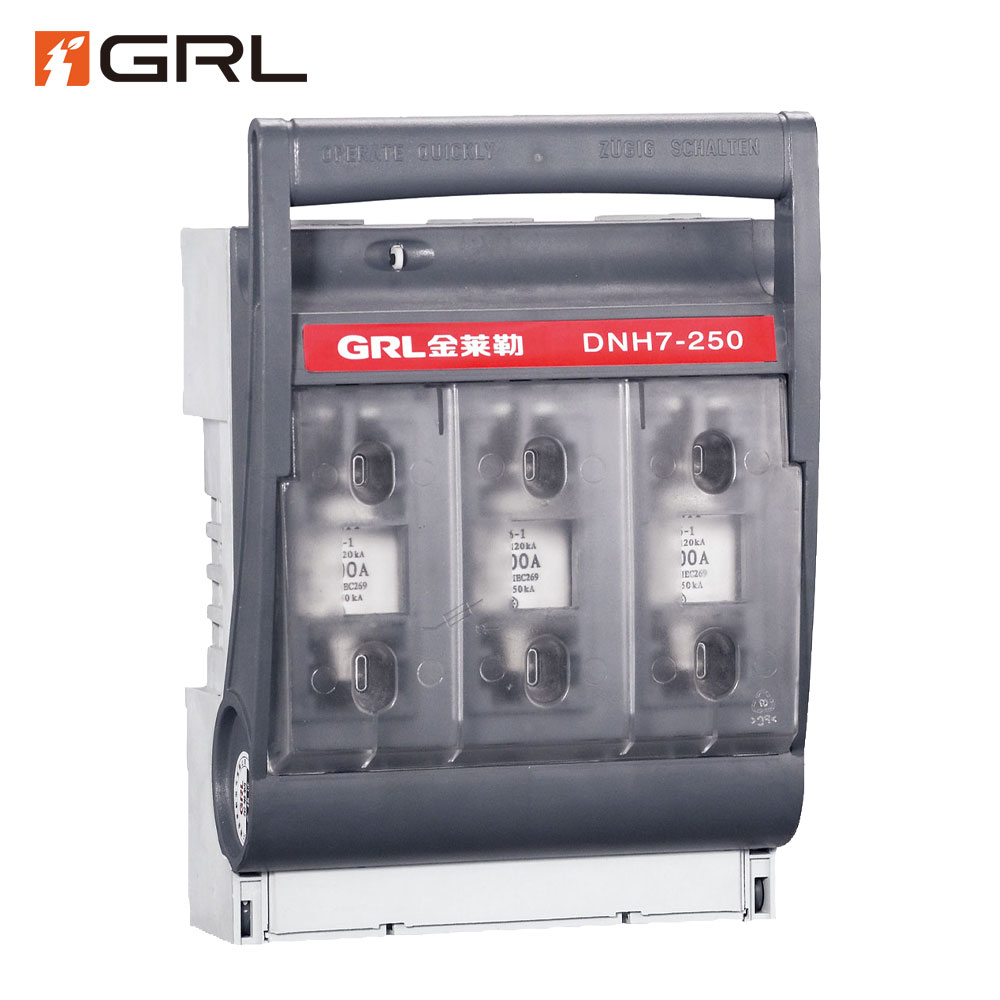

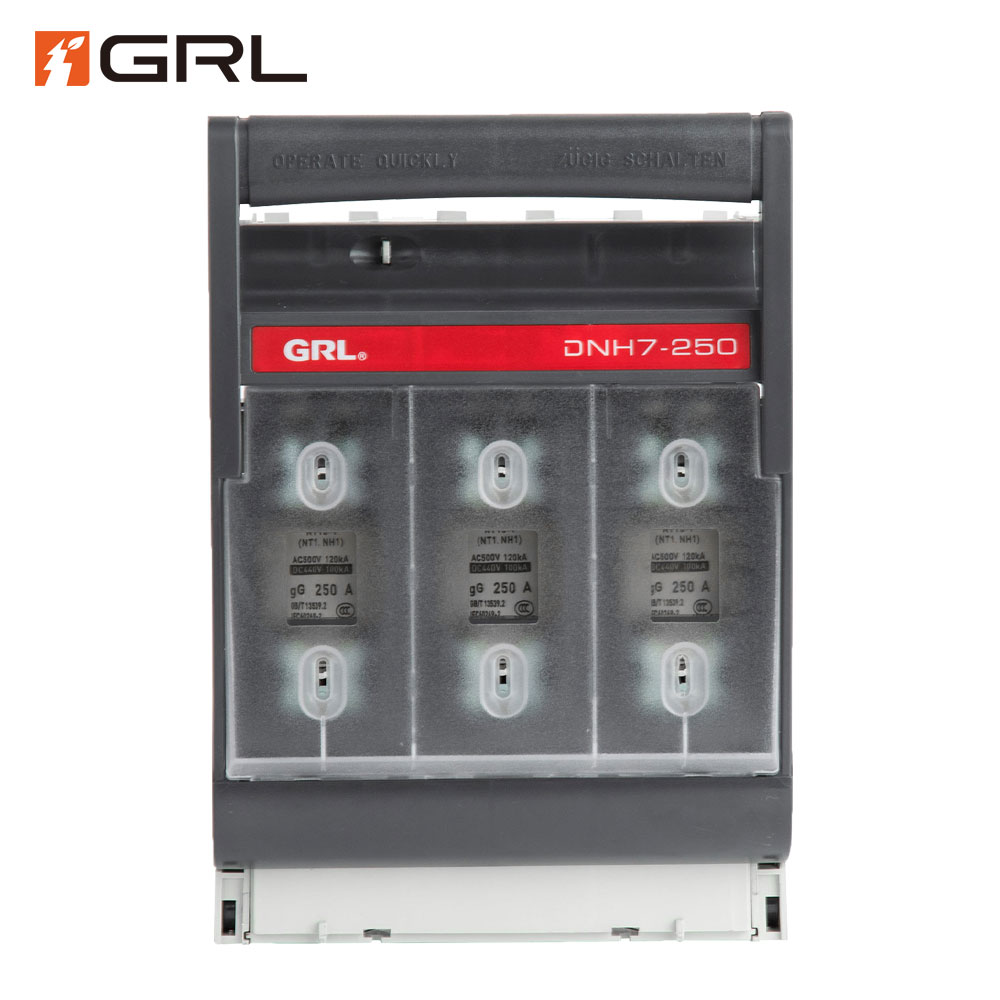

Mode：DNH7
Current：160A，250A，400A，630A
Voltage：400VAC/690VAC
Material：DMC,PA66,PC,ABS
Certificate：CE
Email: [email protected]
1.Product Drawings
2.Parameters
3..Terminal Accessory
4..The Components
5.The components
6.Packing Data
7.Packaging&shipping
DNH7 Fuse Switch Disconnector Parameters
| DNH1-160 | DNH1-250 | DNH1-400 | DNH1-630 | ||||||||||||||||||
| With fuse link | Rated voltage Ue/V | AC400 | AC500 | AC690 | AC400 | AC690 | AC400 | AC690 | AC400 | AC690 | |||||||||||
| Rated currentIe/A | 160 | 100 | 250 | 200 | 400 | 315 | 1630 | 500 | |||||||||||||
| Rated insulation voltageUi/V | 1000 | 1000 | 1000 | 1000 | |||||||||||||||||
| Thermal currentIth/A | 160 | 100 | 250 | 200 | 400 | 315 | 630 | 500 | |||||||||||||
| Withstand voltageUimp /kVUimp/kV | 12 | 12 | 12 | 12 | |||||||||||||||||
| Rated short-time withstand currenIq/kA | 100 | 50 | 100 | 50 | 100 | 50 | 100 | 50 | |||||||||||||
| Usage catagory | AC-23B | AC-21B | AC-23B | AC-21B | AC-23B | AC-21B | AC-23B | AC-21B | |||||||||||||
| Rated frequency | 50/60 | 50/60 | 50/60 | 50/60 | |||||||||||||||||
| Pole | 3 | 3 | 3 | 3 | |||||||||||||||||
| Electric endurance times | 200 | 200 | 200 | 200 | |||||||||||||||||
| Fuse link | Size（RT16/NT/NH）IEC 60269-2 GB/T 13539.2 | 00 | 1 | 2 | 3 | ||||||||||||||||
| Working current In/A | 160 | 125 | 250 | 200 | 400 | 315 | 630 | 500 | |||||||||||||
| Power loss P/W | 12 | 12 | 18 | 32 | 28 | 45 | 40 | 50 | |||||||||||||
| mechanism | Mechanical life /times | 1400 | 1400 | 800 | 1400 | ||||||||||||||||
| Busbar distancemm | 60 | 60 | 60 | 60 | |||||||||||||||||
| Protection grade | open | IP20 | IP20 | IP20 | IP20 | ||||||||||||||||
| close | IP30 | IP30 | IP30 | IP30 | |||||||||||||||||
| Others | SwitchON/OFF monitor (Miroco switch） | / | / | Optional | Optional | ||||||||||||||||

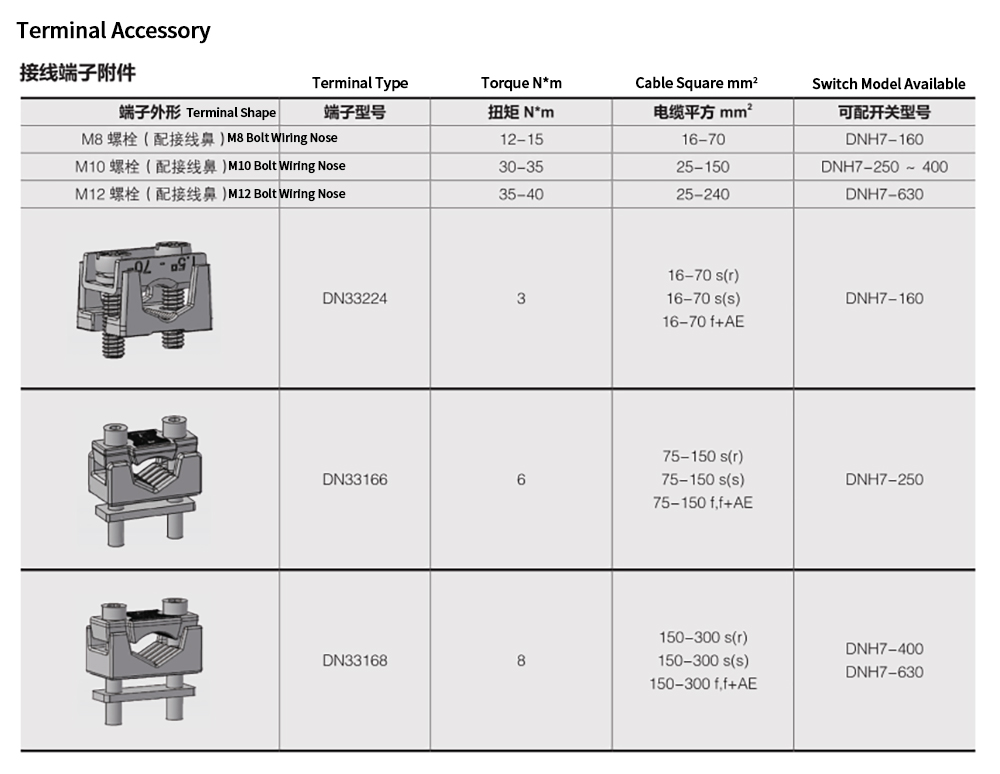

DNH7 Fuse Switch Disconnector Terminal Accessory
The components of the DNH7 Fuse Switch Disconnector
> GRL DNH7 Fuse Switch Disconnector enables safe manual connecting and disconnecting electrical circuits under load.Their main purpose is to protect electrical equipment against overload and short circuit by using fuse-links from size 00 to size 3.
> Fuse switch disconnectors are widely used in power grids, industrial power control, new energy and other fields.
In power system, it is widely applied in feeder pillar, integrated distribution panels, low-voltage power distribution cabinets, capacitor compensation cabinets,etc.. In the field of industrial control, it is widely used in photovoltaic equipment, industrial electric furnaces, industrial control cabinets of automobile manufacturing and other industries. In new energy industry, it is generally applied in combiner boxes and grid-connected cabinets,etc..
> The fuse switch disconnector not only is suitable for electrical professionals to manage and maintain the power distribution mains and power branch lines , but also for non-professional electrical personnel.Because people only can change the fuse after pulling the handle out and under off grid.
Packing Data：
| Model（不带芯） | Carton Size | Packing Quantity | Single/G.W.(kg) | Unit/G.W.(kg) |
| DNH7-160/30 | 44*36*21 | 16 | 0.8 | 13.8 |
| DNH7-250/30 | 41*29*42 | 6 | 1.843 | 12.058 |
| DNH7-400/30 | 46*31*30 | 4 | 3.162 | 13.648 |
| DNH7-630/30 | 54*35.5*25.5 | 4 | 5.1 | 21.4 |
