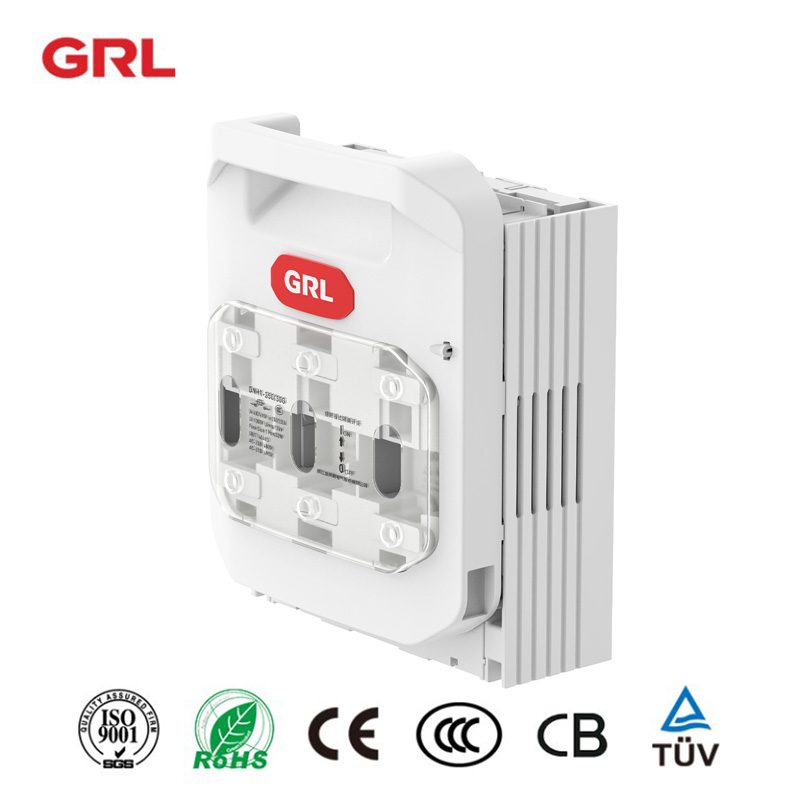

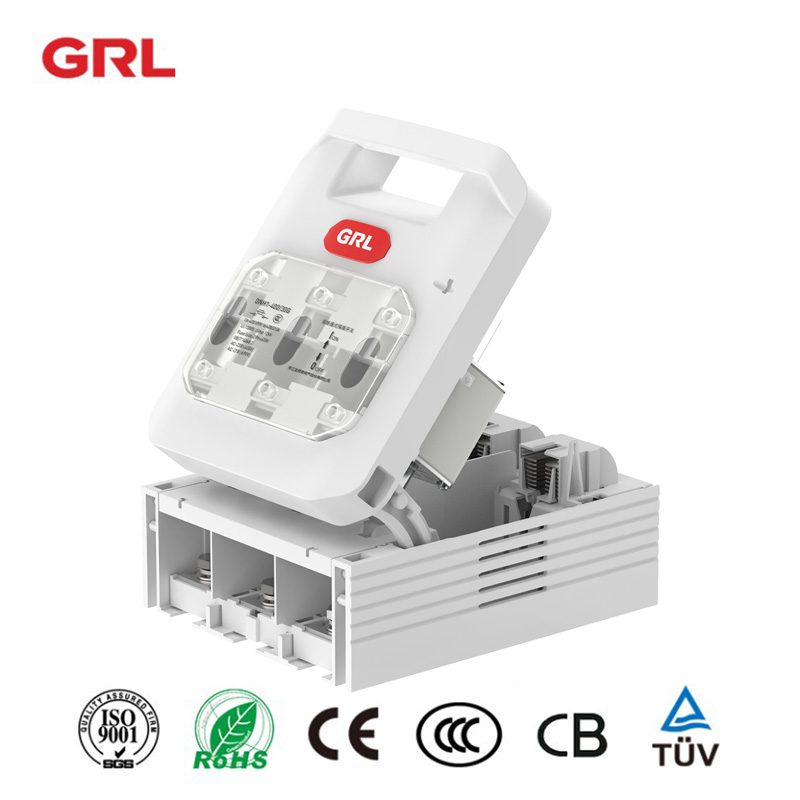

Busbar System Type 400A 3 Phase Disconnect Fuse Switch DNH1-400/31G
Mode: DNH1-400/31G
Voltage: 380VAC
Rated Current:400A
Raw Material: Copper contacts, DMC base, PC cover
Certificate: TUV, CB, CE RoHS
Installation type: Fixed type and busbar type
Opitional: With fuse link, micro switch, fuse monitor
Email: [email protected]
Suitable fuse：40A, 50A, 63A, 80A, 100A, 125A, 160A, 200A, 225A, 250A(NH1) ,
Keywords: 400 amp disconnect switch, Disconnect Fuse, fuser switch, AC fuse switch, Fused Disconnect
Selection Help.
| Structure description | Match fuse size | Mounting method | Product model | Item No. |
| Top connection to the system | 2 | Busbar type | DNH1-400/31G | DN31231 |
| Connection top with 1NO+1NC auxiliary contactor | 2 | Busbar type | DNH1-400/31G | DN31241 |
| Connection top with 2 (1NO+1NC auxiliary contactor) | 2 | Busbar type | DNH1-400/31G | DN31251 |
| Connection bottom | 2 | Busbar type | DNH1-400/31G | DN31261 |
| Connection bottom with 1NO+1NC auxiliary contactor | 2 | Busbar type | DNH1-400/31G | DN31271 |
| Connection bottom with 2 (1NO+1NC auxiliary contactor) | 2 | Busbar type | DNH1-400/31G | DN31281 |
Parameter Description
| With fuse | Rated voltage | Ue | V | AC380 |
| Rated current | Ie | A | 400 | |
| Conventional thermal current | Ith | A | 400 | |
| Rated short-time withstand current | kA | 50 | ||
| Rated insulation voltage | Ui | V | 690 | |
| Rated impulse withstand voltage | Uimp | kV | 12 | |
| Utilization category | AC-23B | |||
| AC-22B | ||||
| AC-21B | ||||
| AC-20B | ||||
| Electric endurance times | Times | 200 |
Read GRL 3 Phase Disconnect Fuse Switch DNH-400/30G
3 Phase Fused Disconnect Switch is Divided into fixed installation and busbar installation
Newly developed with electronic functions. At the same time, there are two types of wiring methods, traditional bolts can connect one, and clips can connect the other.
Fuse switches are manufactured according to international standards such as IEC 60947-3 and DN60269-2.
Fuse switches are manufactured according to international standards such as IEC 60947-3.
