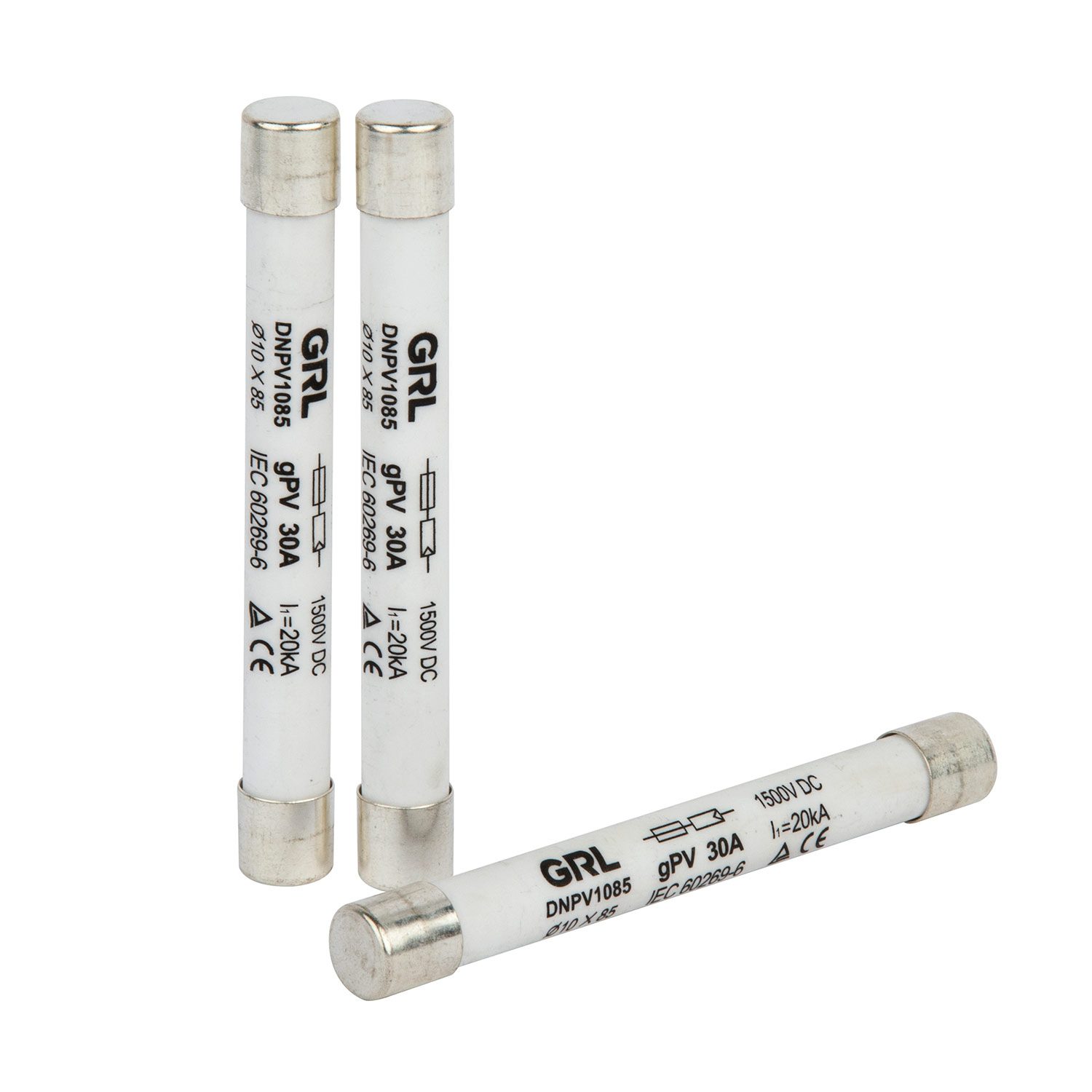

DC1500V Fuse Link
Mode: DNPV1085
Voltage: DC1500V
Color: White
Utilization Category：gPV
Certification: TUV,CE, CCC,CB
Email: [email protected]
Keyword: DC fuse definition, DC fuse link
| Product Item | DNPV1085 |
| Rated Current | 2A-25A |
| Rated voltage | DC1500V |
| Breaking Capacity（kA） | 20kA |
| Standard | IEC 60269-6 GB/T 13539.6 |
| Applications | solar system |
What is the DC fuse definition?
Photovatic DC fuse link are mainly applied in PV solar system, used to protect solar cell panels. DC1000V and DC1500V. When inspected and analysis the fault components ,the DC voltage fuse link have no effect on other working components.

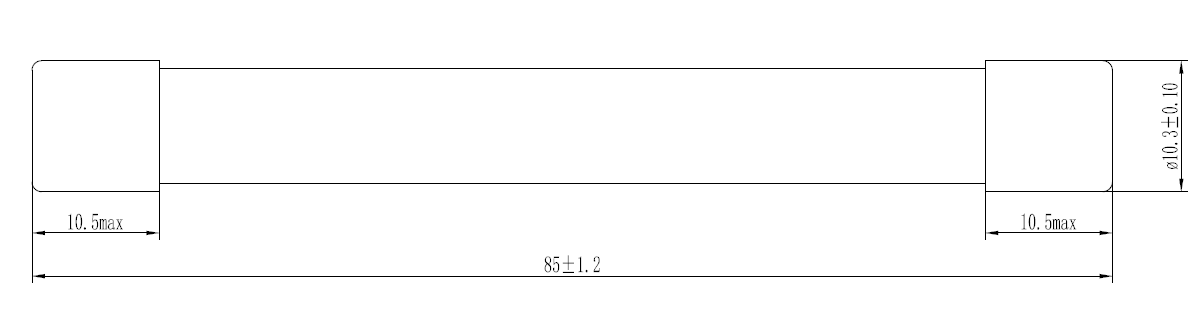

Size diagram is as follows:
How to select the DC fuse for fuse holder ?
* Step 1:Confirm the size fuse holder or fuse switch.
* Step 2:Confirm the voltage and Ampere of fuse holder or fuse switch.
* Step 3: Select the DC fuse link according to the voltage and ampere.
| Model. | Rated Current （A） | I²T （A²S） | Power Loss | ||
| 0.8In | 1.0In | ||||
|
DNPV1085 | 2 | 4 | 8 | 1.0 | 2.0 |
| 3 | 6 | 11 | 1.1 | 2.1 | |
| 4 | 8 | 14 | 1.2 | 2.2 | |
| 5 | 11 | 22 | 1.4 | 2.4 | |
| 6 | 15 | 30 | 1.5 | 2.6 | |
| 8 | 9 | 35 | 1.8 | 3.0 | |
| 10 | 10 | 98 | 2.2 | 3.5 | |
| 12 | 12 | 120 | 2.5 | 3.8 | |
| 15 | 14 | 170 | 3.0 | 4.8 | |
| 20 | 34 | 400 | 3.5 | 6.2 | |
| 25 | 65 | 550 | 4.0 | 7.2 | |

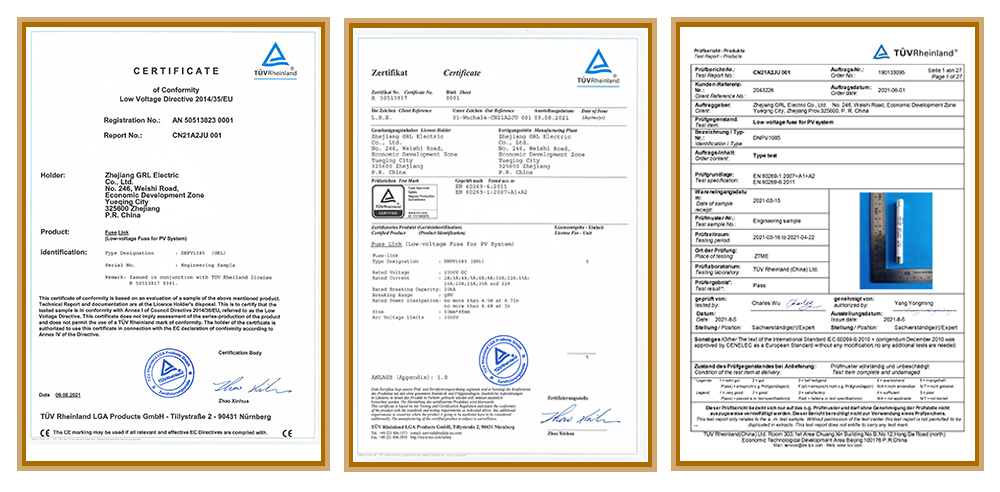

Which certificates and test report do you have for the DC fuse?
CE, TUV, RoHs and so on
