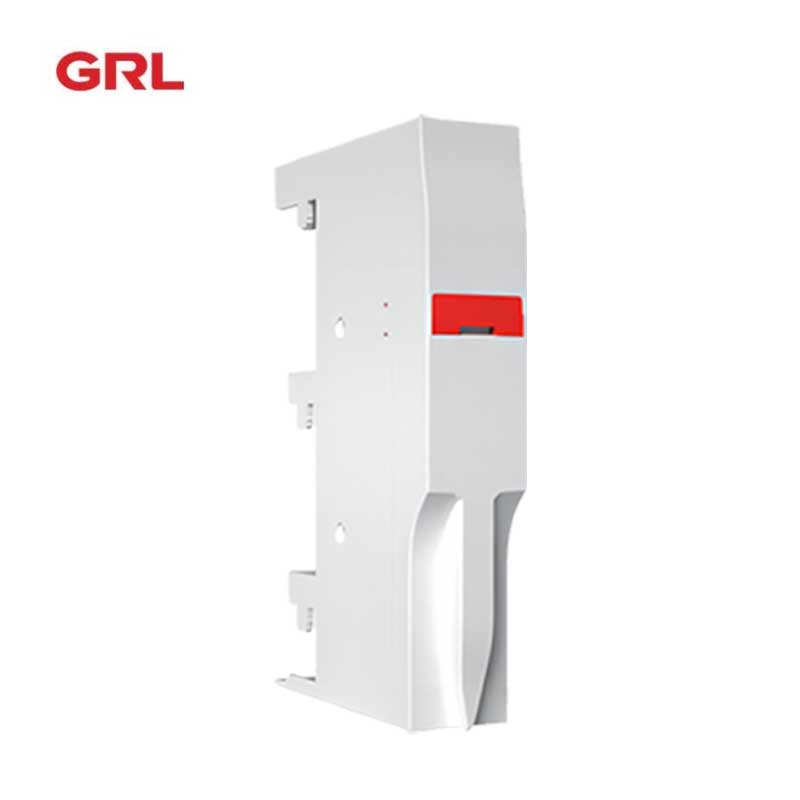

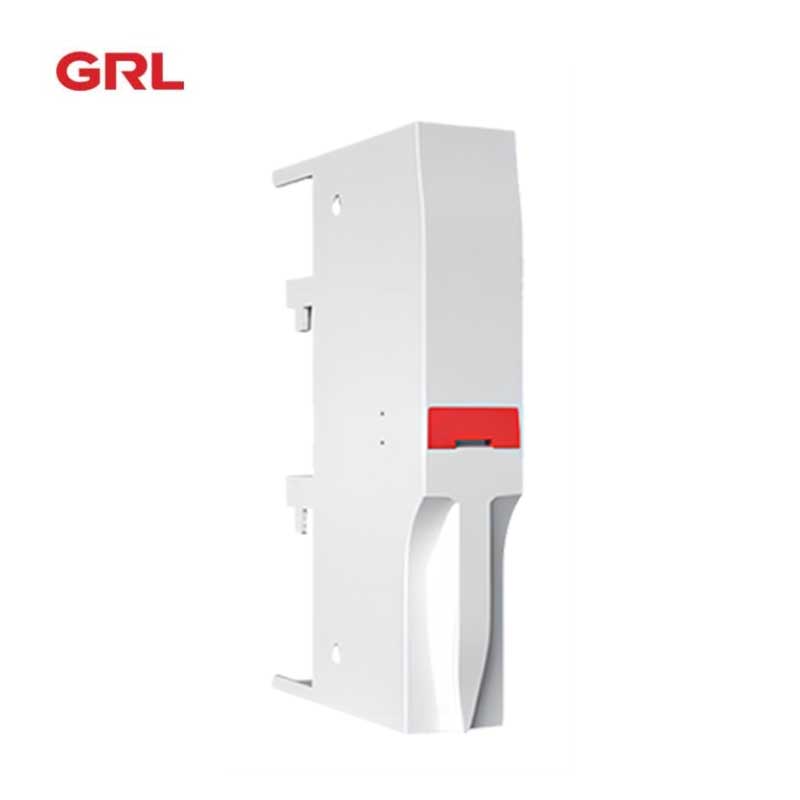

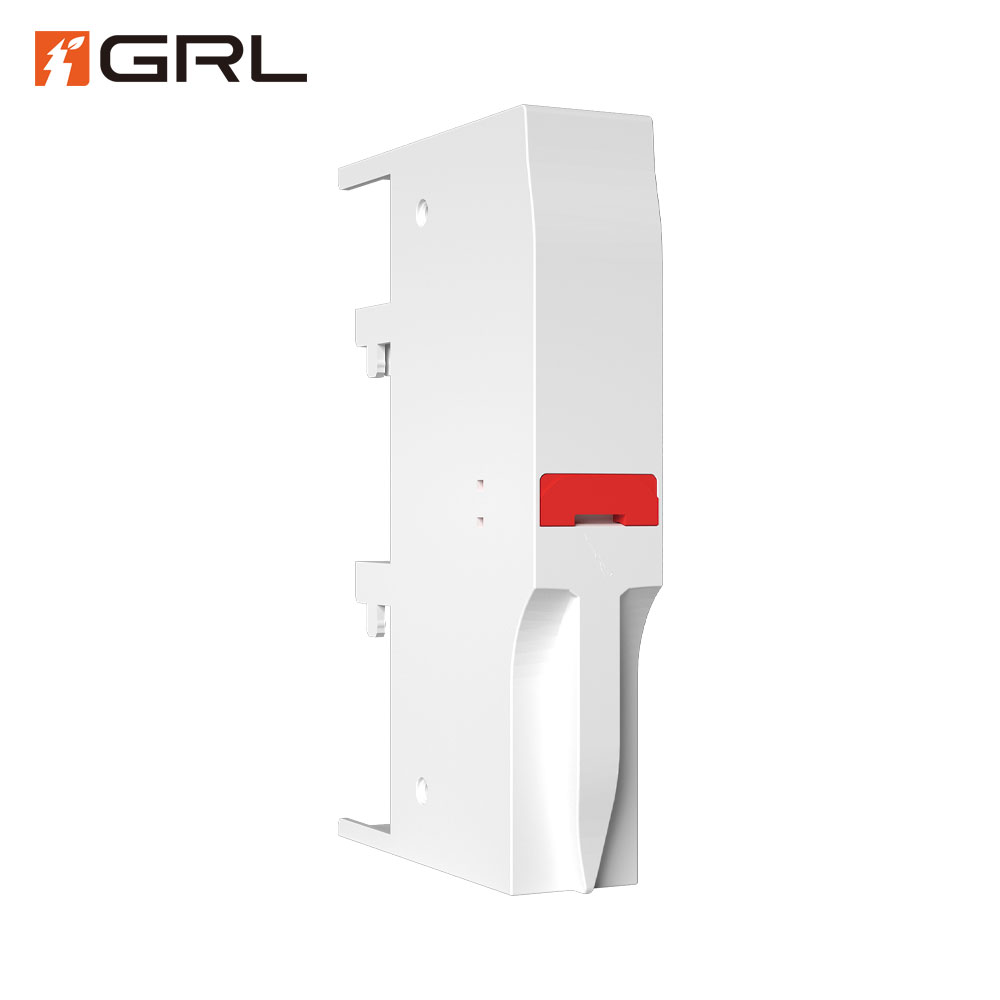

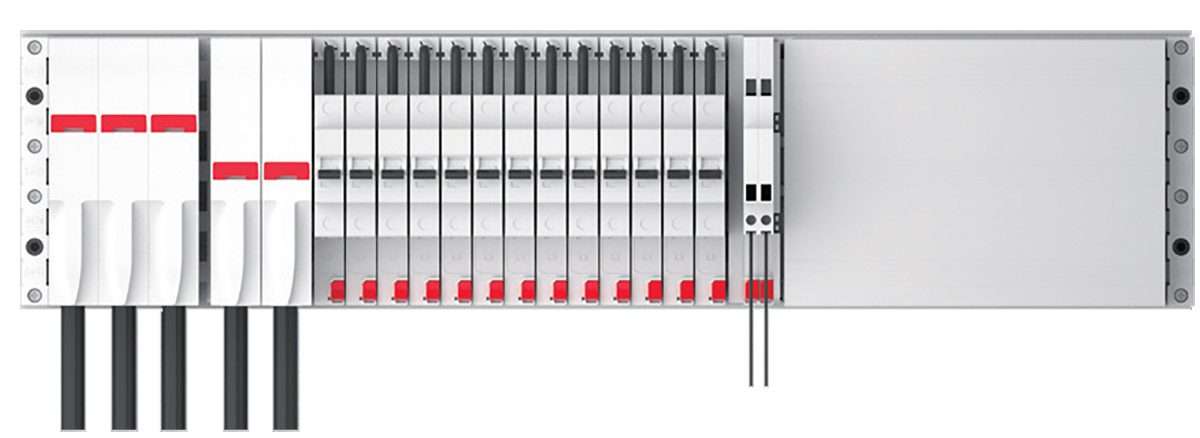

The 30mm busbar system connection module is a key component used to connect and secure various elements of the busbar system. It ensures stable electrical connections and mechanical support, guaranteeing the reliability and safety of power transmission. Connection modules typically offer excellent electrical conductivity, corrosion resistance, and high-temperature tolerance, making them compatible with busbar systems of different specifications. In applications, these modules facilitate the quick installation, maintenance, and adjustment of busbars, making them an essential part of ensuring the efficient operation of power systems.

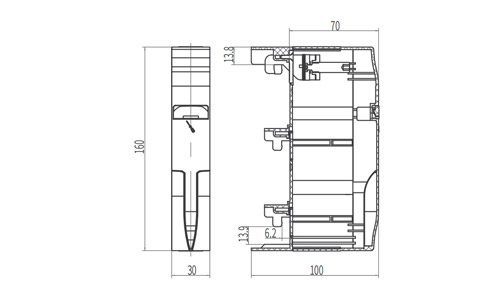

| Order Number | DN54370 |
| Rated operating current Ie: | 250A |
| Maximum current load capacity: | 400A |
| Rated operating voltage Ue: | 690 V |
| Applicable system: | 60mm |
| Number of poles: | L1 pole with cover |
| Applicable busbar: | 12 x 5 standard copper busbar or L-shaped busbar |
| Connecting cable: | 35-120 mm² round single-strand or round multi-strand wire |

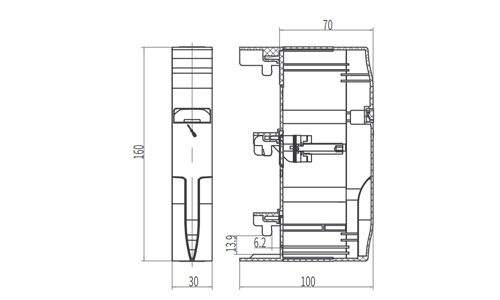

| Order Number | DN54371 |
| Rated operating current Ie: | 250A |
| Maximum current load capacity: | 400A |
| Rated operating voltage Ue: | 690 V |
| Applicable system: | 60mm |
| Number of poles: | L2 pole with cover |
| Applicable busbar: | 12 x 5 standard copper busbar or L-shaped busbar |
| Connecting cable: | 35-120 mm² round single-strand or round multi-strand wire |

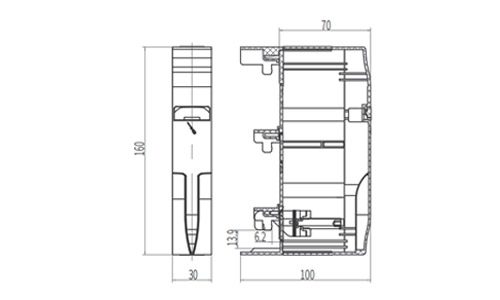

| Order Number | DN54372 |
| Rated operating current Ie: | 250A |
| Maximum current load capacity: | 400A |
| Rated operating voltage Ue: | 690 V |
| Applicable system: | 60mm |
| Number of poles: | L3 pole with cover |
| Applicable busbar: | 12 x 5 standard copper busbar or L-shaped busbar |
| Connecting cable: | 35-120 mm² round single-strand or round multi-strand wire |

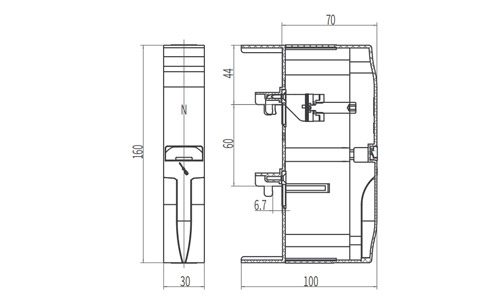

| Order Number | DN54364 |
| Rated operating current Ie: | 250A |
| Maximum current load capacity: | 400A |
| Rated operating voltage Ue: | 690 V |
| Applicable system: | 60mm |
| Number of poles: | N pole with cover |
| Applicable busbar: | 12 x 5 standard copper busbar or L-shaped busbar |
| Connecting cable: | 35-120 mm² round single-strand or round multi-strand wire |

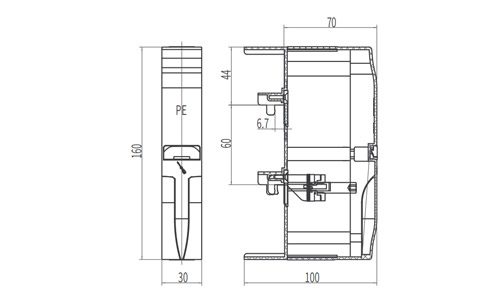

| Order Number | DN54365 |
| Rated operating current Ie: | 250A |
| Maximum current load capacity: | 400A |
| Rated operating voltage Ue: | 690 V |
| Applicable system: | 60mm |
| Number of poles: | PE pole with cover |
| Applicable busbar: | 12 x 5 standard copper busbar or L-shaped busbar |
| Connecting cable: | 35-120 mm² round single-strand or round multi-strand wire |
What is a busbar Connection module?
A busbar connection module is a component designed to securely link different sections or components of a busbar system. It serves as the interface between individual busbars, electrical devices, or circuit breakers, enabling stable and efficient power distribution within electrical systems. These modules provide both electrical conductivity and mechanical support, ensuring that the connections are secure and reliable.
Key functions of a busbar connection module include:
- Electrical Connectivity: It facilitates the flow of electrical current between connected busbars or electrical equipment, ensuring minimal resistance and power loss.
- Mechanical Support: It holds the busbars in place, preventing movement or strain that could disrupt the electrical connections or cause mechanical failure.
- Flexibility and Modularity: Many connection modules are designed to be adjustable or compatible with various busbar sizes and configurations, providing flexibility in system design.
- Safety and Durability: Connection modules are often made from materials that can withstand high temperatures, vibrations, and other harsh environmental factors, ensuring long-term performance and safety.
These modules are widely used in power distribution panels, switchgear, and other electrical systems where reliable and efficient busbar connections are crucial.
GRL’s busbar connection modules are engineered to provide superior electrical connectivity and mechanical stability in power distribution systems. Designed with precision and built for reliability, GRL connection modules ensure seamless integration between busbars and electrical components, optimizing power distribution performance while minimizing energy loss.
Crafted from high-quality materials, GRL modules offer exceptional conductivity, corrosion resistance, and the ability to withstand harsh operating conditions, ensuring long-lasting durability and safety in diverse industrial environments. Whether for high-power distribution panels or modular switchgear, our busbar connection modules provide easy installation, maintenance, and scalability, supporting a wide range of busbar configurations.
Choose GRL for advanced, reliable busbar solutions that deliver efficiency and safety, meeting the needs of today’s demanding electrical systems.
