Electric Meter Box

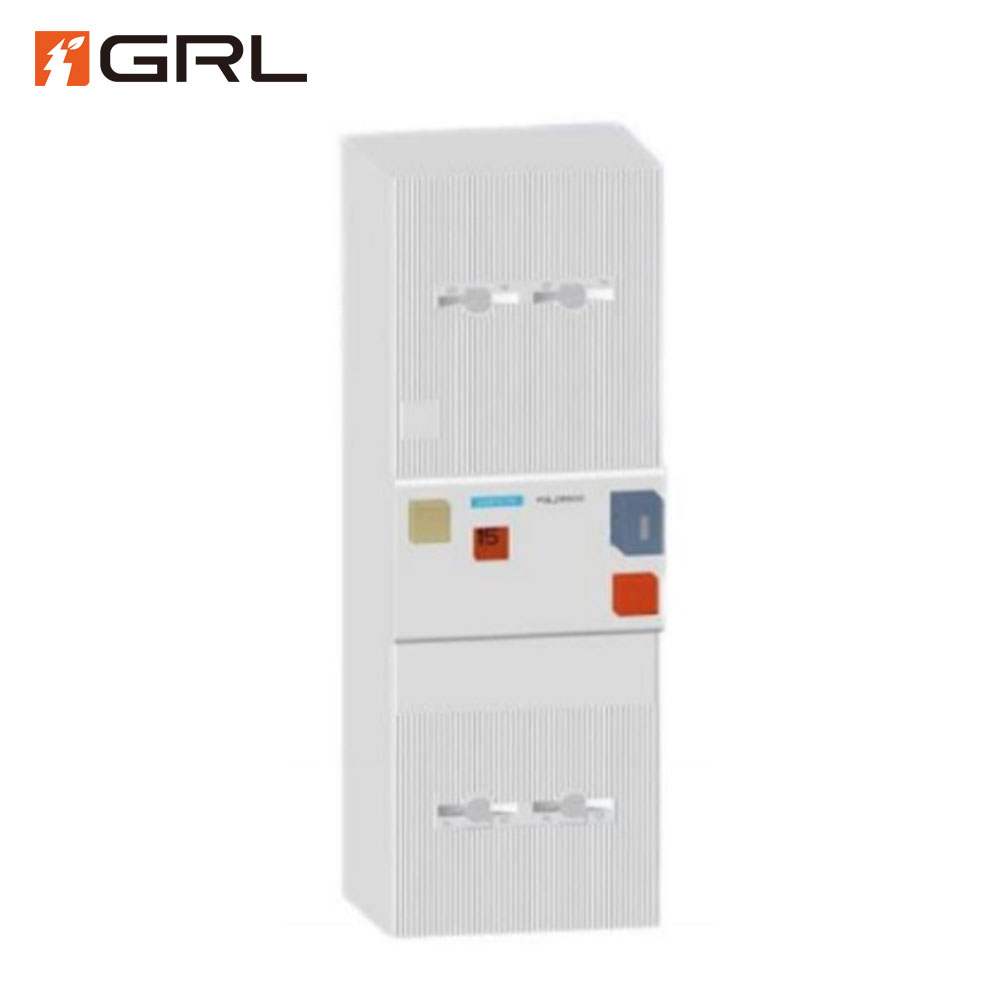

Branch Moulded Case Circuit Breaker 2P 4P 500mA


Type:DN
Poles:2P,4P
Rated Voltage ( V ):230V / 400V
Rated current ( A ):
5-15A (5,10,15) A
10-30A(10,15,20,25,30)A
15-45A(15,30,45)A
30-60A (30,45,60) A
30-60A(30,40,50,60)A
Leakage operating current ( mA ):300mA, 500mA
Leakage non-operating current ( mA ):150mA,250mA
Accord with standard:EN60947-2

read on Electric Meter Box

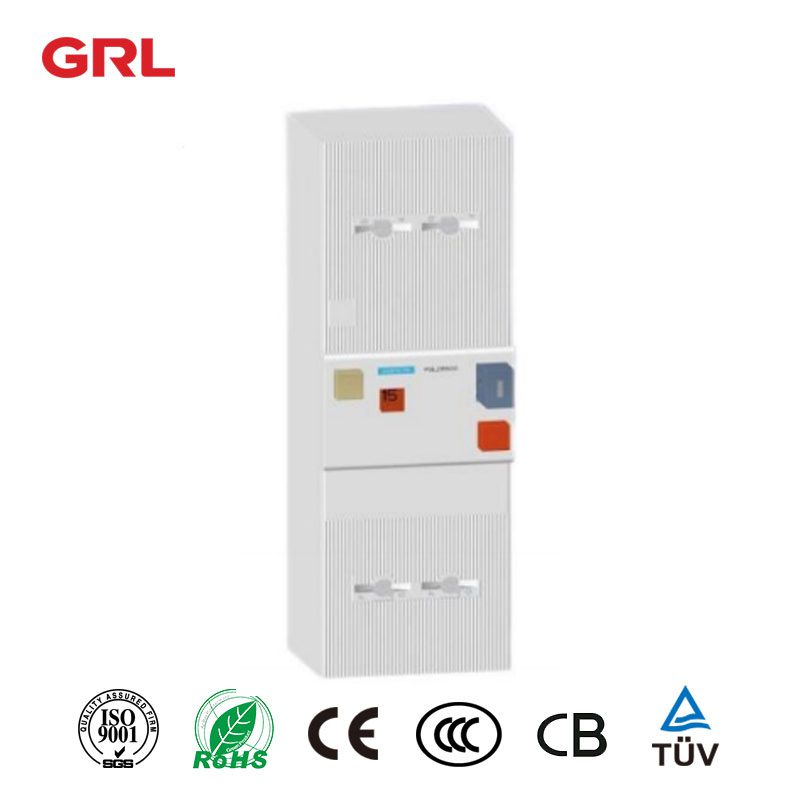

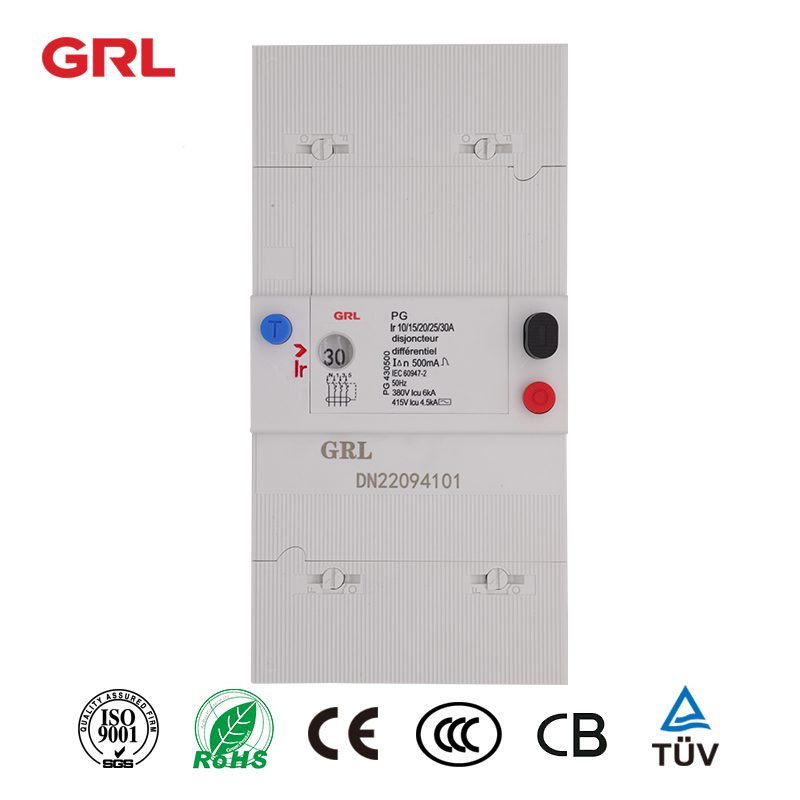

Branch Circuit Breaker 2P,5 to 15A,10 to 30A,500mA

Model Information

Model: PG 430500 PG 460500
Without Lÿ No residual current tripping
With l: Residual current tripping
2 meansÿ Poles(4=3+N)
15 meansÿ Maximum rated current(30A)
500 meansÿ Differential Sensitivity(500mA)



main

Range Multi 9
Type of product or equipment Circuit breaker
Position of the switchgear in the installation Arrivals group



Description of poles 3P+N
[In] rated operational current 10A 30 A
15A 40 A
20A 50 A
25A 60 A
30A
Differential Sensitivity 500MA
Timeout Selective
Position of the neutral pole Left
Standards IEC 60947-2
Product certifications THIS
Network type THAT



Complementary

Network frequency 50/60Hz
[Ue] rated operational voltage 440 V AC 50/60 Hz conforming to IEC 60947-2
Residual current tripping technology Voltage dependent
[Ics] rated service breaking capacity 2 KA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Order type By crankpin
mounting bracket mounting plate
Height 210mm
Lenght 105mm
Depth 70mm
Product weight 1.8Kg
Connection mode Tunnel type terminal, cable section: 35 mm²
Differential protection Integrated



Environment

Operating altitude 2000m
Ambient air temperature during operation -5…40 °C



Supply sustainability

EU RoHS Directive Complies with EU RoHS Declaration
Mercury free Yes
RoHS Exemption Information Yes
China RoHS regulation RoHS Declaration For China
WEEE In the European Union market, the product must be disposed of according to a specific waste collection protocol and never be thrown into a household garbage bin.

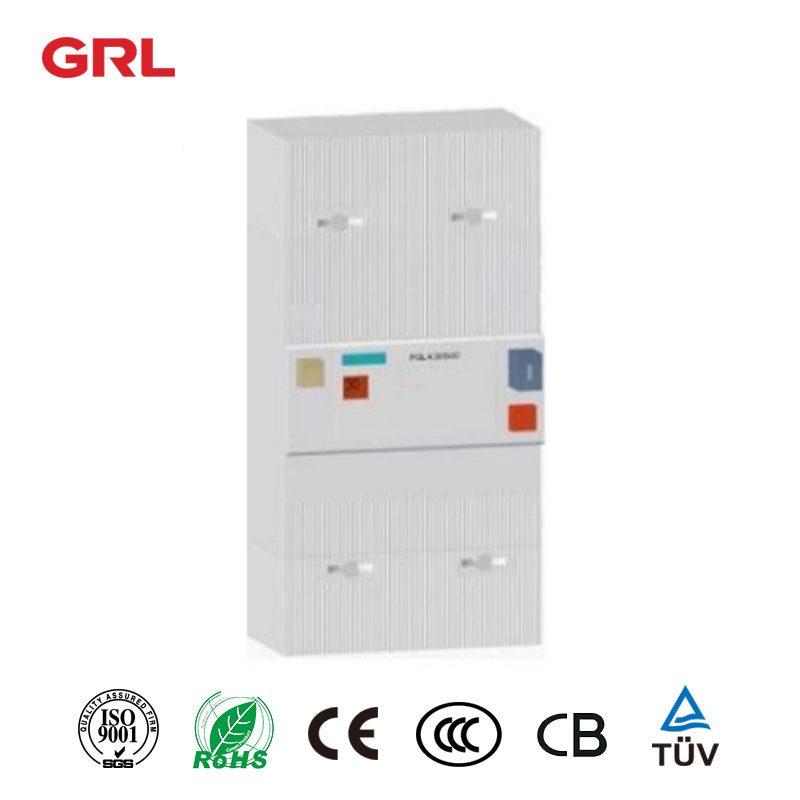

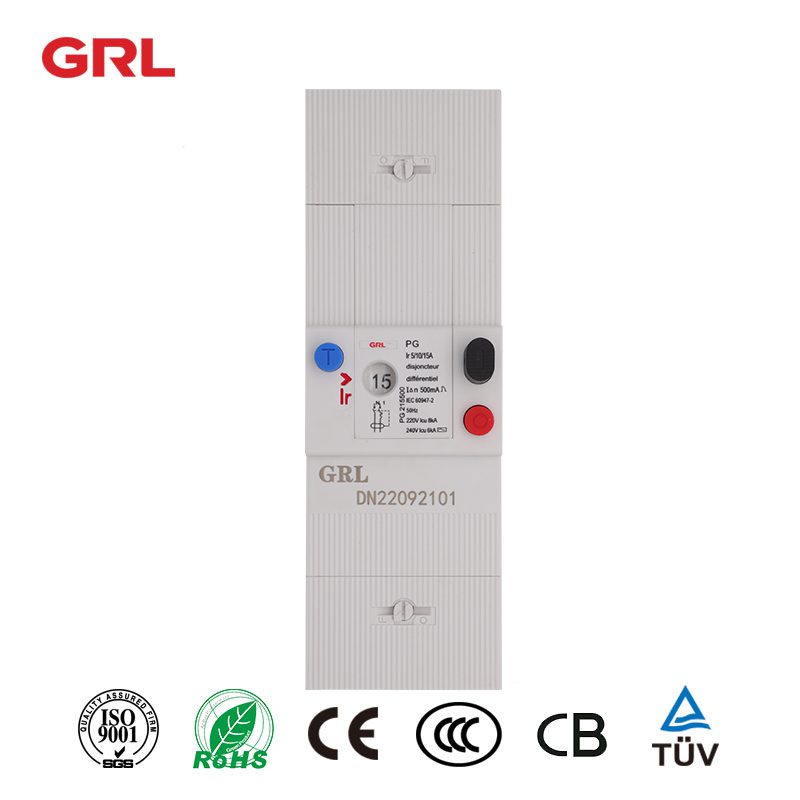

Branch Circuit Breaker 4P,10 to 30A, 30 to 60A,500mA

Model Information

PGL
Model: PG 215500 PG 230500
Without Lÿ No residual current tripping
With l: Residual current tripping
2 meansÿ Poles(2=1+N)
15 meansÿ Maximum rated current(15A)
500 meansÿ Differential Sensitivity(500mA)

Installation diagram (with dimensions)



main

Range Multi 9
Type of product or equipment Circuit breaker
Position of the switchgear in the installation Arrivals group
Description of the poles 1P+N
[In] rated operational current 5A

10A

15A

10A

15A

20A

25A

30A

Differential Sensitivity 500MA
Timeout Selective
Position of the neutral pole Left
Standards IEC 60947-2
Product certifications THIS
Network type THAT



Complementary

Network frequency 50/60Hz
[Ue] rated operational voltage 250 V AC 50/60 Hz conforming to iec60947-2
Residual current tripping technology voltage dependent
[Ics] rated service breaking capacity 2 kA at 250 V AC 50/60 Hz conforming to IEC60947-2
Order type By crankpin
mounting bracket mounting plate
Height 210mm
Lenght 70mm
Depth 70mm
Product weight 0.7Kg
Connection mode Cage type terminal, cable section: 35 mm²
Differential protection Integrated



Environment

Operating altitude 2000m
Ambient air temperature during operation -5…40 °C
Type of packaging 1 PCE
Number of units per package 1



Supply sustainability

EU RoHS Directive Complies with EU RoHS Declaration
Mercury free Yes
RoHS Exemption Information Yes
China RoHS regulation RoHS Declaration For China
WEEE In the European Union market, the product must be disposed of according to a specific waste collection protocol and never thrown into a household waste bin.
