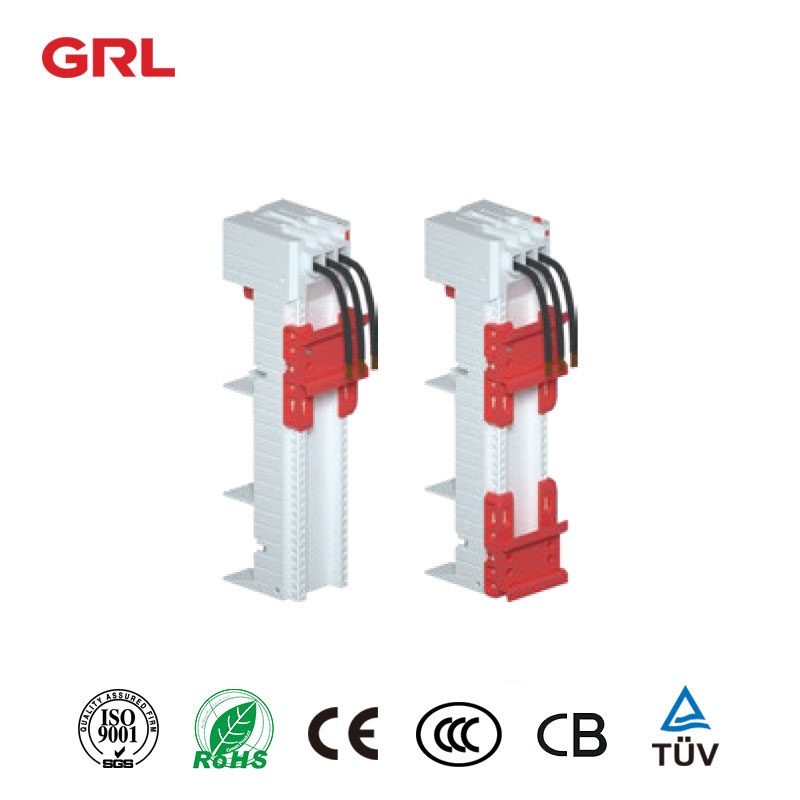

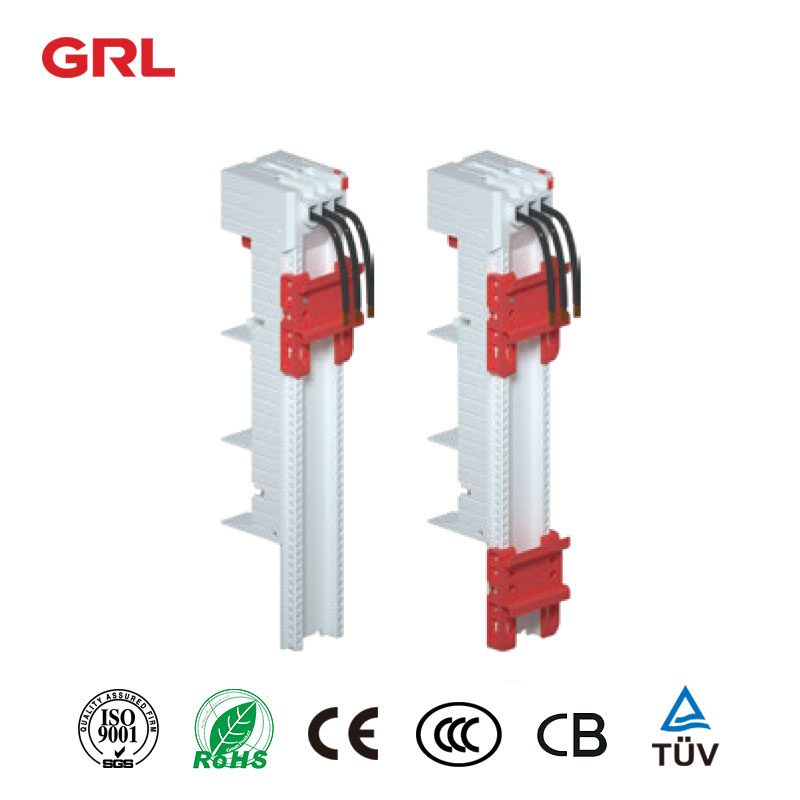

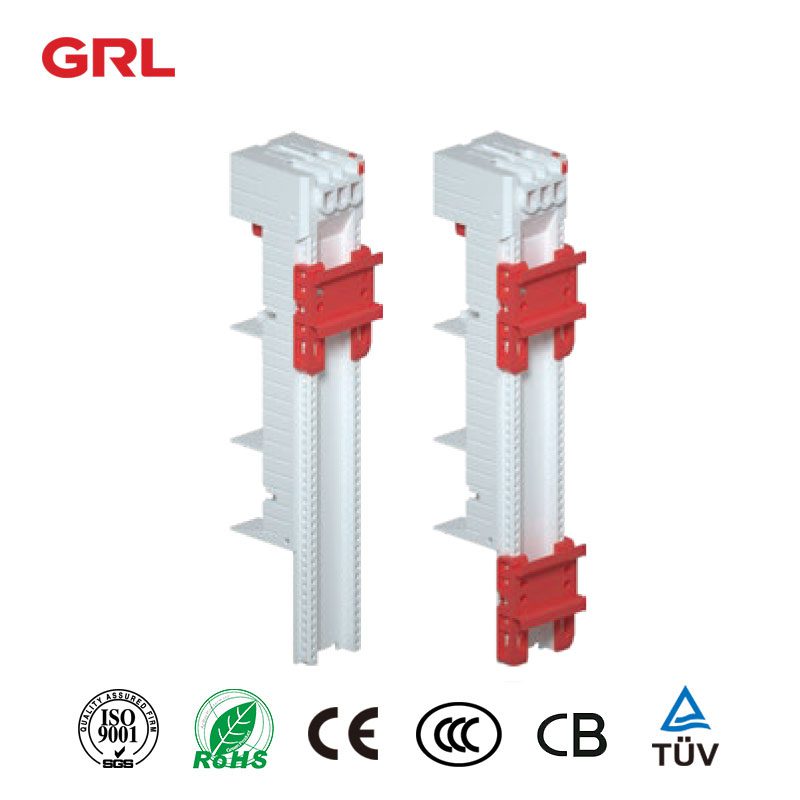

Busbar Wiring System, Breaker Adaptor, 25A 3P

Model No.: ZJQ-25

Applicated to the system: 60mm

Rated operational current Ie: 25A

Rated operational voltage Ue: 690V

Rated impulse withstand current Ipk: 6KV

Rated insulation voltage: 1000v

Short circuit stability: Short circuit protection of circuit breaker adaptor carrying

Pole: 3Pole with cable, 3Pole with cable without terminal

For busbar: 12, 15, 20, 25, 30*5, 10 and irregular copper busbar

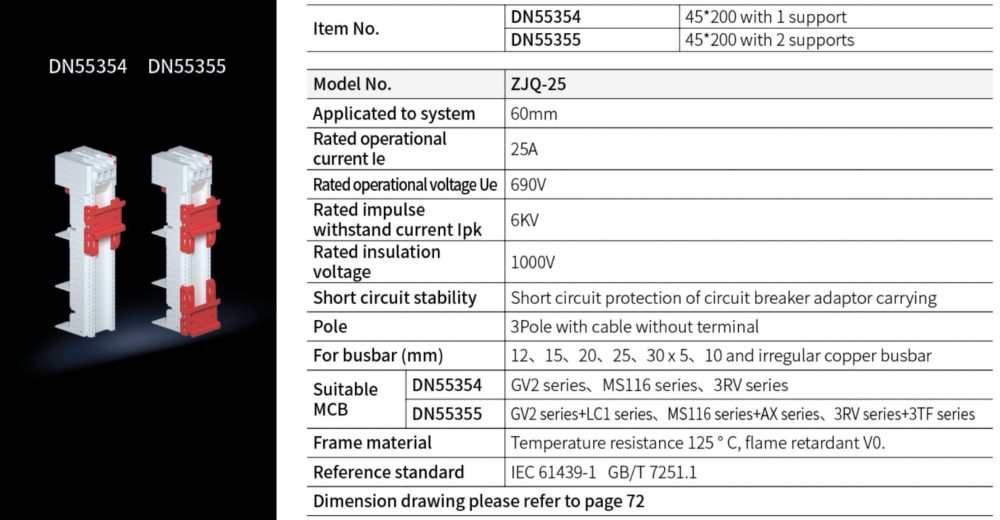

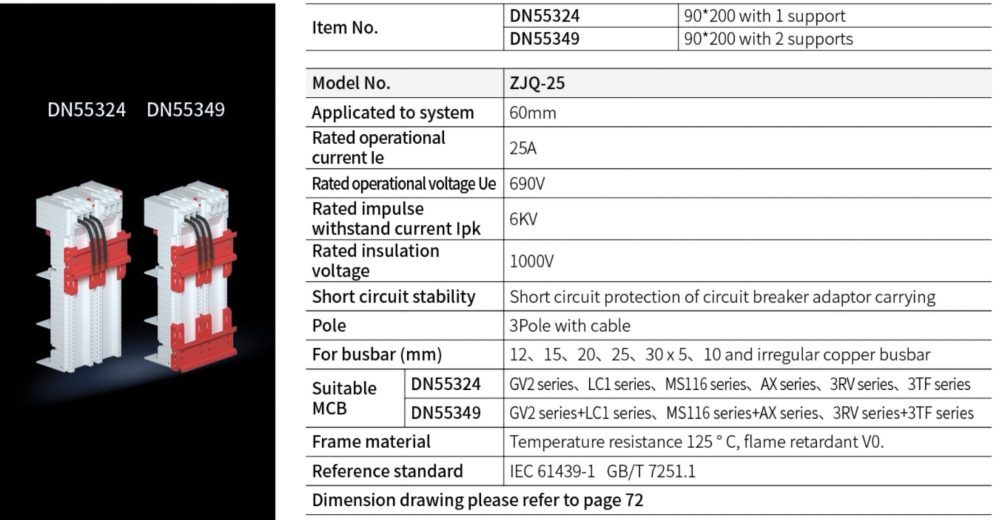

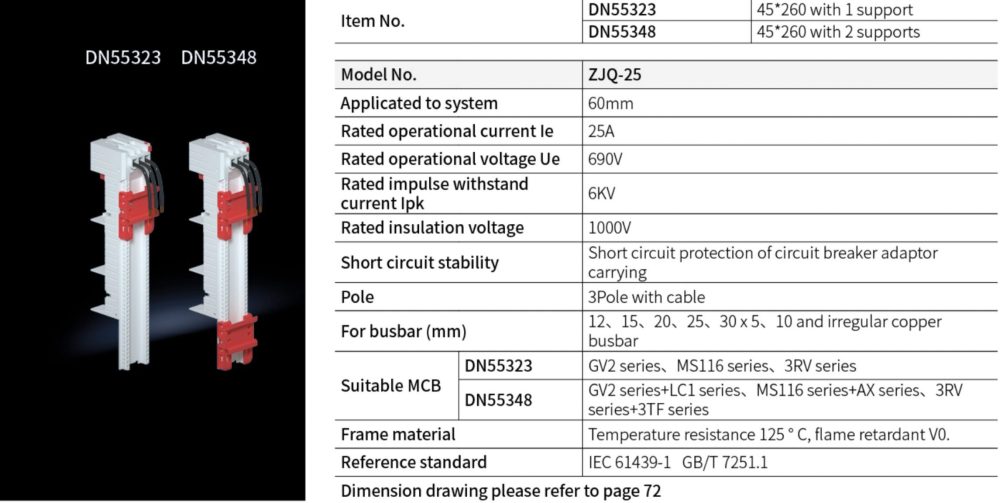

Suitable MCB: DN55323(GV2 series, MS116 series, 3RV series), DN55348(GV2 series+LC1 series, MS116 series+AX series, 3RV series+3TF series), DN55324(GV2 series, LC1 series, MS116 series, AX series, 3RV series, 3TF series),DN55349(GV2 series+LC1 series, MS116 series+AX series, 3RV series+3TF series), DN55354(GV2 series, MS116 series, 3RV series), DN55355(GV2 series+LC1 series, MS116 series+AX series, 3RV series+3TF series), DN55356(GV2 series, MS116 series, 3RV series), DN55357(GV2 series+LC1 series, MS116 series+AX series, 3RV series+3TF series), DN55358(GV2 series, MS116 series, 3RV series), DN55359(GV2 series+LC1 series, MS116 series+AX series, 3RV series+3TF series)

Frame material: Temperature resistance 125℃, flame retardant V0.

Reference standard: IEC 61439-1, GB/T 7251.1

Keywords: Busbar Wiring System Breaker Adaptor 25A 3P

Description

Busbar Wiring System Breaker Adapter 25A 3P is an essential piece of equipment for anyone looking to install or maintain a bus wiring system. It is constructed with premium materials and workmanship to ensure long life and reliable performance. This adapter allows you to easily connect and disconnect the circuit breaker from the busbar, making installation and maintenance a breeze.

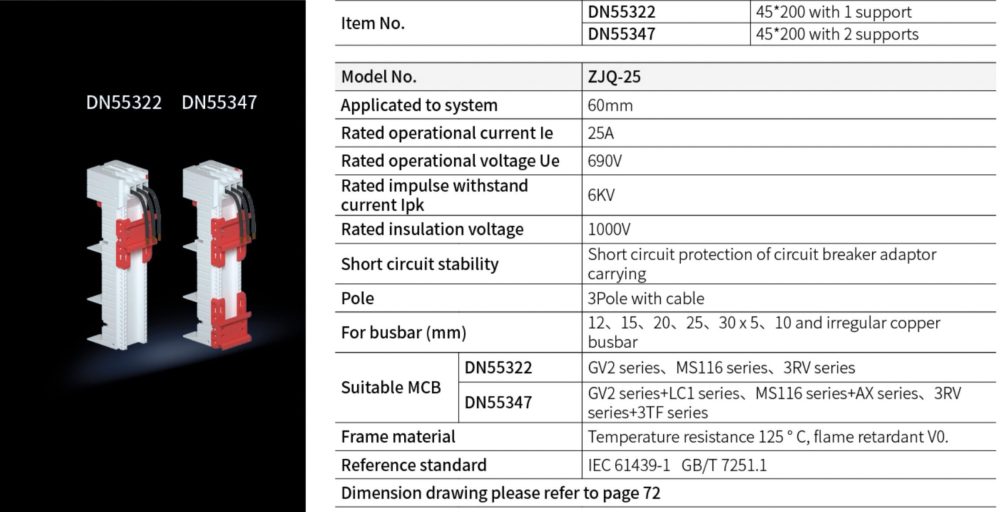

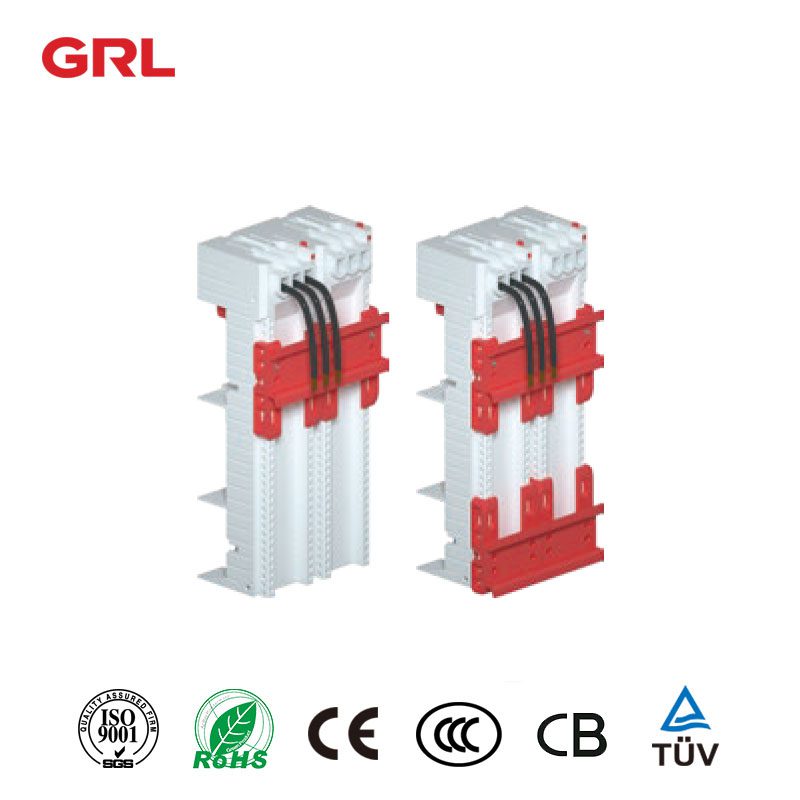

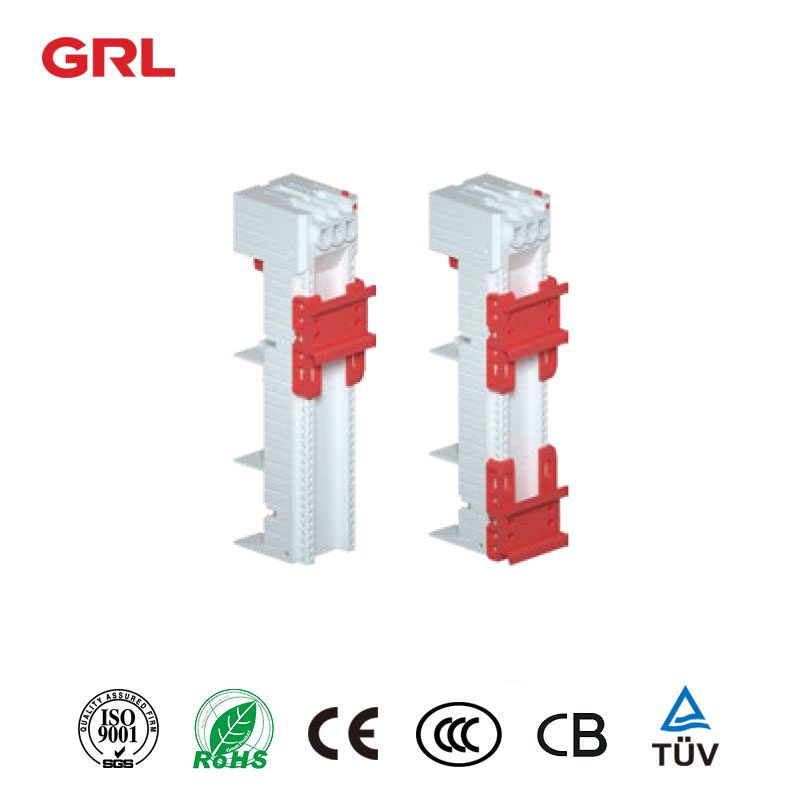

DN55322 45*200 with 1 support

DN55347 45*200 with 2 supports

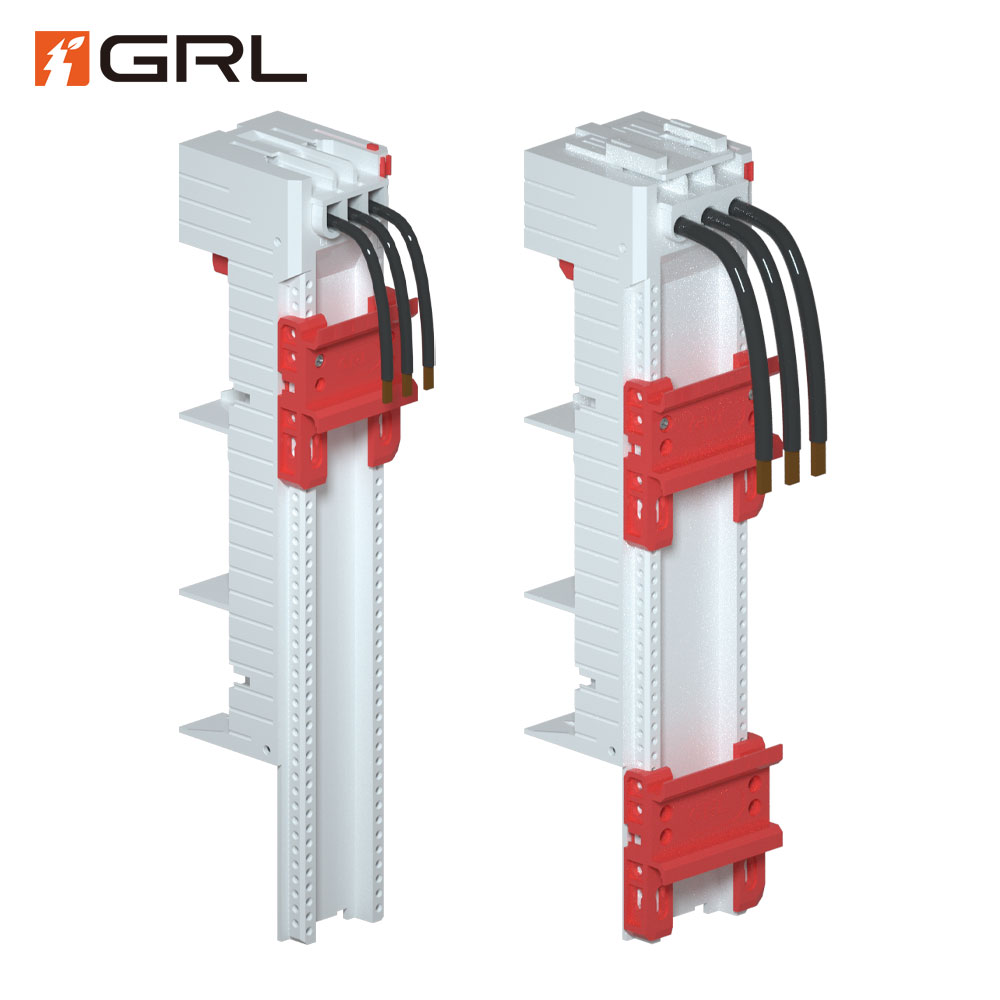

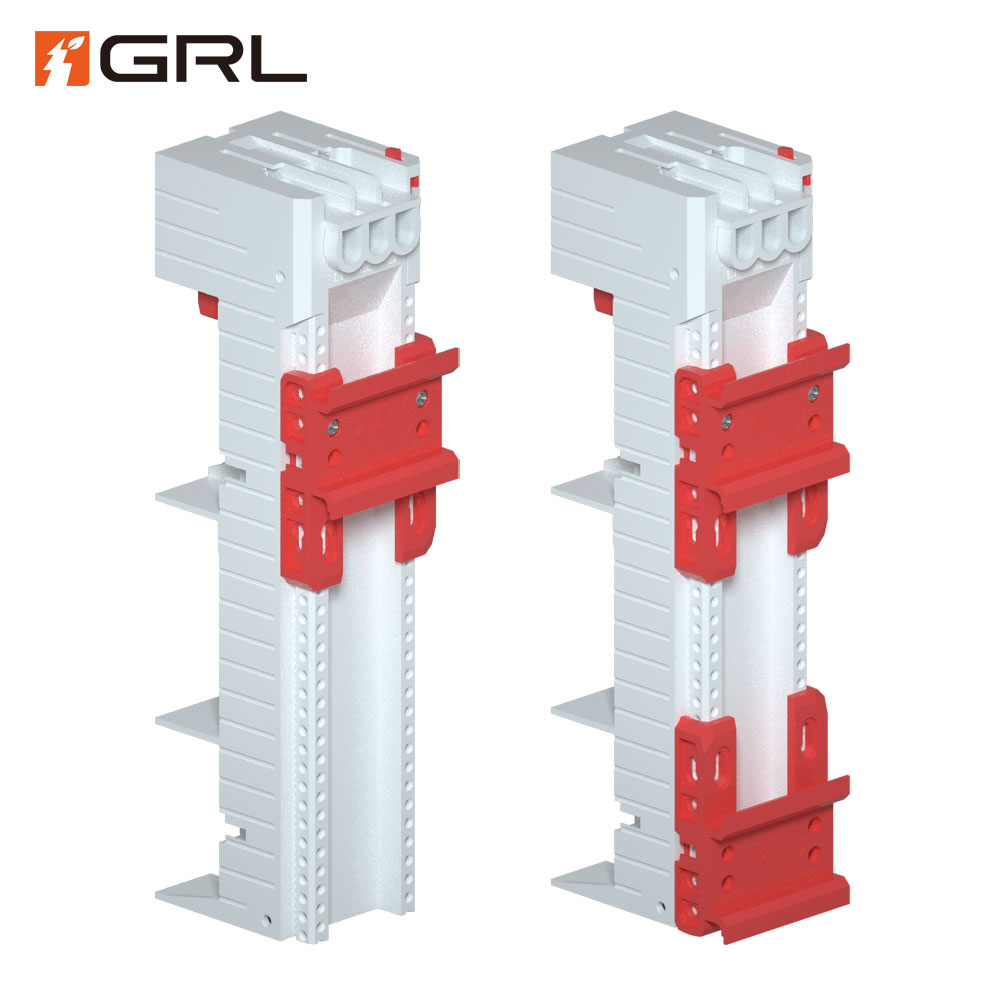

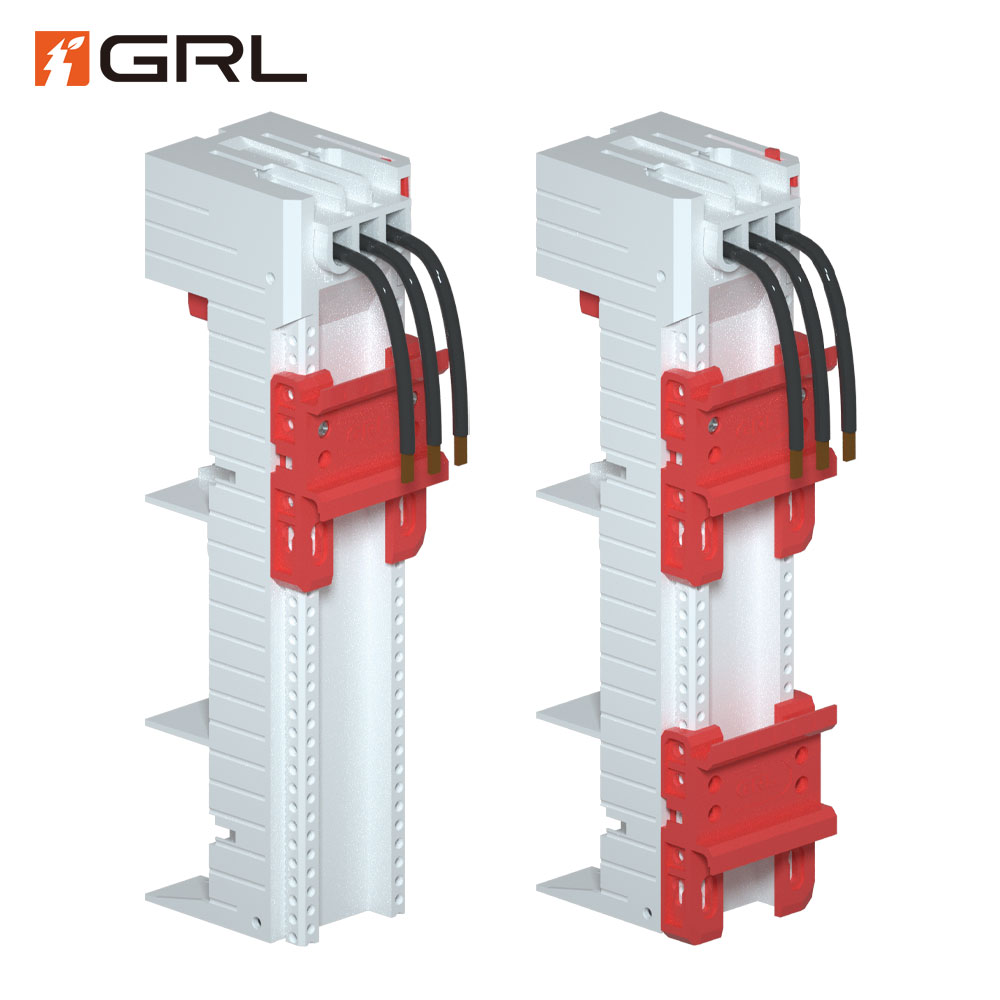

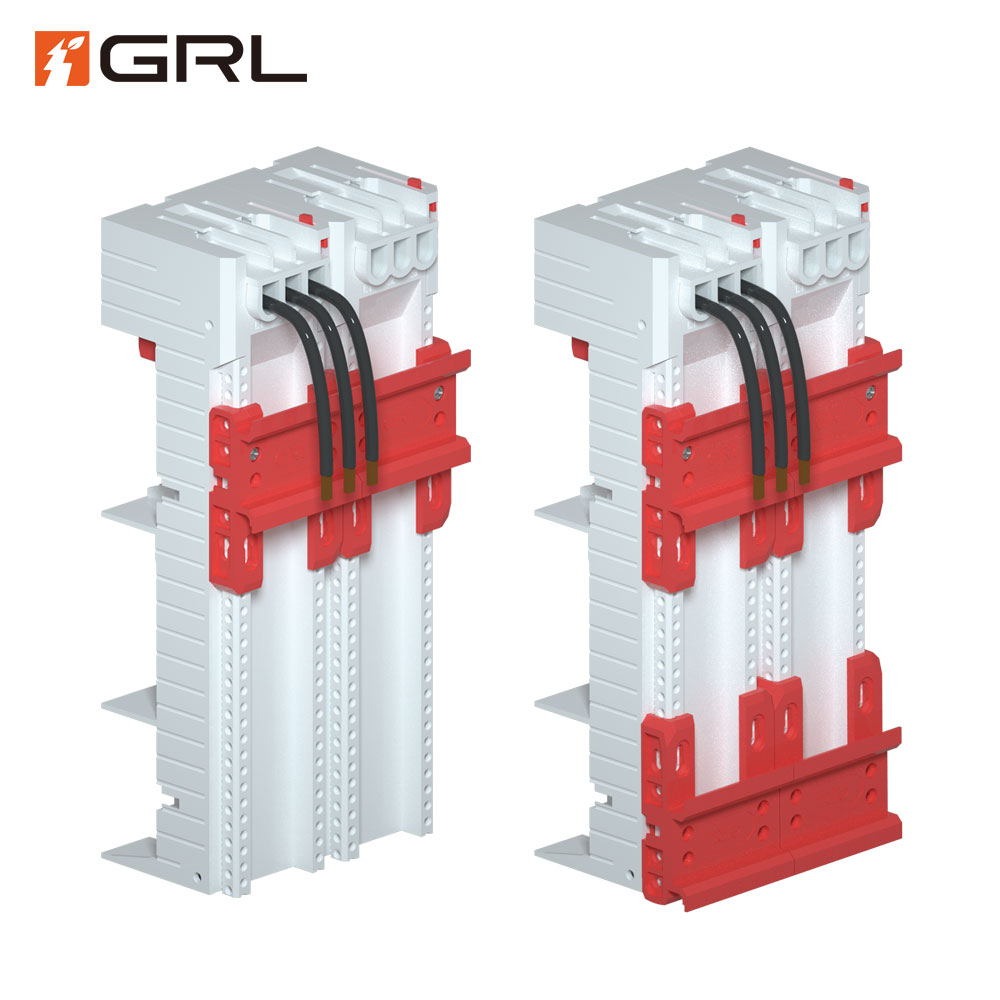

Busbar Wiring System

Breaker Adaptor

25A 3P

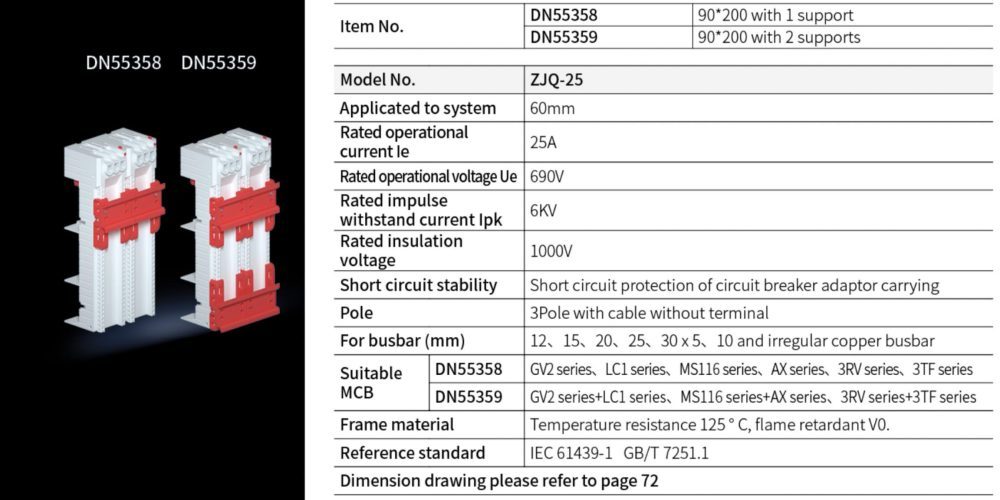

Suitable MCB: DN55358 GV2 series, LC1 series, MS116 series, AX series, 3RV series, 3TF series

DN55359 GV2 series+LC1 series, MS116 series+AX series, 3RV series+ 3TF series

Do you need a safe and secure way to connect your electrical equipment? Check out our busbar wiring system circuit breaker adapters! This product is designed to provide a safe and easy connection to your equipment and busbars, and is made of high-quality materials that can withstand high currents. Please feel free to contact us if you have any questions.
