How do semiconductor fuse links protect against short-circuit conditions?

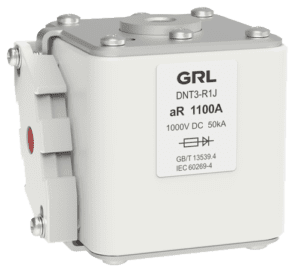

What is a semiconductor fuse link?

A semiconductor fuse link is a specialized electrical component that acts as a safety device, protecting electrical circuits from overcurrent and short-circuit conditions. Unlike traditional fuses, which rely on a physical element to break the circuit, semiconductor fuse links use advanced semiconductor technology to rapidly interrupt the flow of current, preventing damage to sensitive equipment and ensuring the safety of your operations.

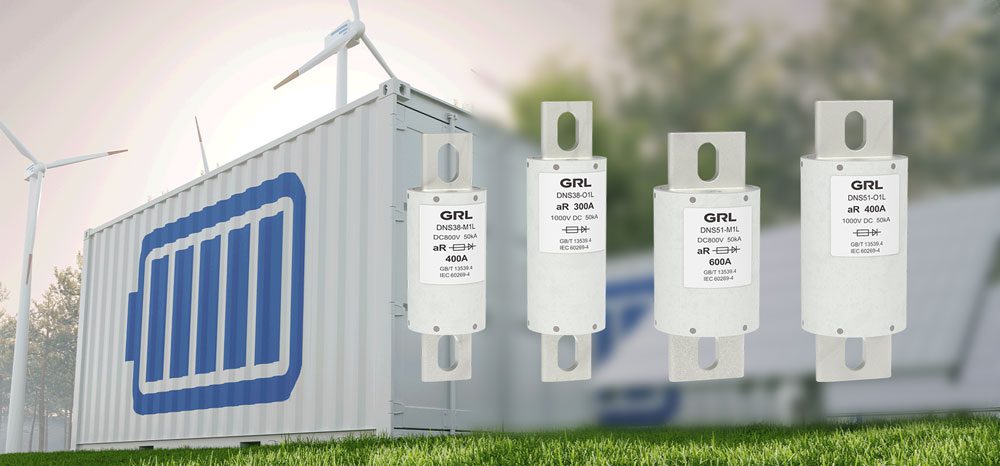

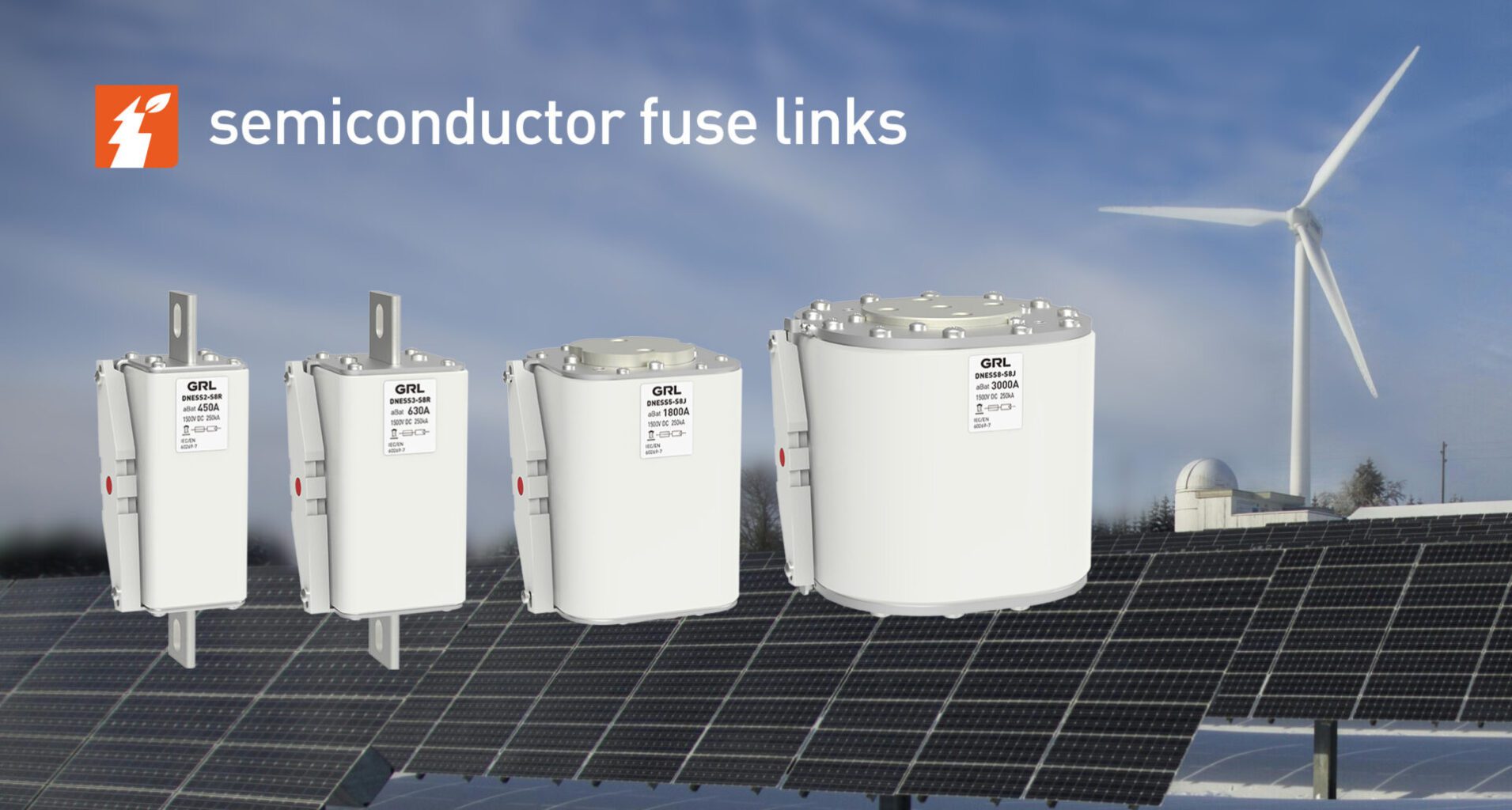

In the rapidly evolving energy sector, semiconductor fuse links are essential components that provide robust protection for various systems, including photovoltaic (PV) storage and electric vehicle (EV) charging stations. In PV storage systems, semiconductor fuse play a critical role in safeguarding the equipment from overcurrent and short-circuit conditions. These fuses ensure the stable and efficient operation of solar inverters and energy storage units, preventing potential damage and enhancing system reliability.

Similarly, semiconductor fuse links are vital in EV charging infrastructure. As charging stations handle high power loads, they require fast and reliable protection to ensure safe and continuous operation. Semiconductor fuses offer rapid disconnection capabilities, protecting charging equipment from electrical faults and preventing overloads. This not only ensures the safety of the charging process but also prolongs the lifespan of the equipment.

Overall, semiconductor fuses are indispensable in modern energy applications. Their ability to provide swift and effective protection makes them ideal for use in PV storage systems and EV charging stations, driving the advancement and adoption of sustainable energy technologies.

Click to view grl semiconductor fuse link product>>

How does a semiconductor fuse link work？

A semiconductor fuse link is a specialized electrical component used to protect power semiconductor devices, such as diodes, thyristors, and transistors, from overcurrent and short-circuit conditions in AC and DC power electronic applications.

The fuse link consists of a silver strip with notches (regions of reduc artz sandDuring normal operation, the fuse element carries the required current without melting. However, when a short-circuit or overcurrent occurs, the fuse element melts quickly at the notches, creating multiple small electric arcs that rapidly reduce the fault current to zero, extinguishing the arcs.

Semiconductor fuse links are designed to have a very fast response time, typically requiring only about 5-6 times their rated current to melt within 10ms, which is much faster than general industrial fuses.

This rapid action is crucial for protecting sensitive power semiconductor devices, which can be easily damaged by short-circuit currents.

Key features of semiconductor fuse links include

1、Very fast melting time to provide excellent protection against short-circuit currents.

2、Current-limiting capability to reduce the energy produced during an overcurrent.

3、Voltage ratings up to 12.5kV and current ratings up to 10,000A.

4、Compact size and low resistance for minimal power loss during normal operation.

Semiconductor fuse links are widely used in power electronic applications such as AC/DC, DC/AC, and DC/DC converters, as well as frequency converters, to ensure the reliable and safe operation of power semiconductor devices.

Key benefits of semiconductor fuse links

1、Improved Safety

Semiconductor fuse links offer superior protection against electrical hazards, minimizing the risk of fires, explosions, and other dangerous incidents that can occur in industrial settings.

2、Enhanced Reliability

These fuse links are designed to withstand harsh environmental conditions, such as extreme temperatures, vibrations, and moisture, ensuring consistent and reliable performance even in the most demanding industrial environments.

3、Faster Response Time

Semiconductor fuse links can detect and interrupt overcurrent conditions much faster than traditional fuses, providing a higher level of protection for your equipment and reducing the risk of costly downtime.

4、Increased Efficiency

By quickly interrupting the flow of current, semiconductor fuse links help to minimize energy losses and improve the overall efficiency of your electrical systems, contributing to cost savings and reduced environmental impact.

5、Versatility

Our semiconductor fuse links are compatible with a wide range of industrial applications, from manufacturing equipment and power distribution systems to renewable energy installations and transportation infrastructure.

Why choose our semiconductor fuse links?

At GRL, we take pride in our commitment to quality and innovation. Our semiconductor fuse links are engineered to the highest standards, using the latest advancements in semiconductor technology to deliver unparalleled performance and reliability.

With a team of experienced engineers and a robust quality assurance process, we ensure that every fuse link we produce meets or exceeds industry standards, providing our customers with the peace of mind they deserve.

Whether you’re looking to upgrade your existing electrical systems or incorporate cutting-edge safety features into your new projects, our semiconductor fuse links are the perfect solution.

Contact us today to learn more about how our products can benefit your industrial operations and help you stay ahead of the competition.
