Understanding HV Fuses and Current Limiting Fuses in Specialized Applications
GRL Current Limiting Fuse
High-voltage (HV) fuses, also known as high-rupturing capacity (HRC) fuses, are specifically designed for alternating current systems exceeding 1 kV. These fuses are critical for protecting transformers in power distribution networks, primarily offering short-circuit protection on the primary side of transformers.
Fuses have been a cornerstone of electrical systems since the inception of power distribution. Initially designed to protect circuits from overheating and shield delicate components from voltage surges, they have evolved into sophisticated devices capable of efficiently interrupting excessive currents. This reliability and cost-effectiveness make them indispensable in modern power systems.
High-voltage fuses, rated above 1,000V AC, are more complex than their low-voltage counterparts. They perform two primary roles: managing moderate overloads and responding to severe short circuits, ensuring minimal disruption to electrical systems.
HV Fuses Key Classifications
HV fuses are generally categorized as current limiting or non-current limiting:
current limiting Fuses: These fuses rapidly introduce resistance upon melting, effectively limiting both the magnitude and duration of fault currents. This capability minimizes equipment damage and system disruption.

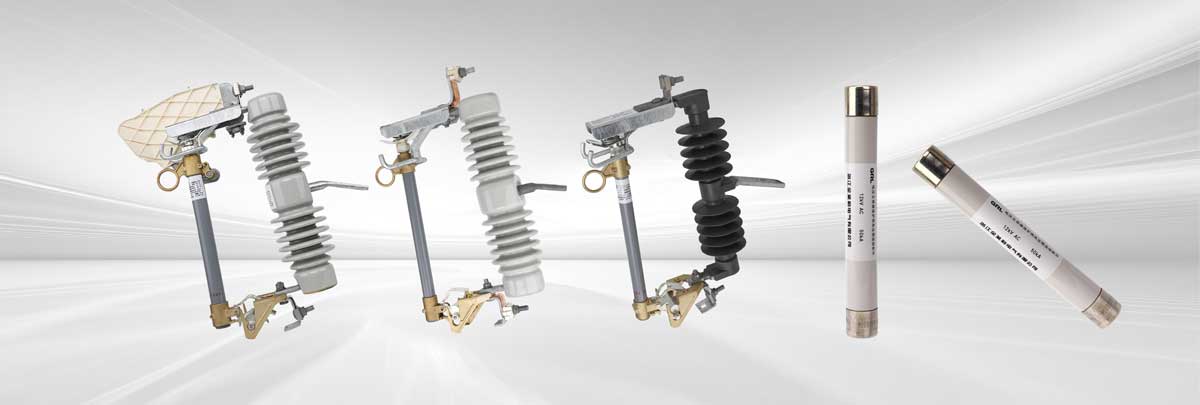

Non-current limiting Fuses: Often referred to as expulsion fuses, these create a physical gap through gas expulsion during fault conditions. While they limit fault duration, they do not reduce its magnitude, making them suitable for specific applications.
Click to view grl Current Limiting Fuse product>>
Which Fuses Are Current Limiting?
Not all fuses are currently limiting. The following types are designed to provide current limiting protection:

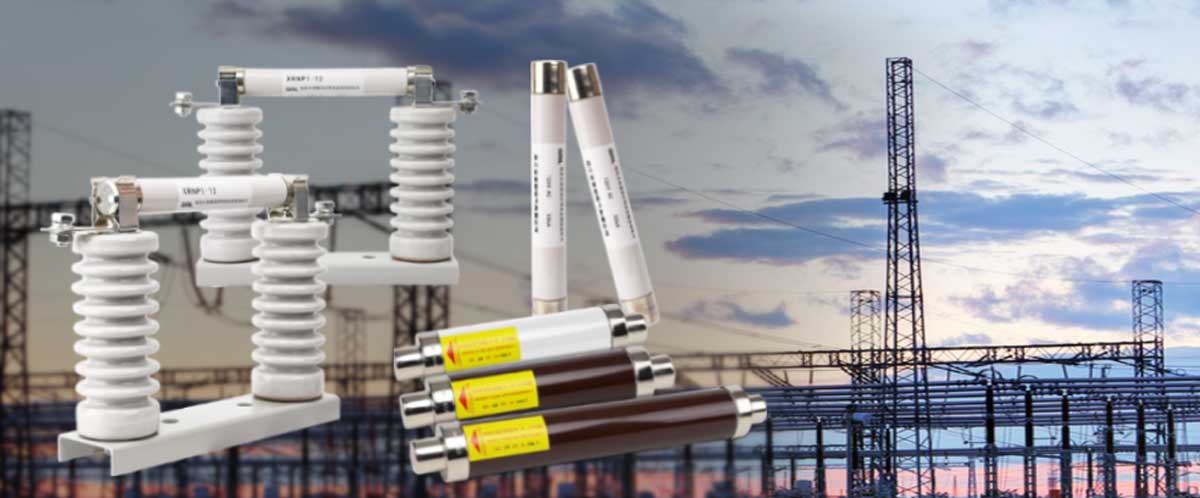

High Voltage Current Limiting Fuses
Used in medium and high-voltage applications, such as transformers, switchgear, and distribution networks.
Designed to handle fault currents in the kilovolt range, offering rapid interruption and superior energy limitation.

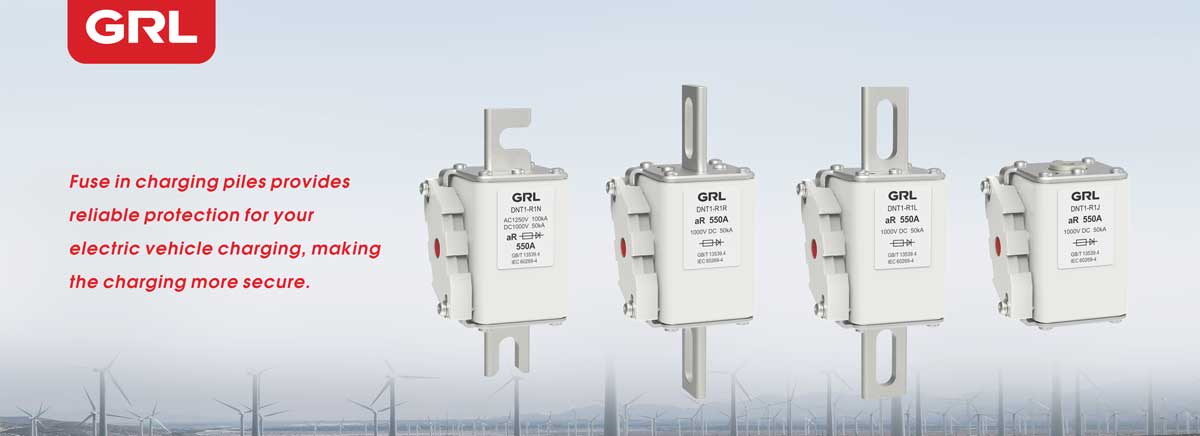

Specifically designed to protect sensitive electronic devices and semiconductor components from overcurrent and short-circuit damage.
Feature ultra-fast response times to limit current and prevent damage to delicate components.

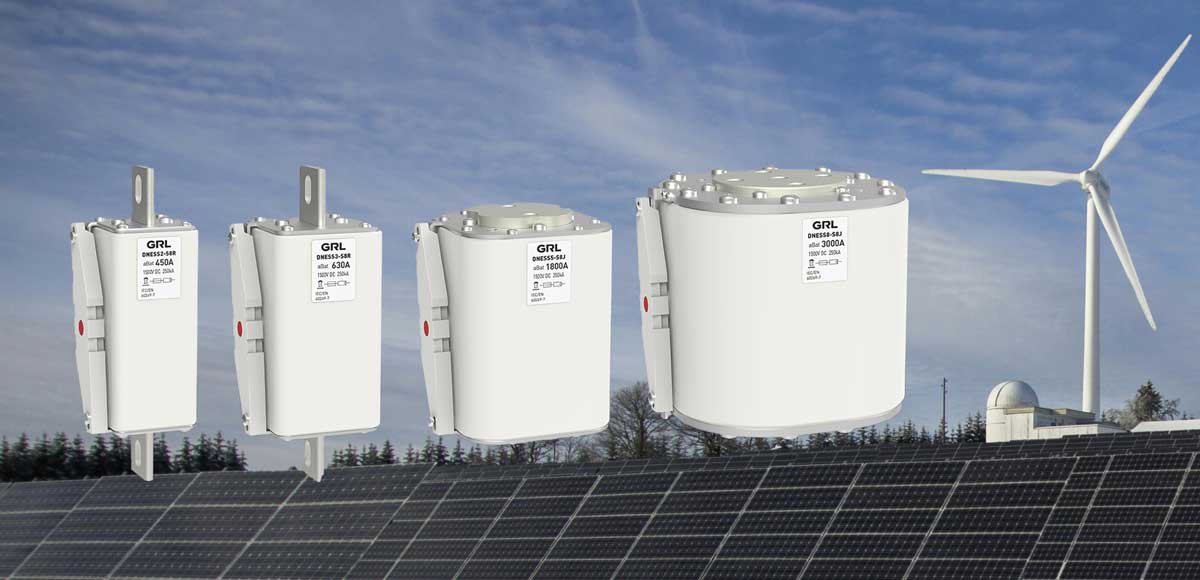

Common in battery energy storage systems (BESS), where they protect against faults in high-current environments.
Designed for high breaking capacities and rapid response to short circuits.
Low Voltage Current Limiting Fuses:
Found in industrial and commercial settings for protecting motors, feeders, and general-purpose circuits.
Include UL-class fuses, such as Class J, Class R, and Class T, which provide high-speed fault interruption and current limitation.
Why Are Fuses Said to Be Current Limiting?
Fuses are termed current limiting because they not only interrupt fault currents but also significantly reduce the peak current (let-through current) during a fault. This characteristic distinguishes current-limiting fuses from other overcurrent protection devices, such as circuit breakers. When a short circuit occurs, a current limiting fuse responds within a fraction of a cycle—before the fault current reaches its full magnitude—effectively limiting the amount of energy that passes through the circuit.
The ability to limit current is critical for reducing the risk of damage to sensitive electrical components and minimizing the impact of faults on the system. This feature also reduces the thermal and magnetic forces generated during a fault, which helps prolong the lifespan of other connected equipment.
What Is the Difference Between Current Limiting and Time Delay Fuses?
The primary difference between current limiting fuses and time delay fuses lies in their response characteristics:
Current Limiting Fuses:
Designed to interrupt fault currents rapidly, typically within the first half-cycle of a short-circuit event.
Limit the peak current and energy (I²t) let-through, offering superior protection for high fault conditions.
Commonly used in applications where sensitive equipment needs immediate protection, such as transformers and high-voltage circuits.
Time Delay Fuses:
Allow a temporary overcurrent to flow for a specified duration without interrupting the circuit.
Useful in applications where inrush currents are common, such as motor start-ups or transformer energization.
Provide slower response compared to current limiting fuses, making them less effective in limiting fault energy.
While both types of fuses serve specific purposes, current limiting fuses are the preferred choice in situations where rapid fault interruption and minimal let-through energy are critical.
The high-voltage current-limiting fuses produced by GRL have won wide recognition in the market for their excellent performance and reliability.
Our products meet international standards, support current protection up to 3000A and a breaking capacity of 250kA, and can provide safe and reliable protection in energy storage, power distribution, and industrial applications.
In addition, we also produce more high-voltage products, such as high-voltage drop out fuses, high voltage three phase disconnector switches, etc. If you need more detailed technical support or solutions, please feel free to contact us!
