The world’s first, free to change the phase of the knife fuse switch , guard your electricity safety!

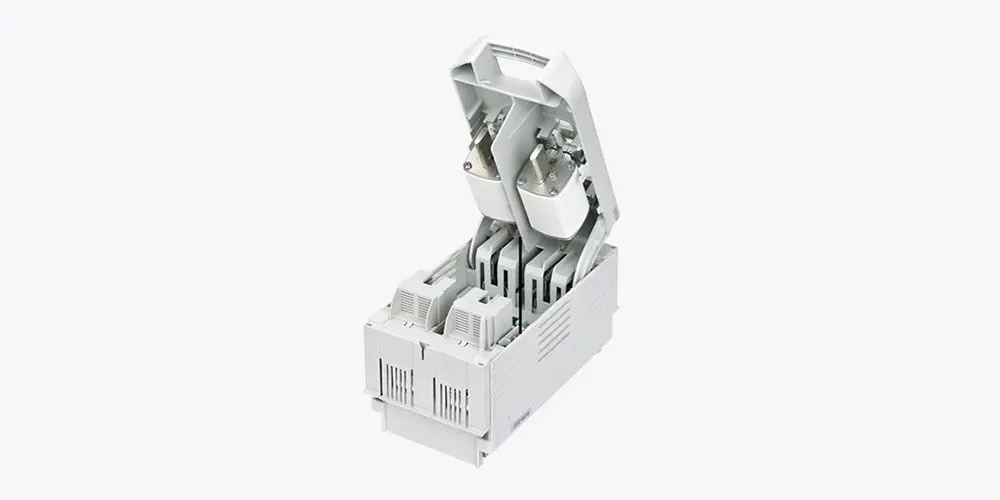

GRL Electric welcomes a new member to the DNH1 series – DNH1-□/21G(R)

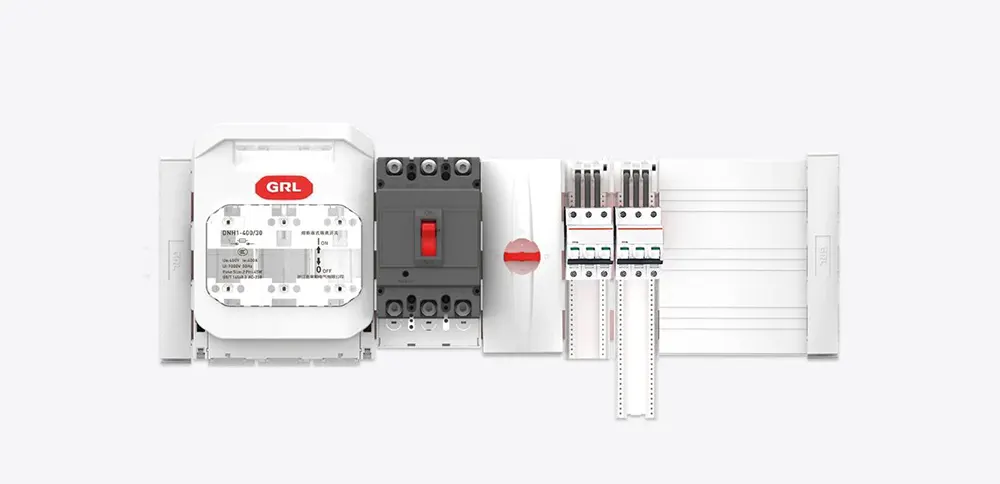

DNH1-□/21G(R) fuse-type disconnect switches are mainly used in industrial control cabinets for overload and short circuit protection.
The product adopts the mounting method of hanging, can be freely adjusted phase design, can realize the fuse monitoring function, and also meets the remote monitoring function, which brings customers a safe and convenient use experience.

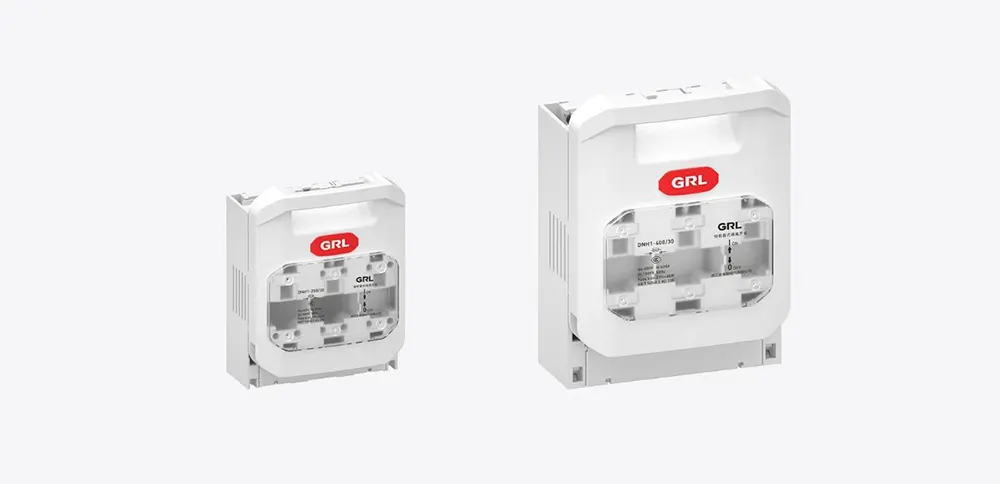

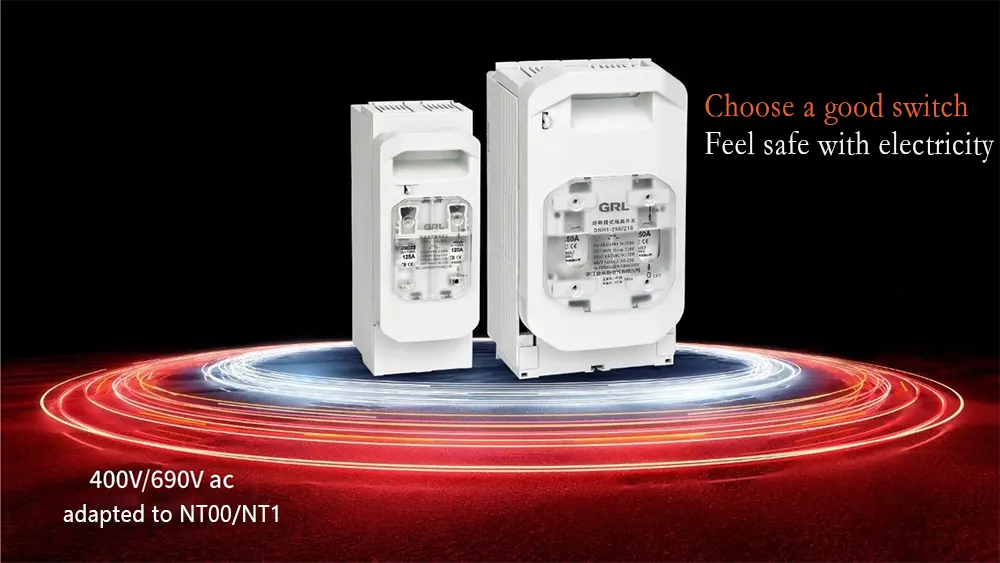

DNH1-□/21G(R) series are mainly available in DNH1-160/21G(R) and DNH1-250/21G(R) shells, suitable for NT00 and NT1 fuses, with rated voltages up to 690V and rated currents up to 160A-250A respectively.
The products have obtained CCC & CE certificates.
The DNH1- □/21G (R) series products bring customers three major upgrade experiences with their exquisite design and strict process flow.
Easy to install and flexible to use

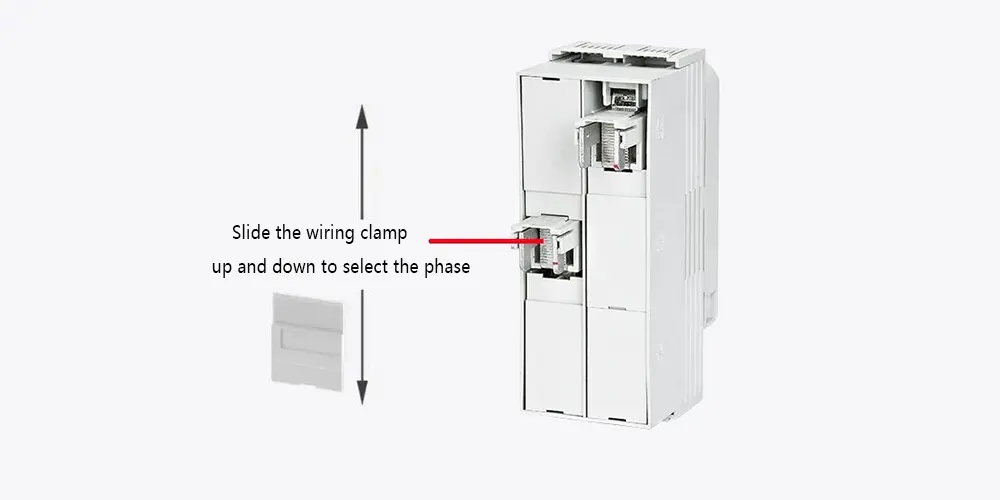

The product adopts the installation of busbar hanging, free phase adjustment structure design, according to the actual use of the situation, flexible longitudinal adjustment of the phase (such as AB, AC, BC combination), convenient installation; knife fuse switch

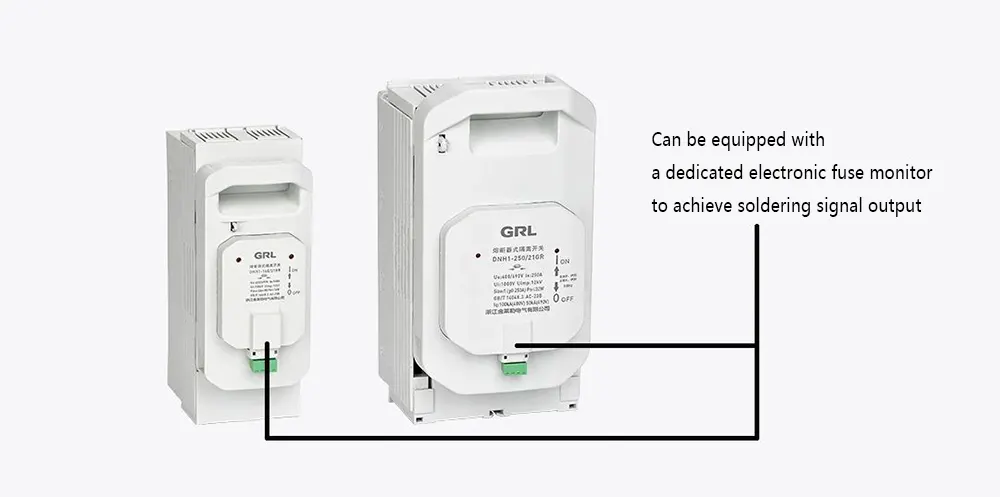

Special fuse monitor can be assembled to realize fused signal output, real-time remote monitoring and easy management;

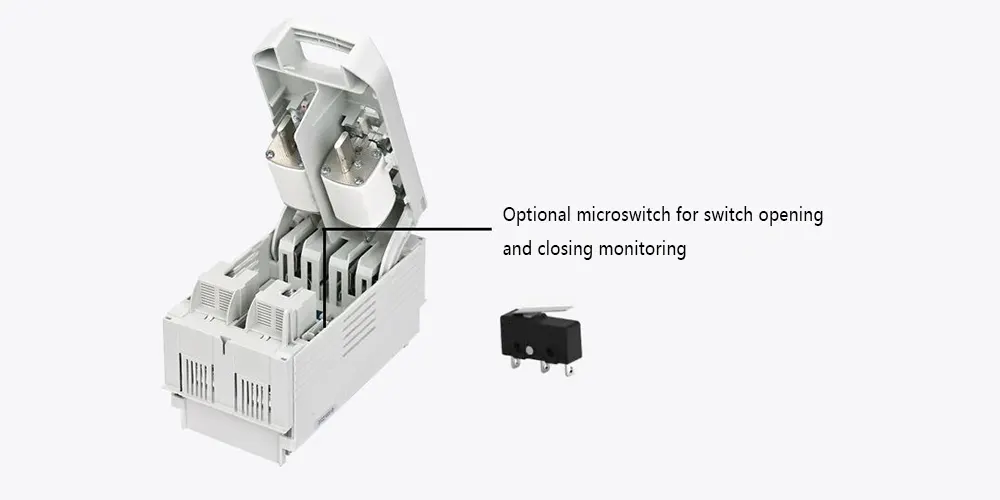

Optional microswitch can be installed to monitor the switch closure and disconnection status through the handle split and close operation;
Selection of materials and design

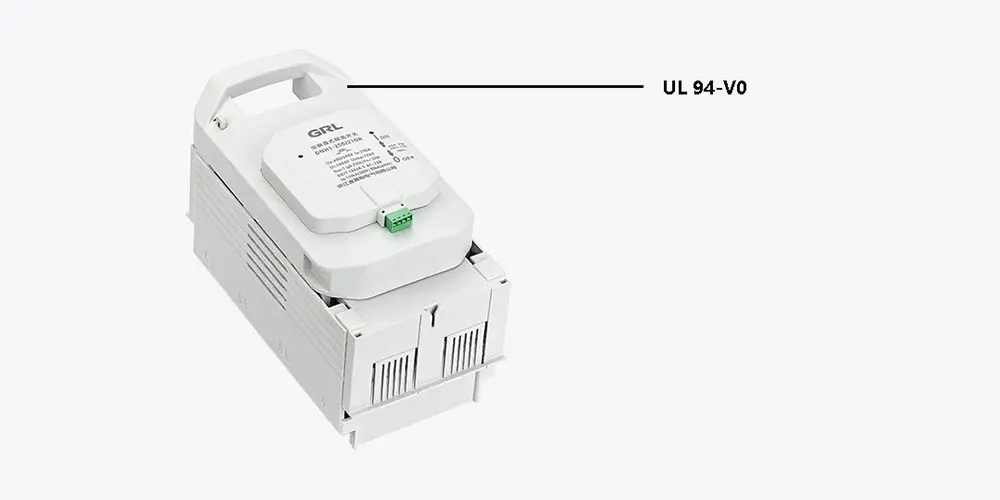

Shell material flame retardant grade V0, can be adapted to -40 ° C to +60 ° C ambient temperature, stable performance, heat-resistant and cold-resistant, to meet the extreme conditions of the operating environment;
The product adopts one-piece handle design, which is sturdy and durable and improves the mechanical life of the product; knife fuse switch

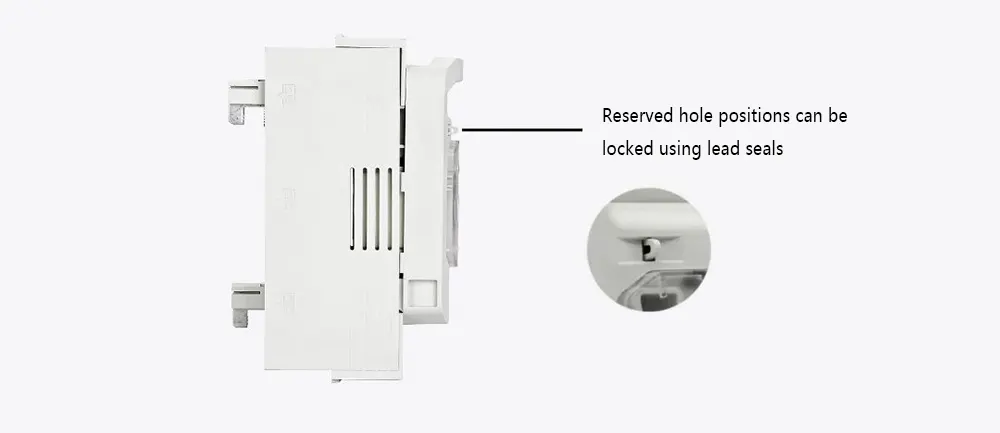

Reserved locking holes can be utilized for lead locking, preventing safety risks due to incorrect operation and eliminating the occurrence of opening and closing the gate privately; knife fuse switch
Wide range of applications and series
Wide range of fuse-type disconnecting switches
With the addition of the DNH1-□/21G(R) series, the DNH1 product line has a well-rounded portfolio;
+ DNH1-□/30G, fixed mounting.
For use in three-phase circuits with AC 400V/690V;
+ DNH1-□/31G, hanger mounted, for use with busbar systems;
For use in three-phase circuits of AC 400V/690V;

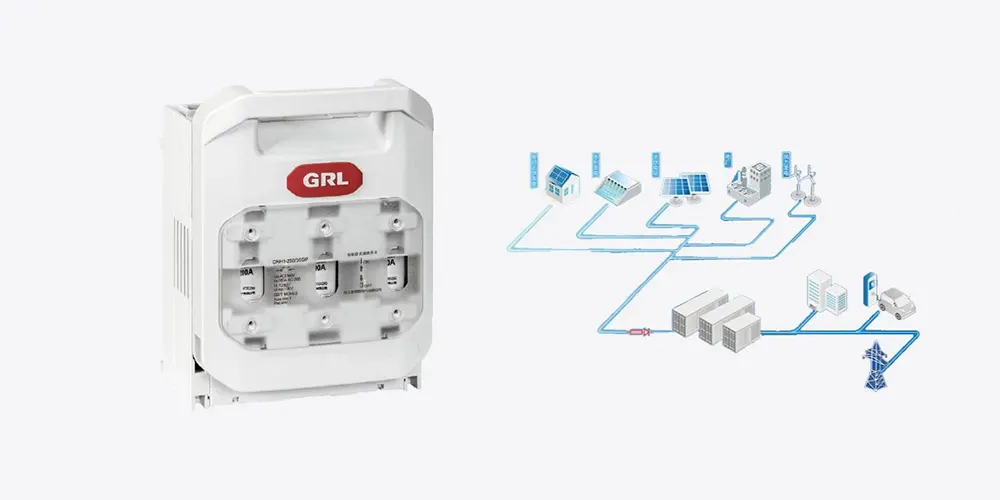

+ DNH1-□/30GM, special for AC side of new energy grid-connected system;
For use in AC 800V circuits;

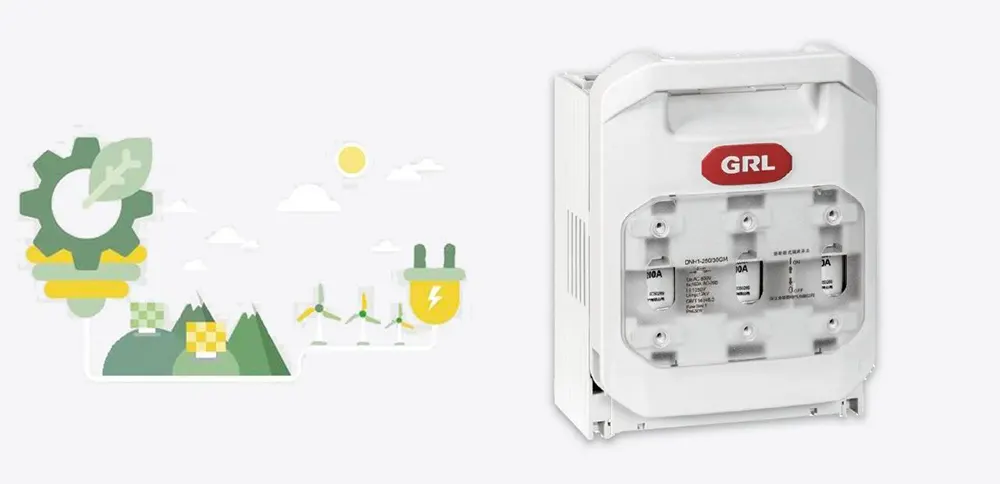

+ DNH1-□/30GP, special for the AC side of new energy grid-connected systems;
For use in AC 1140V circuits;
Founded in 2003, Zhejiang GRL Electric Co., Ltd. is a high-tech enterprise integrating research and development, production, sales and service.
GRL specializes in electrical and connecting products, and aspires to be the invisible champion of the fuse, enclosed busbar system and disconnecting switch industry.
The main products of GRL Electric are: fuses, low-voltage enclosed busbar systems, terminal distribution busbar systems, load disconnect switches, fuse-type disconnect switches, bar switches, knife switches and other 6 categories of products, more than 1,000 kinds of subdivided models, which are widely used in the fields of new energy, industrial control, power distribution and so on.
In the field of new energy, GRL’s fuse and supporting switch products can be adapted to AC1140V, AC800V, DC800V, DC1000V, DC1500V and other levels of voltage, which are widely used in photovoltaic, wind power, energy storage, grid-connection, charging pile and other scenarios.
