What Does a High Voltage Switch Do?

What is high voltage switch disconnector？

The high voltage isolation switch mainly plays a safety role in the power grid.Its task is to open and close circuits under no load to achieve the purpose of power outage maintenance and circuit conversion.

In the closed state, the high voltage isolation switch can reliably pass the rated current and carry the short-circuit current; in the open state, it forms a clearly visible isolation fracture with reliable insulation, so that the lines that need to be repaired or segmented are isolated from the live lines. Ensure the safety of maintenance personnel and line equipment.

Since the high voltage isolation switch does not have a special arc extinguishing device, it usually only opens and closes lines when there is no load.But when some special use cases, such as switching buses, switching off no-load transformers and no-load buses, etc., it should also be able to separate and combine the bus conversion current (circulating current), the excitation current of the no-load transformer, and the capacitive current of the no-load bus, etc.

Each phase of the high voltage isolation switch structure consists of a chassis, a pillar insulator, a blade, contacts and other parts. There are screws on the side of the blade to adjust the contact pressure and a spring for compression. The upper end is equipped with a fixed pull buckle and a self-locking device connected to it, which is used for opening and closing of the insulated hook rod.

The product has the advantages of large contact area, low contact resistance, good electrical conductivity and high mechanical strength.

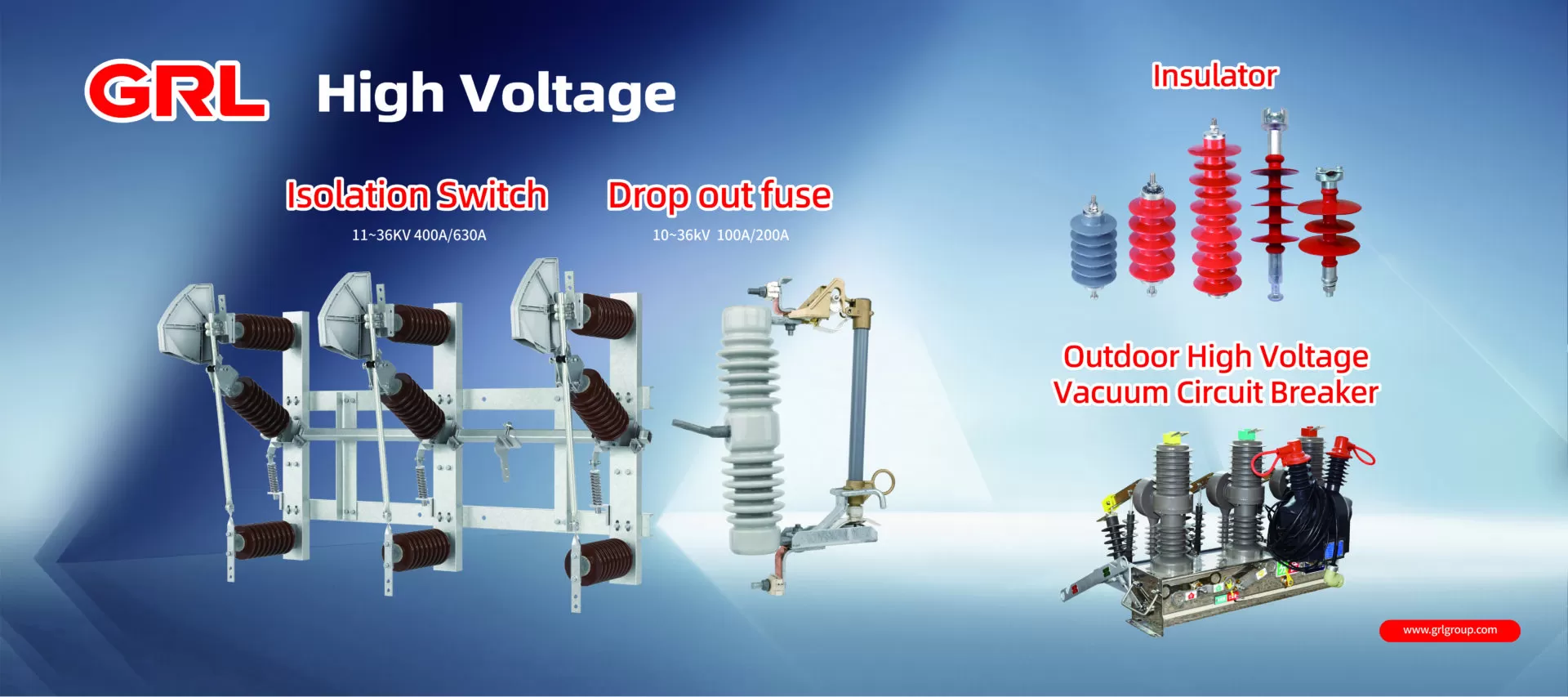

Click to view grl high voltage isolation switch product>>

Primary functions of high voltage switches

1、Isolation and De-energization

One of the primary functions of high voltage switches is Isolation and De-energization. This is essential for maintenance, repair, or emergency situations, as it allows technicians to work safely on the isolated equipment without the risk of electrical hazards.

2、Switching and Routing Power Flows

High voltage switch is used to switch and route power flows between different transmission lines, substations, and other electrical components. To enable the controlled distribution of electrical power, ensuring efficient and reliable energy delivery.

3、Visible Isolation

Many high voltage switches feature a visible break in the electrical path, providing a clear indication of the isolation status. Ensuring that the isolated section is physically disconnected from the live electrical circuit.

4、Load Break and Fault Interruption

Certain types of high voltage switch disconnector, such as load break switch, can interrupt load currents within their rated capacity, enabling controlled switching operations.

Where are disconnect switches required?

High voltage switch is widely used in various applications within the electrical power industry, including:

1、Transmission Lines

Along high-voltage transmission lines, switches are installed at strategic points to isolate specific sections for maintenance or fault isolation.

2、Substations

In substations, high voltage switch is used to isolate transformers, circuit breakers, and other equipment for safe maintenance or repair activities.

3、Switchyards

Switchyards employ numerous high voltage switch to facilitate the routing and isolation of power flows between different transmission lines and substations.

4、Power Plants

High voltage switches are essential components in power plants, allowing the isolation of generators, transformers, and other equipment for maintenance or emergency situations.

5、Industrial Facilities

Many industrial facilities, such as manufacturing plants, chemical processing facilities, and mining operations, require the installation of disconnect switches to isolate electrical equipment for maintenance, repair, or emergency purposes. These switches ensure the safety of personnel and prevent potential damage to equipment.

6、Commercial and Residential Buildings

While not as critical as in industrial or utility applications, disconnect switches are often required in commercial and residential buildings to isolate electrical panels, meters, or specific circuits for maintenance or repair purposes.

Click to view more related products>>

Precautions of High Voltage Switch

When selecting high voltage switches, it is crucial to consider factors such as voltage rating, current rating, insulation level, operating mechanism, environmental conditions, and compliance with relevant industry standards and regulations. By carefully evaluating these factors and working with reputable manufacturers, utilities and power companies can ensure the safe and reliable operation of their high-voltage electrical systems.
