Fused vs. Non-Fused Disconnect Switches: What’s the Difference?
When it comes to electrical systems, one of the most critical components is the disconnect switch, which plays a key role in isolating circuits for maintenance or repair. Disconnect switches are essential in protecting electrical equipment and ensuring safe operation. However, there are two main types of disconnect switches: fused and non-fused disconnect switches. In this article, we will explore the differences between these two types, their applications, and how to choose the right one for your needs.

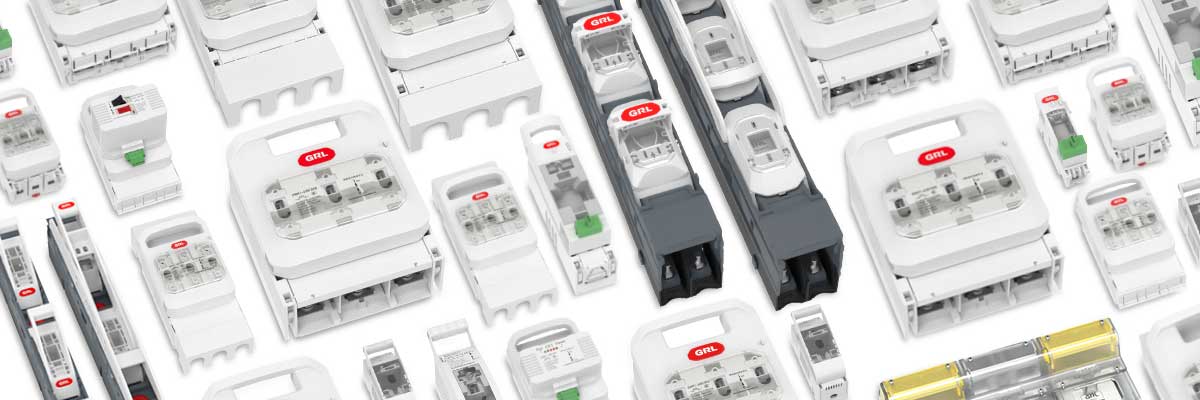

What is a Fused Disconnect Switch?
A fused disconnect switch is a device that combines the functions of a disconnect switch and a fuse in a single unit. The fuse in the fused disconnect switch provides overload and short-circuit protection to the circuit it isolates. When excessive current flows through the circuit, the fuse blows, interrupting the electrical flow and protecting the equipment from potential damage. This makes fused disconnect switches ideal for applications where equipment protection is crucial.
Click to view the GRL DNH1 Fuse Switch Disconnector>>
Click to view the GRL Vertical Fuse Switch Disconnector>>
read on: DNH1 Fuse Switch Disconnector Advantages
What is a Disconnect Switch?
A non-fused disconnect switch disconnects the circuit without additional protective components, such as fuses. It is used to safely isolate electrical circuits from power sources during maintenance or repairs, ensuring that no current flows while work is carried out. While it serves the same purpose as a fused disconnect switch regarding circuit isolation, it does not provide built-in overload or short-circuit protection. This makes non-fused disconnect switches an ideal choice in environments where external protection devices, such as a circuit breaker or a fuse, are already installed.

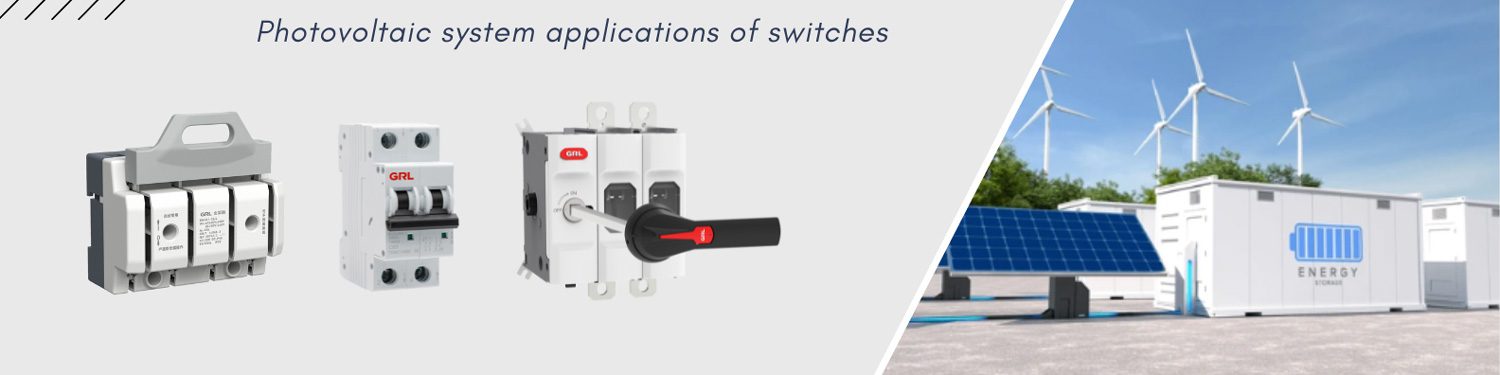

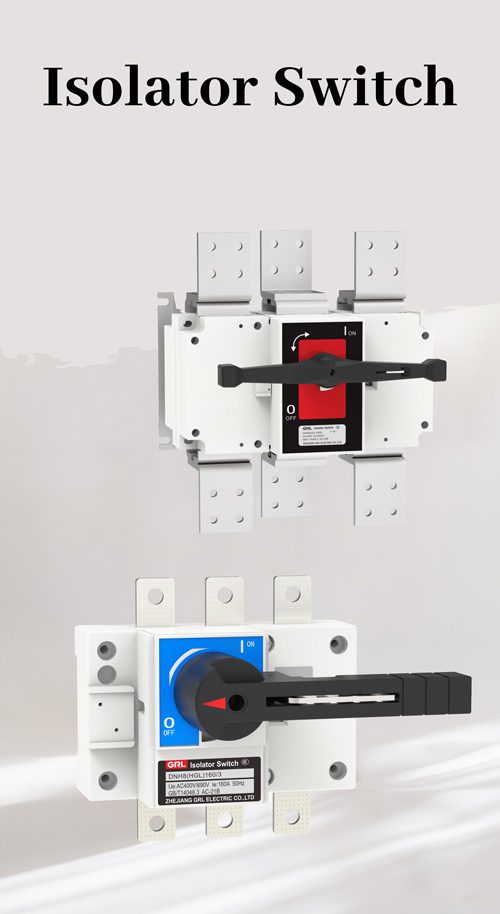

For example, GRL offers a variety of non-fused disconnect switches designed for specific applications. One such product is the load isolator switch, which is commonly used in PV systems. In these systems, the MCCB (Molded Case Circuit Breaker) works in conjunction with the load isolator switch to provide reliable circuit isolation and protection. GRL also provides DC isolator switches specifically designed for the unique requirements of DC circuits in PV installations. These switches offer secure isolation for DC power sources, ensuring safe maintenance and servicing of solar power systems. Whether you’re working with high-voltage power systems or low-voltage renewable energy solutions, non-fused disconnect switches from GRL ensure that circuits are properly isolated when needed.
Click to view the GRL load isolator switch>>
Click to view the GRL DC isolator switch>>
Click to view the GRL DC knife switch>>
Key Differences Between Fused And Non-Fused Disconnect Switches
Key Differences | Fused Disconnect Switch | Non-Fused Disconnect Switch |
Protection Features | Provides protection against overloads and short circuits, ideal for equipment protection. | No overload or short-circuit protection; requires additional protection devices for safety. |
Application Areas | Used in sensitive electrical systems, such as power distribution, renewable energy (e.g., solar panels), and industrial control systems. | Suitable for systems with existing protection (e.g., fuses, circuit breakers) already in place, commonly in power circuits. |
Cost and Complexity | More expensive due to the fuse component, which adds extra protection. | More affordable and simpler in design, suitable for environments where external protection devices are present. |
Maintenance and Replacement | Requires fuse replacement when blown, potentially increasing maintenance costs and downtime. | No fuse replacement needed but may require maintenance of other protection devices used in conjunction. |
Fused vs. Non-Fused Disconnect Switches: Which One is Right for Your System?
Choosing between a fused disconnect switch and a non-fused disconnect switch depends on the protection needs of your electrical system.
If your system contains sensitive equipment vulnerable to overloads and short circuits, a fused disconnect switch is the best option. It combines the disconnecting function and overcurrent protection, adding an extra layer of safety. For example, in PV systems, fused disconnect switches are often paired with DC isolator switches to safely disconnect circuits while preventing damage from electrical faults, ensuring long-term system safety.
On the other hand, if your system already has protection devices like circuit breakers or fuses, a non-fused disconnect switch may be more economical. These switches are ideal for environments where external protection, such as MCBs or solar inverter fuses, already ensures safe operation. For example, load isolator switches in solar systems work with MCCBs to safely isolate the circuit without needing an internal fuse, reducing costs and complexity.
In summary, for sensitive equipment or high-risk environments, fused disconnect switches offer added protection. For systems with existing external protection, non-fused disconnect switches like load isolator switches or DC isolator switches provide a cost-effective isolation solution.
Click to view the GRL load isolator switch>>
read on:
What Is An Isolator Switch And Why Do I Need One?
Choosing the Right Disconnect Switch for Your Needs
Factor | Description |
Voltage Rating | Ensure the disconnect switch is rated for the voltage levels in your electrical system. |
Current Rating | The switch should be capable of handling the maximum current expected in the circuit. |
Environmental Conditions | Choose a switch that is designed to operate efficiently in the environmental conditions of your application (e.g., temperature, humidity, exposure to chemicals). |
Conclusion
Both fused and non-fused disconnect switches play critical roles in electrical systems by allowing for the safe isolation of circuits during maintenance or repair. While fused disconnect switches provide the added benefit of overload and short-circuit protection, non-fused disconnect switches can be more cost-effective in systems with external protection. Understanding the differences and selecting the appropriate switch for your needs can enhance the safety and reliability of your electrical infrastructure.
When deciding between the two, consider the level of protection required, the existing protection devices in place, and the overall maintenance cost. With the right disconnect switch, you can ensure the safety and reliability of your electrical systems.
