What is a dropout fuse cutouts?

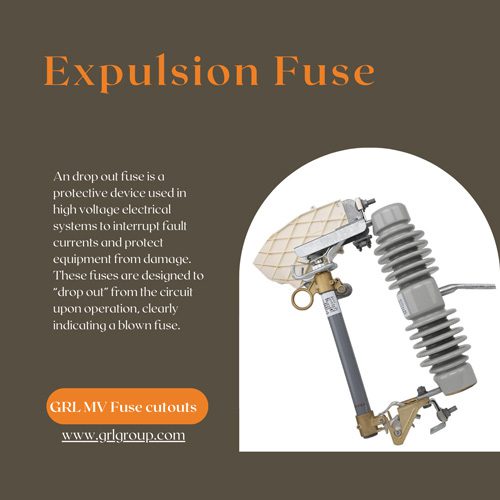

Medium voltage fuse cutouts, also known as drop-out fuses or expulsion fuse cutouts, are essential protective devices in electrical power distribution systems. Widely used in overhead lines and transformers, They isolate faults during overcurrent conditions, safeguard equipment, and ensure reliable power supply.  By acting as a simple, easily replaceable failsafe, they prevent damage to more expensive equipment, offering cost-effective protection for the distribution system.

Medium Voltage Drop-Out Fuse Cutouts Advantages

In 10kV line systems and distribution transformers, fuse cutouts often fail to operate correctly due to two primary reasons:

• Lack of regular maintenance and inspection of drop-out fuse cutouts.
• Poor-quality fuse cutout products that are prone to operational stiffness.

GRL’s drop-out fuse cutouts effectively address these issues.

Superior Material and Design: Made from ceramics or UV-resistant polymers and equipped with high-quality fuse links, GRL fuse cutouts can withstand extreme weather conditions. During faults, the fuse link quickly melts and drops out, ensuring circuit safety.

Efficient Fault Handling: The drop-out design allows for rapid fault detection and easy replacement of fuse links, significantly reducing fault isolation time.

Medium Voltage Fuse Cutouts Features

• High Breaking Capacity: Handles fault currents up to 12kA effectively.
• Durable Construction: Made with porcelain or UV-resistant polymer to endure extreme weather conditions.
• Wide Compatibility: Suitable for voltage ranges from 10kV to 36kV.
• Ease of Maintenance: Quick fuse replacement and fault identification through the drop-out design.
• Rapid Fault Isolation: Minimizes system downtime by isolating faulted sections.
• Enhanced Safety: The drop-out feature provides a visible indicator, reducing troubleshooting time.
• Customizable Options: Available in different current ratings and materials to suit varied applications.

Drop-Out Fuse Cutouts Operating Environment

A 10kV drop-out fuse cutout is designed for outdoor use in environments where the air is free from conductive dust, corrosive gases, and flammable or explosive hazards. It performs reliably in conditions with an annual temperature variation within ±40°C.

When selecting a drop-out fuse cutout, the following points should be considered:

Rated Current Selection: The rated current of the fuse cutout should be equal to or greater than the rated current of the fuse link. Typically, the fuse link’s rated current is selected to be 1.5 to 2 times the rated load current to ensure effective system protection during overload conditions.

Short-Circuit Capacity Verification: The selected fuse cutout must be verified against the three-phase short-circuit capacity of the system it protects. The system’s short-circuit capacity must fall within the rated breaking capacity range of the fuse cutout—neither exceeding its upper limit nor falling below its lower limit.

It is critical to note that if the rated breaking capacity upper limit of the fuse cutout is too high, the system’s short-circuit capacity may fall below the fuse cutout’s lower limit. In such cases, it becomes difficult to extinguish the arc when the fuse melts, potentially leading to fuse tube damage or even explosions.

MV Fuse Cutouts Maintenance Tips

• Regular Inspections: Check for cracks, contamination, or signs of wear on insulation materials.
• Proper Fuse Replacement: Use manufacturer-recommended fuse links to maintain performance.
• Environmental Cleaning: Ensure the device is free from dirt and debris to prevent operational issues.
