Composite Insulator vs. Porcelain Insulator vs. Glass Insulator， Which One Fits Your Needs?

GRL Composite Insulator

High-voltage insulators play an essential role in modern power transmission and distribution systems. Their primary functions include electrically isolating conductors from grounded structures, preventing current leakage, and providing mechanical support for power lines. These components are critical for ensuring the reliability and safety of electricity networks, especially in high-voltage applications where environmental and operational challenges are prevalent.

High voltage insulators are available in three main types: composite insulators, porcelain insulators, and glass insulators. Each type offers unique characteristics, advantages, and application scenarios.

Composite Insulators: The Modern Solution for Heavy Pollution Zones

Composite insulators are modern solutions widely favored for their lightweight design and superior performance in polluted environments. Constructed with a glass-fiber-reinforced core and a silicone rubber sheath, composite insulators exhibit excellent hydrophobicity, which reduces surface contamination and minimizes flashover risks. Their resistance to ultraviolet (UV) radiation and weathering ensures long-term durability, even in harsh climates.

Furthermore, their robust structure makes them less prone to mechanical damage, such as cracking or breaking, making them ideal for regions susceptible to seismic activity. Composite insulators are commonly deployed in areas with heavy industrial pollution, coastal zones, and high-voltage transmission lines that require lightweight and maintenance-friendly components.

Click to view GRL Composite Insulator>>

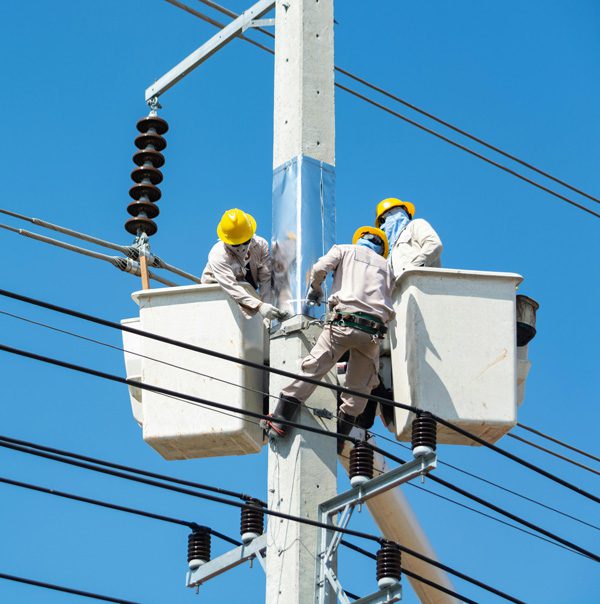

Porcelain Insulators: A Time-Tested Solution for Power Systems

Porcelain insulators represent a traditional yet highly reliable solution. Made from high-quality ceramic materials fired at elevated temperatures, porcelain insulators possess exceptional mechanical strength and high dielectric properties.

These insulators are cost-effective and suitable for applications in stable climate zones with low to moderate pollution levels. Despite their durability, porcelain insulators are heavier than their composite counterparts, which can increase transportation and installation challenges.

Additionally, they are more susceptible to damage under sudden mechanical stress, such as impact or freezing conditions. Porcelain insulators are extensively used in substations, transmission lines, and distribution systems requiring robust mechanical support.

Get Quote

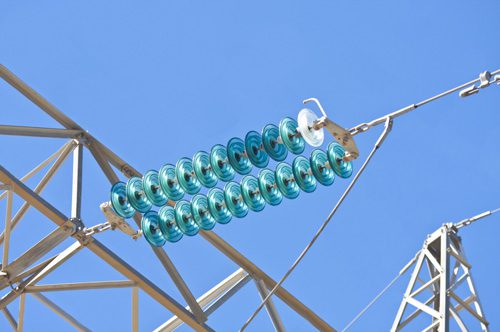

Glass Insulators: Perfect for Visual Monitoring in High Voltage Systems

Glass insulators are a preferred choice for applications requiring superior visual inspection capabilities.

These insulators are manufactured from tempered glass and offer high mechanical strength and exceptional electrical insulation performance. A key feature of glass insulators is their self-healing property; any damage or microcracks on their surface are easily visible, enabling timely replacement and maintenance.

This feature enhances the power system’s overall reliability. Furthermore, glass insulators resist chemical corrosion, making them suitable for installations in highly corrosive environments.

However, their brittle nature can pose a risk of breakage under impact or extreme weather conditions. These insulators are widely used in outdoor transmission lines and installations where regular monitoring is essential.

conclusion

When selecting a high-voltage insulator, engineers must consider factors such as mechanical strength, pollution resistance, weight, and environmental conditions. For example, composite insulators are an excellent choice for regions with heavy contamination or high humidity levels, while porcelain insulators are more suitable for stable environments with predictable mechanical loads. Glass insulators, with their transparency and easy maintenance, are ideal for remote areas where visual inspection is a priority.

The performance of these insulators can be compared based on their mechanical and electrical properties, ease of installation, and cost-effectiveness. Composite insulators stand out for their hydrophobic performance and resistance to aging. Porcelain insulators excel in mechanical strength, and glass insulators offer unmatched ease of defect detection. Each type caters to specific operational needs, ensuring that power systems remain efficient and safe.

High voltage insulators are integral to the success of modern power grids, helping to maintain uninterrupted electricity supply in a variety of challenging environments. Power engineers can optimize system performance while reducing operational risks by understanding the unique benefits and limitations of each insulator type.

GRL also provides high-voltage isolator switches, drop out fuses, Current limiting backup fuses, and circuit breakers, offering comprehensive solutions tailored to your needs. Contact us to learn more about our comprehensive solutions.
