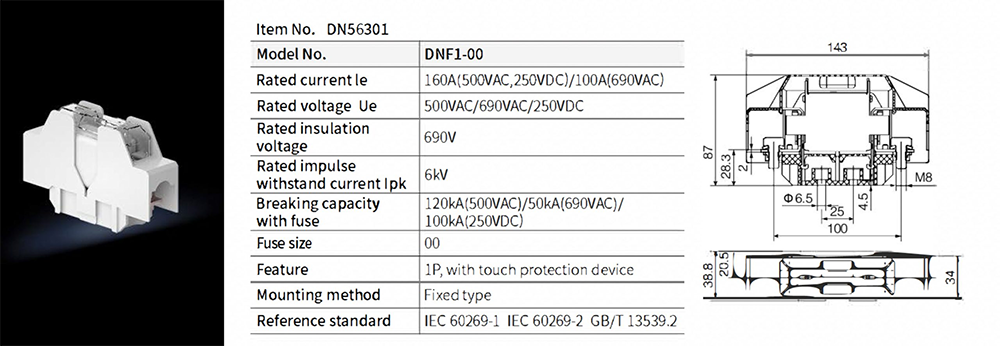

Order No.:DN56301
Model No.:DNF1-00

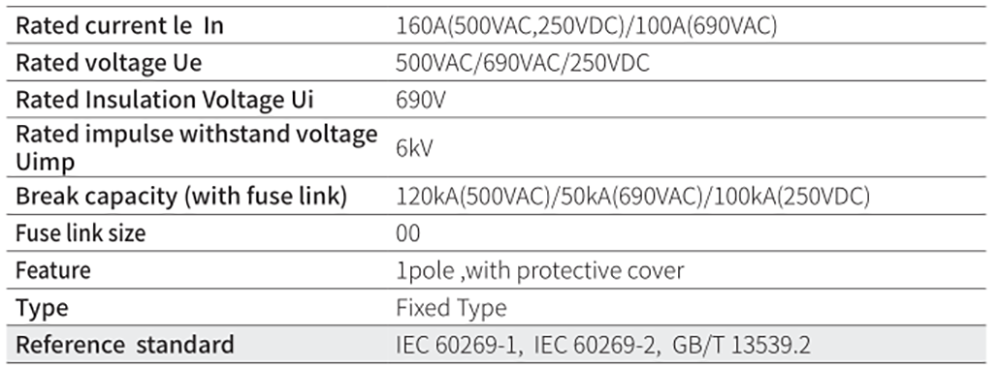

| Rated Current le In | 160A(500VAC,250VDC)/100A(690VAC) |
| Rated voltage Ue | 500VAC/690VAC/250VDC |
| Rated Insulation Voltage Ui | 690V |
| Rated Impulse Withstand Voltage Uimp | 6KV |
| Break Capacity(with Fuse link) | 120KA(500VAC)/50KA(690VAC)/100KA(250VDC) |
| Fuse link Size | 00 |
| Feature | 1Pole,with protective cover |
| Type | Fixed Type |
| Reference Standard | IEC 60269-1,IEC 60269-2,GB/T 13539.2 |
