Fuse Base

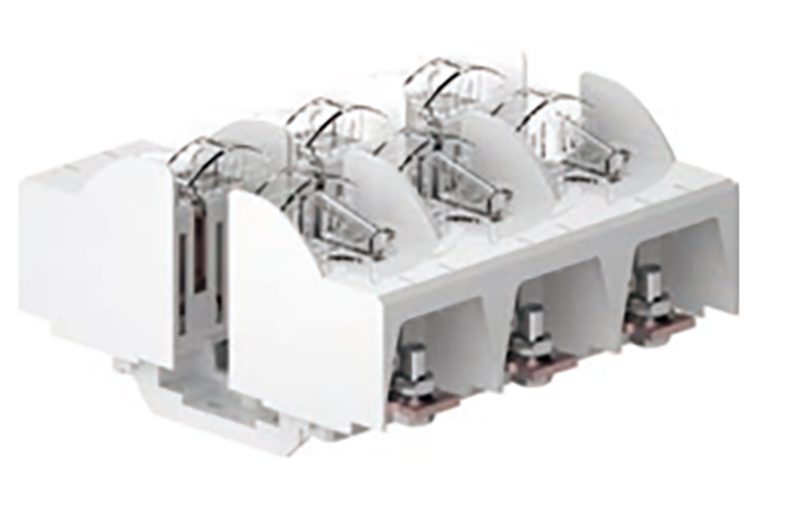

DNF1-3-3P series atc fuse holder NH3 Fuse link

Rated current Ie: 630A(500VAC, 440VDC)/500A(690VAC)

Rated voltage Ue: 500VAC/690VAC/440VAC

Rated insulation voltage : 690V

Rated impulse withstand current Ipk: 6kV

Breaking capacity with fuse :120kA(500VAC)/50kA(690VAC)/100kA(440VAC)

Fuse size: 3

Feature: 1P,3P, with or without touch protection device, N pole with breaking capacity without touch protection device

Mounting method: Fixed type

Reference standard: IEC 60269-1 IEC 60269-2 GB/T 13539.2

Order No.:DN56332

Model No.:DNF1-3

Rated Current le In	630A(500VAC,440VDC)/500A(690VAC)
Rated voltage Ue	500VAC/690VAC/440VDC
Rated Insulation Voltage Ui	690V
Rated Impulse Withstand Voltage Uimp	6KV
Break Capacity(with Fuse link)	120KA(500VAC)/50KA(690VAC)/100KA(440VDC)
Fuse link size	3
Feature	3 Pole, with protective cover
Type	Fixed Type
Reference Standard	IEC 60269-1,IEC 60269-2,GB/T 13539.2
