Scope of application

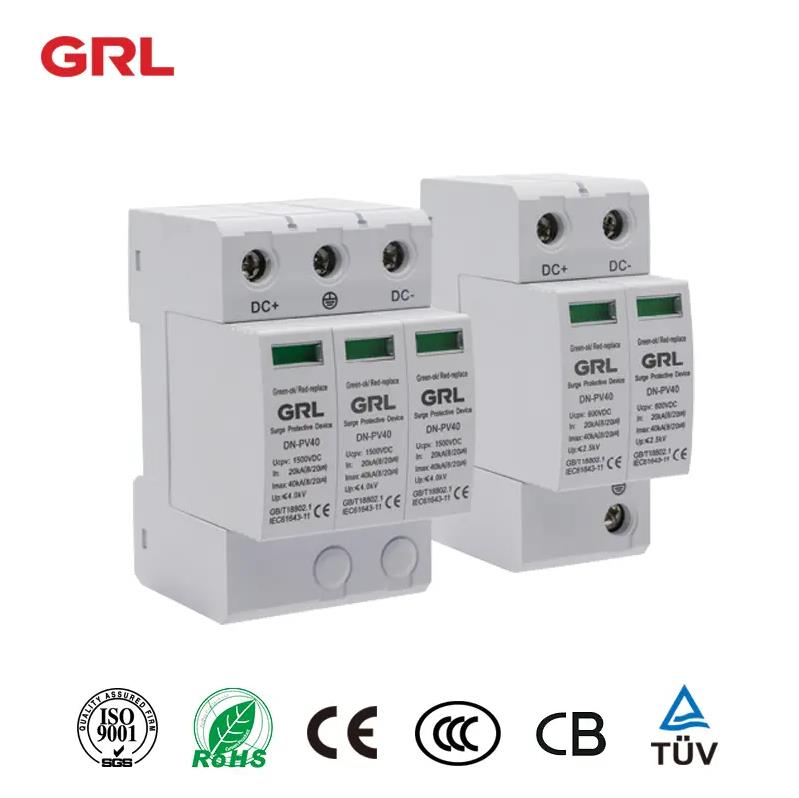

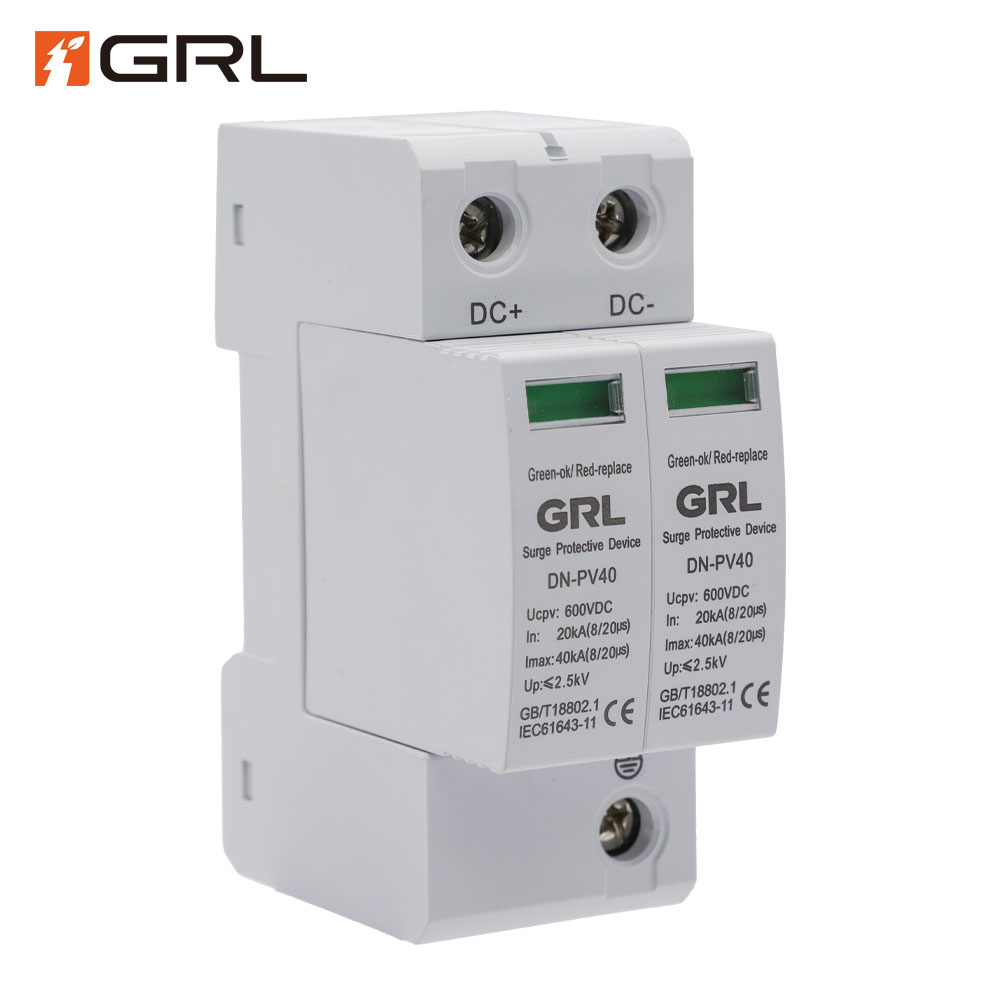

UP4 series C-level surge arrester protectors are suitable for photovoltaic power generation systems . When a surge overvoltage occurs in the system due to lightning strikes or other reasons ,the protector immediately turns on quickly within nanoseconds ,introducing the surge overvoltage into the ground , thereby Protect the electrical equipment on the dot network.
The SUP4 series has a plug-in structure , which can be quickly replaced after the module fails : When the lightning protection module fails , the color of the indicator window changes from green to red , and at the same time , an alarm signal is sent to the remote alarm device connected to the product’s remote signaling terminal.
Application Environment
- The normal range of ambient air temperature is not higher than + 40℃ , not lower than-25℃ , and the relative humidity is not greater than 95%;
- The altitude of the installation site shall not exceed 2000 meters ;
- Pollution level 3 ;
- There is no explosion hazard medium , and there is no gas and dust( including conductive dust ) in the medium which will be corrode metals and destroy insulation.

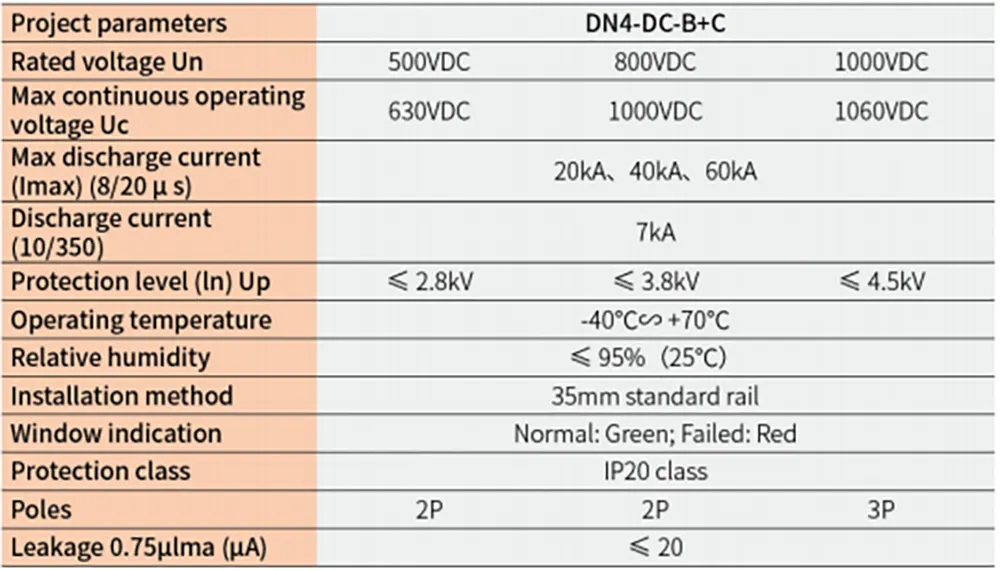

Technical Parameter
| Project Parameters | DN4-DC-B+C |
| Rated voltage Un | 500VDC 800VDC 1000VDC |
| Max continuous operating voltage Uc | 630VDC 1000VDC 1060VDC |
| Max discharge current (Imax) (8 / 20 μs) | 20KA 40KA 60KA |
| Discharge current(10 / 350) | 7KA |
| Protection level( In ) Up | ≤2.8KV ≤3.8KV ≤4.5KV |
| Operating temperature | -40℃∽~+70℃ |
| Relative humidity | ≤95% (25℃) |
| Installation method | 35mm standard rail |
| Window indication | Normal : Green ; Failed : Red |
| Protection class | IP20 class |
| Poles | 2P 2P 3P |
| Leakage 0.75μlma (μA ) | ≤20 |

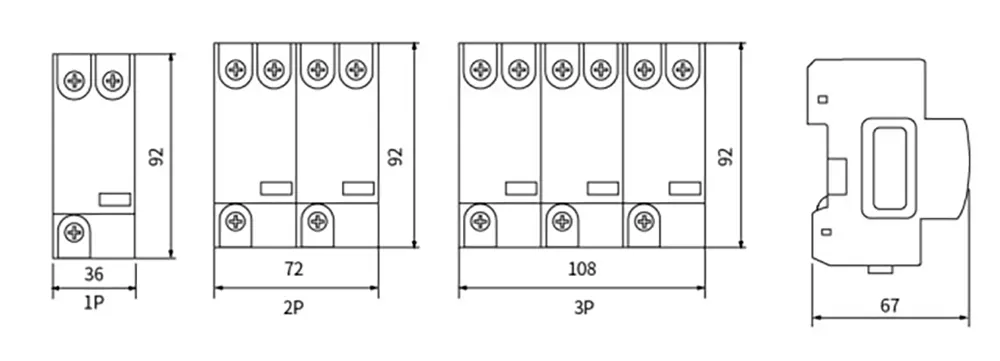

Shape and mounting dimensions
