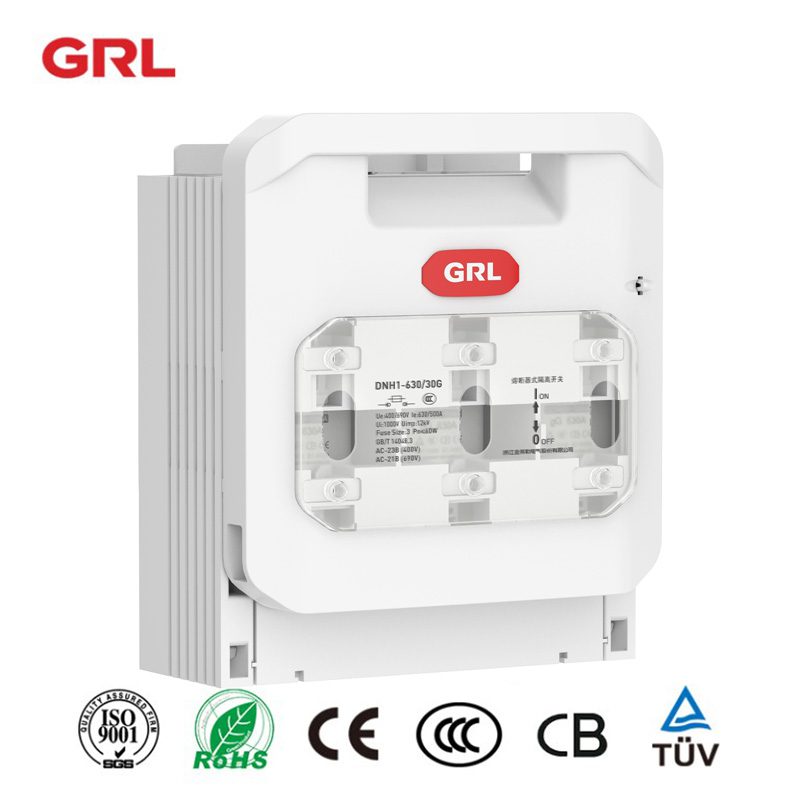

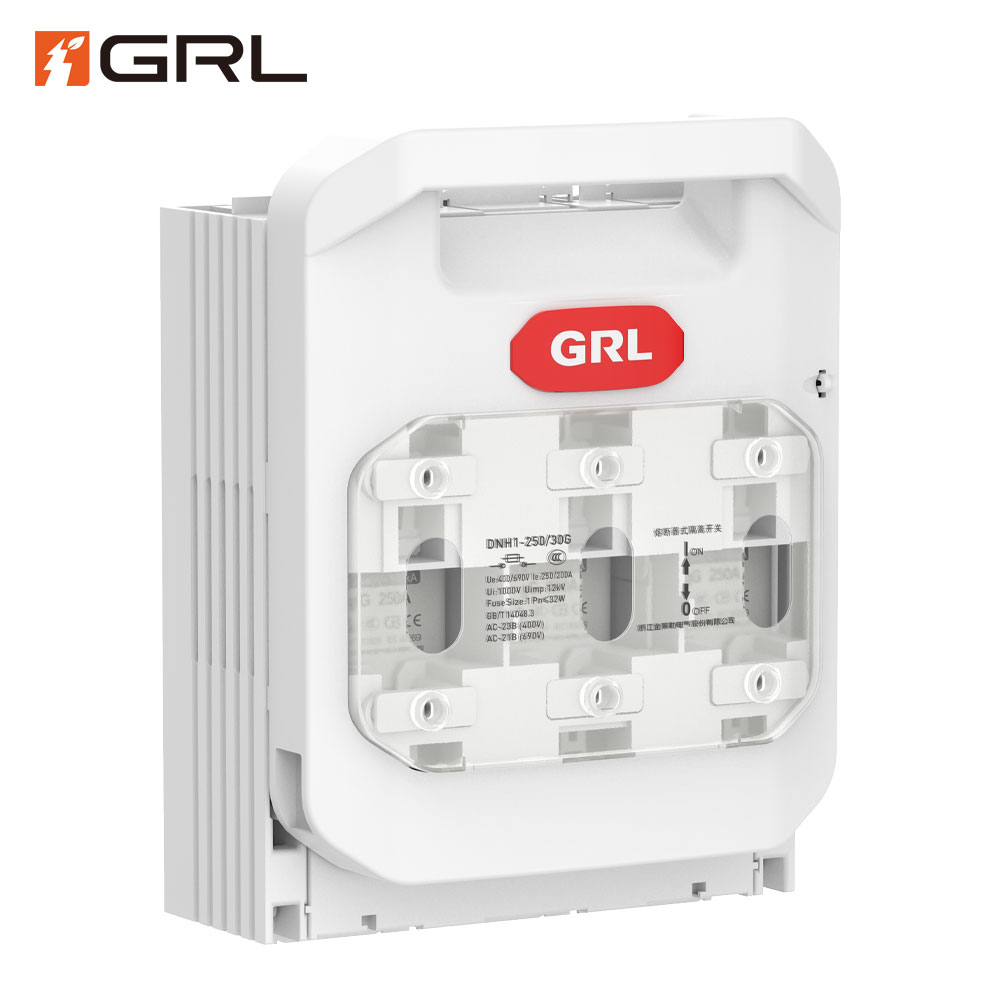

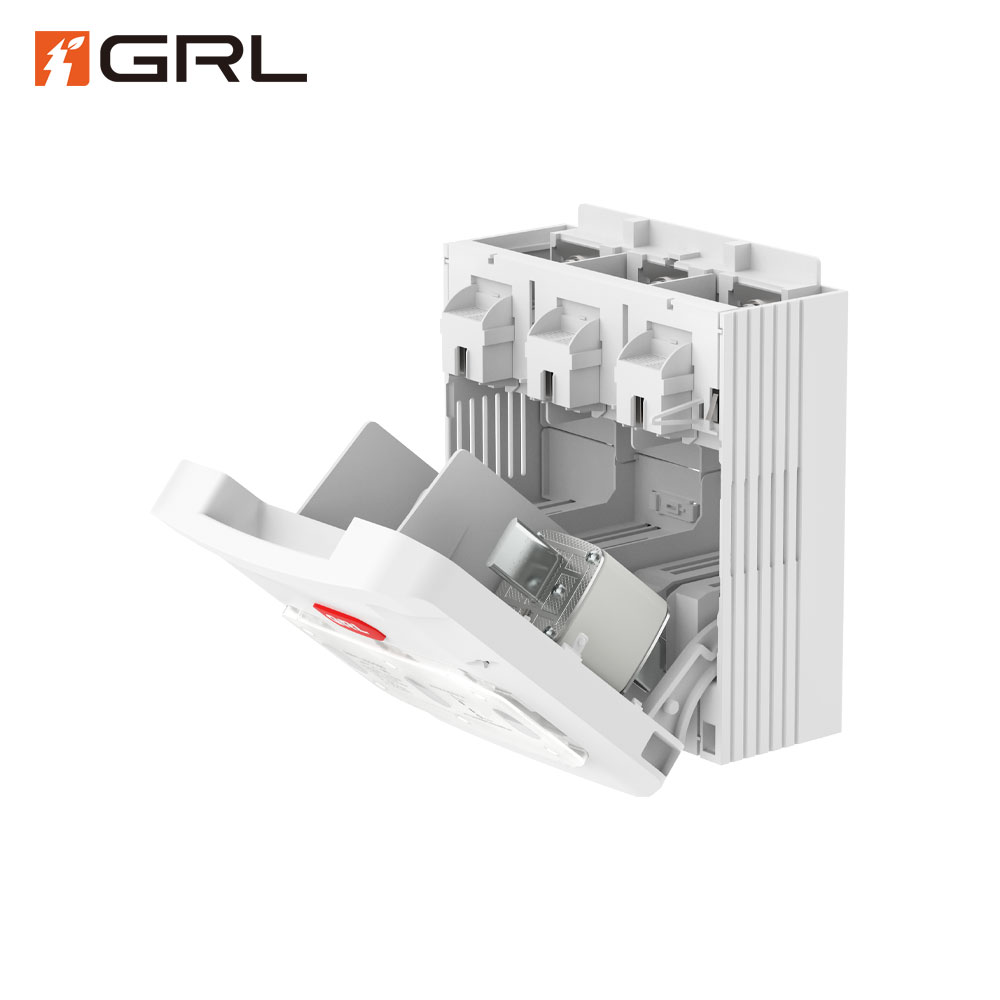

3 Phase Fused Disconnect Switch

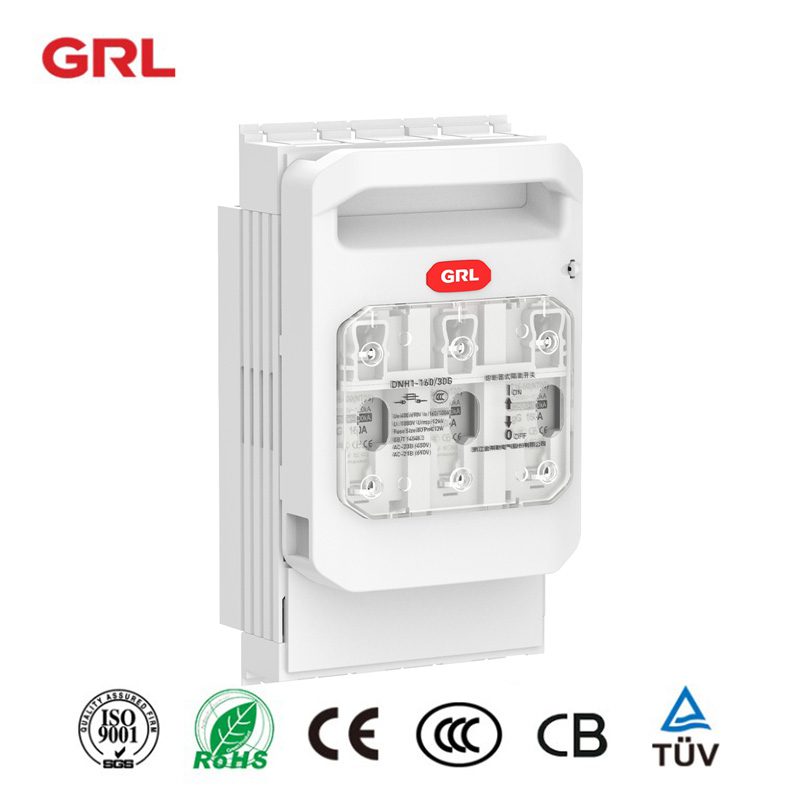

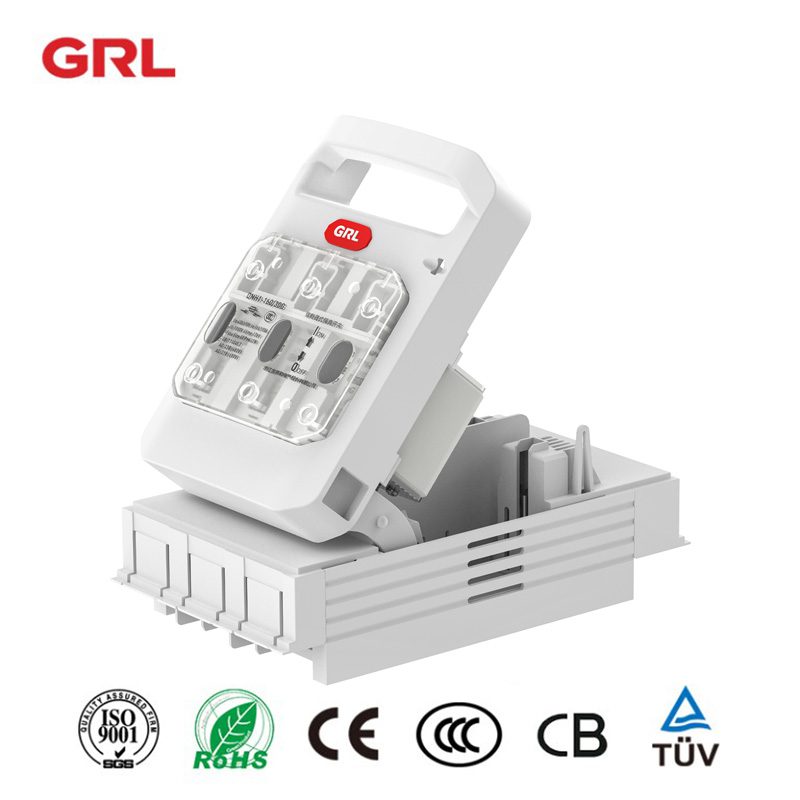

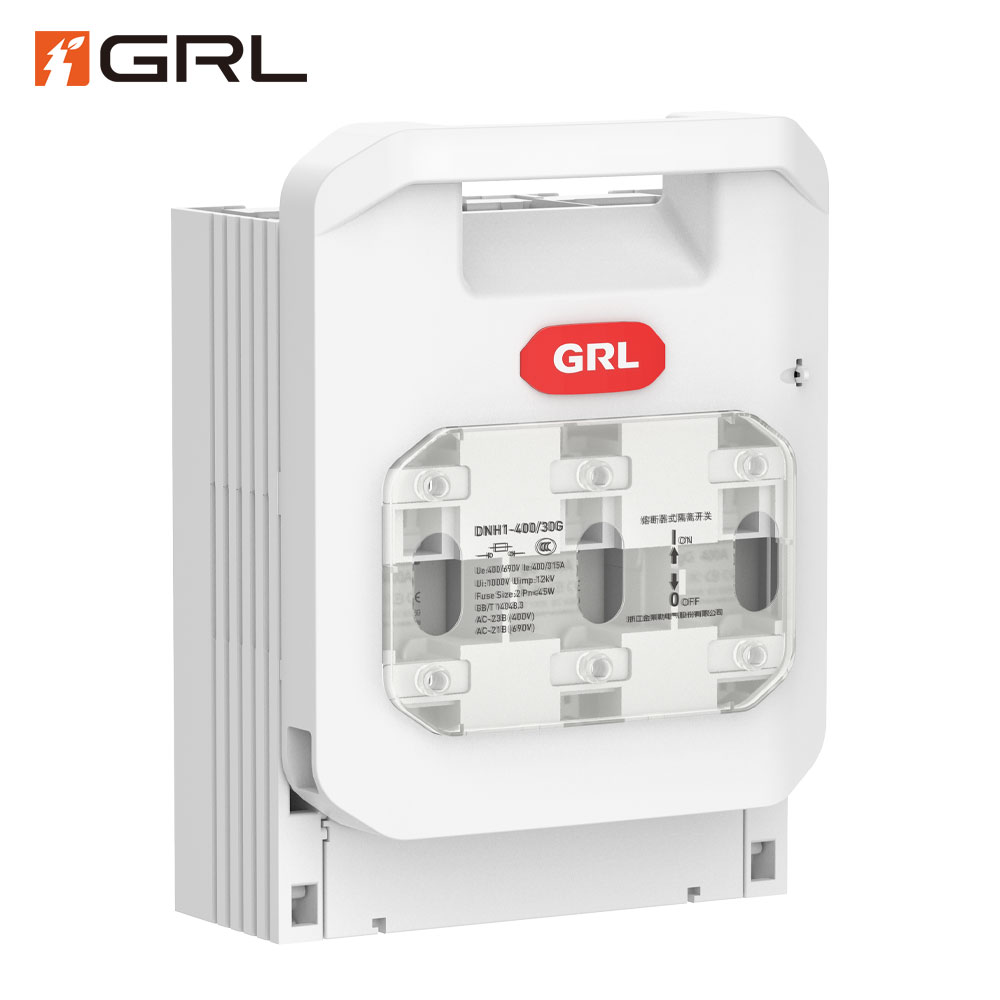

Fuse Switch Disconnector

3 Phase Fused Disconnect Switch


Mode: DNH1-160/30G, DNH1-250/30G, DNH1-400/30G, DNH1-630/30G,

Voltage: 400VAC/690VAC/1000VDC

Rated Current:160A, 250A, 400A, 630A, 800A

Raw Material: Copper contacts, DMC base,PC cover

Certificate: TUV,CB,CE RoHs

Intalaltion type:Fixed type and busbar type

Opitional: With fuse link, mirco switch,fuse monitor

Email: [email protected]

Suitable fuse:160A(NH00) 250A (NH1)400A(NH2) 630A(NH3) 800A(NH3)

Keyword: 250 amp disconnect switch、150a fused disconnect switch

Download PDF: GRL DNH1G FUSE SWITCH CATALOGUE

3 Phase Fused Disconnect Switch basic introduction :

The 3 phase fused disconnect switch produced by GRL Company usually refers to the non-outdoor fuse switch. The ac fuse switch is commonly used in the electric power field.

The ac power switch with fuse is collectively referred to as the 3 phase switch fuse unit, or it can be 3 single phase The fused disconnect switch is combined into a 3P nh fuse switch disconnector.

Common voltage 48v fused disconnect switch, 480v fused disconnect switch, 240v fused disconnect switch, 500v fused disconnect switch, 600v fused disconnect switch, 690v fused disconnect switch, 800v fused disconnect switch.

3 Phase Fused Disconnect Switch

Product description:

This type of fused electrical switch is a 3 phase fused disconnect switch, model DNH1G. It is used together with NH series fuses, so it is commonly called nh fuse switch disconnector, and it can also be called blade fuse switch with an isolation knife.
This fuse switch produced by GRL has a unique appearance, different current specifications, and different materials. The main material of the shell is PA66 resistance V0, PC, DMC, composition. The copper parts are made of red copper.

3 Phase Fused Disconnect Switch

Read on:→3 phase fused disconnect switch

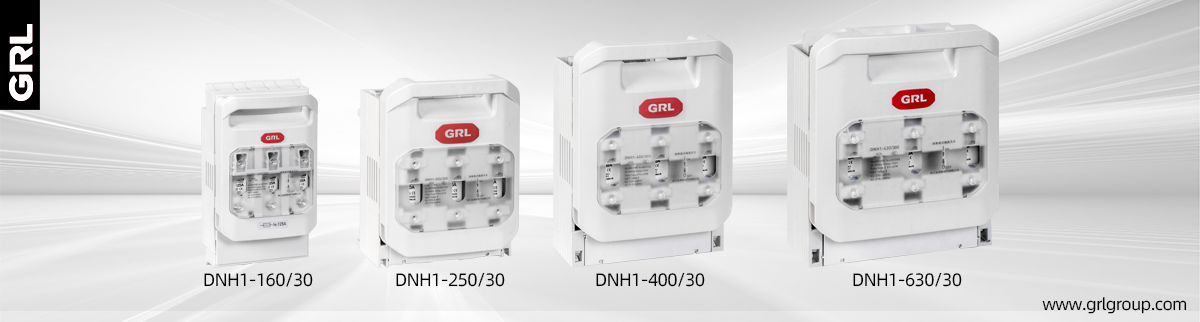

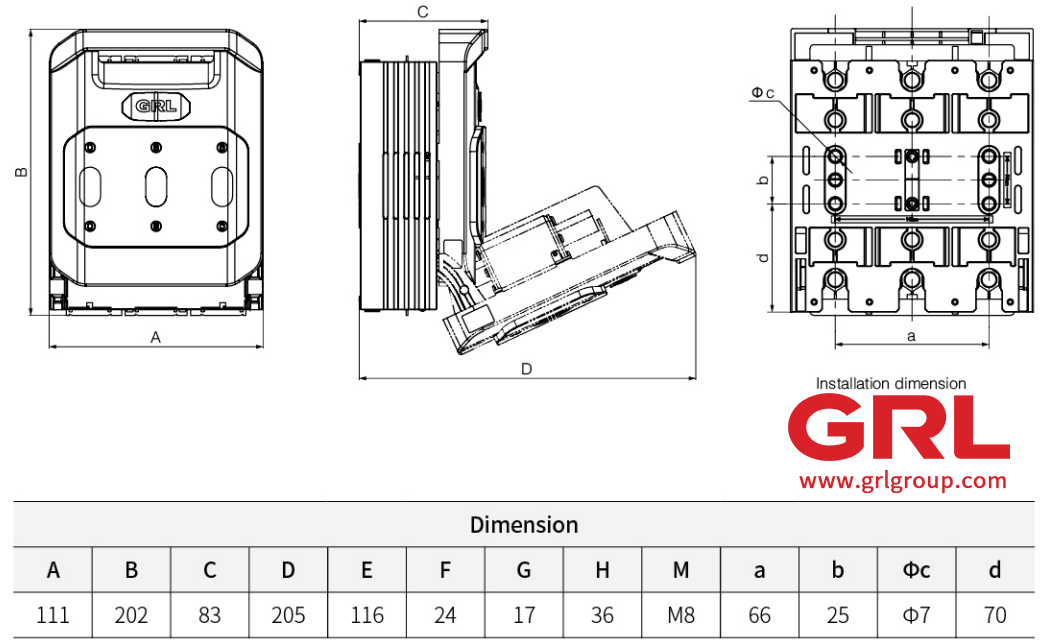

Product parameters:DNH1-160/30G

Selection Help.

Structure description Match fuse size Mounting method Product model Item No.
Normal type 00 Fixed type DNH1-160/30G DN31001
With 1NO+ 1NC auxiliary contactor 00 Fixed type DNH1-160/30G DN31011

Parameter Description

With fuse Rated voltage Ue V AC380 AC660
Rated current Ie A 160 100
Conventional thermal current Ith A 160 100
Rated short-time withstand current kA 100 50
Rated insulation voltage Ui V 800
Rated impulse withstand voltage Uimp kV 8
Utilization category AC-23B
AC-22B
AC-21B
AC-20B
Electric endurance times Times 200

3 Phase Fused Disconnect Switch160

Read GRL 3 Phase Fused Disconnect Switch Busbar type DNH1-160/31G

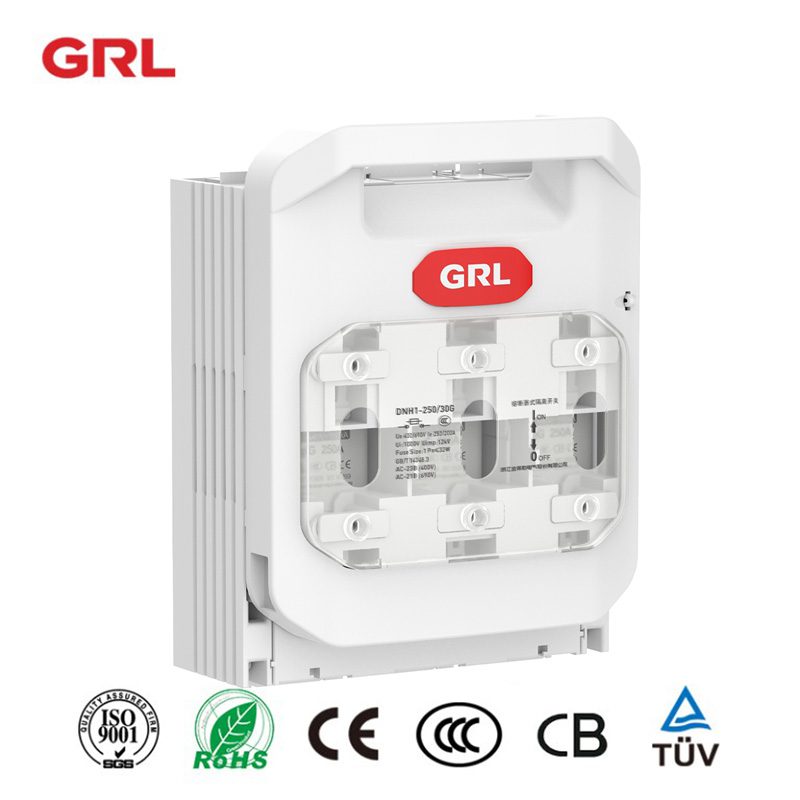

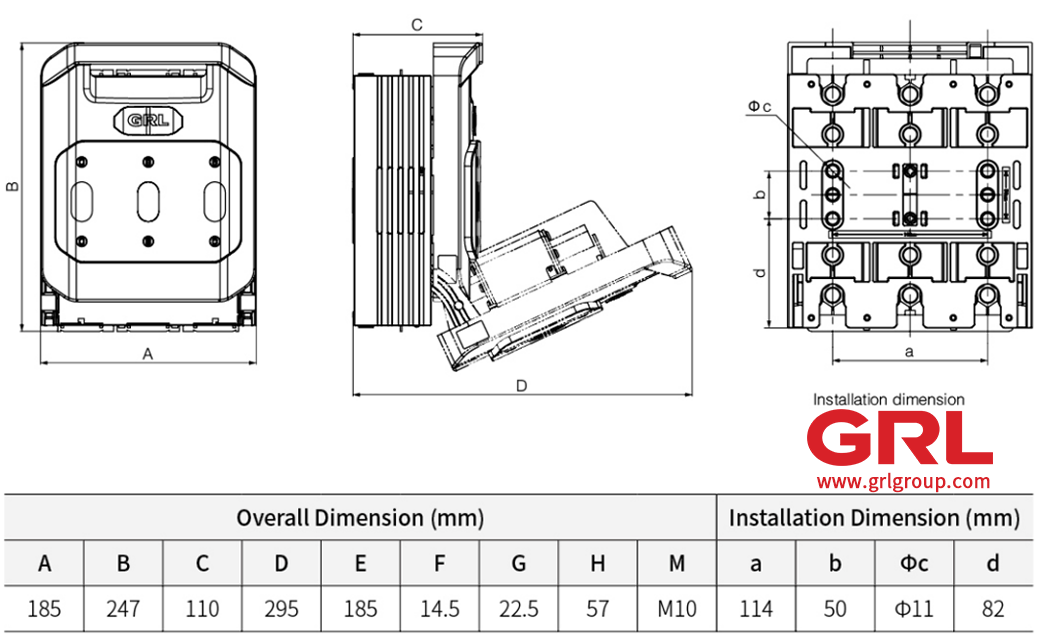

Product parameters:DNH1-250/30G

Selection Help.

Structure description Match fuse size Mounting method Product model Item No.
Normal type

1

Fixed type DNH1-250/30G DN31101
With 1NO+ 1NC auxiliary contactor

1

Fixed type DNH1-250/30G DN31111
With 2 (1NO+ 1NC auxiliary contactor)

1

Fixed type DNH1-250/30G DN31121

Parameter Description

With fuse Rated voltage Ue V AC380 AC660
Rated current Ie A 250 200
Conventional thermal current Ith A 250 200
Rated short-time withstand current kA 100 50
Rated insulation voltage Ui V 800
Rated impulse withstand voltage Uimp kV 8
Utilization category AC-23B
AC-22B
AC-21B
AC-20B
Electric endurance times Times 200



3 Phase Fused Disconnect Switch250

Read GRL 3 Phase Fused Disconnect Switch Busbar type DNH1-250/31G

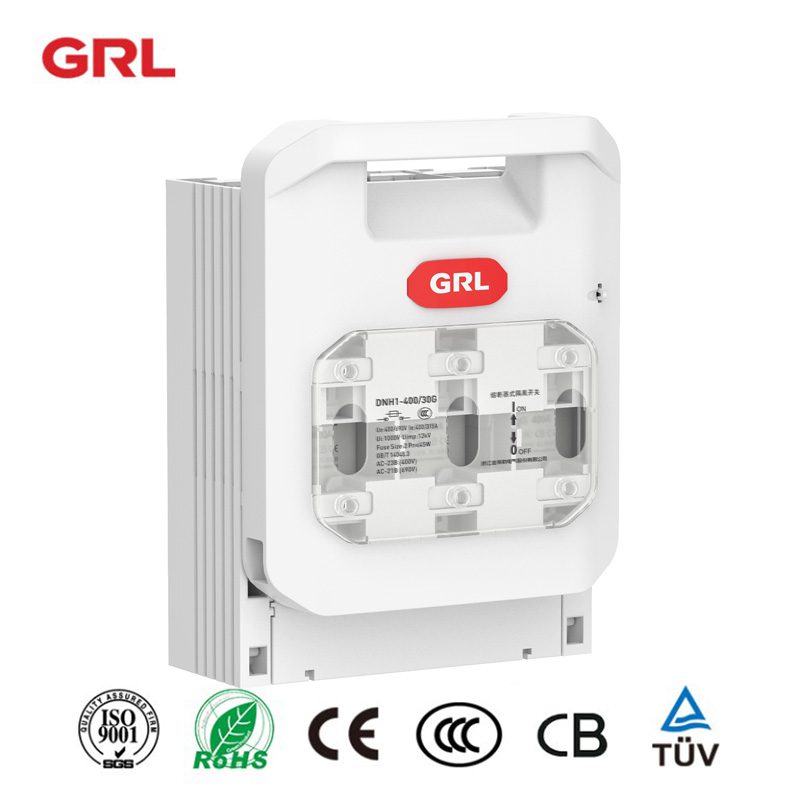

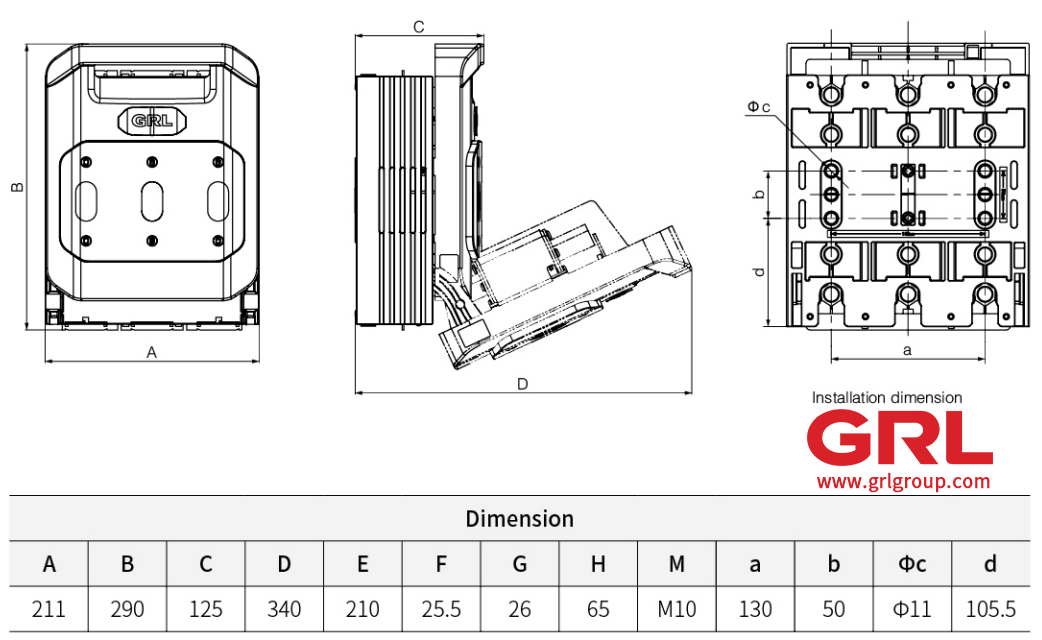

Product parameters:DNH1-400/30G

Selection Help.

Structure description Match fuse size Mounting method Product model Item No.
Normal type

2

Fixed type DNH1-400/30G DN31201
With 1NO+ 1NC auxiliary contactor

2

Fixed type DNH1-400/30G DN31211
With 2 (1NO+ 1NC auxiliary contactor)

2

Fixed type DNH1-400/30G DN31221

Parameter Description

With fuse Rated voltage Ue V AC380
Rated current Ie A 400
Conventional thermal current Ith A 400
Rated short-time withstand current kA 50
Rated insulation voltage Ui V 690
Rated impulse withstand voltage Uimp kV 12
Utilization category AC-23B
AC-22B
AC-21B
AC-20B
Electric endurance times Times 200

3 Phase Fused Disconnect Switch400

Read GRL 3 Phase Fused Disconnect Switch Busbar type DNH1-400/31G

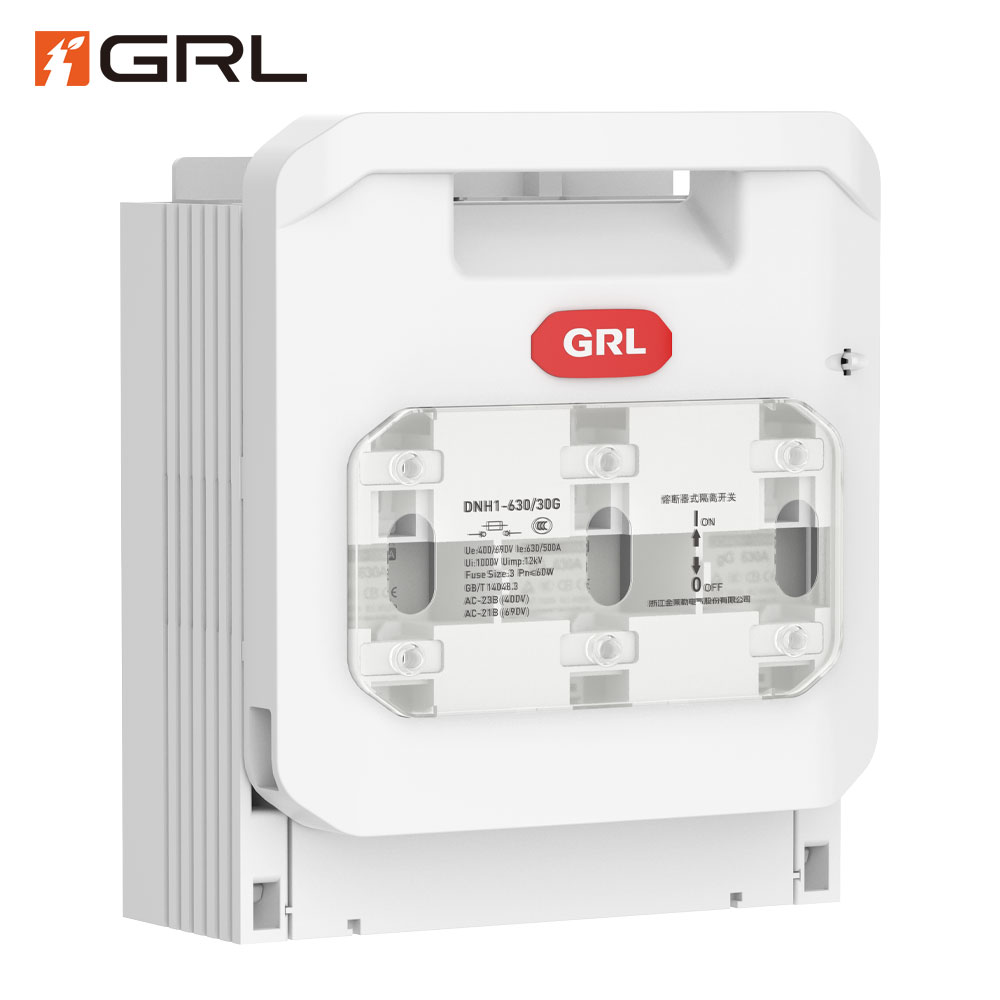

Product parameters:DNH1-630/30G

Selection Help.

Structure description Match fuse size Mounting method Product model Item No.
Normal type

3

Fixed type DNH1-630/30G DN31301
With 1NO+ 1NC auxiliary contactor

3

Fixed type DNH1-630/30G DN31311
With 2 (1NO+ 1NC auxiliary contactor)

3

Fixed type DNH1-630/30G DN31321

Parameter Description

With fuse Rated voltage Ue V AC380
Rated current Ie A 630
Conventional thermal current Ith A 630
Rated short-time withstand current kA 50
Rated insulation voltage Ui V 690
Rated impulse withstand voltage Uimp kV 12
Utilization category AC-23B
AC-22B
AC-21B
AC-20B
Electric endurance times Times 200



Read GRL 3 Phase Fused Disconnect Switch Busbar type DNH1-630/31G

Capacity to support:

Capacity to support: 50000 pcs/Sets per Month

15 amp fused disconnect switch, 20 amp fused disconnect switch, 30 amp fused disconnect switch,

60 amp fused disconnect switch, 100 amp fused disconnect switch, 200 amp fused disconnect switch,

250 amp fused disconnect switch, 400 amp fused disconnect switch, 600 amp fused disconnect switch,

630 amp fused disconnect switch, 800 amp fused disconnect switch, 1000a fused disconnect switch1000a,

1600 amp fused disconnect switch, 1200 amp fused disconnect switch, 2000 amp fused disconnect switch

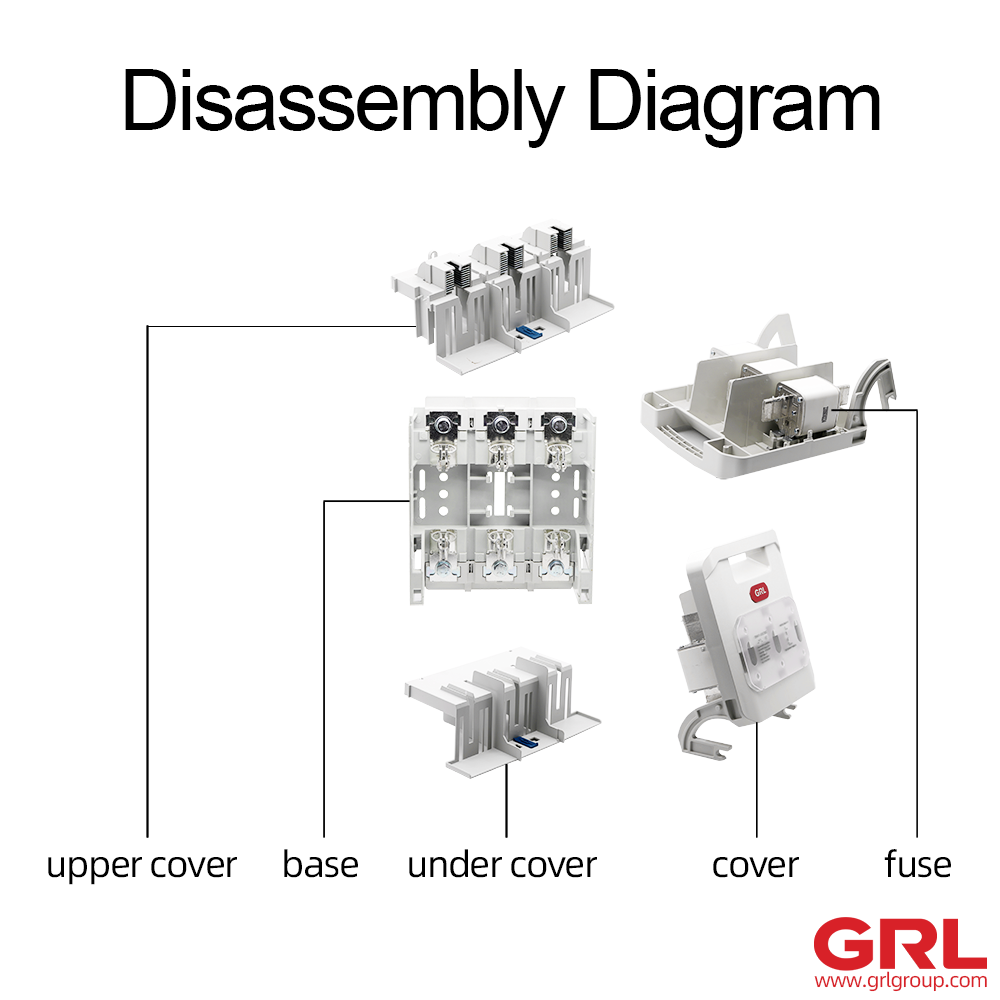

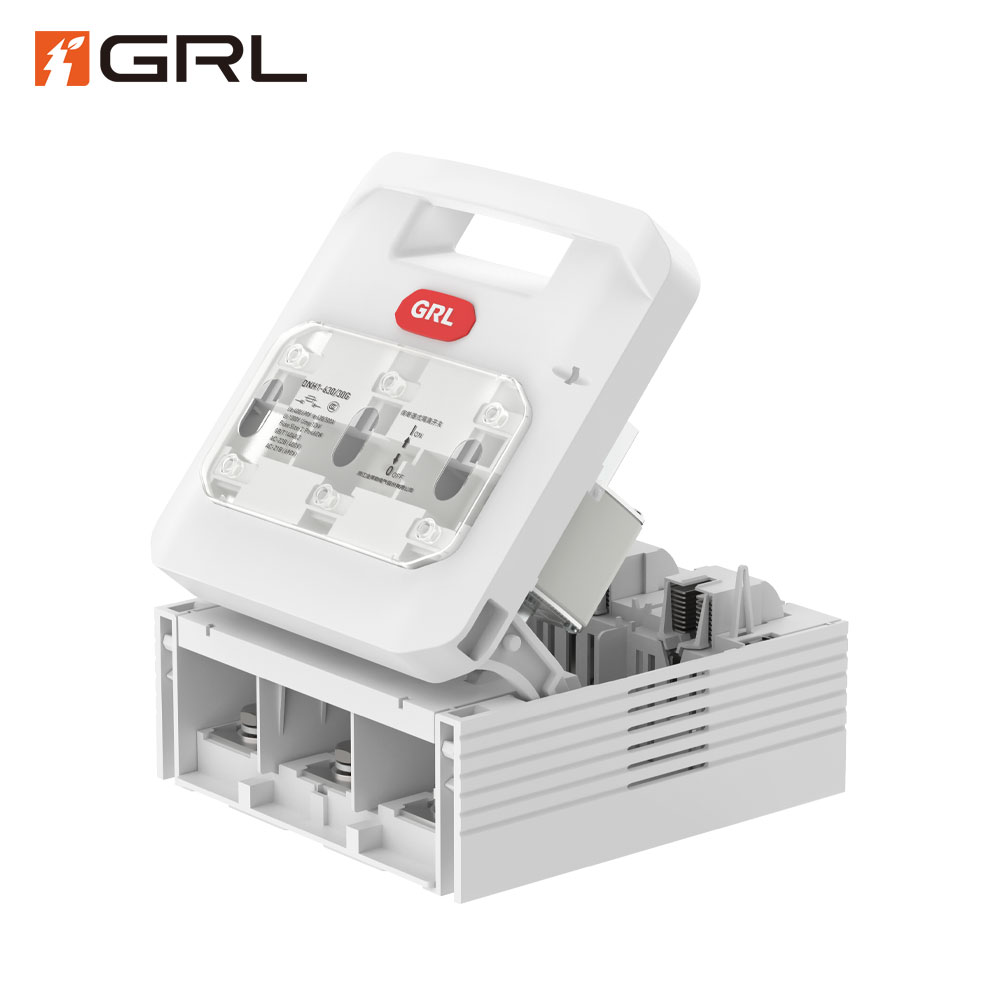

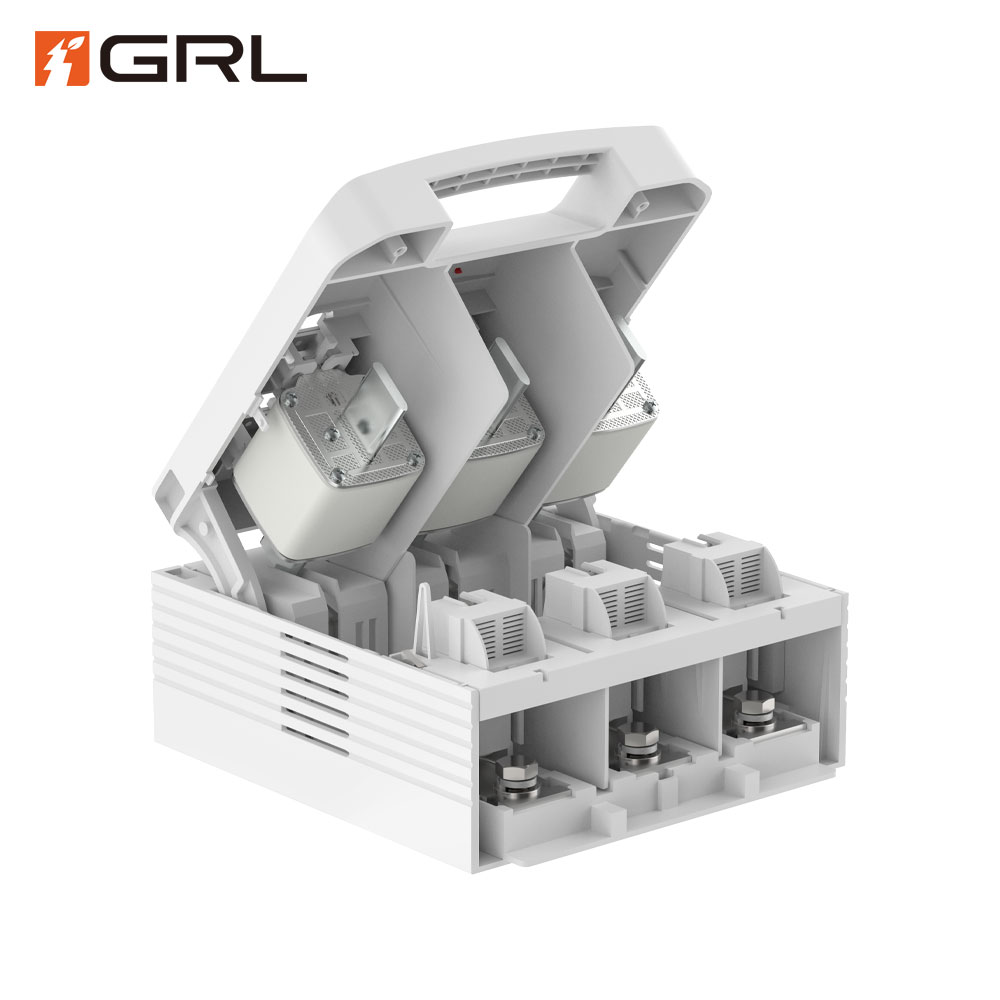

DNH1G exploded view

Get the latest GRL NH fuse switch disconnector product cataloge now

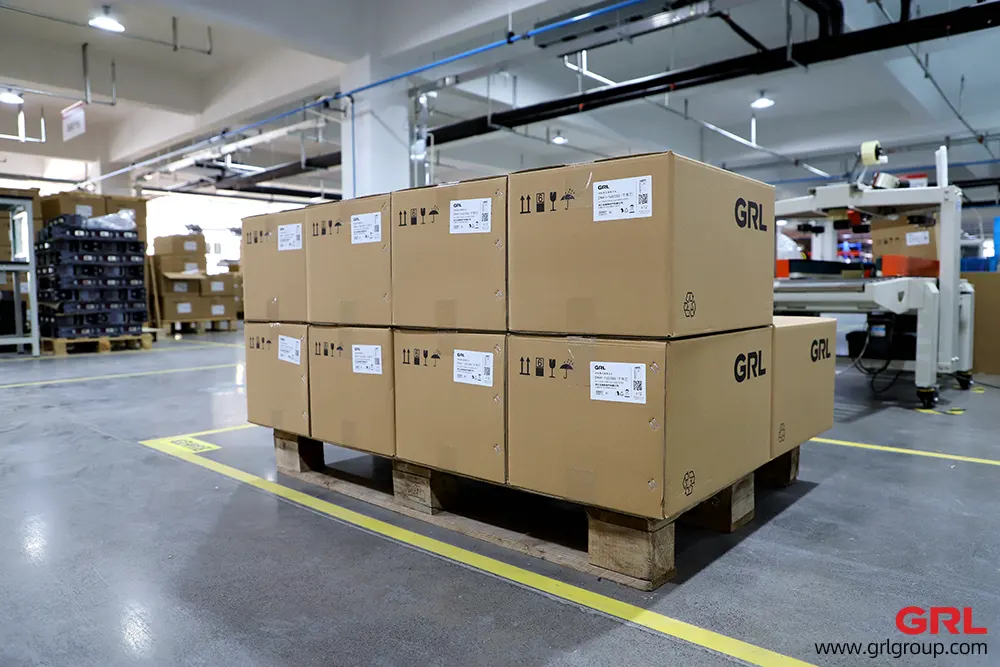

3 Phase Fused Disconnect Switch Packaging Details: International Packing Carton + pallet

16a fused switch,20a fused switch,30a fused disconnect switch,100a fused disconnect switch, 160a fused disconnect switch 18pcs/carton

125a fused disconnect switch,200a fused disconnect switch,250a fused disconnect switch,250a fuse switch,6pcs/carton

400 amp fused disconnect switch,630 amp fused disconnect switch,800 amp fused disconnect switch 4pcs/carton

3 Phase Fused Disconnect Switch box

3 Phase Fused Disconnect Switch carton

3 Phase Fused Disconnect Switch is Divided into fixed installation and busbar installation

Newly developed with electronic functions. At the same time, there are two types of wiring methods, one can be connected by traditional bolts, and the other can be connected by clips.

Fuse switches are manufactured according to international standards such as IEC 60947-3 and DN60269-2.

Fuse switches are manufactured according to international standards such as IEC 60947-3.

Read GRL article on what is a fused disconnect switch

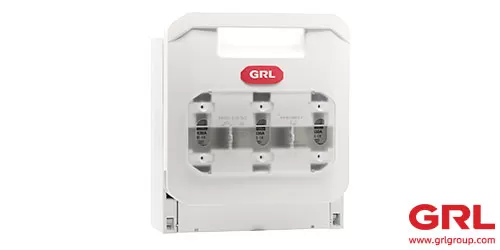

3 Phase Fused Disconnect Switch type DNH1G: it can be equipped with microswitch accessories, lock function, fuse detection function, and remote control function.









600 v fused disconnect switch 200 amp fused disconnect switch

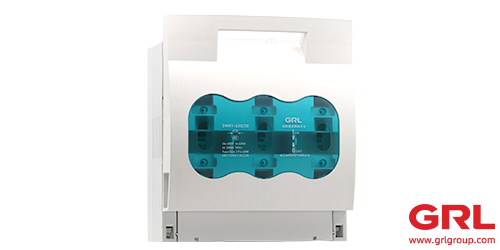

DNH1G

DNH1

3 Phase Fused Disconnect Switch type DNH1: it has the function of locking, microswitch accessories, and there is no fuse detection controller, so it cannot carry out remote control function.









600v fused disconnect switch 250 amp fused disconnect switch

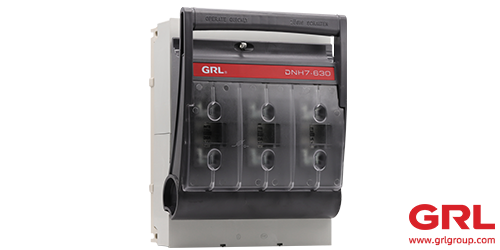

3 Phase Fused Disconnect Switch Fuse disconnect switch type DNH7: it can be equipped with microswitch accessories and has no locking function.

Click to view grl DNH7-160 product>>







600v fused disconnect switch 400 amp fused disconnect switch

DNH7

3 Phase Fused Disconnect Switch wiring

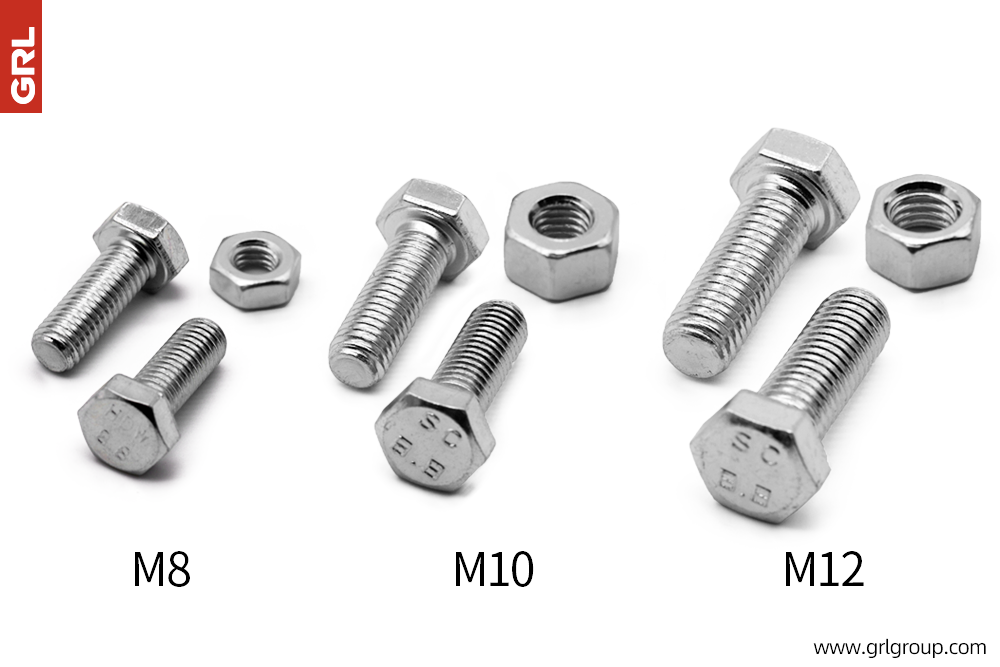

DNH1G: matching terminal 160A M8 bolt, 250a-400a M10 bolt, 630A M12 bolt, bolt 8.8 grade

DNH1: matching terminal 160A M8 bolt, 250a-400a M10 bolt, 630A M12 bolt, bolt 8.8 grade

DNH7: matching terminal 160A M8 bolt, 250a-400a M10 bolt, 630A M12 bolt, bolt 8.8 grade

DNH1G: matching cable square number 160A 16-70 mm², 250A -400a 25-150 mm², 630A 25-240 mm²

DNH1: matching cable square number 160A 16-70 mm², 250A -400a 25-150 mm², 630A 25-240 mm²

DNH7: matching cable square number 160A 16-70 mm², 250A -400a 25-150 mm², 630A 25-240 mm²

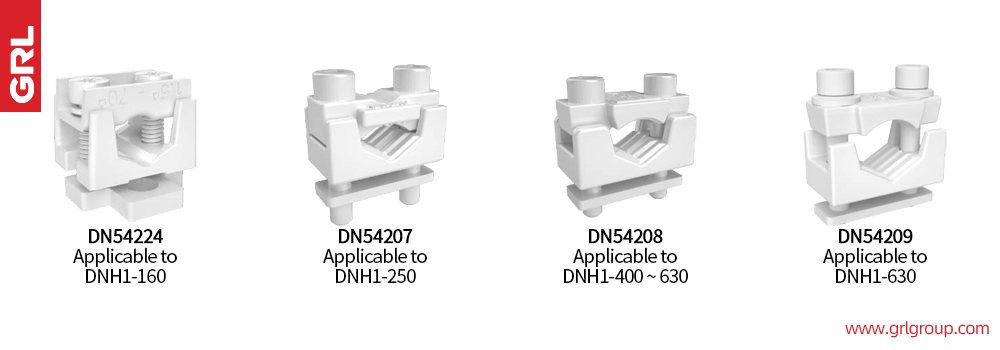

3 Phase Fused Disconnect Switch clamp

600v fused disconnect switch 600 amp fused disconnect switch

DNH1G switch type fuse : 100 amp fused disconnect switch,200 amp fused disconnect switch, 250 amp fused disconnect switch,400 amp fused disconnect switch, 600 amp fused disconnect switch,800 amp fused disconnect switch

DNH1 switch type fuse : 60 amp fused disconnect switch, 100 amp fused disconnect switch, 200 amp fused disconnect switch,400 amp fused disconnect switch, 630 amp fused disconnect switch。

DNH7 switch type fuse : 160 amp fused disconnect switch,250 amp fused disconnect switch, 400 amp fused disconnect switch,630 amp fused disconnect switch, 800 amp fused disconnect switch

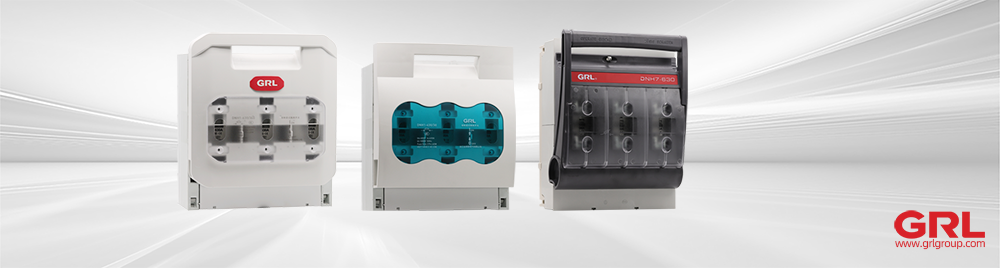

3 Phase Fused Disconnect Switch 3AND1

600v fused disconnect switch 800 amp fused disconnect switch

Fused electrical switch selection principle of fuse:

Fuse NH00 matching specifications 100A fused disconnect switch, 125A fused disconnect switch, 160A fused disconnect switch
Fuse NH1 matching specifications 200A fused disconnect switch, 250A fused disconnect switch and 250A fuse switch
Fuse NH2 matching specification 400 amp fused disconnect switch
Fuse NH3 matching specifications 630 amp fused disconnect switch, 800 amp fused disconnect switch

Note: the selection principle of isolating knife is consistent with the fuse standard.

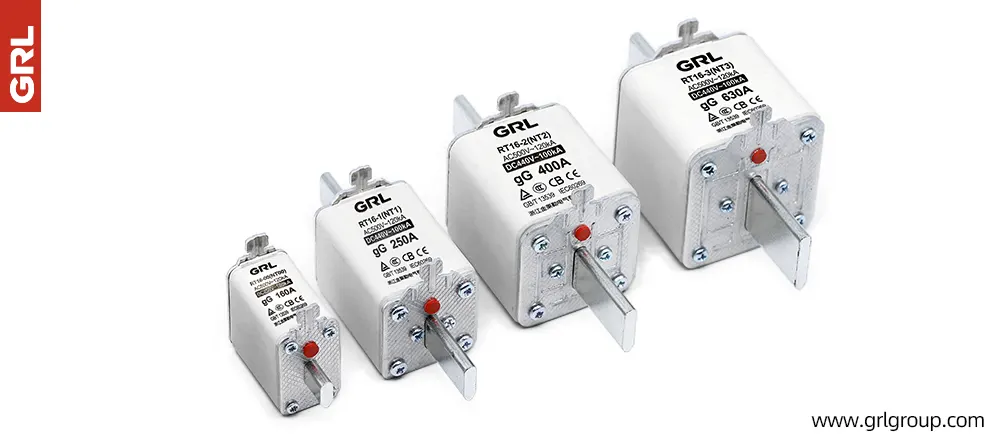

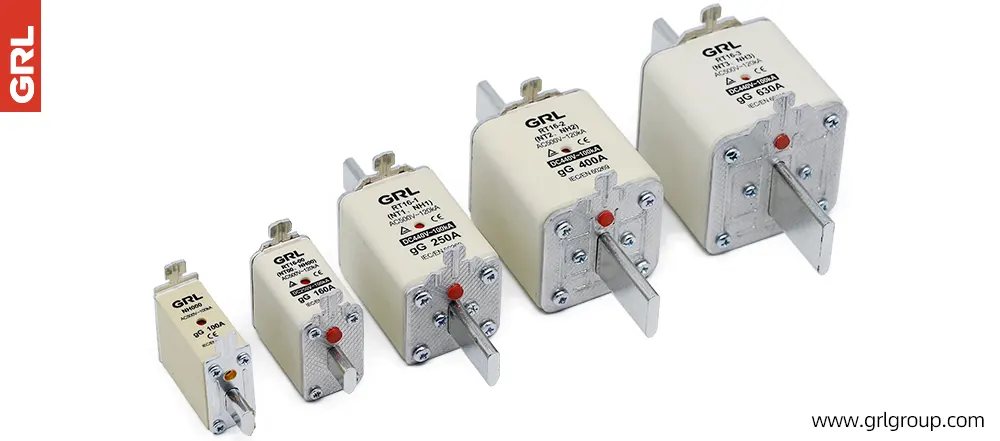

FUSE LINK 2NT FUSE LINK
